Fractal Design Prisma AL-12 RGB Fan Review

Silence is golden or red or purple

Article Index: >>    A Closer Look at the Fractal Design Prisma AL-12 RGB Fan »

Fractal has been absent from the RGB game as of late. Their latest cases don’t feature any RGB lighting. A bit ago, Fractal announced their Prisma Series of fans. The series features both 120 and 140 mm versions as well as PWM and non-PWM.  There are also two lines in the Prisma series, the AL (Addressable LED) and SL (Single Color). With RGB lighting becoming a thing on almost every PC component, I can see why Fractal took their time releasing the fans. Fans serve a critical purpose and still need to perform. Manufacturers have been adding LED lights to fans for years, addressable LEDs is just the next logical step. The review sample we received is the Prisma AL-12 non-PWM.





Review Sample Provided by: Fractal Design
Product Name/Link to Website: Fractal Design Prisma AL-12
Product was given in exchange for work done to produce this review.





Packaging

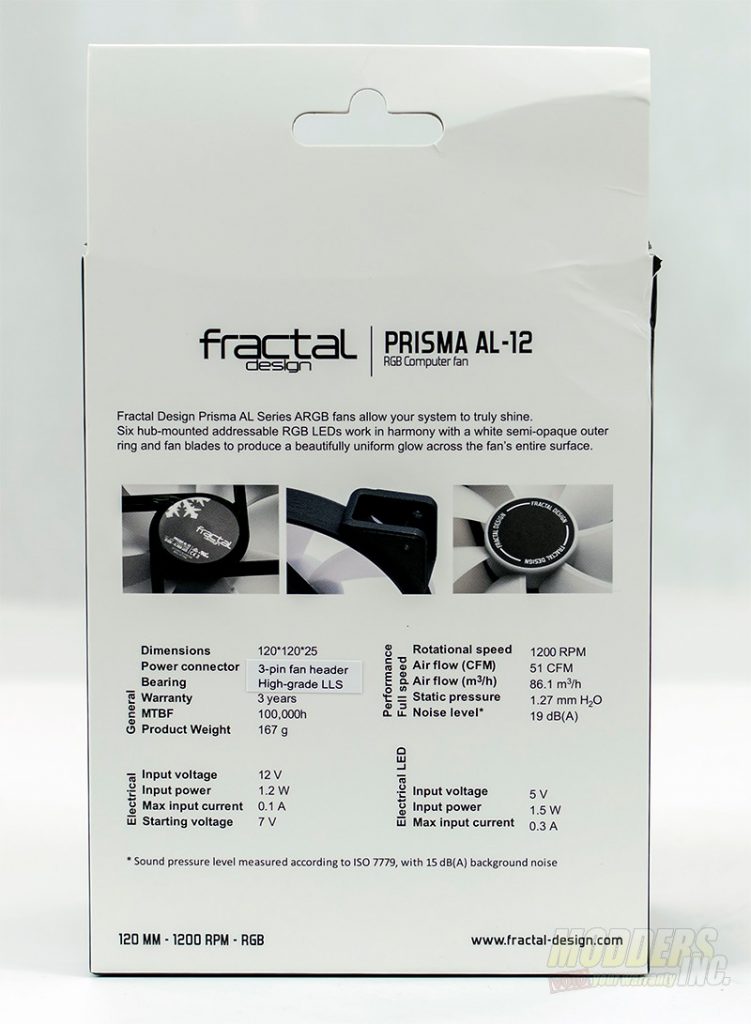

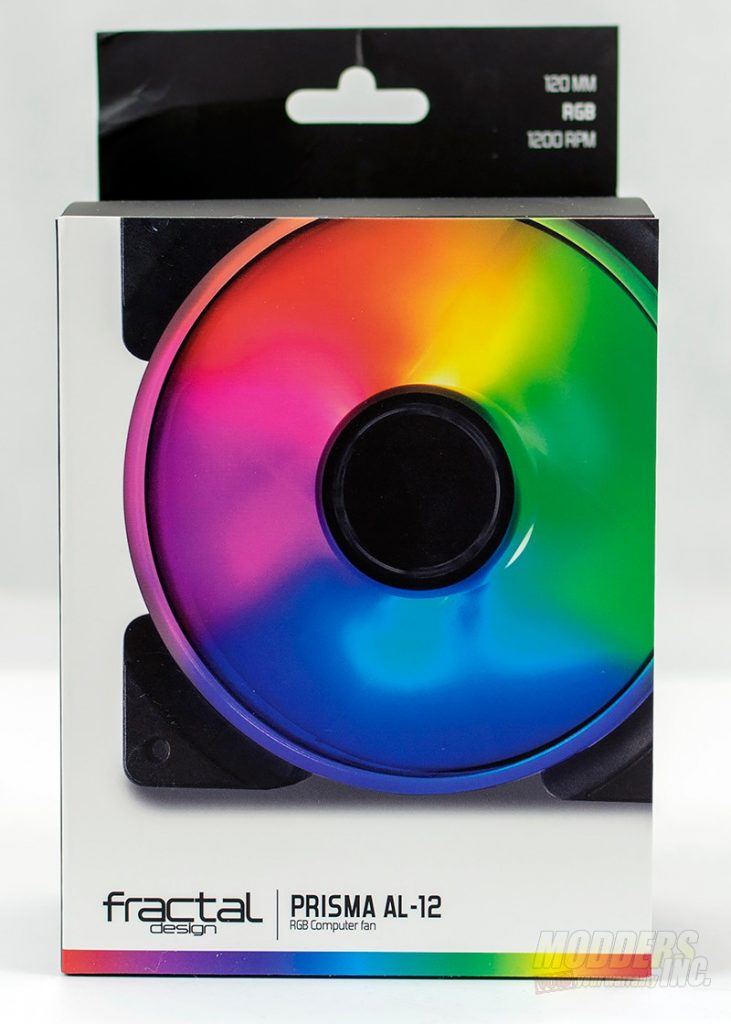

The front of the Prisma AL-12 box features a large graphic of the fan in all its RGB glory. The tag on the box lets you know if the fans are 120 or 140mm as well as if it is the PWM version. The back fo the box dives into more details on the fans specification and features.

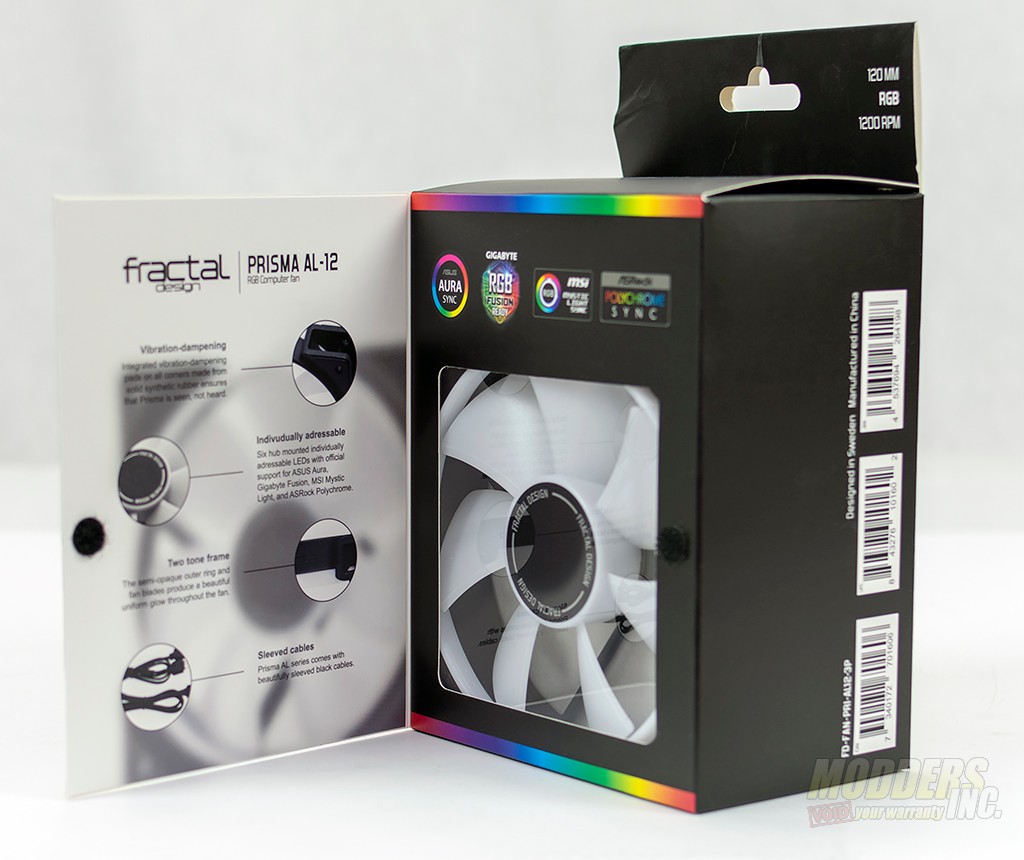

There is a front flap that can be opened to take a look at the fans housed within. Like the back of the box, the features of the Prisma AL-12 fans are listed here.



Specifications

Size120 x 120 x 25 mm
Blade colorSemi-opaque white
Frame colorBlack
LED typeSingle color
Screw hole pattern105 x 105 mm
Power connector3-pin
BearingLLS
Number of blades7
Rotational speed1200 RPM
Noise level 19.5 dB(A)
Airflow (CFM) 50.63 CFM
Airflow (m3/h)86.02 m3/h
Static pressure 1.27 mmH2O
Fan input power 3.0W
Fan max input current 0.25A
Fan input voltage12V
Fan starting voltage6V
LED input power 1.80W
LED max input current 0.15A
LED input voltage12V
MTBF100,000 hrs.
Fan weight138 g
Package weight162 g
Cable length500 mm ±10 mm
Cable typeBlack ribbon cable
Packaging dimensions

(Including hanging tab)

182 x 122 x 26 mm
Packaging dimensions

(Excluding hanging tab)

147 x 122 x 26 mm
