MSI GTX 970 Gaming 4G GPU Review

« Power Delivery and Twin Frozr V Cooling System | Overclocking Performance »

Testing Methodology

Processor Intel Core i7-4770K (Retail)
CPU Cooler Noctua NH-U14S with Noctua NT-H1 thermal compound
Motherboard MSI Z97M Gaming
Memory Kingston Hyper X Beast DDR3 2133 MHz 8 GB
Storage Samsung Evo 250GB SSD, Western Digital Black 500 Gb
Case Cooler Master Cosmos II SE
Drivers Nvidia Geforce 344.07/AMD Catalyst 14.4/nVidia GeForce 340.52
Video Card(s) MSI Radeon R9 280X, EVGA GTX GeForce 770 SC
Monitor Asus VS247
Operating System Windows 7 x64 Ultimate SP-1 with latest patches and updates



Latest working BIOS, updates and driversMSI GTX 970 Gaming 4G GPU Review 4 gigabytes, Gaming, Maxwell, MSI, Nvidia 1 were used at the time of the review. Each test was conducted at least three times for accuracy. All benchmarks were performed at a resolution of 1920 x 1080 unless otherwise specified.

The MSI GTX 970 has a base clock of 1140 MHz with a boost clock of 1179 out of the box without using the MSI Gaming App. I was able to get a maximum overclock on the GPU of 1489 Mhz. These were the most stable settings and in order to be included in the benchmarks no errors or graphical corruption was allowed.

Benchmark Settings

Synthetic Benchmarks

Advertisement
  1. 3DMark (Firestrike) – Default Preset
  2. Unigine Valley 1.0 – Extreme HD, 8xAA
  3. Unigine Heaven 4.0 – Ultra Quality, 8x AA, Extreme Tessellation



Gaming Benchmarks

  1. Metro: Last Night-  Very High Preset with 16x AF & Tessellation at very high. Built-in Benchmark
  2. Tomb Raider – Ultimate Preset. Built-in benchmark.
  3. Bioshock Infinite – Ultra Preset with DDoF ON. Built-in benchmark
  4. Battlefield 4 – Ultra Preset with 4x MSAA. 60 second playthrough
  5. Crysis 3 – Ultra Preset with FXAA enabled. 60 second playthroughs
  6. The Elder Scrolls V: Skyrim – Ultra Preset with FXAA on. 60 second playthrough



Video Card(s) Core Clock (MHz) Memory Clock (MHz) Current Price ($ USD)
MSI GTX 970 Gaming 4G 1140MHz Core Boost Clock:1020MHz (Gaming mode) 7010  349.99
MSI Radeon R9 280X 1000MHz Core Boost Clock:1050MHz (OC mode)
1000MHz Core Boost Clock:1020MHz (Gaming mode)
1000MHz Core Boost Clock:1000MHz (Silent mode)
6000 304.99
EVGA GeForce GTX 770 SC 1085MHz Core Boost Clock:1137MHz 7010 329.99 (309.99 w/rebate)



Benchmarks

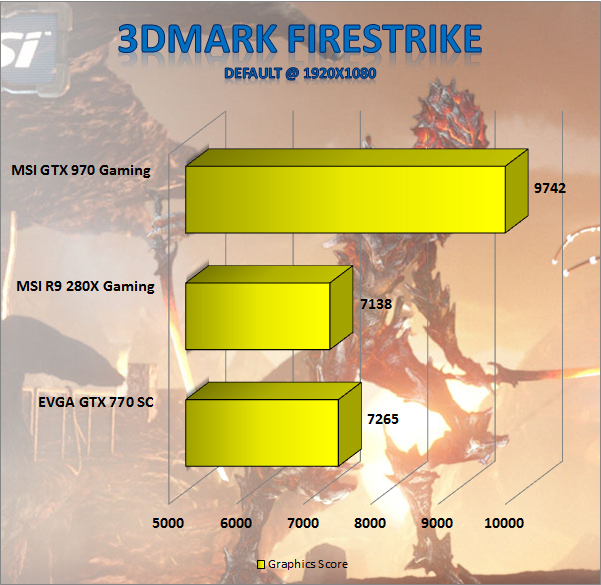

3DMark Firestrike from Futuremark is a Semi-synthetic DirectX11 benchmark designed for high-performance gaming PCs. Firestrike performsMSI GTX 970 Gaming 4G GPU Review 4 gigabytes, Gaming, Maxwell, MSI, Nvidia 2 advanced geometry, illumination and particle tests with its Graphics benchmark and performs physics simulations using the CPU. For our video card test, only the graphical score is taken.

firestrike

Advertisement

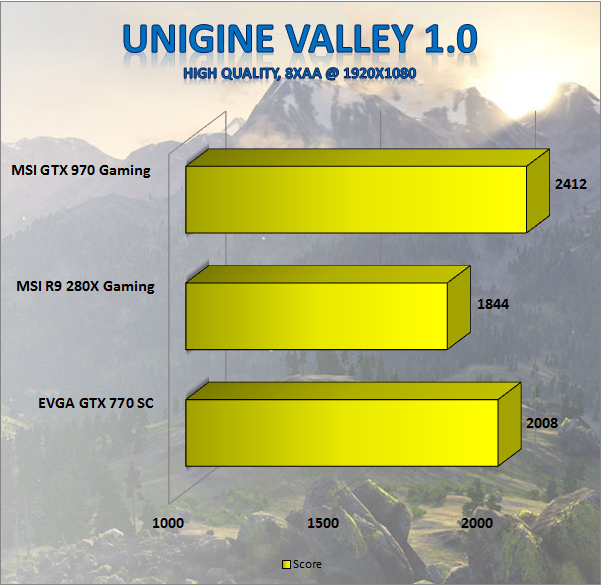

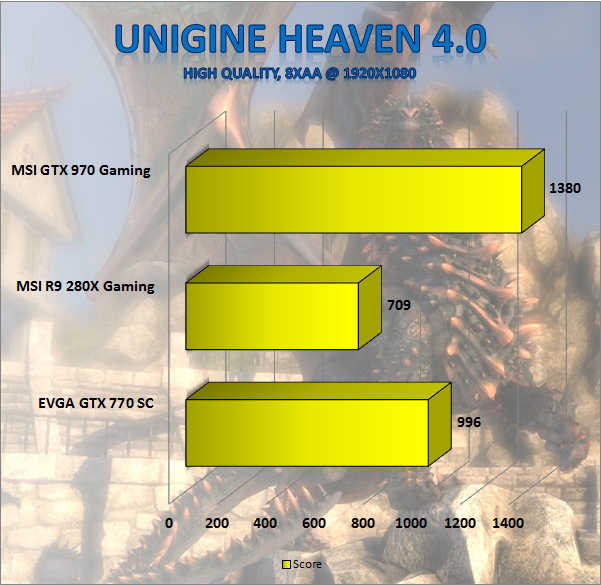

Unigine Valley 1.0 and Heaven 4.0 are GPU intensive synthetic benchmarks that utilize tessellation, advancedMSI GTX 970 Gaming 4G GPU Review 4 gigabytes, Gaming, Maxwell, MSI, Nvidia 3 lighting, dynamic environments and other DirectX11 graphical features. Both of these are excellent for video card stability and temperature testing and even supports Stereo3D and multi-monitor benchmarking.


valley heaven



Gaming Benchmarks

First up in our gaming benchmarks we have Battlefield 4. In this test we use the Singapore mission in the Campaign. Frame rates are recorded from the time the boat hits the shore until the freeway is reached.
BF4

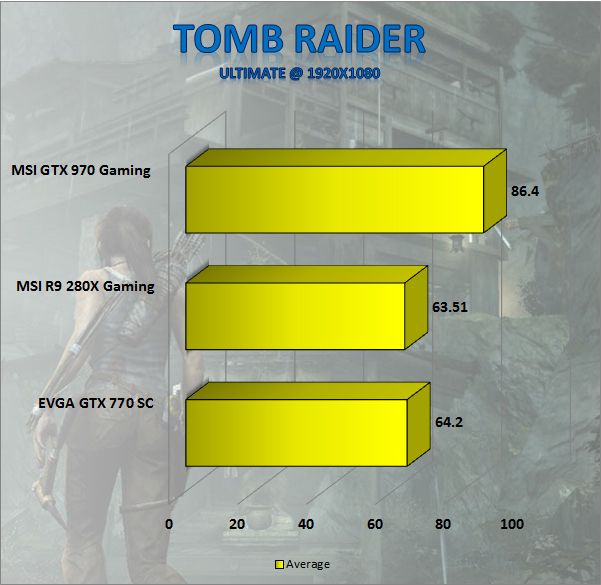

Tomb Raider is a re-launch title of the decades old video game series utilizing a DirectX 11 Crystal Engine to render a 3rd-person action adventure game.
traider





Bioshock Infinite is the third title in the alternate-universe first-person shooter franchise utilizing Unreal Engine 3.

Bioshock





Metro:Last Night is a post-apocalyptic first person shooter that combines stealth and horror elements that uses the A4 engine.

metro_LL



Crysis 3 is labeled as the GPU killer. Just like the Original Crysis had the GPUs crying for their mother,  so does Crysis 3. Crysis 3 brings back Prophet to New York in 2047. Crysis 3 uses the latest Cryengine for stunning visuals. The level we chose was just after entering the tunnels. This features good visuals and a mixture of environments as well as a good firefight towards the end.
Crysis3
