MSI Nightblade Barebone System Review

Article Pages: « Page 4 | Page 6 »

Testing

Testing for this review will be done against my test bench set that uses a ASUS z87 Pro motherboard. All the other hardware is swapped from the test bench into the MSI Nightblade. This should give us some great comparison numbers against each others motherboards and drivers. Testing will be done with software that you can download from the internet and use to compare you own system to the results that we got. Hardware performance varies form one item to the next so please use the results just for comparison.

Test SystemMSI Nightblade
MBASUS Z87-PROZ87I
CPUIntel Core i7-4770K HaswellIntel Core i7-4770K Haswell
Memory8GB DDR3 1333 MHz8GB DDR3 1333 MHz
SSDKingston 128 GB Hyper X 3.0Kingston 128 GB Hyper X 3.0
HDSeagate Barracuda 7200 rpmSeagate Barracuda 7200 rpm
VideoSapphire R9 270Sapphire R9 270

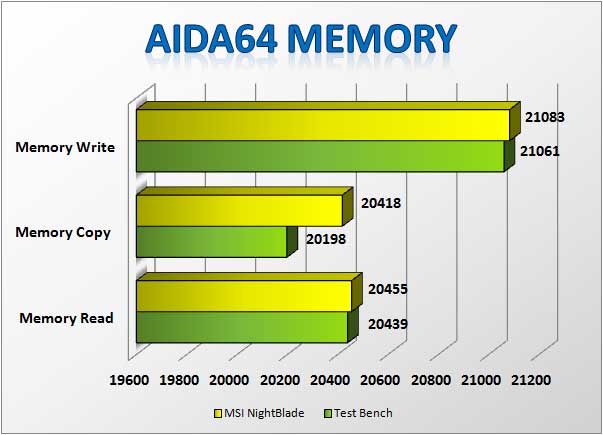

Our first set of testing is done with AIDA64 Engineer. This software is used because it provides a wide range of features to assist in overclocking, hardware error diagnosis, stress testing, and sensor monitoring. It has unique capabilities to assess the performance of the processor, system memory, and disk drives. AIDA64 is compatible with all current 32-bit and 64-bit Microsoft Windows operating systems, including Windows 8.1 Update 1 and Windows Server 2012 R2 Update 1. It is also the software of choice by manufactures for their in house testing.

AIDA64-1

AIDA-mem-1

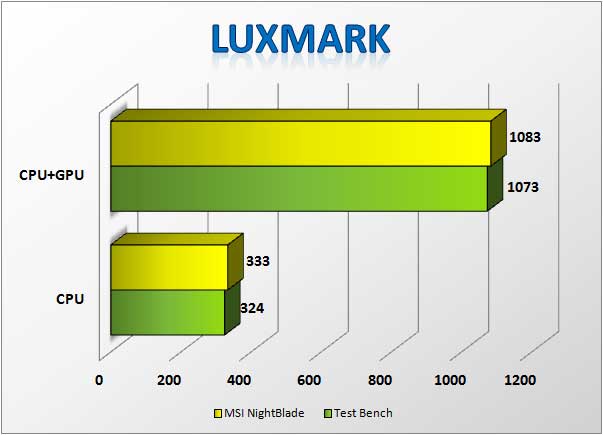

LuxMark is a OpenCL benchmark tool. It was intended as a promotional tool for LuxRender. The idea was quite simple, wrap SLG inside an easy to use graphical user interface and use it as a benchmark for OpenCL. LuxMark has been widely used as OpenCL benchmark by AnandTech, Tom’s Hardware, Vr-zone and other sites.

Luxmark

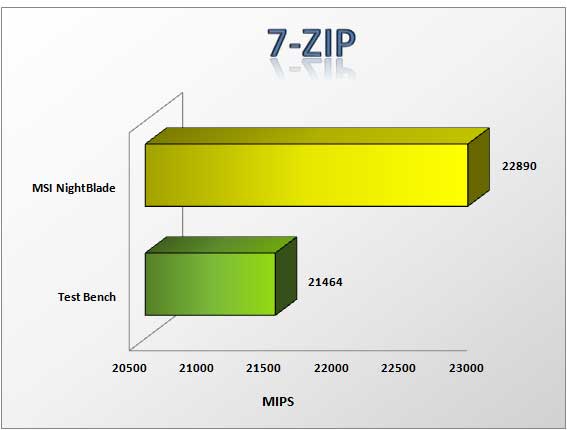

7-ZIp is an open source file compression tool that has a built in benchmarking tool.  The benchmark shows a rating in MIPS (million instructions per second). The rating value is calculated from the measured speed. The test data sample of 32mb that is used for compression in that test is produced with special algorithm, that creates data stream that has some properties of real data, like text or execution code. Note that the speed of LZMA for real data can be slightly different.

7-zip

Super PI is a single threaded benchmark that calculates pi to a specific number of digits.

Superpi-1

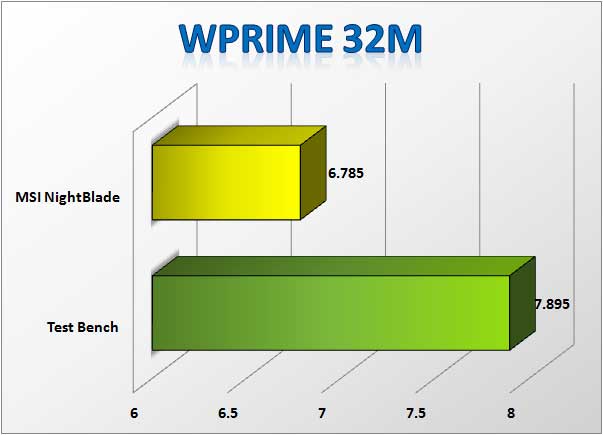

wPrime is a leading multi-threaded benchmark for x86 processors that tests your processor performance by calculating square roots with a recursive call of Newton’s method for estimating functions,

wprime-1

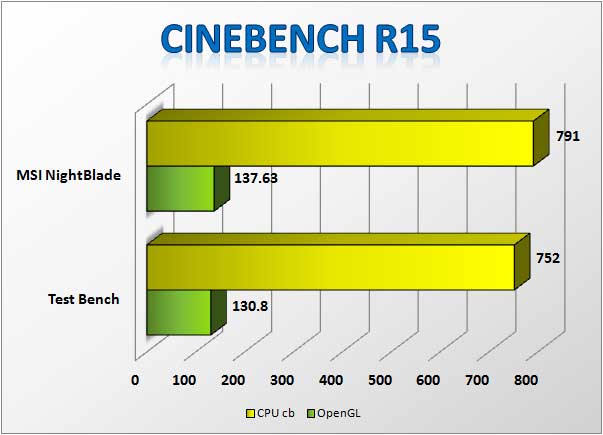

CINEBENCH is a real-world cross platform test suite that evaluates your computer’s performance capabilities. The test procedure consists of two main components – the graphics card performance test and the CPU performance test.

cinebench-R15

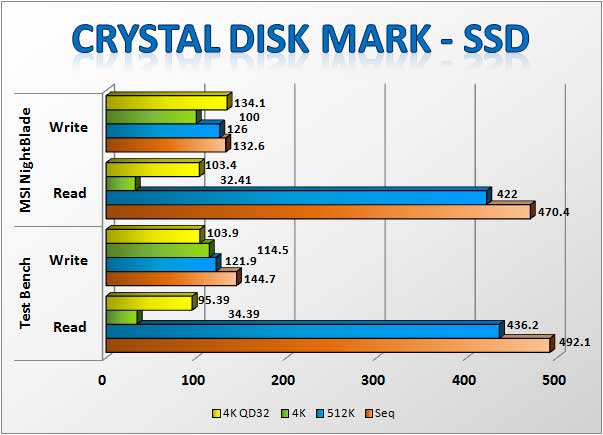

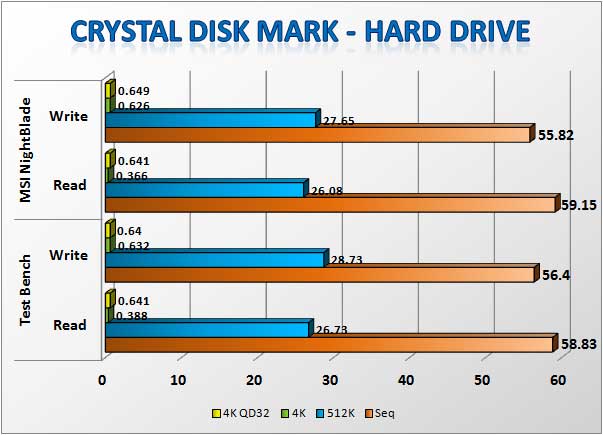

Crystal Disk Mark is a great tool to use to test and measure sequential reads/writes speeds, measure random 512KB, 4KB, 4KB (Queue Depth=32) reads/writes speeds and select test data (Random, 0Fill, 1Fill)

CM-HD-1

CM-SSD-1

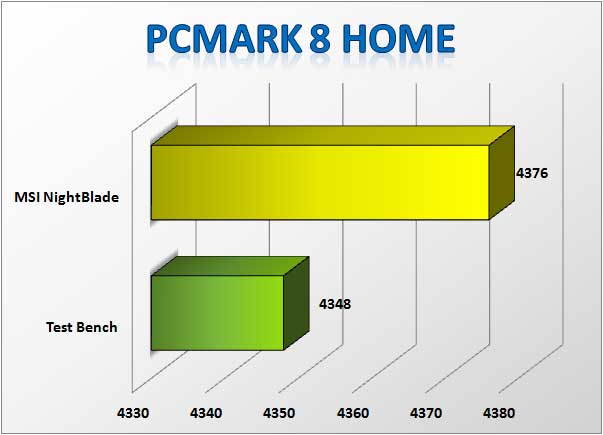

PCMark 8 is the latest version in our series of popular PC benchmarking tools. It is designed to test the performance of all types of PC, from tablets to desktops. With five separate benchmark tests plus battery life testing, PCMark 8 helps you find the devices that offer the perfect combination of efficiency and performance.

pcmark8

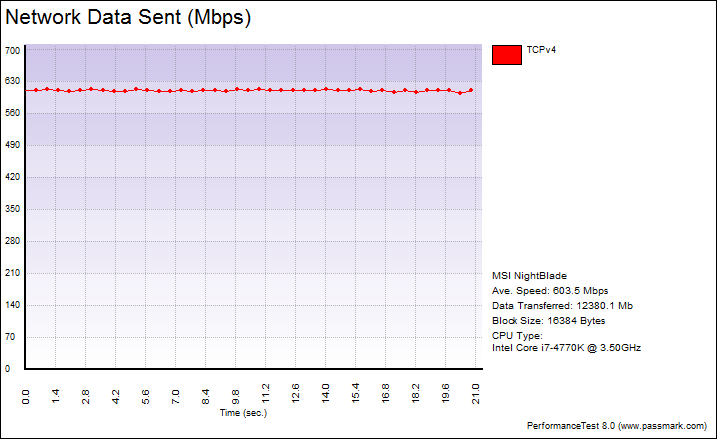

The benchmark software Performance Test was used to check out the Killer LAN on the motherboard.

network testing



Article Pages: « Page 4 | Page 6 »
Previous page 1 2 3 4 5 6 7Next page
Tags

Dewayne Carel

Dewyane began in the case modding scene when it was just starting out many years ago. Shortly after that, he started Modders-Inc to help others learn how to create and have fun with PC case mods. He has created works for the likes of Bethesda, Cooler Master, ASUS, CPU Magazine, Razer, Zotac and more.

4 Comments

  1. Your graphs are completely biased! how can you visually represent a .1 FPS difference by a bar twice as large? Even under the premise of testing different mobo response .1 FPS is small enough to call percent error in a scientific test. show the result accurately or at least express how little difference .1 FPS means in any situation. it means every 10 seconds you will have render 1 additional frame on one system versus the other.

  2. Thank you so much for this review, been waiting for something this in depth by someone who knows their stuff.

    I’m planing on getting a new desktop this year and this one caught my eye. I have 3 questions for you I hope you don’t mind.

    This should be perfectly compatible with current top tier nvidia cards right? Their size is a bit similar to amd but the titan is a bit longer.

    This has a 600w psu, which is good but not exactly stellar, when the gtx 790 (or any future nvidia card) I will want to upgrade to that. Will 600w be enough? If not, upgrading the psu is easy enough? Looks too cramped in there and I read somewhere this system uses shorter cables to fit everything better so I’m not sure if the regular cables on a 1000w psu would provide a problem.

    Last question is about the over clock button, how does this work exactly? No matter which CPU I out in there (say a haswell) the button will automatically over clock it? Does it need any configuration? And is it the equivalent to bios over clocking or is it just software oc?

    Thanks!

  3. Yes the Nightblade is compatible with the high end graphic cards. Actually the PCI-e slot is a Gen 3 one which means it is ready for the next level. Be sure that you get a full-size card that is within the maximum length of 290mm and 35mm thick.

    The 600w PSU is good for what most people would use. If you throw a Titian in the system you are probably going to be close. The way I look at figuring a power supply is to always take 20% off the “Stated” wattage which would take the 600w psu down to 480w. Then using a fairly descent psu calculator like this one at Enermax http://www.enermax.outervision.com/ you can get a level of wattage your system might pull. This is all guess work but it gives you a good starting point. I don’t think you could even get a 1000w psu into the case.

    The OC button is an OK feature as it did OC my 4770K by a small percentage. I am not sure what it would do with a “non OC ready” CPU. my guess is that it would just push it to the highest speed and keep it there without letting it ramp up and down The Windows GUI by MSI for overclocking was easy to use and did well, but the best way is still the old way and that is within the BIOS.

  4. Thanks for your reply, that may be the dealbeaker for me with this case, the PSU, that affects future compatibility, it’s rumored the gtx 790 may need more than a 600w psu and I am not sure how easy it will be to upgrade the psu in this case!
