Testing Methodology and Benchmarks

System Configuration
Case Cooler Master Cosmos II
CPU AMD FX-8370E
Motherboard ASRock 990FX Killer
Ram 2 GB G.Skill F3-12800CL9q DDR3-1600
USB 3.1 Rosewill RC-509
GPU Gigabyte Radeon R9 290
Hard Drives Samsung 850 EVO 256gb SSD
Network Cards Dual Port Intel Pro/1000 PT
Power Supply Cooler Master Silent Pro Gold 1200W

2 Seagate 4 TB 7200 RPM desktop drives were installed and used in the DAS tests.

2 Samsung 850 EVO 256 SSD were used for SSD testing.

Seagate drives have no data on them.

Samsung drives have loaded data.

D2-310 was used with Raid 0 and Raid 1 configurations.

Software

All testing is done based off of a single client accessing the DAS.

To test DAS Performance I used Crystal Disk Mark and Black Magic Disk Speed test.

All tests were run a total of three times then highest sequential speed was recorded.

Benchmarks

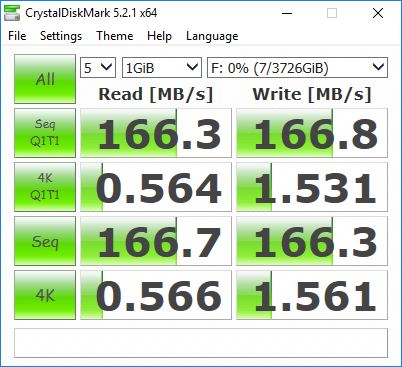

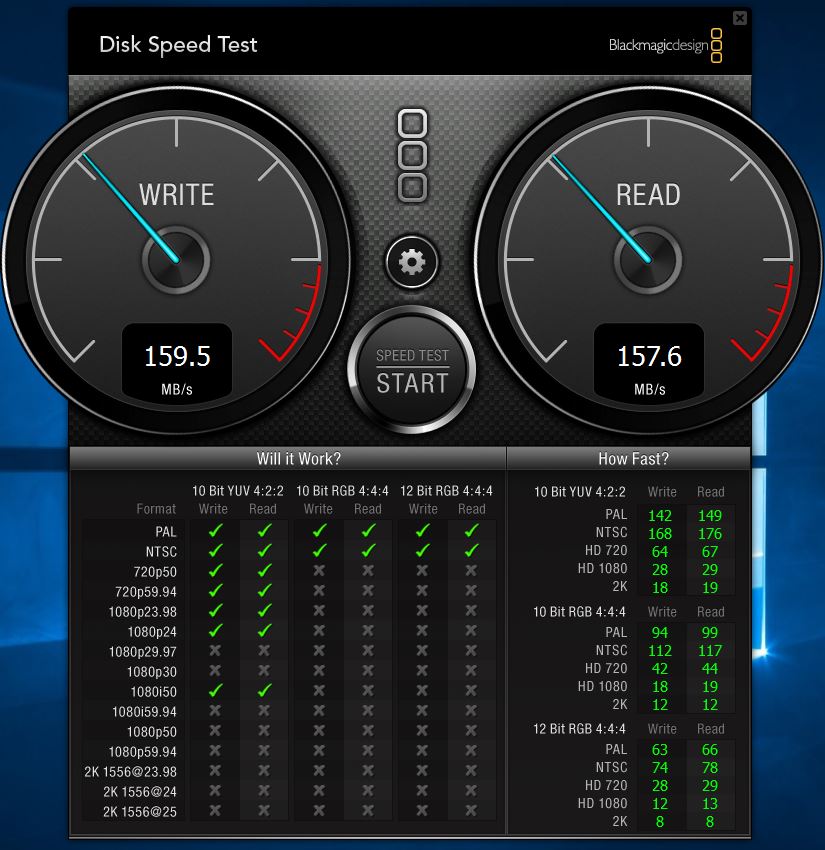

RAID0 with Hard Drives

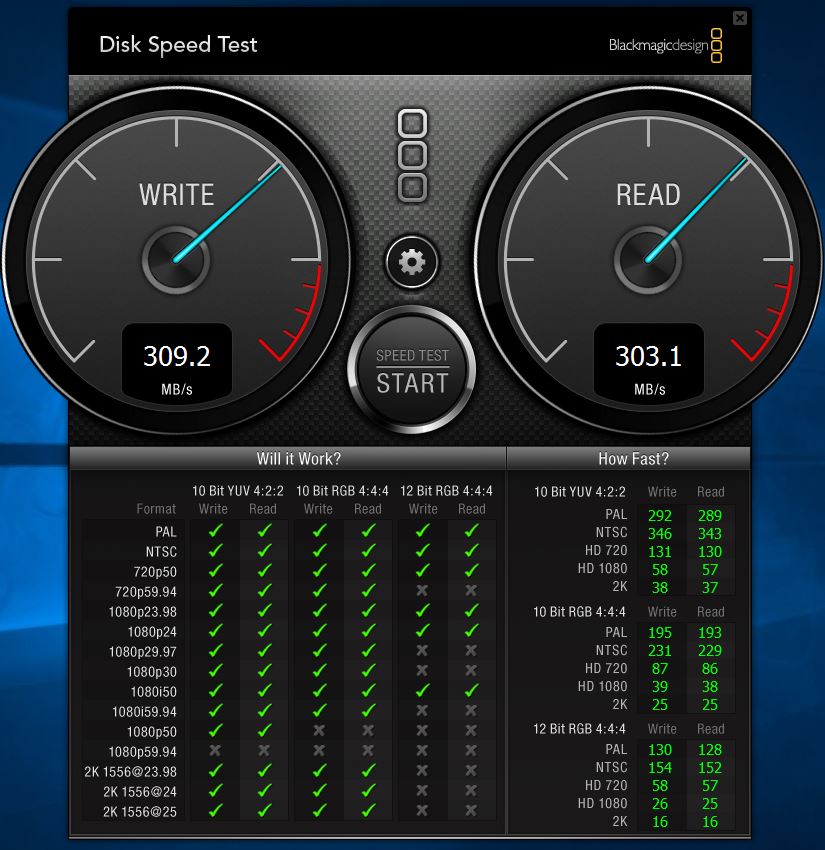

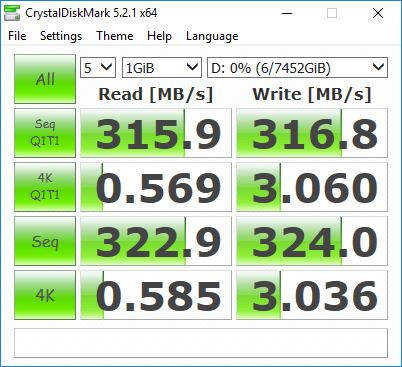

RAID1 with Hard Drives

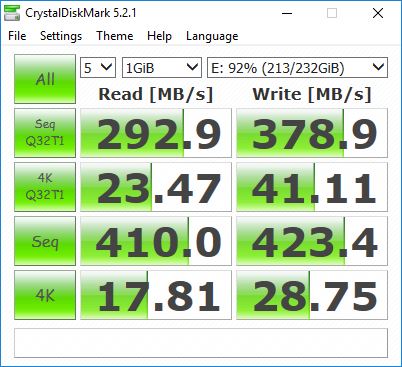

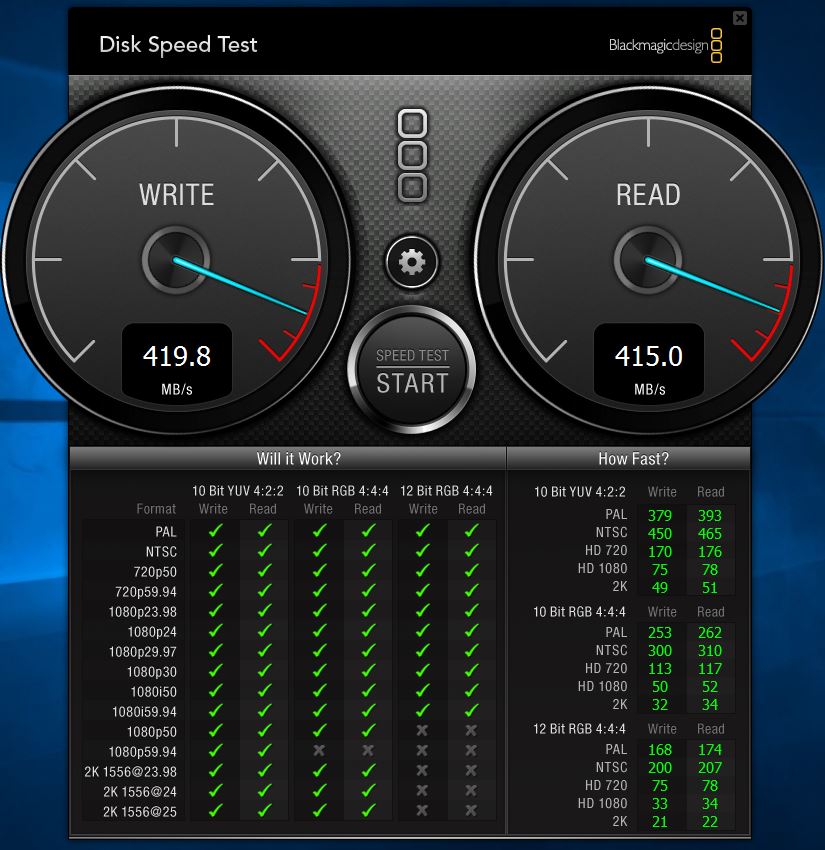

RAID0 with SSD

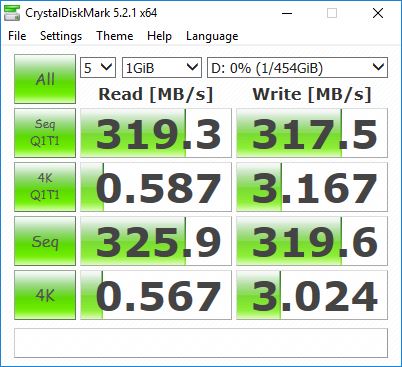

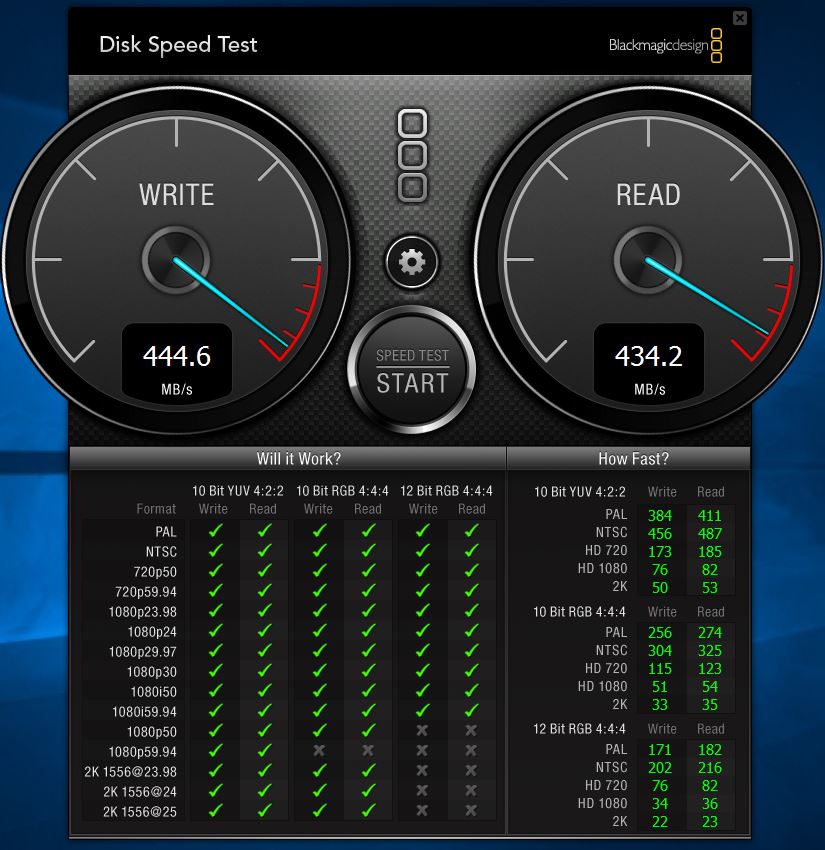

RAID1 with SSD
