Raijintek THEMIS Evo CPU Cooler Review

« Intro | Page 3 »

A Closer Look at the Raijintek THEMIS Evo

The tower-style Raijintek THEMIS Evo measures 122x82mm and stands 165mm tall. It is not a “slim” type tower design but follows the bulkier older U-types with a straight-aligned heatpipe distribution. The middle edge of the solder-less aluminum fin stack design has a concave dual wave cut-out providing some space between the fan hub and the heatsink body.  The entire THEMIS Evo body is nickel finished resulting in a high-quality and clean appearance.

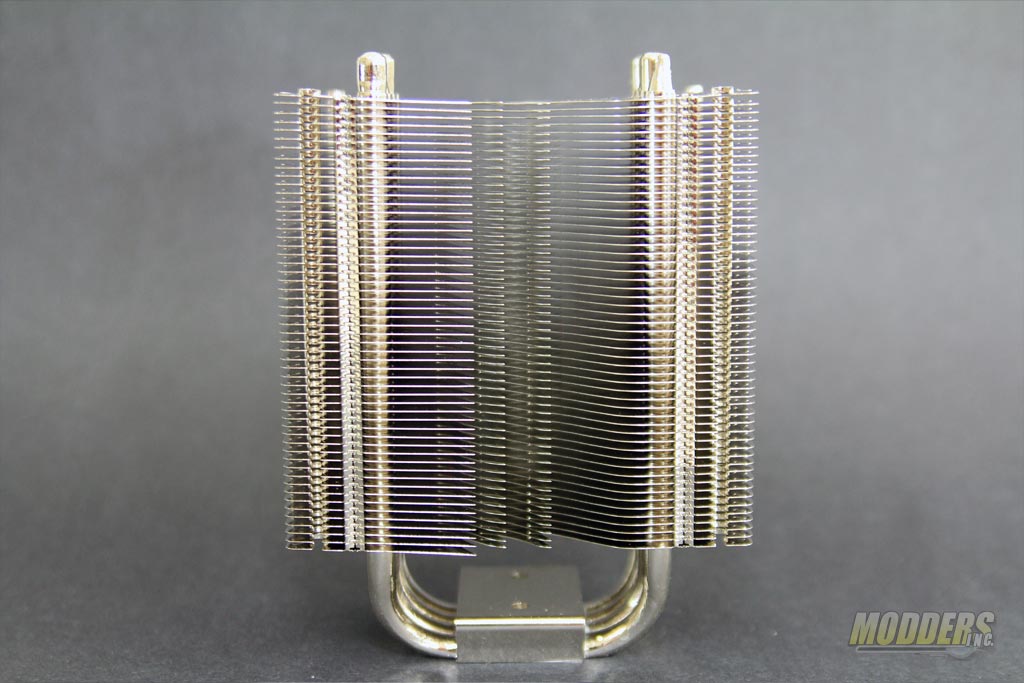

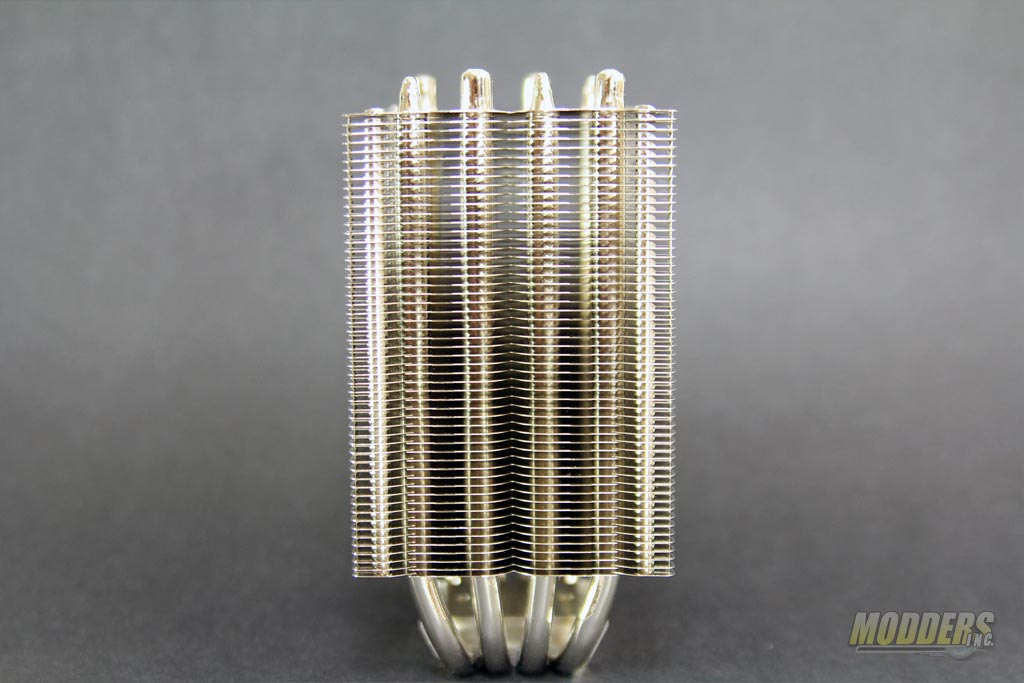

Raijintek THEMIS Evo Heatsink Front Raijintek THEMIS Evo Heatsink Side

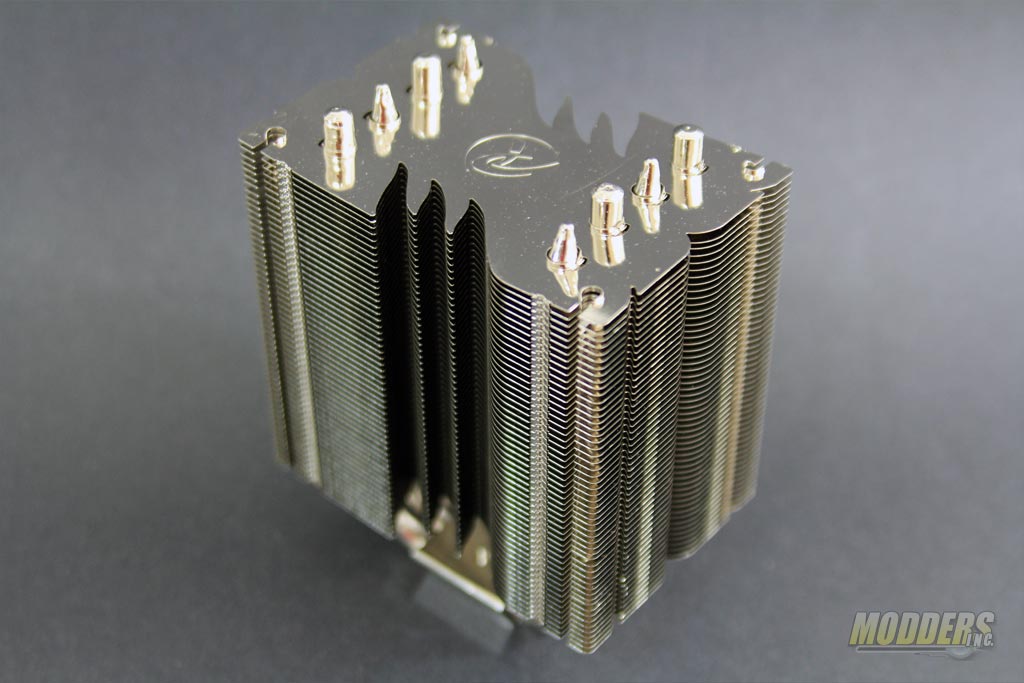

Raijintek THEMIS Evo Heatsink Top View

The copper heatpipes are rough-machined at the CPU contact surface with all four heatpipes making direct contact with the thermal interface material and CPU IHS. There is a small gap between each heatpipe filled in by the aluminum base.

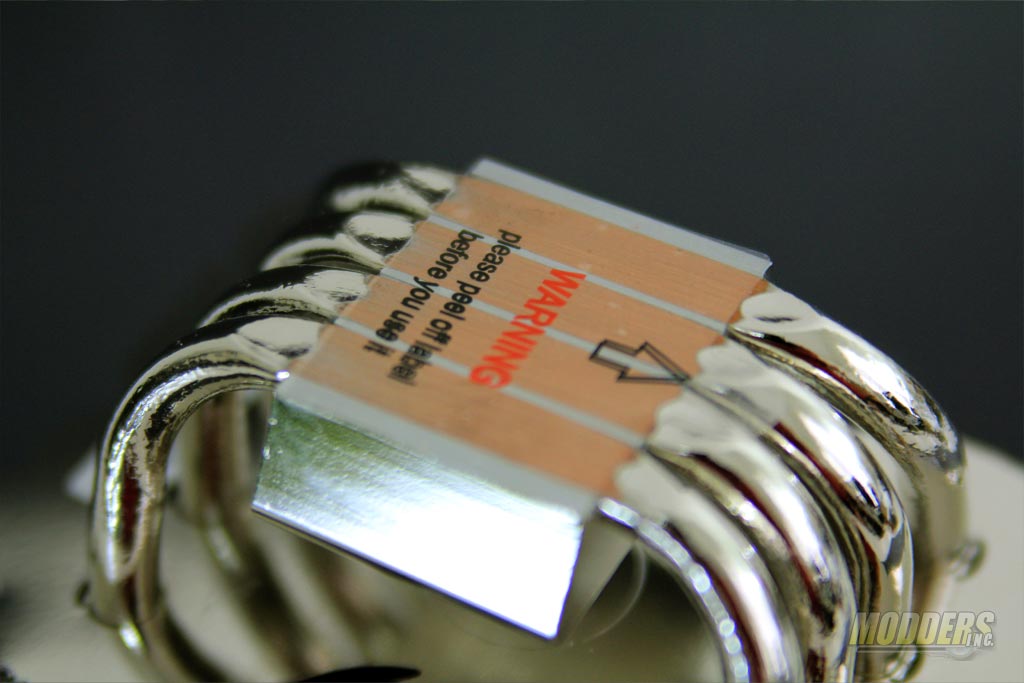

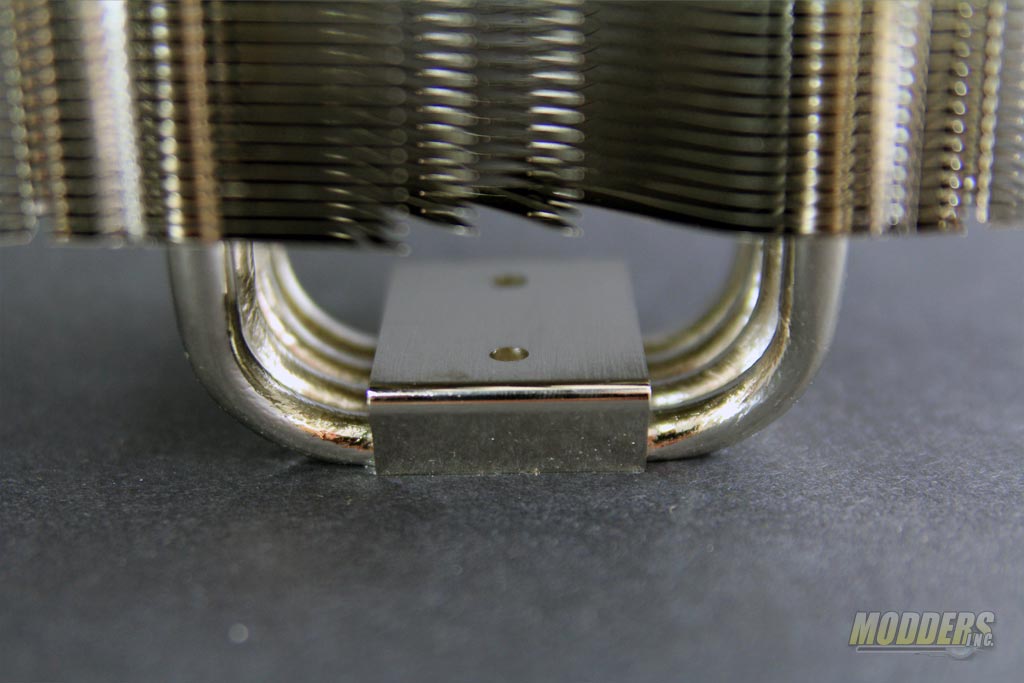

Raijintek THEMIS Evo Heatsink Base Raijintek THEMIS Evo Contact Surface

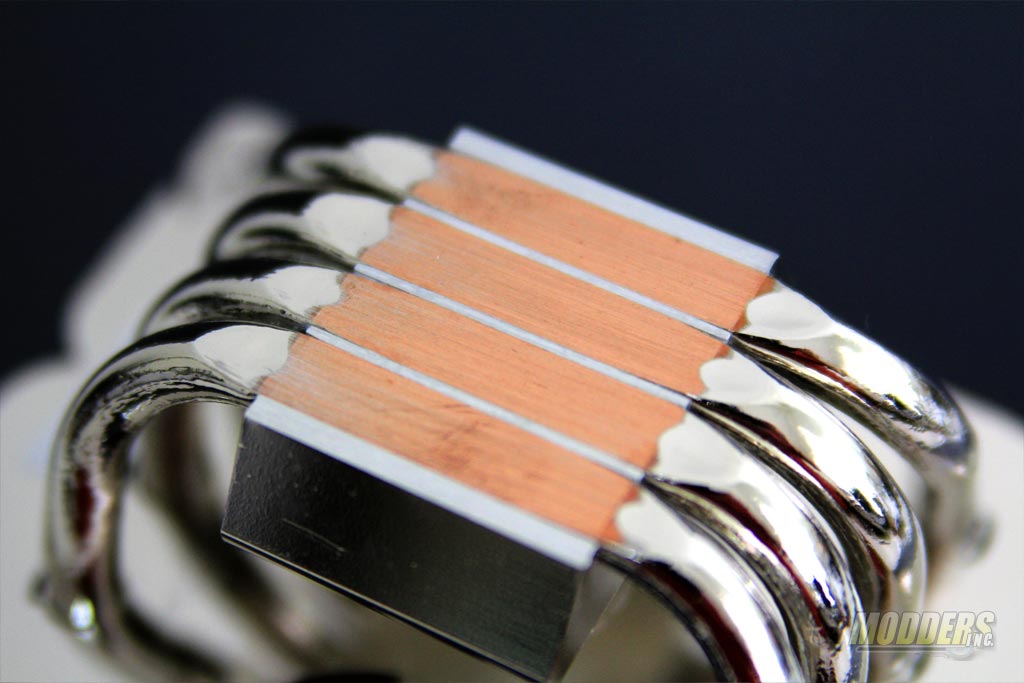

Raijintek THEMIS Evo Contact Surface

The fan bundled with the Themis EVO is identical to the non-EVO version measuring a standard 120x120x25mm and runs up to 1800 RPM. The 120 fan a red frame with seven wide white blades with a slightly curved tip and a leading edge that is also gently curving forward. It is a sleeve bearing fan with a 7V starting voltage and is rated for 78.82 CFM/3.22 mmH20 at full 12V speed. The connector cable is sleeved and since it is a PWM fan, has 4-pin connectors.

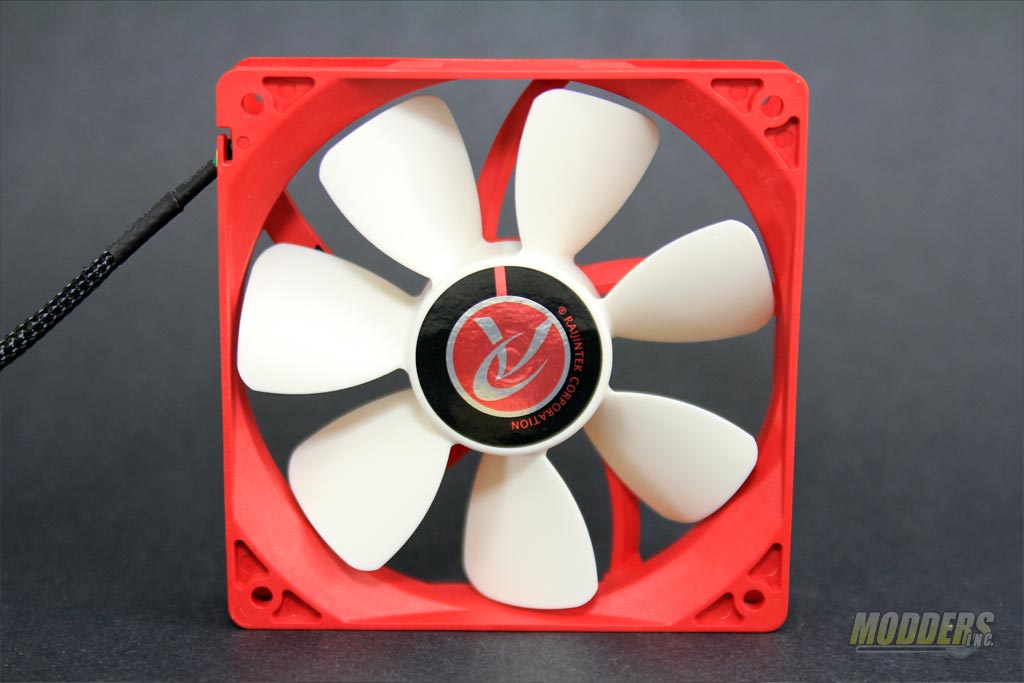

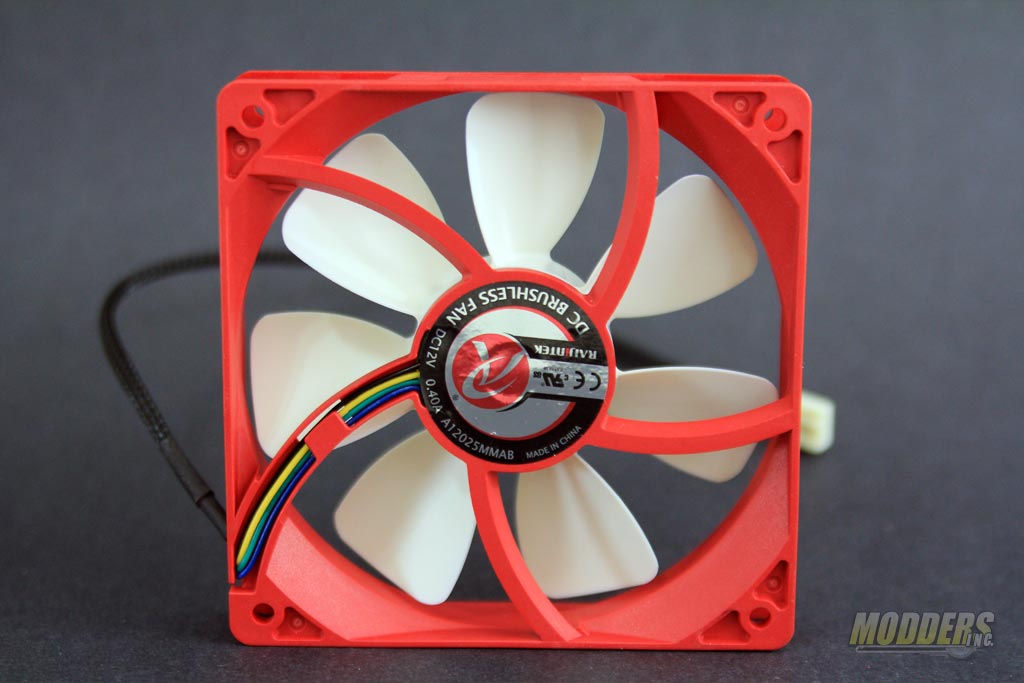

 Raijintek THEMIS Evo 120mm PWM fan Raijintek THEMIS Evo 120mm PWM fan

ASUS Fan Xpert 2 Results showing controllable range:

Fan Xpert 2 Fan reading
