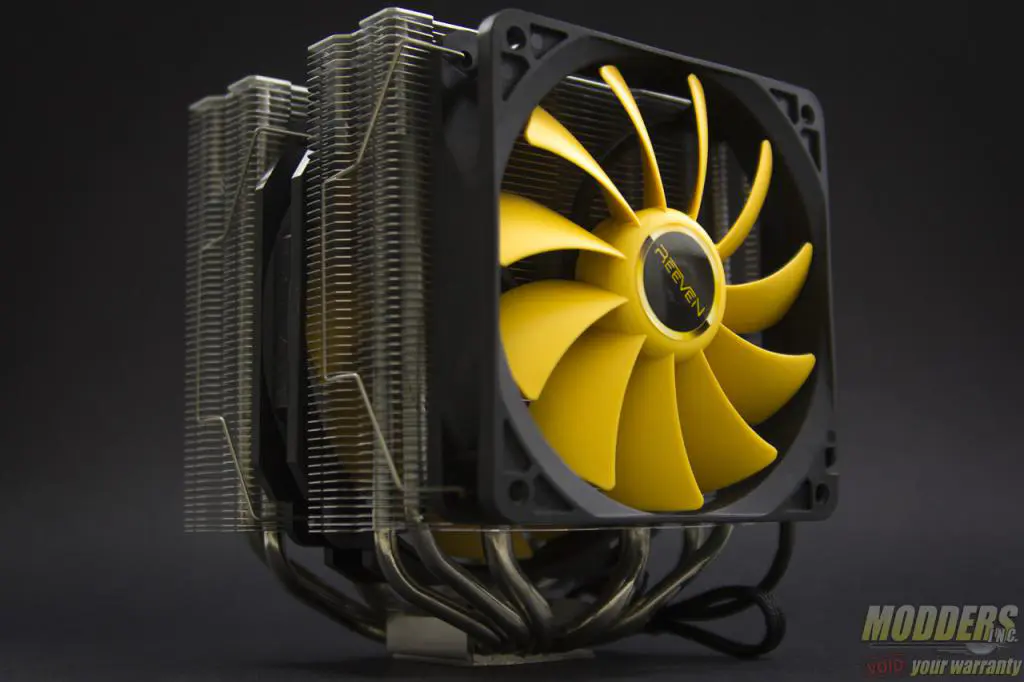

The Okeanos is Reeven’s flagship CPU cooler utilizing a twin-tower design. Just like Reeven’s other CPU coolers, it is named after a Greek deity, although this one is a bit weird considering ‘Okeanos’ is a Titan that personifies a body of water but this cooler is not an AIO liquid-cooling unit. It has some high expectations to live up to however, with the 140mm Reeven Ouranos and Reeven Hans tested last year performing quite admirably considering their price point.
Unlike other dual-tower designs which are deliberately bulky ignoring clearance concerns or have the heatpipes offset for improved component compatibility, the Reeven Okeanos is a slimmer titan than most at 110mm deep without fans installed but still relatively larger than other heatsinks at 163mm tall. For active cooling, it is equipped with a 140mm fan that ramps up to 1700 RPM and a 120mm fan that operates up to 1700 RPM.
Review Sample Provided by: Reeven
Product Name/Link to Website: Okeanos CPU Cooler
Product was given in exchange for work done to produce this review.

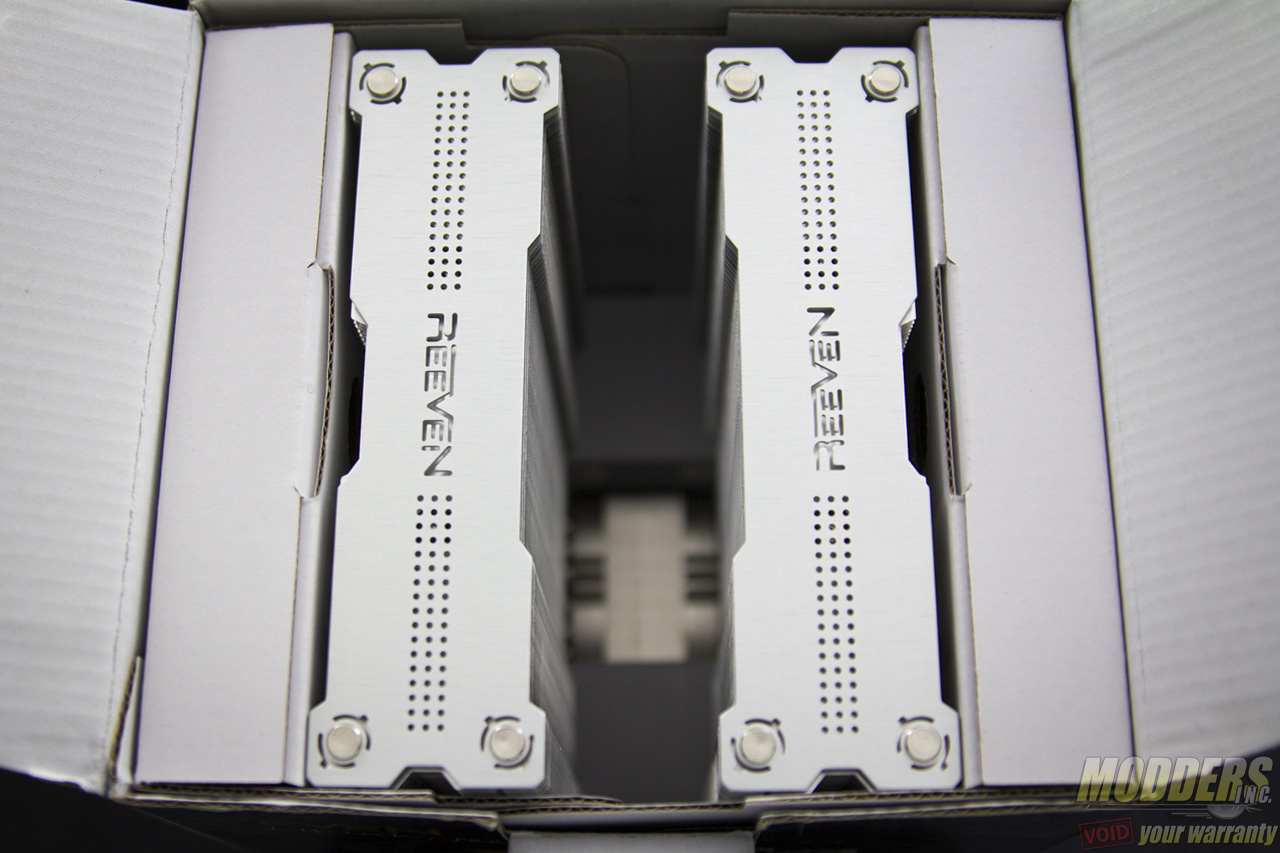

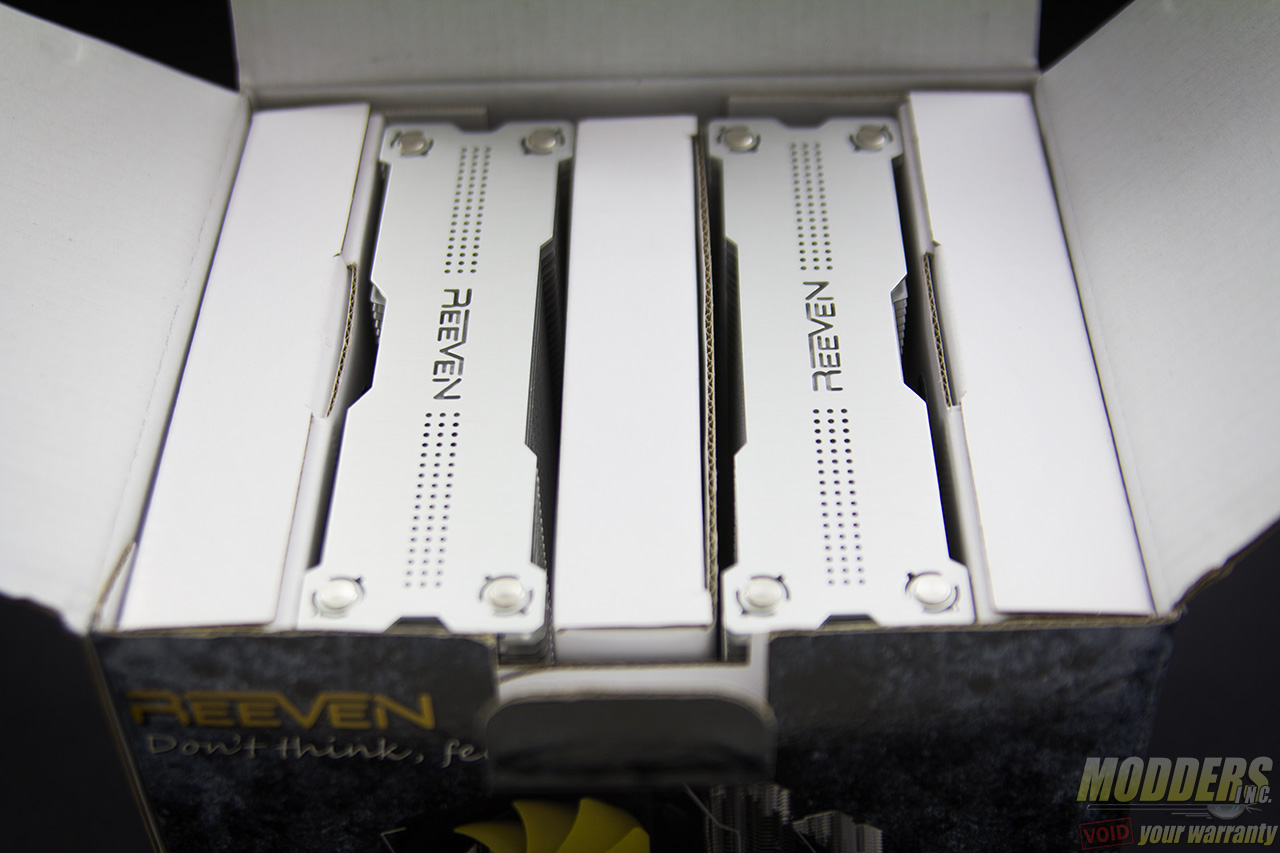

Just like the Ouranos, the packaging is relatively compact with a glossy full-color cover. There is not much in the way of padding inside but the heatsink is cushioned by the box containing the twin fans on the outer sides while it is held in place by more cardboard at the center. The packaging is actually very efficient compared to most coolers.

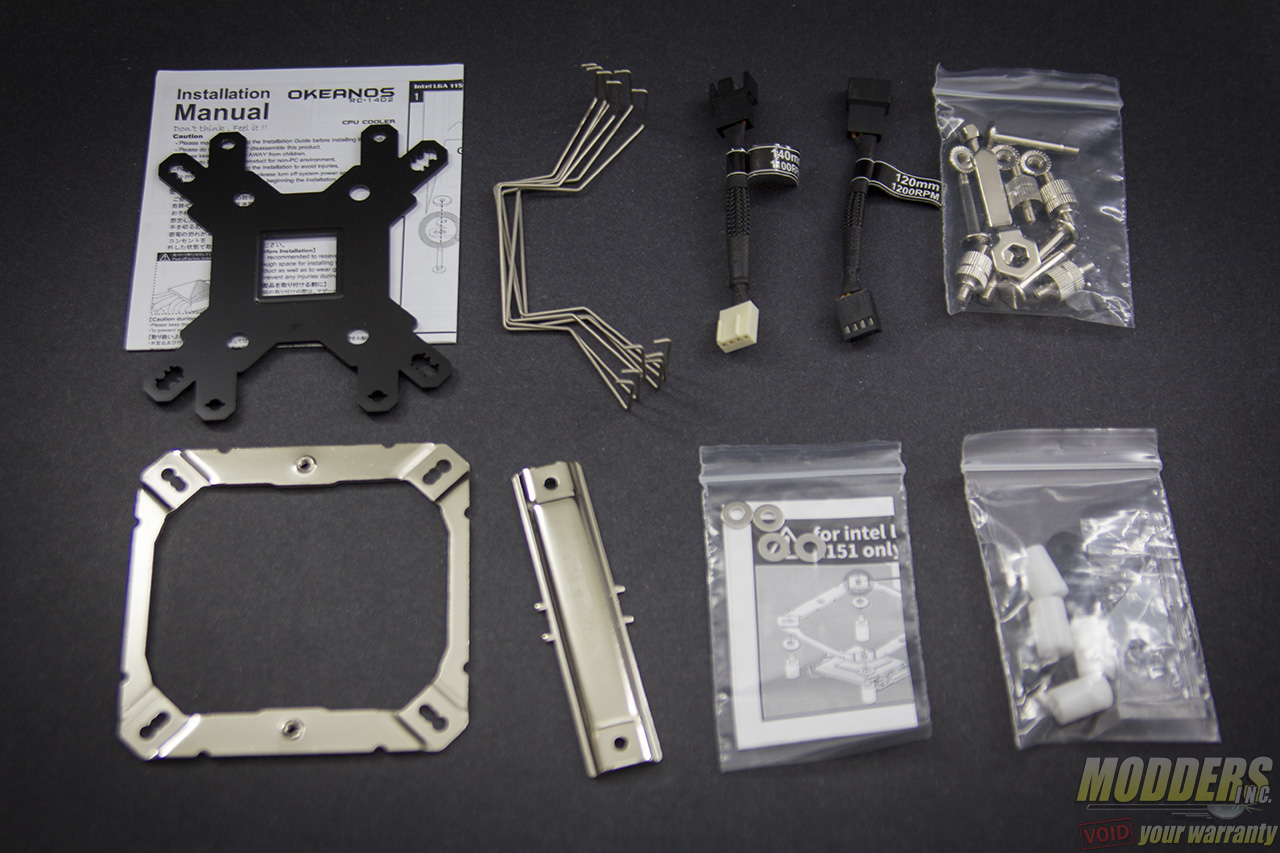

The accessories are inside the box in the middle and aside from the 120mm and 140mm fans, it contains:
- 1x fold out documentation for installation
- 1x thermal compound in a packet
- 1x hex locking tool
- 4x bracket nuts
- 4x mounting post screws
- 4x silicon washers
- 4x aluminum washers for LGA1151
- 4x fan mounting clips
- 4x plastic spacers
- 1x universal backplate
- 1x mounting bar
- 2x mounting bar bolts
- 1x universal bracket.
- 4x Rubber backplate screw holders
- 1x 120 mm speed switch adapter from 1800rpm down to 1200rpm
- 1x 140 mm speed switch adapter from 1700rpm down to 1100rpm
|Socket:||INTEL: LGA 1150 / 1151 / 1155 / 1156 / 1366 / 2011 / 2011-V3
AMD: AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+
|Overall Dimension:||(W)140 x (H)163 x (D)135mm|
|Fan Dimension:||14cm: 140 x 140 x 25mm
12cm: 120 x 120 x 25mm
|Heatpipe:||Ø6mmx4 + Ø8mmx2|
|Fan Speed:||14cm: 300~1700(*300~1100)RPM
|Air Flow:||14cm: 16.3~92.4(*16.3~59.8)CFM
|Static Pressure:||14cm: 0.002~0.091(*0.002~0.034)inch H2O
12cm: 0.003~0.098(*0.003~0.042)inch H2O
|Noise Level:||14cm: 5.8~36.4(*5.8~21.3)dBA
