Thermaltake Core P6 TG Case Review

A Closer Look at Core P6 TG »

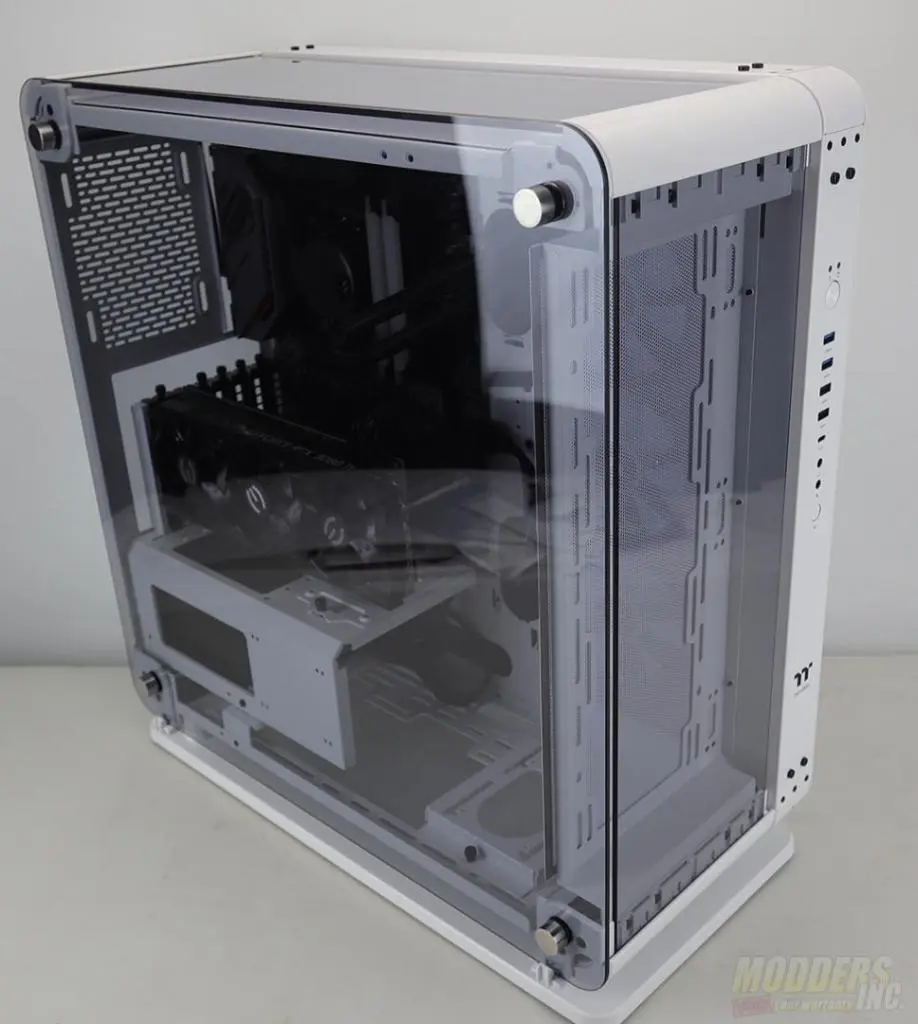

Core P6 TGThermaltake is famous for its unique cases and cooling components throughout gaming and modding communities.  Pretty much everything they bring to the table is unique and crafted with high craftsmanship.  Perhaps the most famous series of chassis by Thermaltake is Core.  Over the years Core series has left a big impression on the modding community as the ease of creating custom water cooling loops was brought to the masses.  Core cases are spacious, and some of the signature models have an open case concept, which I like.  The latest addition to the Core family is the Thermaltake Core P6 TG.  Core P6 is a Mid Tower Chassis that comes with tempered glass panels on all three sides.  The P6 TG is available in Snow White and Black color.

Core P6 TG Packaging

Just like most of the cases out there, the Thermaltake Core P6 TG comes in a recycle-friendly box.  The box with the case inside has substantial weight to it considering some of the cases come with three tempered glass panels.  On both sides of the case, you can see the information about the case.  I always like to see the case entirely apart and all of the components that go into the case on display.

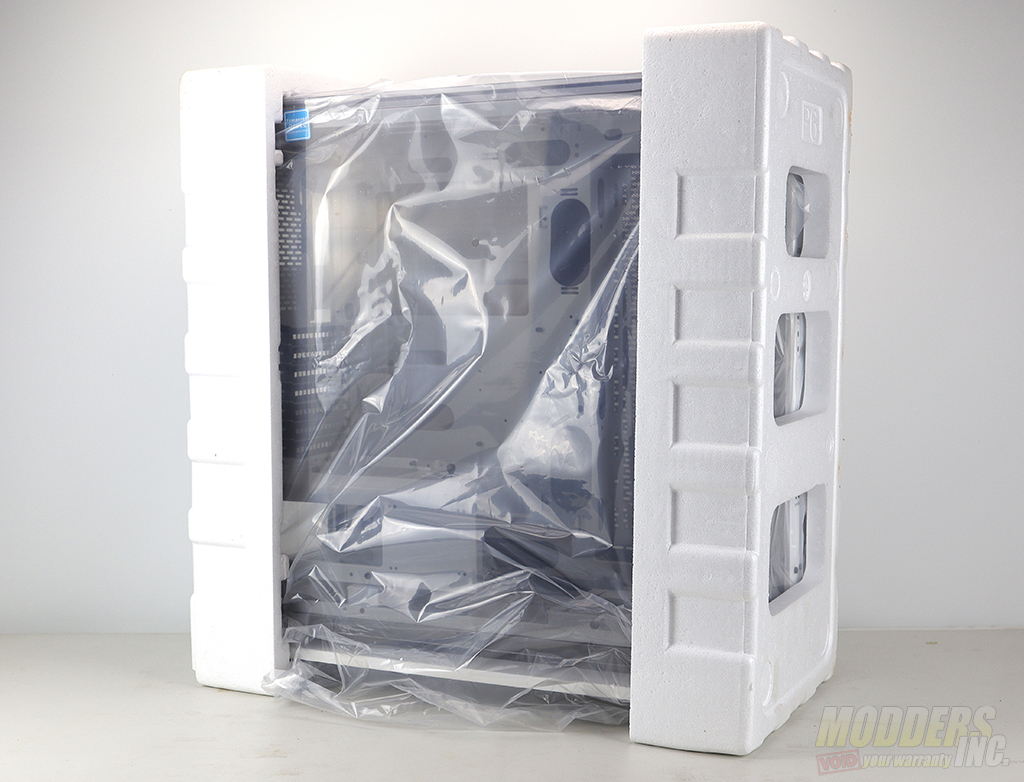

The internal packaging of Core P6 TG is standard as well.  Here we have the Thermaltake Core P6 TG supported by plastic foam and wrapped in a protective plastic bag.  The glass panels have another thicker layer of protective plastic on them and will have to be peeled off later.

Core P6 TG

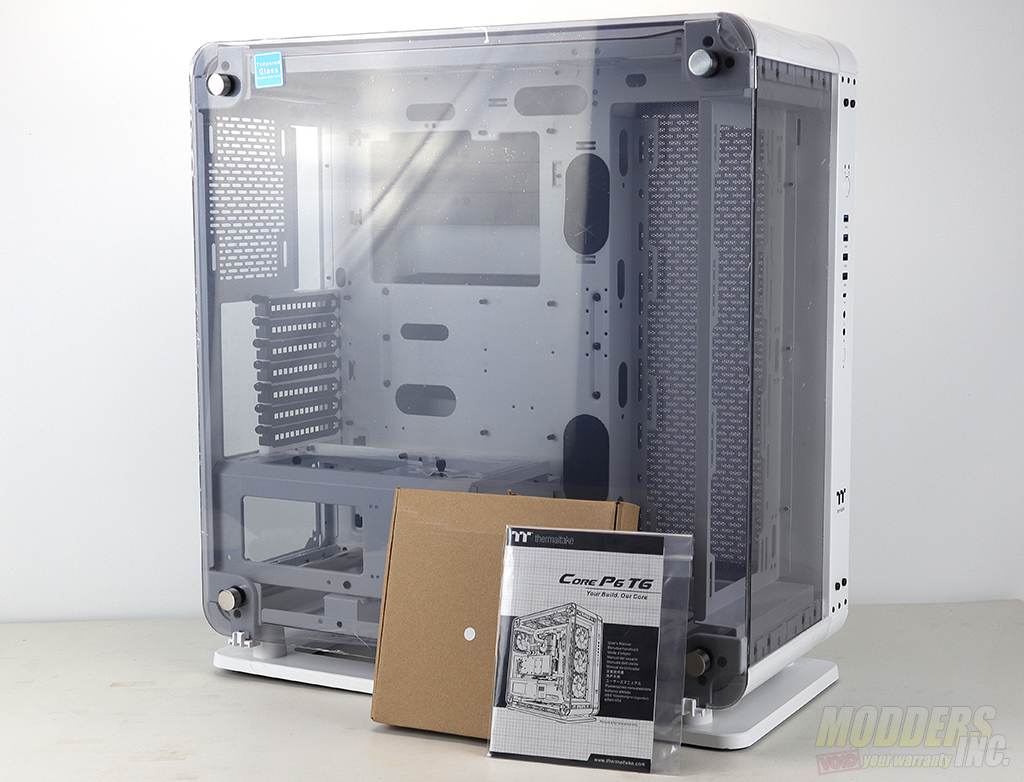

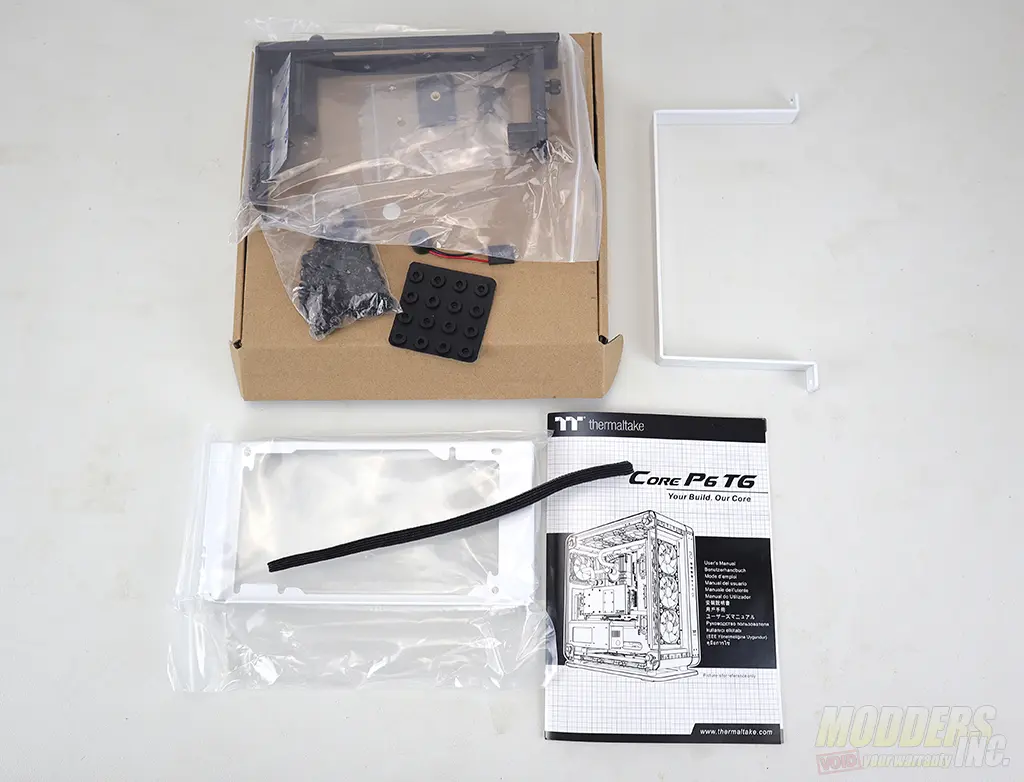

The ThermaltakeCore P6 TG  comes with a small accessory box where you will find a PSU faceplate, a custom mount for the PSU enclosure, a GPU bracket, a bag of screws, and some Velcro strips for cable management.  And let’s not forget the user manual.

Advertisement

Technical Specifications

P/N CA-1V2-00M6WN-00
SERIES Core
MODEL Core P6 TG Snow
CASE TYPE Mid Tower
DIMENSION (H X W X D) 565 x 255 x 530mm
(22.2 x 10 x 20.9 inch)
NET WEIGHT 17.84 kg / 39.33 lbs.
SIDE PANEL 4mm Tempered Glass x 3
COLOR White
MATERIAL SPCC
COOLING SYSTEM
DRIVE BAYS
-ACCESSIBLE
-HIDDEN
4 x 3.5” or 8 x 2.5”
EXPANSION SLOTS 7 (Rotatable Patented Design)
MOTHERBOARDS 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 10.5”(CEB)
I/O PORT USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
FAN SUPPORT Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Rear:
1 x 120mm
Right (M/B Side):
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Bottom:
3 x 120mm, 2 x 120mm or 1 x 120mm
2 x 140mm, 1 x 140mm
RADIATOR SUPPORT Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear:
1 x 120mm
Right (M/B Side):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Bottom:
1 x 240mm, 1 x 120mm
CLEARANCE CPU cooler height limitation:
180mm
VGA length limitation:
300mm (With Reservoir)
400mm (Without Reservoir)
430mm (With Radiator)
458mm (Without Radiator)
PSU length limitation:
200mm



Note: There are no fans included in this case.
