Hardware Installation and Clearance Compatibility of the Thermaltake Core P6 TG

Thermaltake Core P6 TG Case Review 1

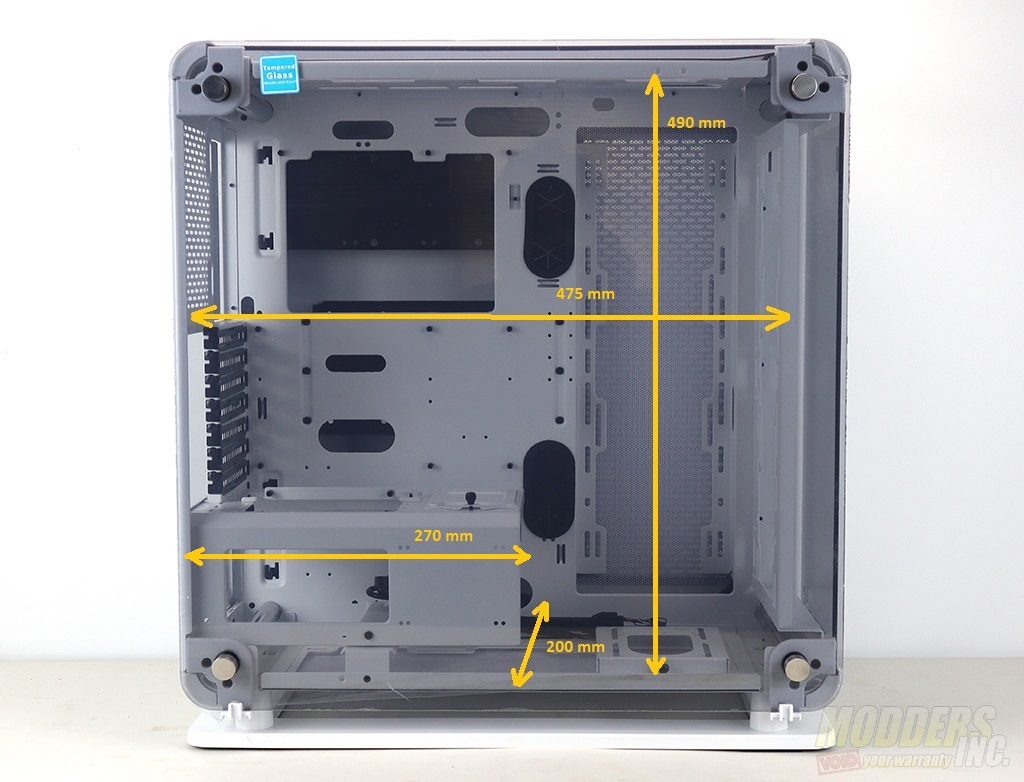

  • Internal length: 475 mm.
  • Internal height: 490 mm.
  • Internal depth: 200 mm (to the glass).

Front mounted:

  • Front Fan: 3 x 120mm, 2 x 120mm, 1 x 120mm,
    2 x 140mm, 1 x 140mm.
  • Radiator support up to 1 x 360mm, 1 x 240mm, 1 x 120mm,
    1 x 280mm, 1 x 140mm.
  • Rear-mounted: 1×120/140mm fan.

Top mounted:

  • Top Fan: 3 x 120mm, 2 x 120mm, 1 x 120mm,
    2 x 140mm, 1 x 140mm.
  • Radiator support up to 1 x 360mm, 1 x 240mm, 1 x 120mm,
    1 x 280mm, 1 x 140mm.

Rear-mounted:

  • Rear Fan:1 x 120mm.

Right Motherboard side mounted:

  • Fan support: 3 x 120mm, 2 x 120mm, 1 x 120mm,
    2 x 140mm, 1 x 140mm.
  • Radiator support up to 1 x 360mm, 1 x 240mm, 1 x 120mm,
    1 x 280mm, 1 x 140mm.

Bottom mounted:

  • Fan support up: 3 x 120mm, 2 x 120mm or 1 x 120mm,
    2 x 140mm, 1 x 140mm.
  • Radiator support up to 1 x 240mm, 1 x 120mm.

Core P6 TG

Power Supply:

  • There is a removable plate for installing PSU.
  • 270 mm Clearance for Power Supply installation but recommended PSU up to 200 mm in length.

Video Card clearance:

  • The maximum GPU length supported is 458mm.  Note the absolute internal length of the case is 475 mm.

CPU Tower coolers:

  • CPU heat-sink height clearance is about 200mm. (to the glass). Recommended CPU cooler max height is 180mm.
  • Medium CPU backplate cutout.

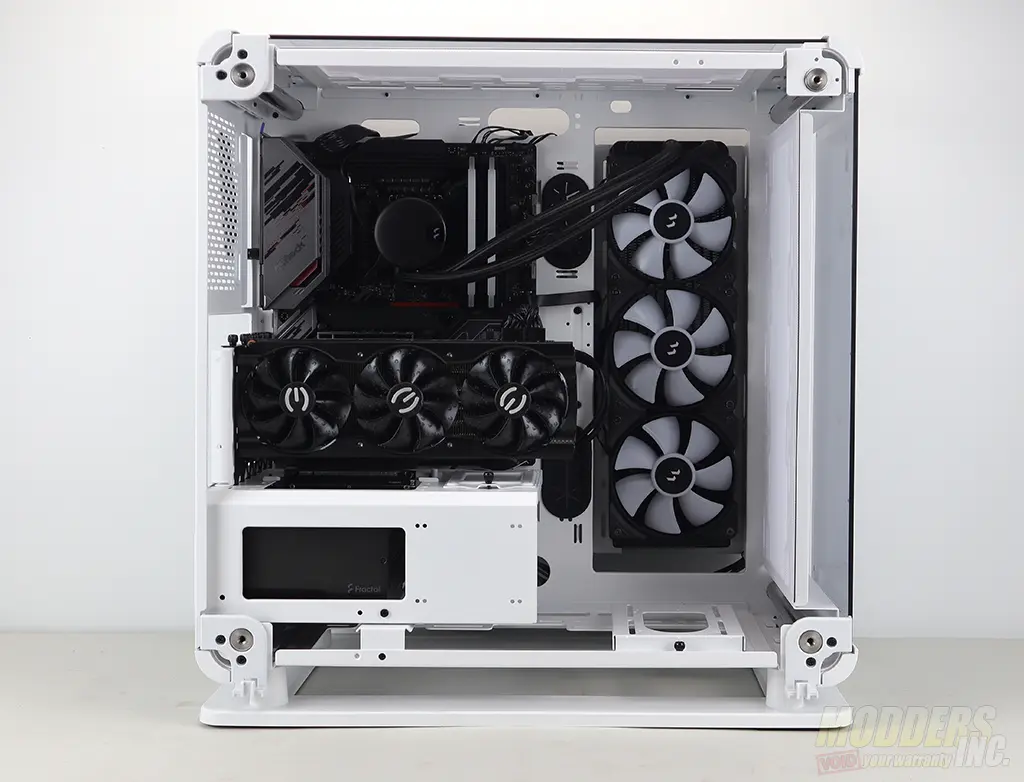

Installation of the components into the case was straightforward.  I didn’t want to use any custom water-cooling loops in this build.  I did use an AIO cooling CPU cooling loop to show that radiator could be mounted vertically on the back/inside of the case.

By default, the PCI cage comes mounted horizontally for installations of PCI components.  It is possible to rotate the PCI cage so that you can mount expansion cards vertically.  To mount GPUs vertically you would need to purchase a PCI cable extender.  The Core P6 TG does not come with PCI cable extender.

Advertisement

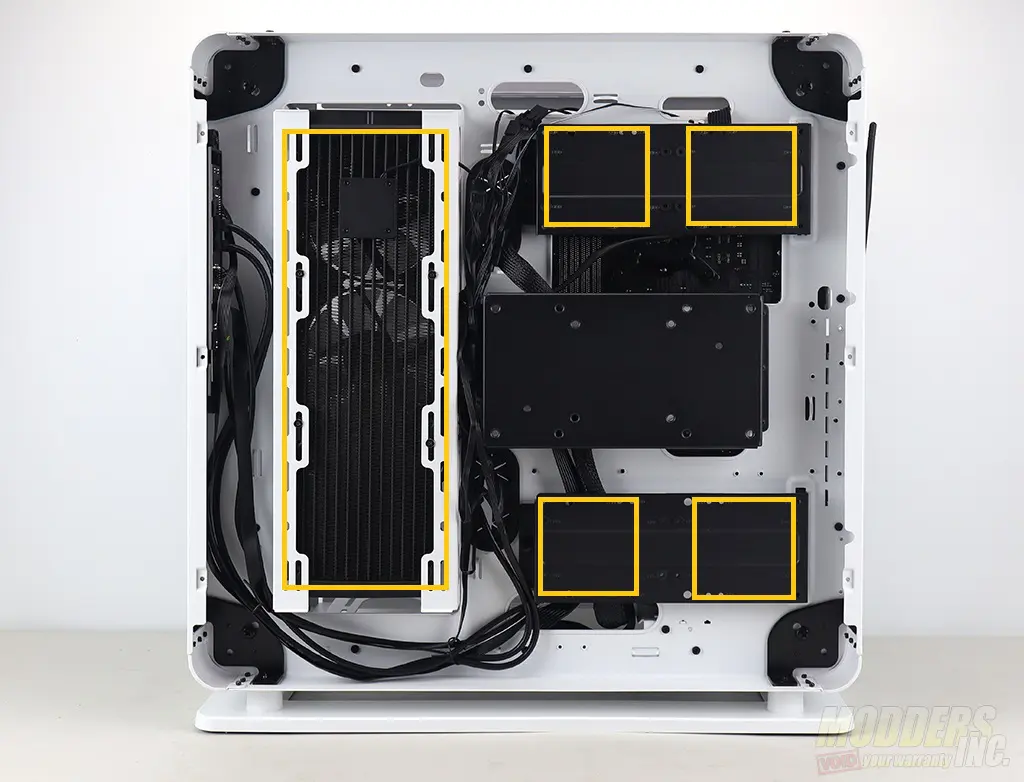

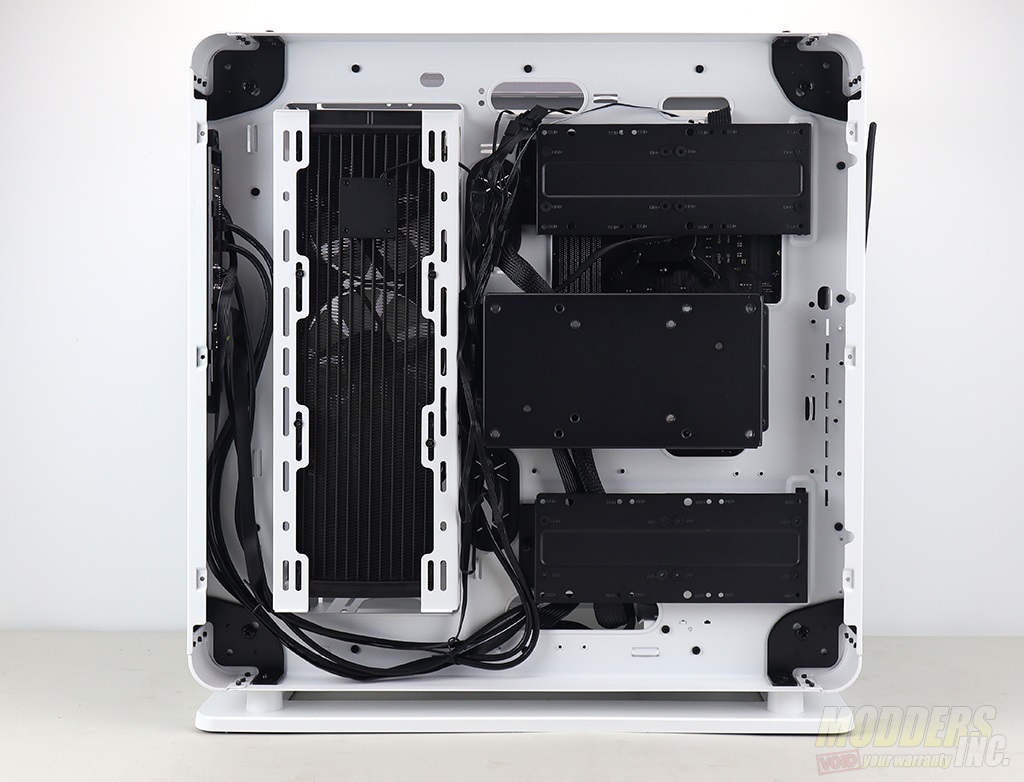

The cable management Core P6 TG had no difficulties for me.  As you can see the back of the motherboard tray has plenty of space to route any cable to the motherboard and radiator fans.
