Zalman ZM-F4 135mm Fan

« Page 3 | Page 5 »

Testing Rig:



Case  Cooler Master HAF 912 Case
CPU  AMD Phenom II X2 555
CPU Cooler  Stock
Fans  (3) 120mm Stock Fans,  (1) 200mm LED Fan
Fan Controller  NZXT Sentry 2 Touch Screen
MotherBoard  BioStar TA870+
Video Card  ATI Radeon HD 5450 512MB GDDR2

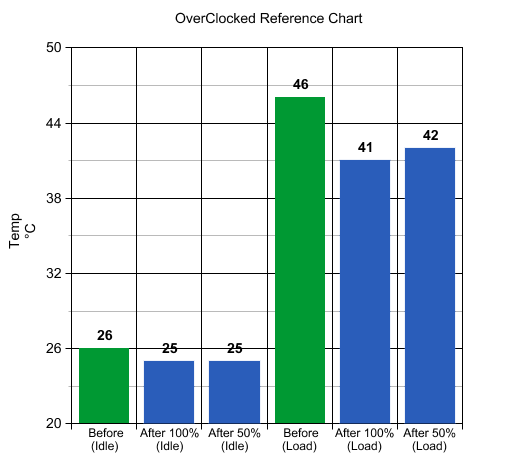

Here is something I would not normally expect from just replacing two 120mm fans but I saw some decent numbers from these fans, I’m going to show you the different temperature readings from before and after installing Zalman’s ZM-F4 135mm Fans, along with Stock and OverClocked performance.

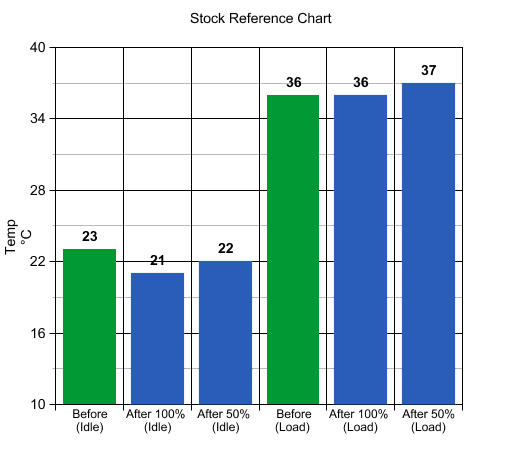

Here you can really see how much a difference these fans helped, the numbers might be small on the stock graph but you can defiantly see a good 5°C drop on load temps, which I couldn’t be happy with the results. Just think a 5°C drop by replacing 2 – 120mm fans, not bad Zalman!

Zalman ZM-F4 135mm Fan 135mm, Fan, Zalman, ZM-F4 1

Zalman ZM-F4 135mm Fan 135mm, Fan, Zalman, ZM-F4 2

 Legend:
 Before:  Using 2 – 120mm Cooler Master Fans @ 100%
 After:  Using 2 – Zalman ZM-F4 Fans 100%: RPM @ highest output 50%: RPM half output.

The graphs shown here have variables with room temp and other various things that could make temperatures higher or lower, all tests were based on 5 minute load times and 10 minute cool downs.
