LIAN LI PC-Q02 Mini-ITX Case

It is not every day that you go looking for a Mini ITX case, but when you do it is hard to find on that fits all your needs. Some might have a few of the features you want, but be just plain ugly. Well that is where the LIAN LI PC-Q02 comes in and saves the day with it ‘s stylish look and many features.



Review Sample Provided by: LIAN LI
Product Name: PC-Q02
Price at time of review: $  USD
Product was given in exchange for work done to produce this review.





 [hr]

First Look

This what you really do not want see sitting at your doorstep when you get home. A beaten down box that looks like it might have been attacked by a hoard of zombies or just your average deliveryman on Monday morning after a long weekend at the local pub drinking his woes away because his girl friend left him and took his dog too. But to a reviewer we want to see if if can handle the test; so let’s find out.

Well almost so far so good. It does look like the extra parts box took on some of the damage, but what about the case.

I think we do not have to much to worry about as the PC-Q02 is fully protected with a clear plastic bag and plenty of packaging foam. Better luck next time Mr. Delivery Guy.

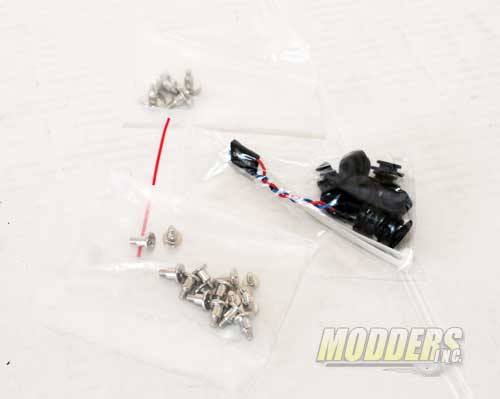

Inside the parts box we see that Lian Li included a buzzer, cables ties, mounting hardware for the Hard Drives, screws for the motherboard mounting and for the slim ODD (Optical Disk Drive). That’s all you need to get your system into the case.

Specification
Model

PC-Q02
Case Type Mini tower chasis
Dimensions  (W) 149mm x (H) 230mm x (D) 200mm
Front bezel Material Aluminum
Color Black / Silver
Side Panel Aluminum
Body Material Aluminum
Net Weight 2.0KG
5.25″ drive bay (External) 1( Slim ODD )
3.5″ drive bay (External) None
HDD bay  3.5-Inch HDD x1(Using 2.5-inch space) / 2.5-Inch HDD x2
Expansion Slot None
Motherboard Mini-ITX
System Fan (Front) None
System Fan (Top) None
System Fan (Rear) None
I/O Ports USB 3.0 x 2
Maximum Compatibility VGA Card length: –mm
PSU length: –mm
CPU cooler height: 60mm
Package Dimensions
(W) 204mm x (H) 294mm x (D) 288mm
Gross Weight 2.6 KG
Power Supply SFX PSU / OPTPUT : 300W / Efficiency : 80% (80-PLUS) Include



Power Supply 300 Watts



Model FSP300-60GHS
AC Input 100-240V,4.5-2.5A,50-60Hz
DC Output +3.3V & +5V =125W Max, +12V1 & +12V2 =22A

(Total output continuous shall not exceed 300watts)


 Available Colors





About Dewayne Carel

Dewyane began in the case modding scene when it was just starting out many years ago. He has created works for the likes of Cooler Master, ASUS, CPU Magazine, Razer, Zotac and more.
