QNAP TS-451 Network Attached Storage Review

Article Pages: A Closer Look »

Network storage used to be a thing only found in business class networks. However, with the increase in popularity of home networking and the ability to easily share large amounts of data between PCs attached to the home network, network attach storage is quickly becoming an integral part of the modern home network.  Family members are no longer confined to sharing files from one PC to another. In a typical PC to PC sharing setup a single hard drive is used to host the files. If that hard drive fails the data is lost. Network attached storage is available in multiple drive configurations. The most popular seem to be from two bays to five bays. QNAP’s TS-451 is a four bay NAS that features an Intel 2.4 GHz Dual Core Celeron processor and is capable of expanding to 8 GB of RAM. But there is more to the TS-451 than just storage. QNAP is constantly working on the operating system to bring more features and capability to their storage devices. The QNAP TS-451 is more than just a simple storage device that sits on the network hosting files.


Review Sample Provided by: QNAP
Product Name/Link to Website: TS-451
Product was given in exchange for work done to produce this review.

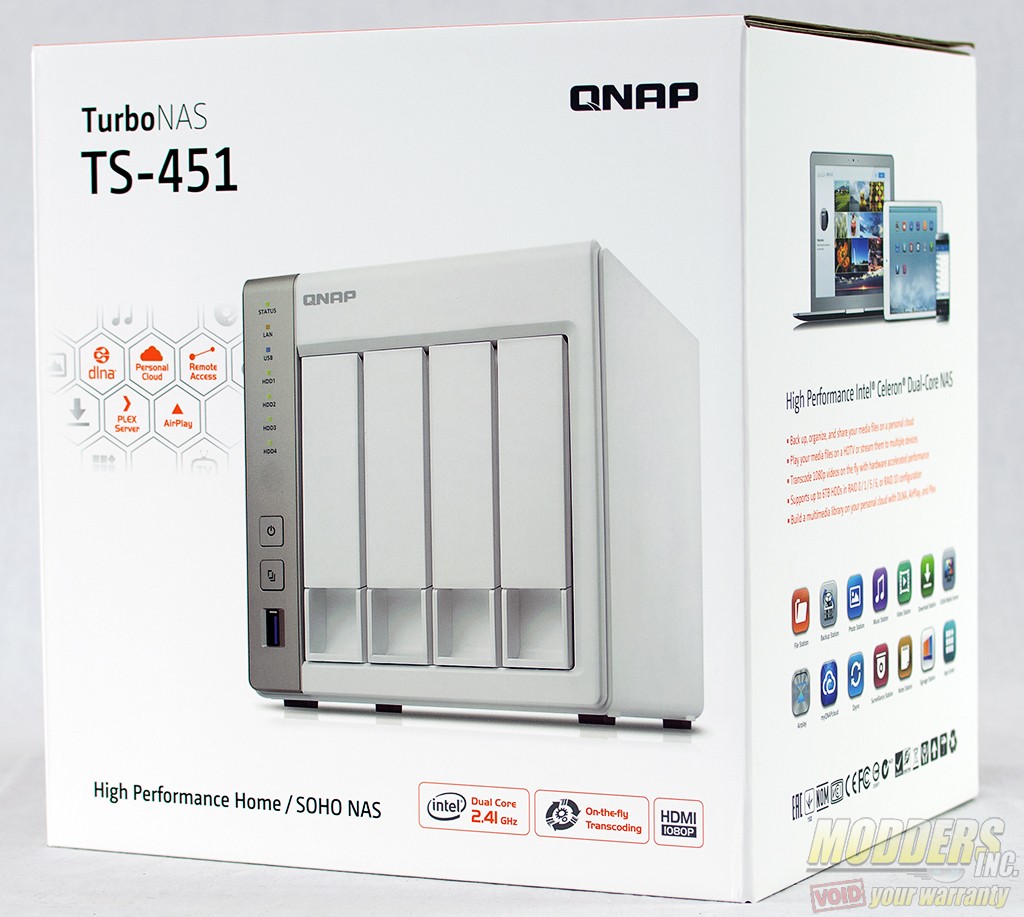

QNAP TS-451QNAP does a great job with the graphics for the TS-451. The box shows exactly what is being purchased and at a $500.00 price tag it should. I would want to know exactly what is included if I were to purchase it.

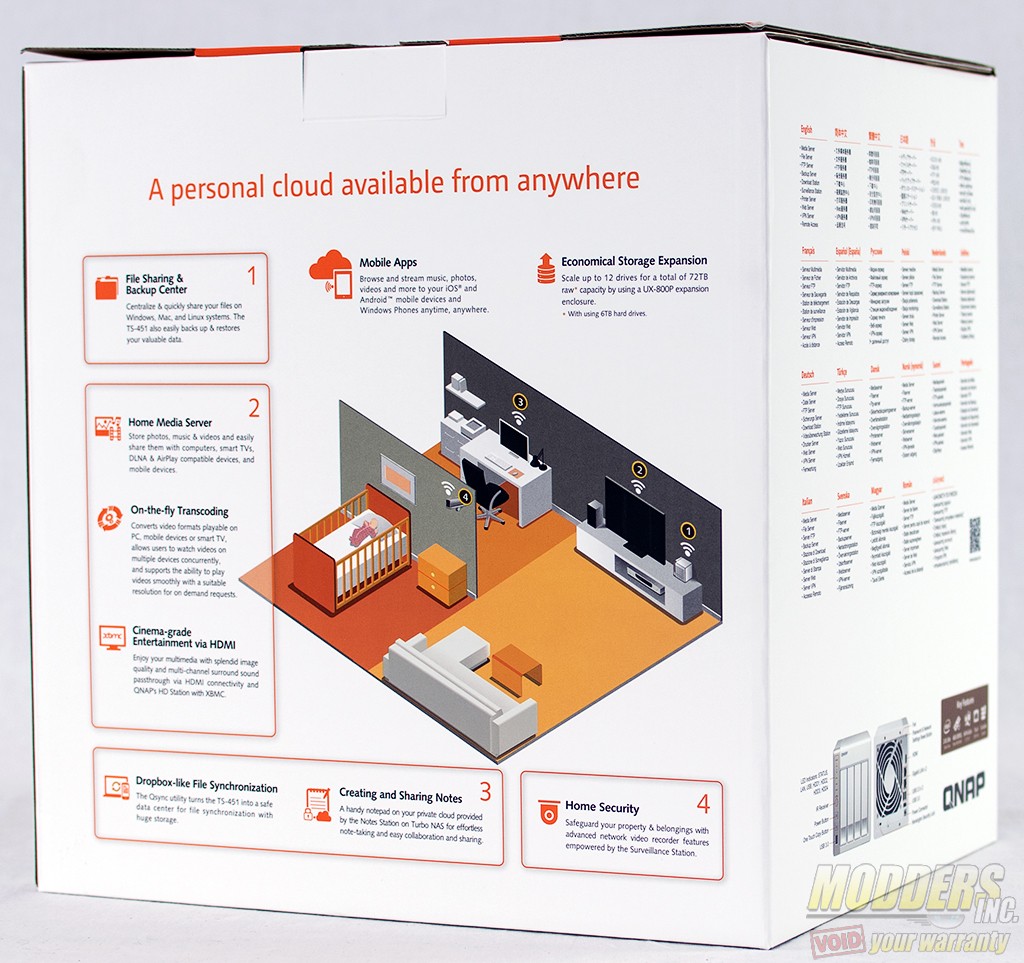

QNAP TS-451Flipping the box around to the back, QNAP goes into detail about what the TS-451 can do. They break the features down into simple terms that someone without any networking experience can understand.

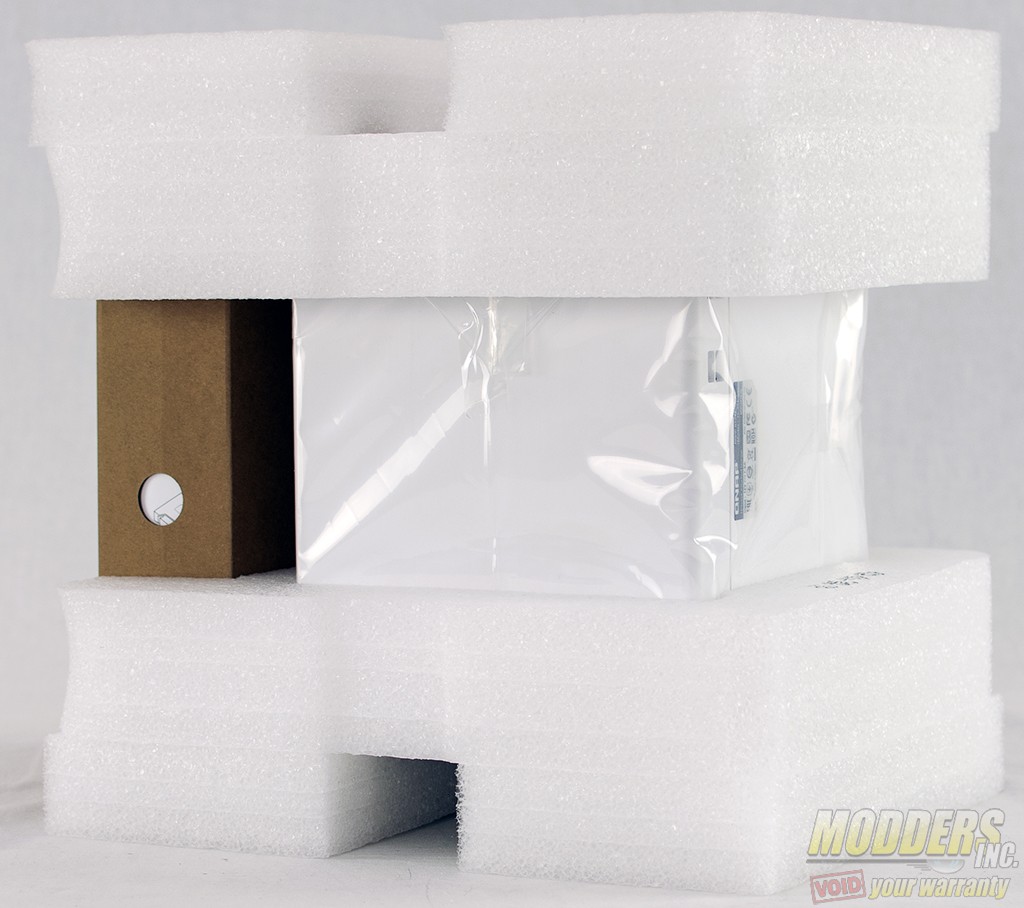

QNAP TS-451The TS-451 comes packaged in rigid foam inserts and the NAS itself is wrapped in plastic to protect the finish from scratches and scuffs. The packing should do a good job of protecting the NAS from the hazards associated with shipping a product across the country.


CPUIntel® Celeron® 2.41GHz dual-core processor (burst up to 2.58GHz)
TS-451-4G: 4GB DDR3L RAM (2GB x 2)
Total memory slots: 2 (expandable up to 8GB)
1. When installing two memory modules, please ensure that they are the same size and ideally use the same type of RAM for both memory slots.
2. For the information of RAM module installation and compatible NAS models, please refer to the QNAP RAM Module Installation Guide
Flash Memory512MB DOM
Hard Disk Drive4 x 3.5” or 2.5” SATA 6Gb/s, SATA 3Gb/s hard drive or SSD
1. The system is shipped without HDD.
2. For the HDD compatibility list, please visit http://www.qnap.com/compatibility
Hard Disk Tray4 x Hot-swappable tray
LAN Port2 x Gigabit RJ-45 Ethernet port
LED IndicatorsStatus, LAN, USB, HDD 1-4
USB2 x USB 3.0 port (Front: 1, Rear: 1)
2 x USB 2.0 port (Rear: 2)
Support USB printer, pen drive, and USB UPS etc.
ButtonsPower/Status, USB One-Touch-Backup, reset
Alarm BuzzerSystem warning
IR ReceiverMCE-compatible
Form FactorTower
Dimensions177(H) x 180(W) x 235(D) mm
6.97(H) x 7.09(W) x 9.25(D) inch
WeightNet: 3 kg (6.61 lbs) / Gross: 4.3 kg (9.48 lbs)
Power Consumption (W)HDD standby: 15.85W
S3 sleep: 0.55W
In operation: 31.07W
(with 4 x 1TB HDD installed)
Humidity5~95% RH non-condensing, wet bulb: 27˚C
Power SupplyExternal Power Adapter, 90W, 100-240V
Secure DesignKensington security slot for theft prevention
Fan1 x quiet cooling fan (12 cm, 12V DC)


Design and specifications are subject to change without notic


Article Pages: A Closer Look »
1 2 3 4 5 6 7 8 9 10 11 12Next page

Tom Brokaw

Tom is a network and computer hardware enthusiast. He has been reviewing hardware products around for various sites around the net since 1999. He has modded a few cases back in the day.
