Test System and Benchmarks
AMD Ryzen Test Bench
|Component||Product Name||Provided By|
|Processor||AMD Ryzen 3 3300x and AMD Ryzen 3 3100||AMD|
|Motherboard||Aorus X570 Master||ASRock|
|Memory||G.Skill Trident Royal F4-3600C16D-16GTRG 16-16-16-36 (XMP)||G.Skill|
|Drive||Samsung 240 EVO 256GB SSD, Crucial MX500 1 TB SATA III SSD||Samsung/Crucial|
|Video Cards||Nvidia GeForce RTX 2080 Super Founders Edition||Nvidia|
|Monitor||BenQ EL2870U 28 inch 4K HDR Gaming Monitor 3840×2160 @ 60 Hz|
|Power Supply||Cooler Master Silent Pro M2 1500W||Cooler Master|
|Operating System||Windows 10 1903 x64 Pro with latest patches and updates|
The Ryzen 3 3300x and Ryzen 3 3100 is configured similarly as when I’ve reviewed past Ryzen CPUs. Neither of my samples came with retail packaging nor did they come with the stock coolers. With that, I rarely, if ever, use the stock coolers in performance testing. The CPUs are installed with a custom loop that features a 360mm radiator and the EKWB AMD Velocity water block.
For synthetic benchmarks, each benchmark was run on each system three times. Then we picked the best of the three results. The system was allowed to idle in between each benchmark for no less than 30 minutes. This gives the processor time to cool down a bit before the next test is performed. The ambient temperature is kept as close to 21°c, or 70°f as possible. We use both Core Temp and Hardware Monitor to record temperatures and CPUZ to validate clock speeds and voltages.
I don’t have any Intel CPUs to directly compare the Ryzen 3 3100 or the Ryzen 3 3300x so, I included the result for the Intel i7 8700k which is the closest Intel CPU that I have one hand to the Ryzen 3 CPUs and is put in the charts for reference purposes only. These CPUs are not meant to compete with each other. I put the new Ryzen 3 CPUs at the top of the charts since they are the newest.
Testing and Performance
AIDA64 has a set of several 64-bit benchmarks to measure how fast the computer performs various data processing tasks and mathematical calculations. Multi-threaded memory and cache benchmarks are available to analyze system RAM bandwidth and latency. Benchmark pages of AIDA64 Extreme provide several methods to measure system performance. These benchmarks are synthetic, so their results show only the theoretical maximum performance of the system. The AIDA64 suite has various benchmarks for CPU, FPU, GPU, storage, and memory testing.

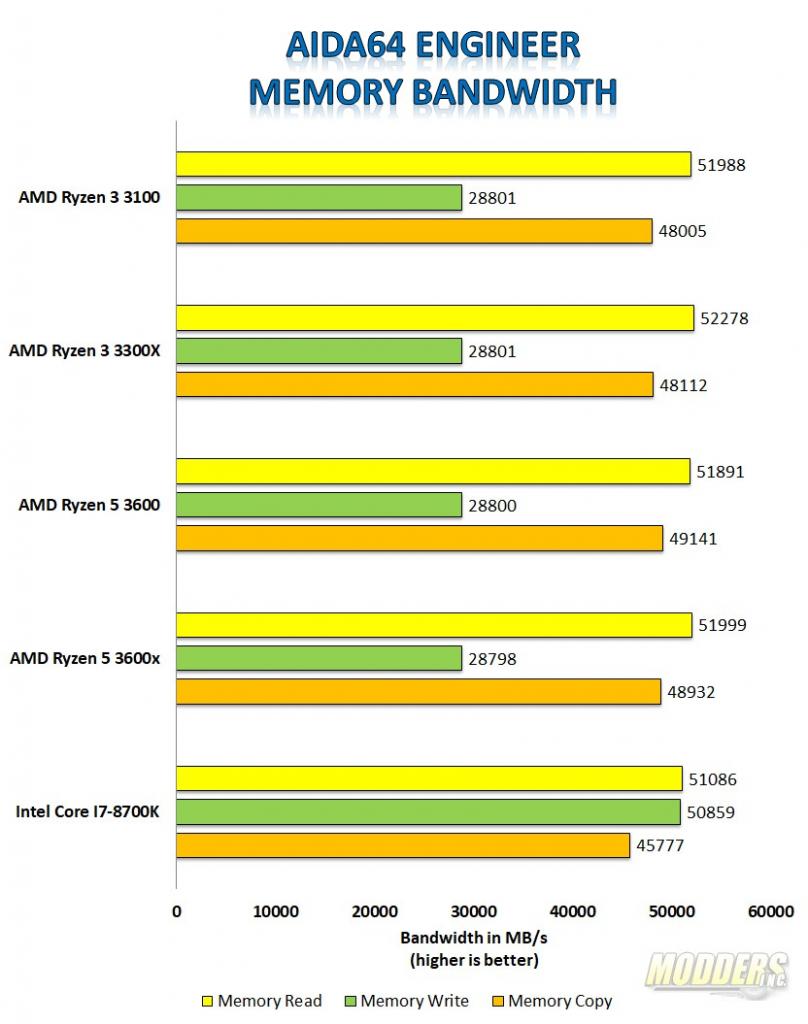

Memory read and memory copy bandwidth is extremely close across the entire chart. Typically we see the Ryzen CPUs with about 1/2 the bandwidth on the write performance when compared to the read performance. This is pretty much standard across the Ryzen lineup except for the Ryzen 9 3900X. Even the Ryzen 7 3700X tops out at 28800 in the AIDA memory test.

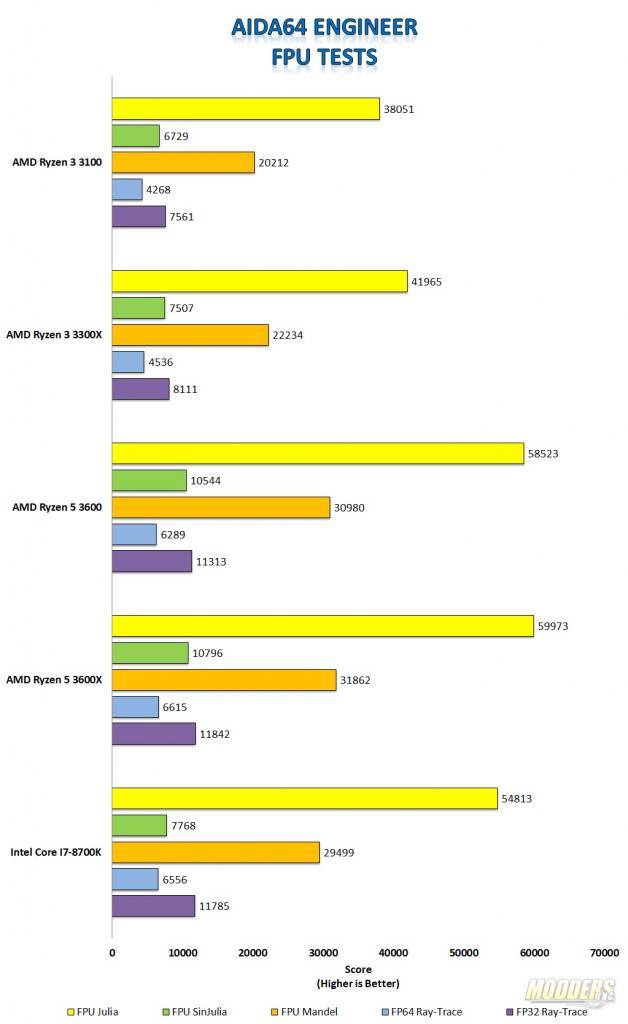

CPU testing lands right where I’d expect for the difference between the Ryzen 5 series CPUs on this chart and the Ryzen 3 CPUs. Really, there are no surprises here.
Cinebench is a real-world cross-platform test suite that evaluates your computer’s hardware capabilities. Improvements to Cinebench Release 20 reflect the overall advancements to CPU and rendering technology in recent years, providing a more accurate measurement of Cinema 4D’s ability to take advantage of multiple CPU cores and modern processor features available to the average user.
Having the CPUs so close together doesn’t really help AMD. Performance between the Ryzen 5 3600s and the Ryzen 3 3300x is darn near identical and close enough that I would say the results are well within the margin of error. I ran this test multiple times and obtained the same result across all the AMD CPUs. IPC performance is still very strong as the CPU single-core tests are similar to each other as well.
The Persistence of Vision Ray Tracer, or POV-Ray, is a ray-tracing program that generates images from a text-based scene description and is available for a variety of computer platforms. It was originally based on DKBTrace, written by David Kirk Buck and Aaron A. Collins for the Amiga computers. There are also influences from the earlier Polyray raytracer contributed by its author Alexander Enzmann. POV-Ray is free and open-source software with the source code available under the AGPLv3.
In POV-RAY, the extra cores on the 3600s allow the multi-threaded tests to eclipse the Ryzen 3 series considering the Ryzen 3 CPUs are 4 cores/8 threads vs 6 cores/12 threads on the 3600s. However, when we take it back to single-core performance, the 3300x has a very strong showing and matches the 3600s. The 3100 has a small MHz disadvantage but still shows strong performance here.
