ASRock Radeon RX 5500 XT Phantom Gaming GPU Review

« A Closer Look at the Phantom Gaming RX 5500 XT | Gaming Benchmarks »



Test System and Synthetic Benchmarks

Component
Product NameProvided By
ProcessorIntel Core i7-9700K (Retail)Intel
MotherboardAorus Z390 ProGigabyte
MemoryG.Skill SniperX 2x8GB @ 3400MHz 16-16-16-36 (XMP)G.Skill
DriveSamsung 240 EVO 256GB SSDCrucial MX500 1 TB SATA III SSDSamsung/Crucial
Video CardsASRock Phantom Gaming RX 5500 XT, Gigabyte Radeon RX 5500 XT, XFX Radeon RX 5600 XT,  AMD Radeon RX 5700, EVGA GeForce RTX  2060 KOAMD/ASRock/XFX/EVGA
MonitorBenQ EL2870U 28 inch 4K HDR Gaming Monitor 3840×2160 @ 60 Hz
CaseDimasTech EasyXLDimasTech
Power SupplyCooler Master Silent Pro M2 1500WCooler Master
Operating SystemWindows 10 1909 x64 Pro with latest patches and updates

Testing Methodology:

There are many ways to benchmark GPUs. With these benchmarks our goal is to do two things: first to show the performance of the card and secondly to make them easy to replicate. With a similarly configured system, you should be able to get similar results to compare your current graphics card against. There will always be a variance from system to system. All games for this review are tested with the HIGHEST IN-GAME  PRESET unless otherwise specified. A fresh build of 1909 and all drivers and games were installed. No changes were made from the defaults in the BIOS, Windows 10 operating system, or provided manufactures software.

Game frame rates are averaged from the results of 3 benchmark runs at each resolution.

Synthetic Tests

3DMark Firestrike from Futuremark is a Semi-synthetic DirectX11 benchmark designed for high-performance gaming PCs. Firestrike performs advanced geometry, illumination and particle tests with its Graphics benchmark and performs physics simulations using the CPU. Firestrike Ultra Kicks it up a notch and ratchets up the resolution to 4K and turns the quality up a bit.

RX 5500 XT Phantom Gaming

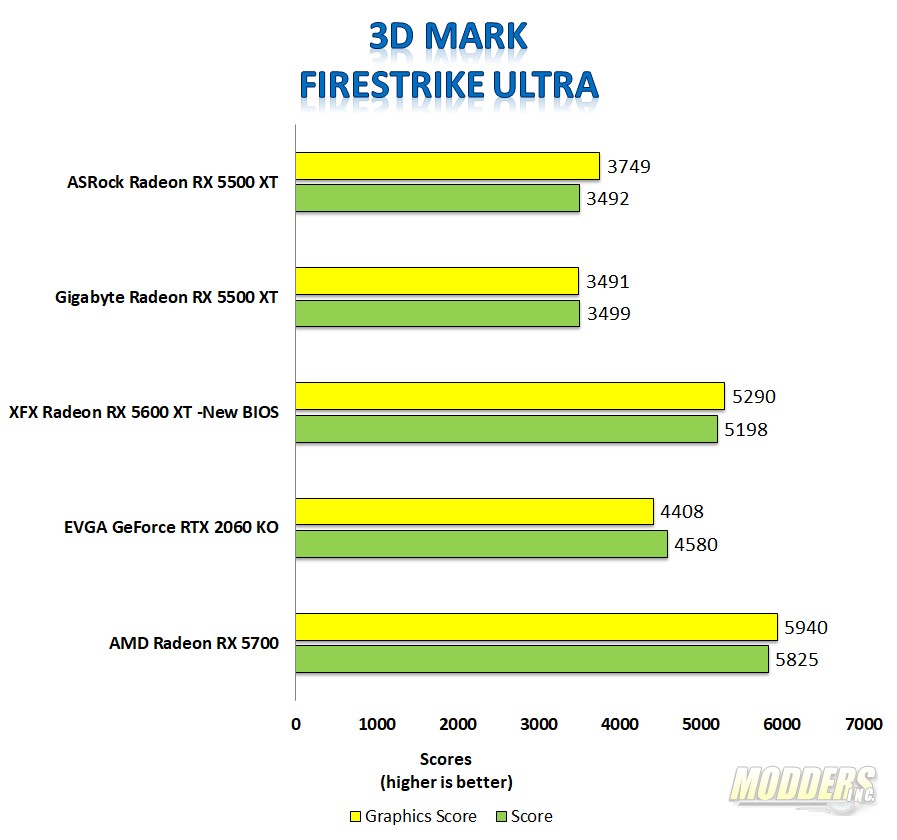

Firestrike Ultra is pretty brutal on any graphics card and especially budget cards.  However, the Phantom Gaming RX 5500 XT does well as it outscored the Gigabyte RX 5500 XT with a score of 3749 in the graphics arena.

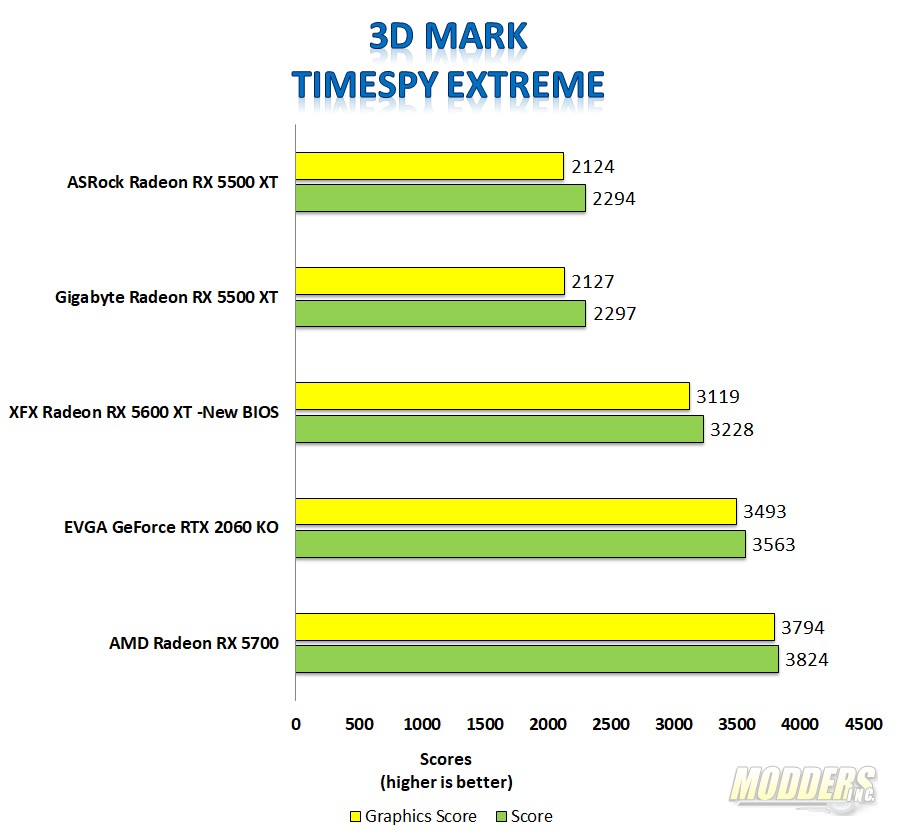

If Firestrike Ultra is brutal, Timespy Extreme is uber brutal. Both RX 5500 XT cards scored about the same here.  Only a couple of points separate them and are well within the margin of error.



RX 5500 XT Phantom Gaming

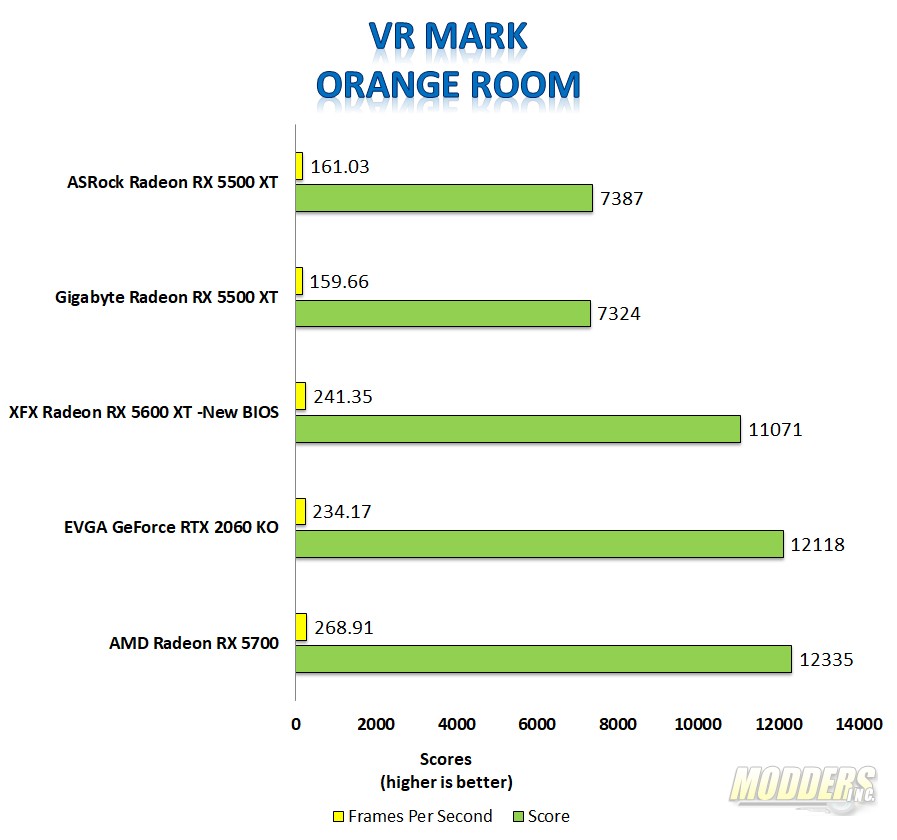

The Orange Room test from VR Mark represents VR performance with the original HTC Vive or Oculus Rift. There’s a very slight advantage for the Phantom Gaming RX 5500 XT in this benchmark, but not much of one.



RX 5500 XT Phantom Gaming

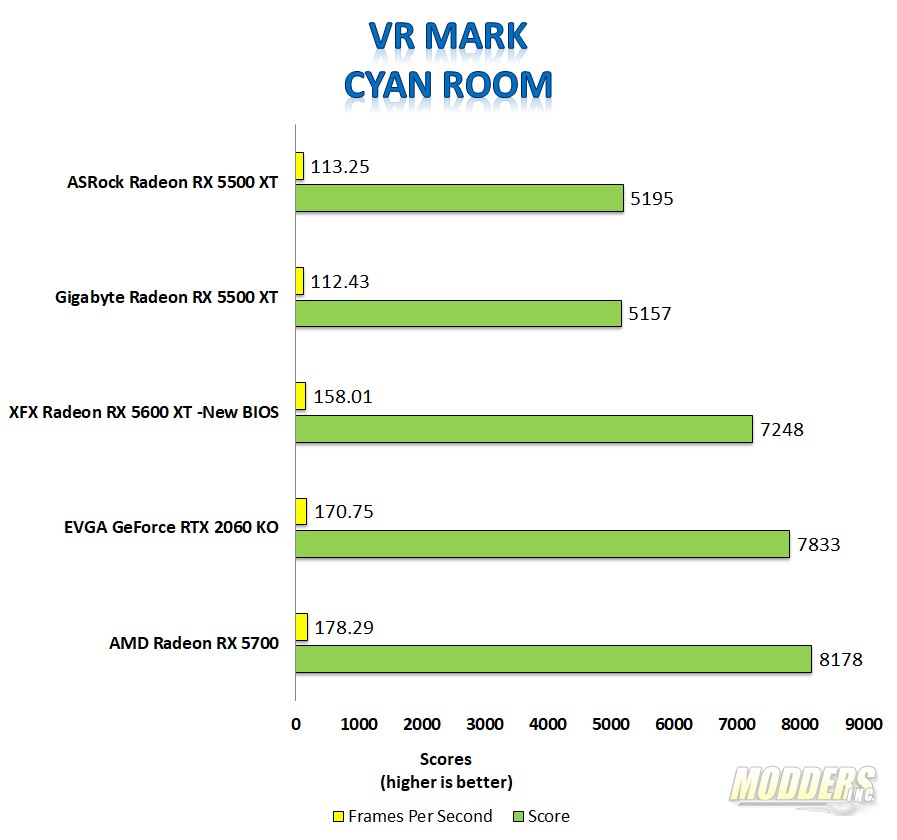

The Cyan Room Benchmark represents high-end VR hardware such as the Rift S. Both of the 5500 XT cards are very close in performance, however, if we were to call a leader, it would be the Phantom Gaming GPU.



RX 5500 XT Phantom Gaming

Finally, there is the Blue Room benchmark. This is designed to test GPUs at future VR Hardware and brings a lot of cards to their knees. The RX 5500s are tied with no clear leader.







RX 5500 XT Phantom Gaming

The Superposition benchmark sees the two RX 5500 XTs nearly tie in performance once more although a slight advantage goes to the ASRock GPU.





RX 5500 XT Phantom Gaming

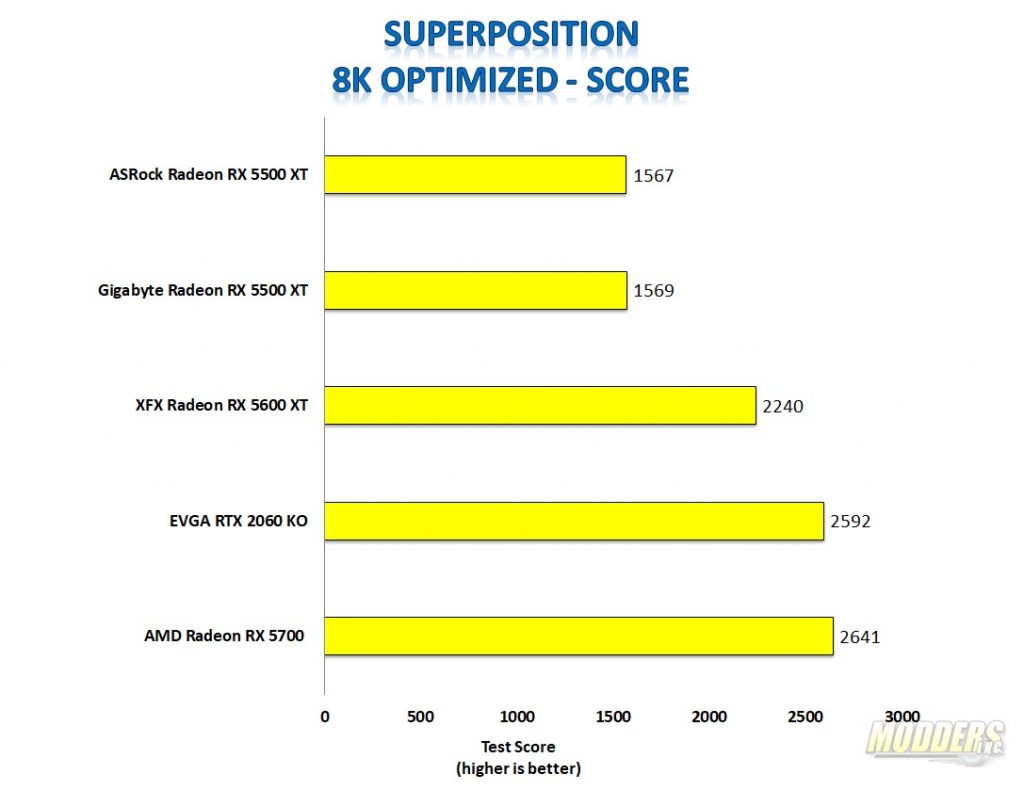

When we bump the resolution to 8K, only two points separate the ASRock and Gigabyte cards.
