Biostar N3150NH Mini-ITX Motherboard Review: Passive Progressive

« System Benchmarks | Conclusion »

Subsystem, Power and Thermal Performance Benchmarks

AS SSD is used for its disk benchmark to show read performance of the SATA drive as well as USB 3.0 ports.

 asssdsata

asssdusb3

On-board Audio

Network Performance

Advertisement

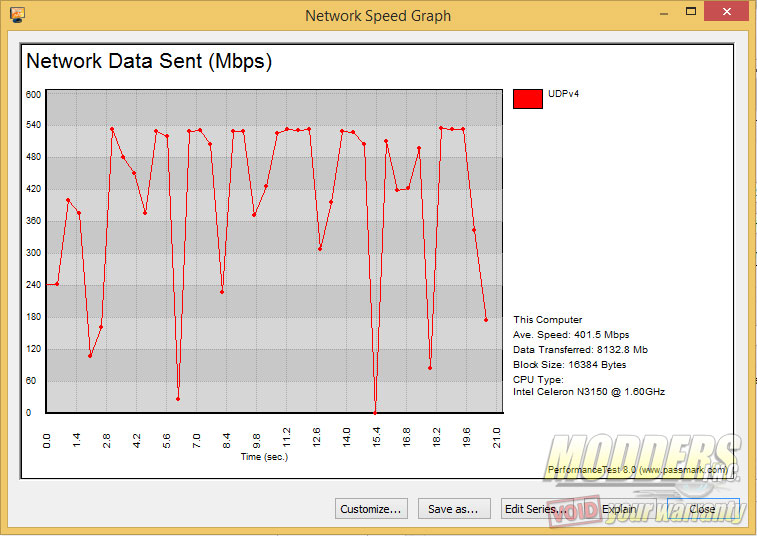

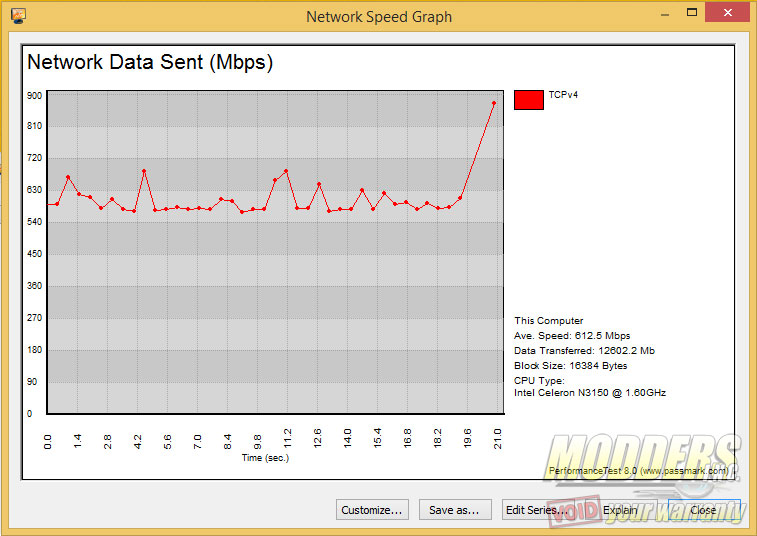

Network performance was tested with the Passmark network testing program for both Wireless and wired TCP as well as UDP loads.

tcpgreen udpgreen

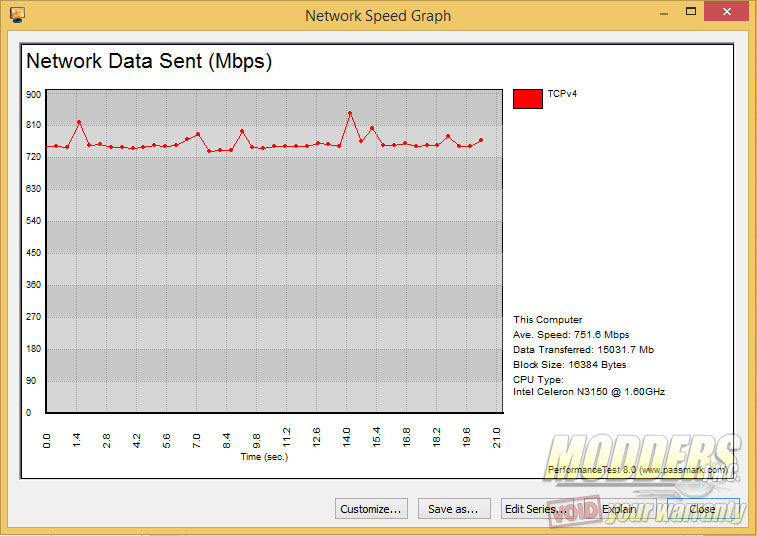

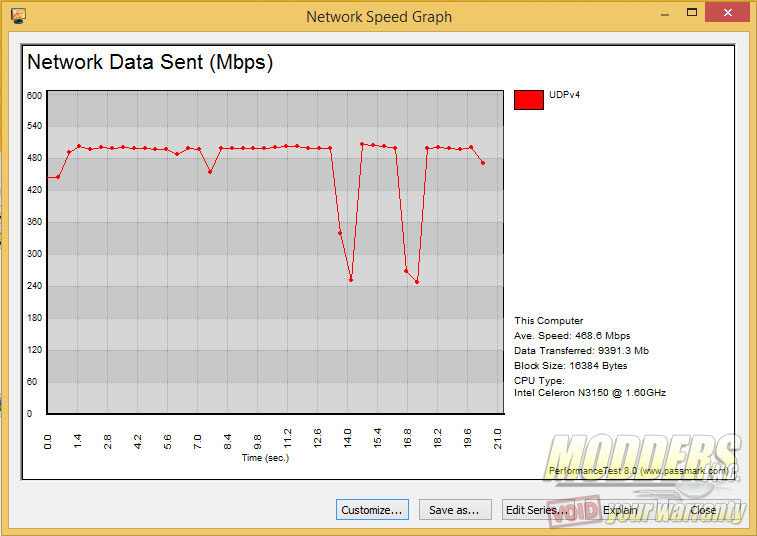

Since  the Biostar N3150NH is designed for lower power loads, the green function of the ethernet is enabled and has aggressive power saving features. Disabling it shows the full speed the N3150NH is capable of:

tcpudp

Synthetic Gaming Performance

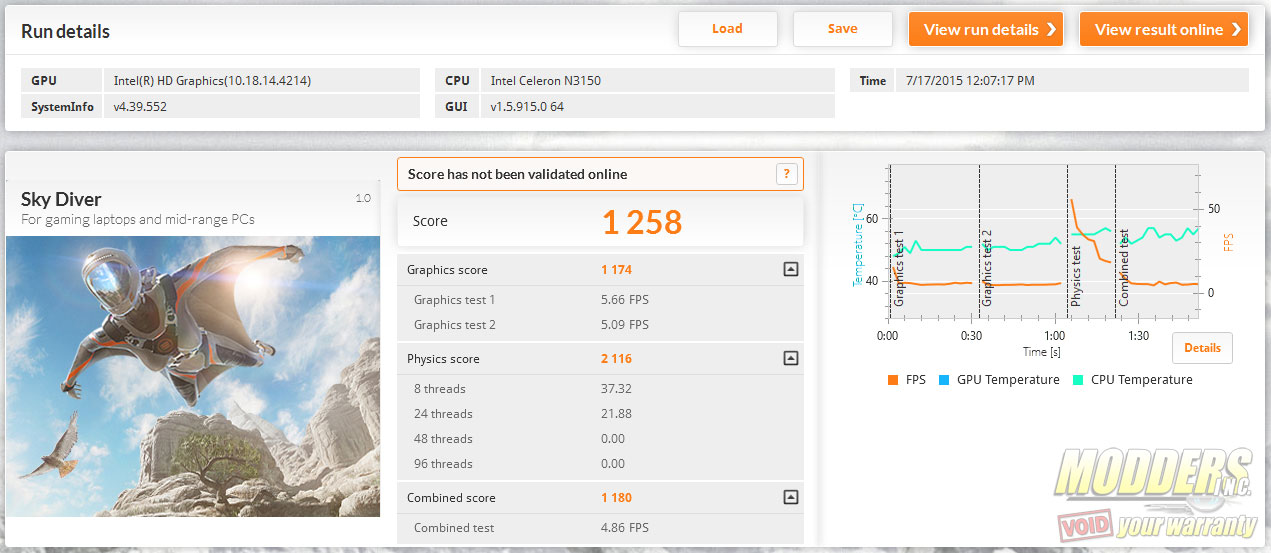

Futuremark’s Sky Diver benchmark tests graphics and CPU gaming performance for gaming laptops up to mid-range PCs.

Advertisement

skydiver

 Temperature and Power Consumption

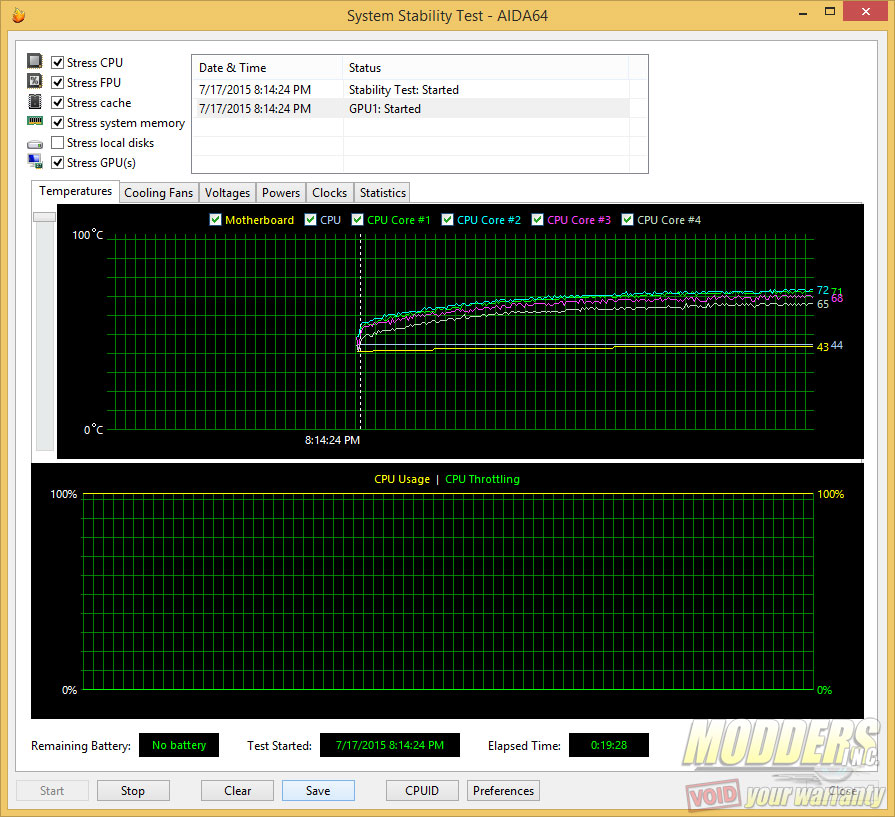

Using AIDA64’s built-in stability test, the Intel Celeron N3150NH is loaded including the GPU to see how well the passive cooling solution works in a 20-minute continuous load. Temperature levels did not even come close to the 90C maximum:

stabilitytest

In terms of total system power consumption measured from the wall, idle is at 24W, standby is at 11W, x.264 encoding is at 28W and AIDA64 stability test (including GPU) maxed out at 33W.
