Biostar N3150NH Mini-ITX Motherboard Review: Passive Progressive

Closer Look »

n3150nh00Computers have become so ubiquitous in daily life that it is absurd to think that the very concept of having one in every household was considered a joke a mere 35-years ago. Back then, the concept of personal computing, let alone connected computing, was difficult to grasp because computers were expensive, took up plenty of space, ran hot and required vigilant maintenance. It also did not help that operating systems were not as user-friendly as they are now.

For less than a $100 in 2015, users now have the option of having an all-in-one, low-power, passively cooled platform to build-on, and more importantly, such a solution also opens the doors for businesses to add cost-effective basic computers to their stable without the overhead and maintenance of a full-sized PC. For even less than that, Biostar’s new N3150NH SoC mainboard

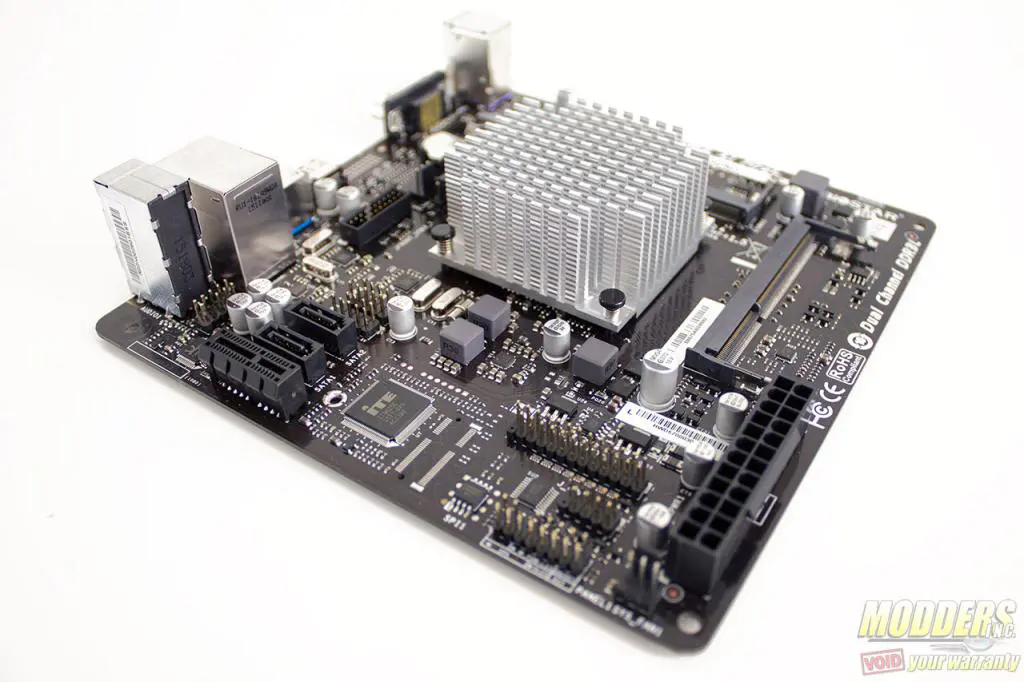

The Biostar N3150NH is a $69 mini-ITX solution utilizing an Intel Celeron N3150 Braswell SoC for a low-power, passively cooled system platform. Although intended for use in public kiosks and general low-power computing applications, the Biostar N3150NH has enough horsepower with its 4-core/4-thread Braswell CPU for more advanced tasks than previous generation Atom and Celeron CPUs at a lower power envelope.

[sc:sponsor sponsor=”BIOSTAR” product_link=”http://www.biostar.com.tw/app/en/mb/introduction.php?S_ID=804″ product_name=”N3150NH” product_price_link=”http://amzn.to/1Ff8bhs” product_price=”$69.99″ ]

The cover box packaging itself does not have a photo of the motherboard on the center but instead, Biostar touts their 6+ Experience feature-set with more at the bottom edge. Inside, folded cardboard compartments separate the accessories and contents.

n3150nh01 n3150nh02

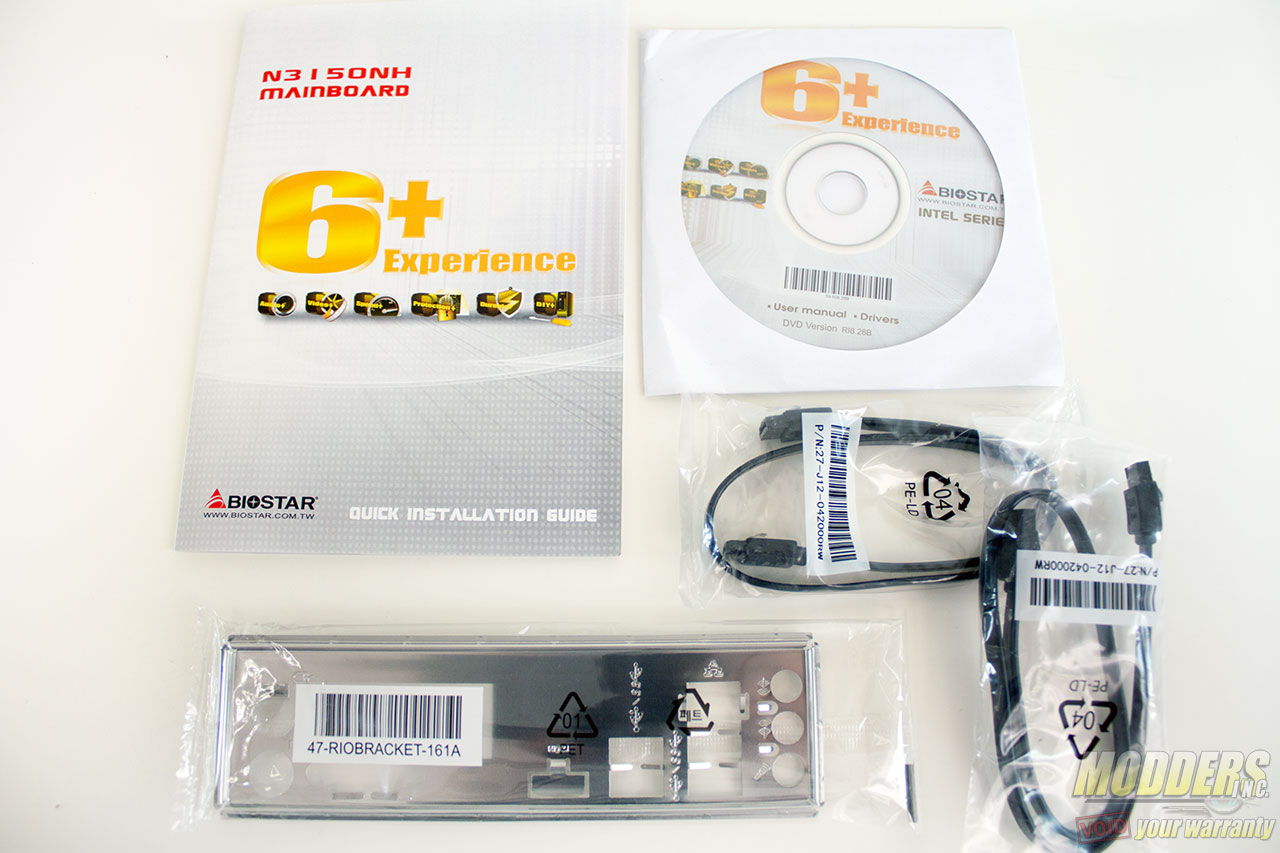

Other than documentation, disc drive and IO shield, the Biostar N3150NH mainboard also comes with a pair of straight latching SATA cables.

Specifications:

CPU Intel® Celeron N3150 1.6G Quad-core 1.6G turbo boost up to 2.08G
MEMORY Support Dual Channel DDR3L 1600/1066 MHz
2 x DDR3 SO-DIMM Memory Slot
Max. Supports up to 8GB Memory for DDR3L-1600 OR 16GB Memory for DDR3L-1066
※The DIMM must be installed to DIMMA1 slot first.
EXPANSION SLOT 1 x PCI-E x1 2.0 Slot
STORAGE 2 x SATA3 Connector
USB 2 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Header
LAN Realtek RTL8111H – 10/100/1000 Controller
INTEGRATED VIDEO Intel HD Graphics
Supports DX11.1
Supports HDCP
CODEC Realtek ALC662 6-Channel HD Audio
REAR I/O 1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x RJ-45 Port
3 x Audio Connector
INTERNAL I/O 1 x Printer Header
1 x USB 3.0 Header
2 x USB 2.0 Header
2 x SATA3 6Gb/s Connector
1 x Front Audio Header
1 x Front Panel Header
2 x System Fan Header
1 x Serial Header
H/W MONITORING CPU / System Temperature Monitoring
System Fan Monitoring
System Voltage Monitoring
DIMENSION Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )
OS SUPPORT Support Windows 7(x64) / 8.1(x64) / 10
BUNDLE SOFTWARE BullGuard
BIO-Remote2
Smart Speed LAN
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Supports Solid capacitor
Supports BIOS-Flasher
Supports Charger Booster
Supports BIOS Online Update

1 2 3 4 5 6 7 8Next page
