BitFenix Shadow ATX Case Review

« Page 3 | Page 5 »

BitFenix Shadow ATX Case Review ATX, Bitfenix 1
There is a single SSD mounting spot in the floor of the drive bay section. Be SURE to connect the Sata Data and especially Sata Power cables before mounting the SSD to the case else it’s a tough pinch to get in there and hook up. If your planning more than one SSD then you’ll need the following bracket not supplied with this case.



BitFenix Shadow ATX Case Review ATX, Bitfenix 2
ADATA SSD’s come with a 3 1/2 bay adapter for mounting SSD’s to a standard HDD bay rack.



BitFenix Shadow ATX Case Review ATX, Bitfenix 3
SSD mounted in the 5 1/4 HDD drive rack, adapter not supplied. You can see on the floor the SSD mount area if just 1 SSD is being used.
BitFenix Shadow ATX Case Review ATX, Bitfenix 4
Again locked in place with the tool less drive mounts that just twist to lock in place.
BitFenix Shadow ATX Case Review ATX, Bitfenix 5
The COMPLETE build.
I left that 1 red LED Case Power Cable visible so I would remember to mention that all the case cables except this one red wire are black flat ribbon like wires and this one red wire sticks out like a sore thumb even thru the pass thru if tucked back behind.
BitFenix Shadow ATX Case Review ATX, Bitfenix 6

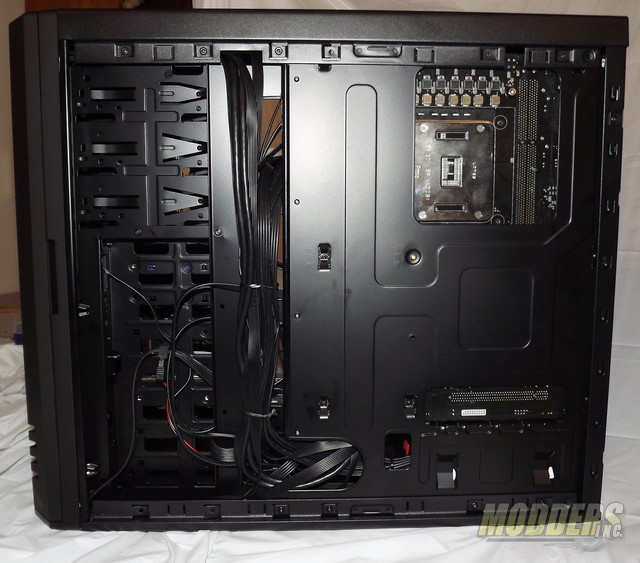

Cable management is OK. You have to cable everything in the forward drive bay section as there is no room in the rear MOBO section for cables and door.
I think if you had planned extensions you could have a problem with stuffing everything in and even with the PSU cables sleeved it’s a tight fit. Lucky this PSU had the flat ribbon style cables and fit well. Notice that one red LED case power SATA cable.

One thing to take note of is the back of the CPU. The left side pass thru to mount a rear cooler bracket is in accessible. A 1150 or 1155 or other CPU’s wont have this problem with this case.

Previous page 1 2 3 4 5Next page
Become a Patron!

Contributor

Hidden away in a dark part of the Modders-Inc offices is a man, no a machine, that writes reviews so epic that they have been listed in the top ten best reads by the New York Times. Well that is what we tell him otherwise we have no idea what would happen if he knew the truth.

3 Comments

  1. Hij, thank you for the great review!

    I do have one question about the bottom dust filters. The filter underneath the PSU, are you sure that one can also be mounted underneath the case? I am building my new system in this case and it looks like the feet are in the way of the filter. How would I mount the filter underneath the feet?

    Greetings, Luneya

  2. Yes I’m sure you can But, remember if your sliding it around on carpet that the mesh in the filter is fragile. I mounted the fan from the bottom then put the filter over that area. The clip holes work top or bottom.
