Cooler Master MASTERAIR G100M CPU Cooler Review

Too the moon and beyond

A Closer Look »

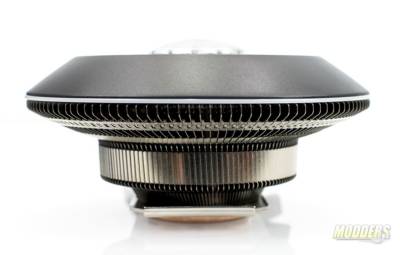

MasterAir G100MReminiscent of the Jupiter 2 from the 1960’s version of the TV series Lost In Space, the Cooler Master G100M is affectionately called the UFO cooler.  The G100M is a low profile cooler designed to fit into smaller cases especially mini-ITX. The G100M boats a 130-watt cooling capacity and features a large “heat column” at the center of the cooler. With its small size and new cooling technology, does the G100M make sense in your daily driver?



Review Sample Provided By: Cooler Master
Product Name and Website: Cooler Master Masterair G100M
Product was given in exchange for work to produce review.

What is the heat column? Well, to me it appears to be just a single large heat pipe that is used in multiple coolers. The cooling process is similar to heat pipes, the liquid inside boils and turns into a vapor. The vapor rises to the top where heat is transferred from the heat column to the fins of the cooler and the vapor re-condenses back to the bottom of the heat column and the process repeats. The one advantage is rather than heat pipes being soldered to a cold plate, the bottom of the heat column sits directly on top of the CPU’s heat spreader. In short, it is a really big, single heat pipe.

Packaging

The G100M’s packaging is a simple affair. The packaging isn’t flash and the front of the box features a large clear image of the cooler contained inside. On the rear, Cool Master details some of the features of the G100M in 8 different languages.

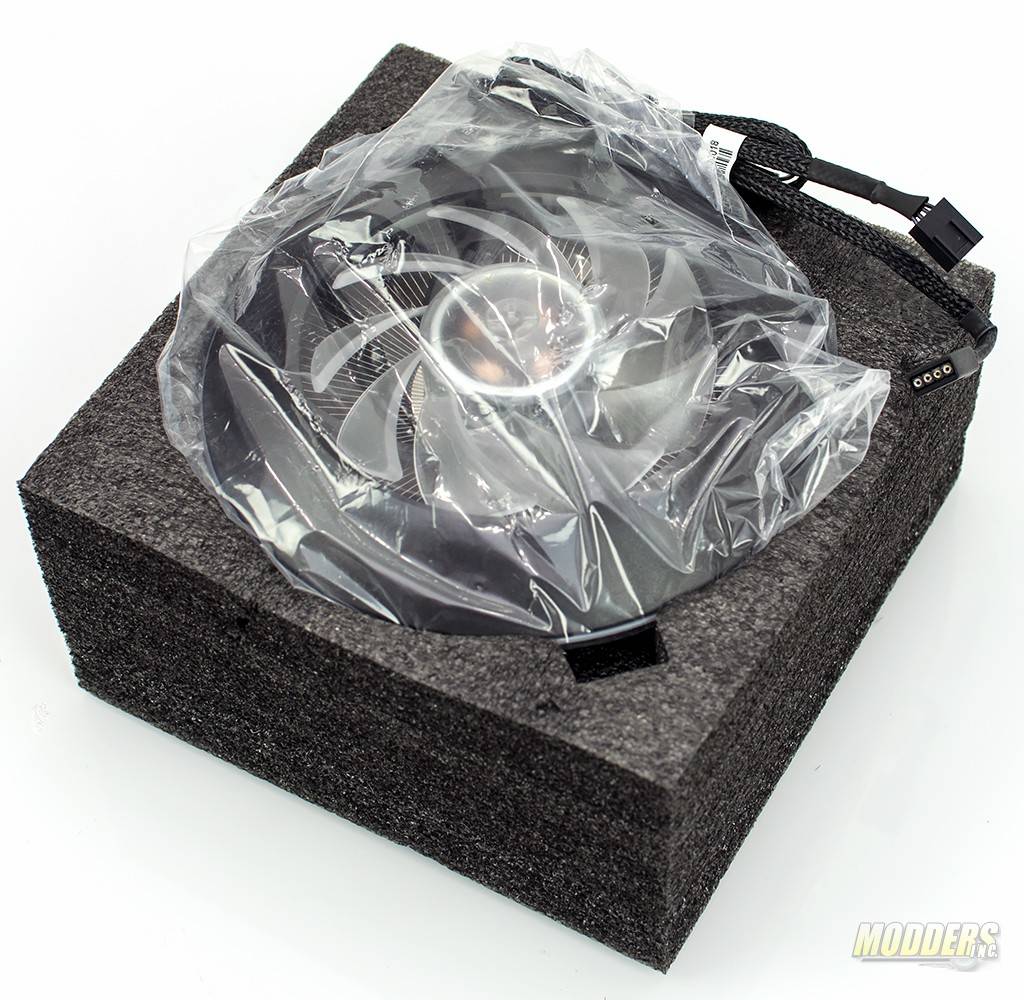

The cooler and the accessories are packed away inside a closed cell foam insert with cavities for the cooler and the accessories. The CPU cooler’s finish is protected by a thin plastic bag.
Cooler Master MASTERAIR G100M

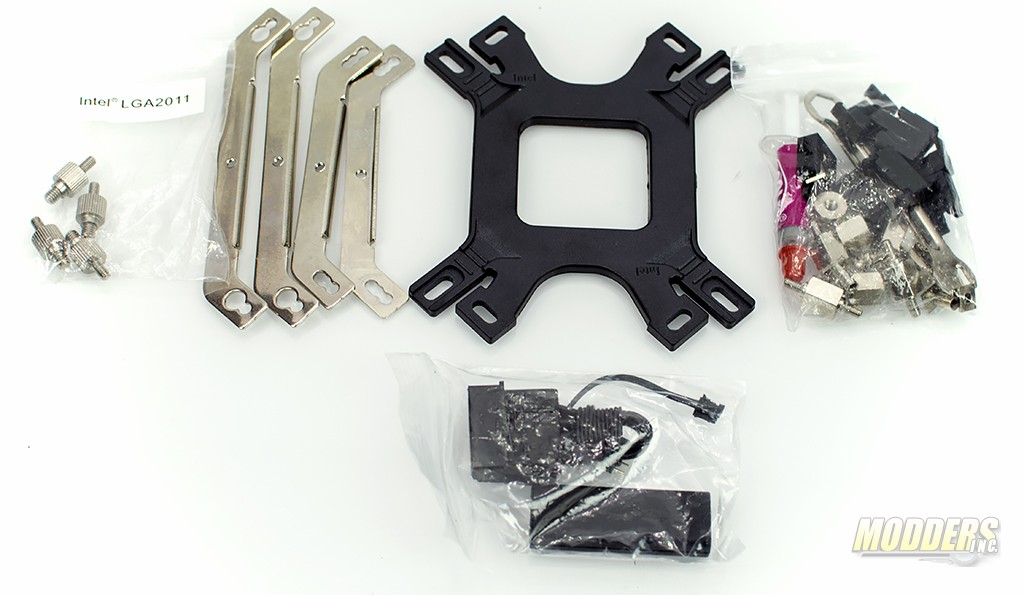

While Cooler Master says the mounting kit is tool-free, that’s not really the case as they’ve included a custom wrench. in this case, tool-free means you don’t have to use your own tools. Included in the kit are a backplate and mounting arms for both Intel and AMD sockets, an RGB LED controller, and Cooler Master thermal paste. A Molex connector is included to provide power to the RGB LEDs. Molex, really?
MasterAir G100M brackets

Specifications

Product Name MasterAir G100M
Model number MAM-G1CN-924PC-R1
CPU Socket Intel® LGA 2066 / 2011-3 / 2011 / 1151 / 1150 / 1155 / 1156 / 1366 / 775 socket

AMD® AM4 / AM3+ / AM3 / AM2+ /AM2 / FM2+ / FM2 / FM1 socket

Dimensions 145 x 145 x 74.5 mm (5.7 x 5.7 x 2.9 inch)
Heat Sink Dimensions 143 x 143 x 51.7 mm (5.6 x 5.6 x 2.0 inch)
Heat Sink Material Heat Column / Aluminum Fins
Heat Sink Weight 320g (0.70lb.)
Heat Column Dimensions Ø41.2*46.3 mm
Fan Dimensions 92 x 92 x 25 mm (3.6 x 3.6 x 1 inch)
Fan Speed 600~2400 RPM (PWM) ± 10%
Fan Airflow 22.63 CFM ± 10%
Fan Air Pressure 1.6 mmH2O ± 10%
Fan MTTF 280,000 hrs
LED color RGB ready
Fan Noise Level (dBA) 30 dBA (Max)
Fan Connector 4-Pin (PWM)
Fan Rated Voltage 12 VDC
Fan Rated Current 0.34 A
Fan Safety Current 0.37 A
Fan Power Consumption 4.08 W
Warranty 2 years
