Cooler Master Nepton 140XL Cooler Review

Article Pages: « Page 3 | Page 5 »

Test System and Benchmark Results of the Cooler Master Nepton 140XL

All case and heat sink fans were running at 100% unless otherwise specified. The testing room was temperature controlled at 24 degrees Celsius. Ambient temperature monitored at case intake and data was discarded whenever the ambient temperature would rise beyond 0.5C higher or lower than 24C. Video card is installed on the third PCI-E x16 slot for full CPU heatsink clearance compatibility. Fresh Noctua NT-H1 thermal compound is applied per run in a small center cross method due to the large surface area of the LGA2011 IHS instead of small center dot. Temperatures are averaged from individual core temperature results monitored by AIDA64 after 15 minutes. Peak temperature is the highest recorded per-core temperature during the duration of the load test. All tests were taken three times to get the final result. Stock settings have all power saving features enabled in the motherboard and set to “Balanced” in Windows. OC settings have power saving and Hyper-Threading disabled, Vcore voltage manually set to 1.375V at 4.4GHz and 1.45V at 4.5GHz and Windows power setting changed to “High Performance”.

ProcessorIntel Core i7-3960x (Engineering Sample)
MotherboardASUS P9X79 WS Motherboard
MemoryPatriot Viper 3 “Black Mamba” Low-Profile 4x8GB DDR3 Memory
DriveOCZ Agility 4 256GB SSD
Video CardAMD HD 6570 Video Card
Thermal CompoundNoctua NT-H1 (small center-cross application method)
CaseNZXT Switch 810 SE (top 140mm fan removed and placed as front intake)
Comparison Coolers
  • Corsair H100
  • Corsair H110
  • Noctua NH-D14 SE2011
  • Noctua NH-U14S
  • Phanteks TC14PE
  • Cooler Master Nepton 140XL

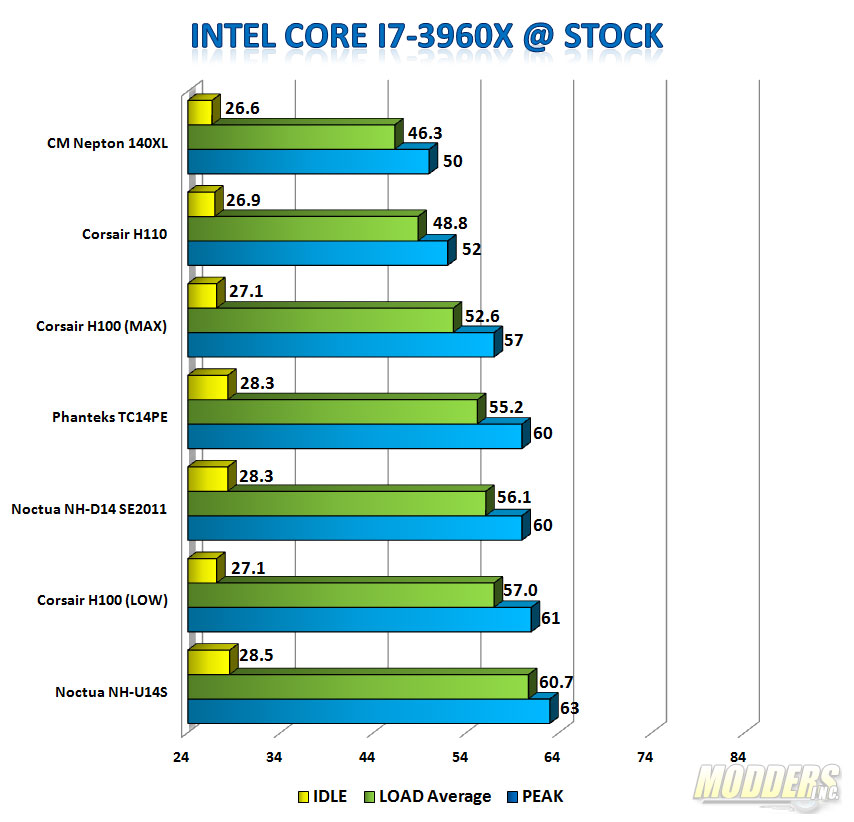

i7-3960x Stock Benchmark

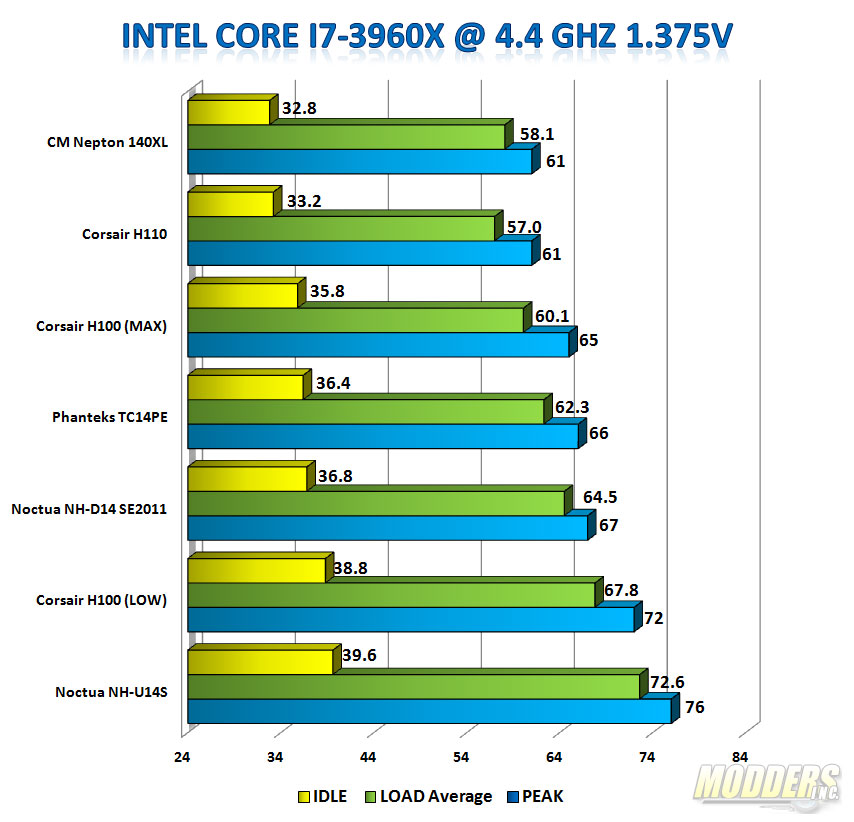

i7-3960x 4.4GHz 1.375Vcore Benchmark

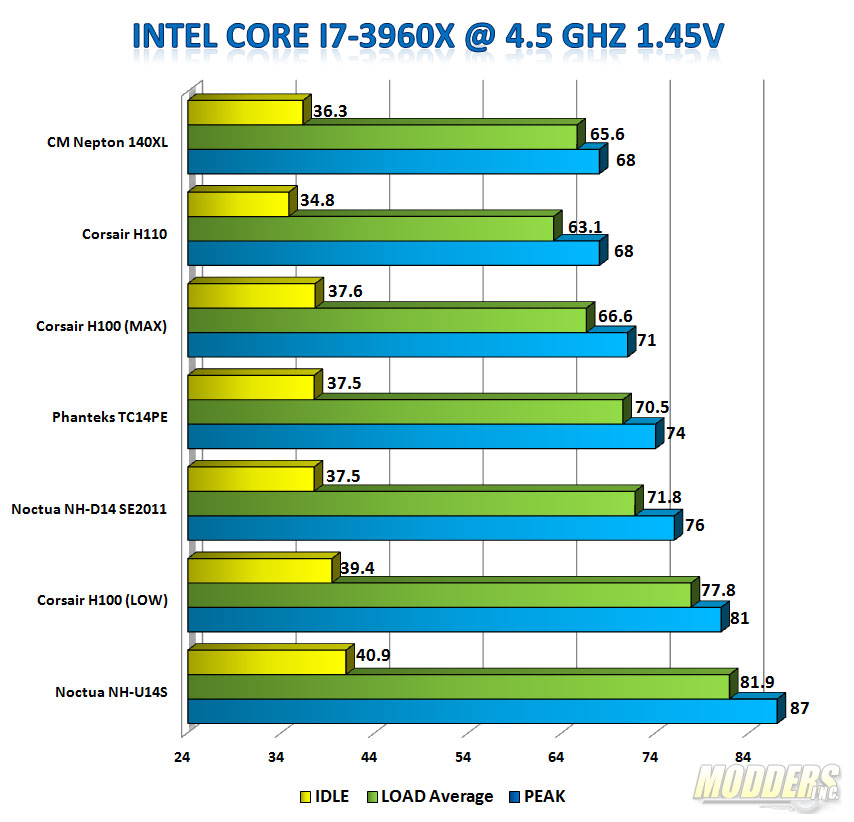

 i7-3960x 4.5GHz 1.45Vcore Benchmark

Performance Summary:

Quite an incredible showing by the Nepton 140XL here, leading the pack in the stock benchmarks and even with the overclocked settings, it only trailed behind slightly against the larger 280mm Corsair H110. The fans are very loud at full speed but since they are PWM fans, it is easy to lower it down and at an audibly tolerable 60% fan speed ~1700 RPM, performance was still decent when overclocked to 4.5GHz with 1.45Vcore idling at 36.5 degrees celcius and peaking at 72 degrees with a load average of 69.5 degrees celcius.
