Some where along the build I forgot to take pictures of me adding more support brackets and painting the wood for the work spaces on the test bench, but we can get over that right?….look at the pics….done…thank you…lol

Lets see I did the HD, now how about the CD Drive….I wanted it to go under the hard drives.

Custom Computer Hardware Test Bench : by AmericanFreak blog 1

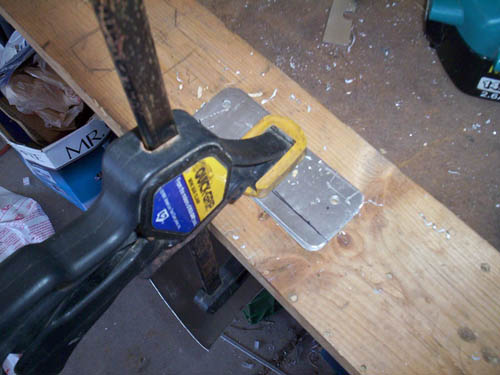

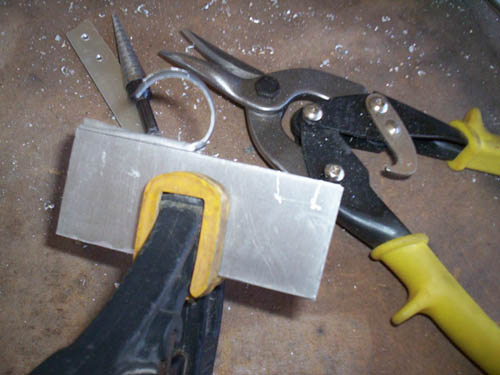

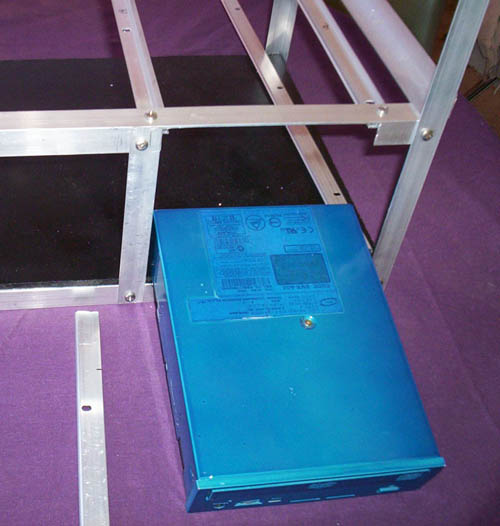

I made some more brackets, like I did for the hard drives, to fit the CD Drive.

Advertisement

Custom Computer Hardware Test Bench : by AmericanFreak blog 2

Custom Computer Hardware Test Bench : by AmericanFreak blog 3

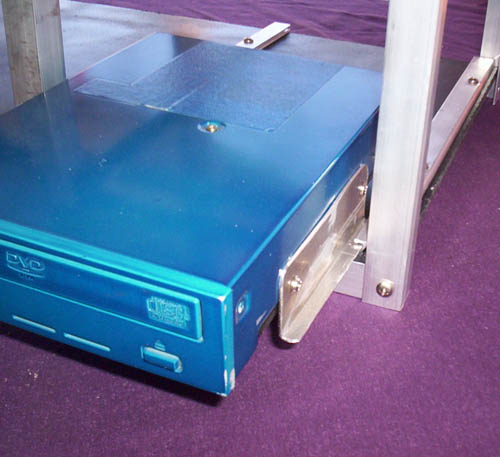

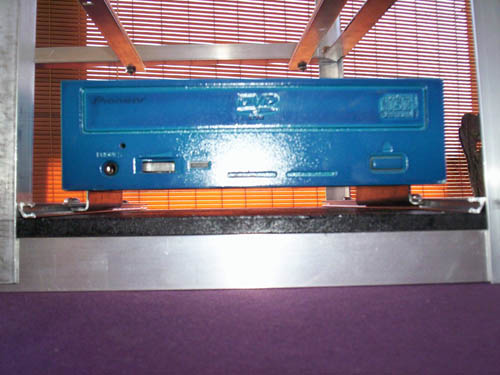

..and this is how it ended up looking and no I did not paint over the sticker on the CD it is taped off…

Custom Computer Hardware Test Bench : by AmericanFreak blog 4



Custom Computer Hardware Test Bench : by AmericanFreak blog 5

We can go back to the wood I painted as I wanted to keep the wire inside the “case” area and not go out the back. This way I could run all the power cables and crap to the mother easier.

Advertisement

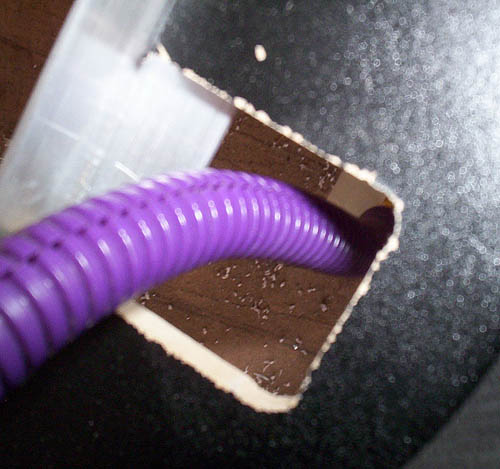

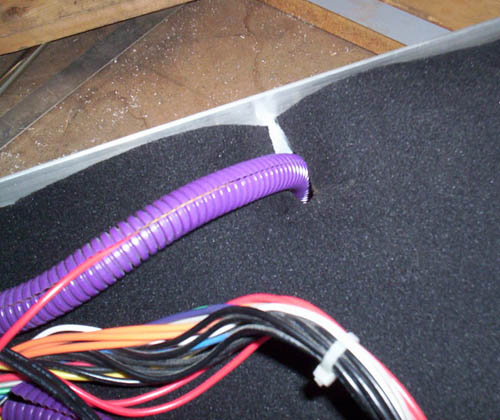

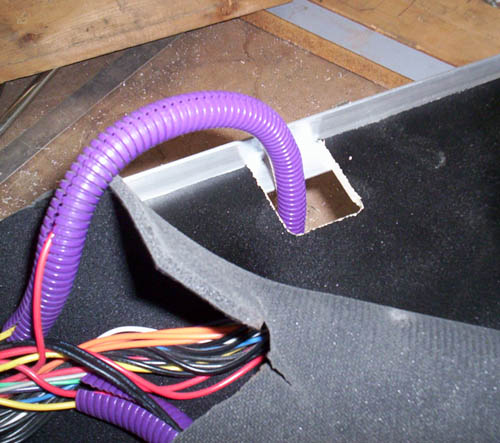

I cut a small area out and passed the mock-up PSU wires through it.

Custom Computer Hardware Test Bench : by AmericanFreak blog 6

Once again I got lucky and found these huge mouse pads I mean HUGE they were bigger than a keyboard and just what I needed, plus they were only $5 a piece! SCORE! They will be use were the mother boards will sit to help prevent them from shorting out.

Custom Computer Hardware Test Bench : by AmericanFreak blog 7

I cut a notch in the top one to fit around the cables.

Custom Computer Hardware Test Bench : by AmericanFreak blog 8

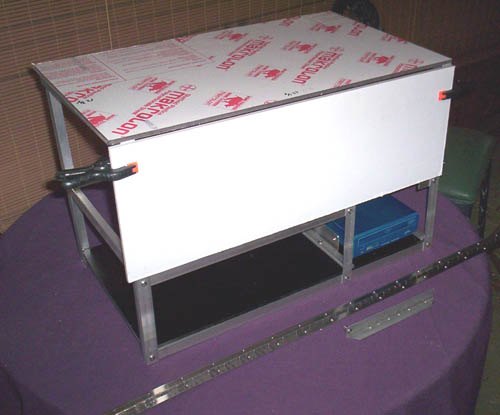

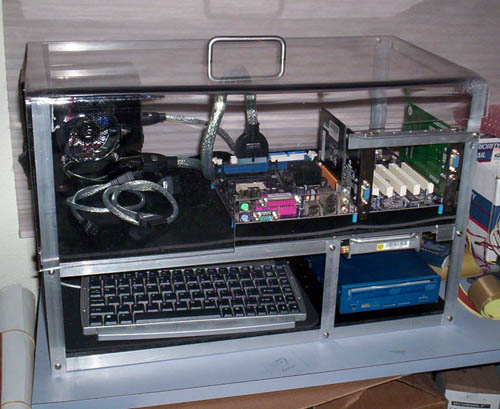

Well here it is about 50% done. If you remember the bracket that went around the MB ports….well I messed that one up….I made it to fit the mock up MB and when I tried a different one it block some of the ports….win some, lose some. So I just made a straight piece that will fit any MB. I also did not like the top. It was a pain in the butt to take off and put some where when you have to work on it. Say goodbye….. out with the old….

Custom Computer Hardware Test Bench : by AmericanFreak blog 9

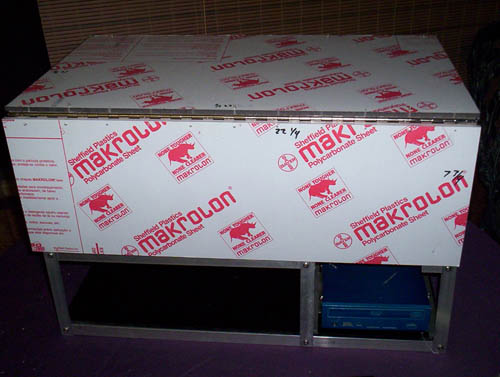

…in with the new.

Custom Computer Hardware Test Bench : by AmericanFreak blog 10

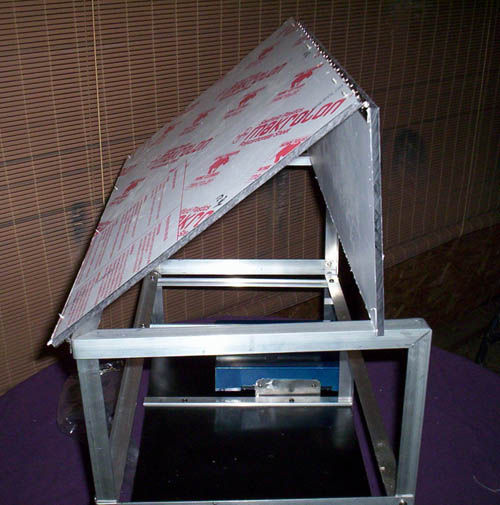

 I wanted the new top to fold up and out of the way. This way I do not have to worry about placing the top some where. I bought a 4 foot chrome piano hinge and will cut it to to length for the front and back part of the fold away top.

Custom Computer Hardware Test Bench : by AmericanFreak blog 11

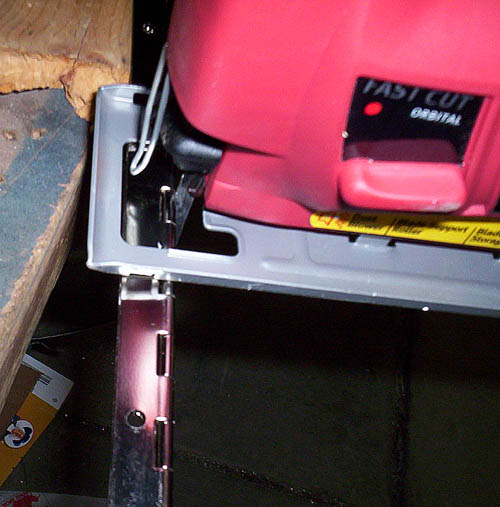

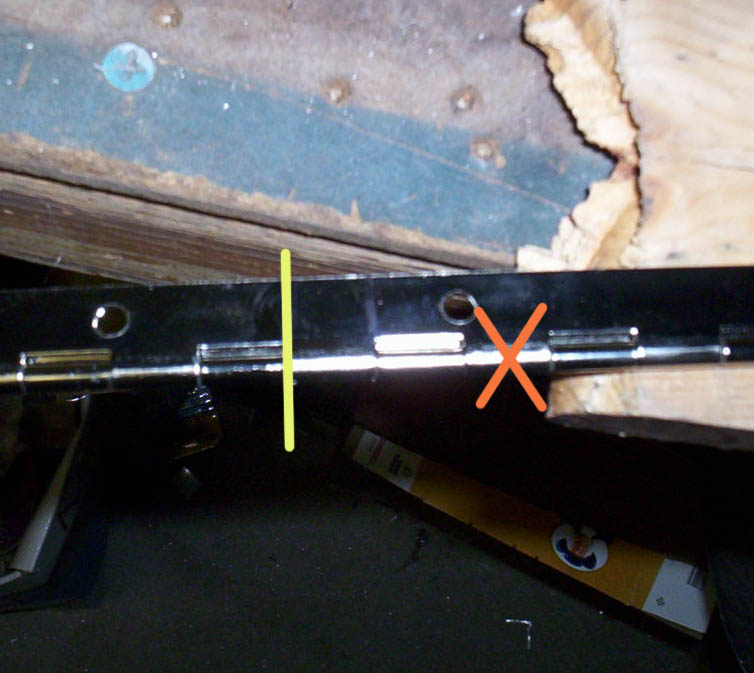

When ever possible cut where the 2 pieces over lap each other to make the hinge.

Custom Computer Hardware Test Bench : by AmericanFreak blog 12

The two hinges installed

Custom Computer Hardware Test Bench : by AmericanFreak blog 13

Custom Computer Hardware Test Bench : by AmericanFreak blog 14

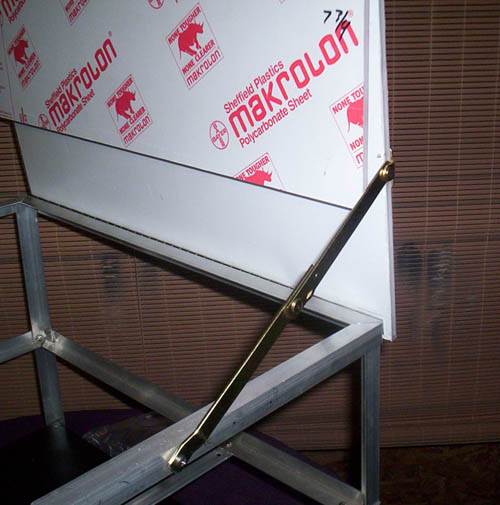

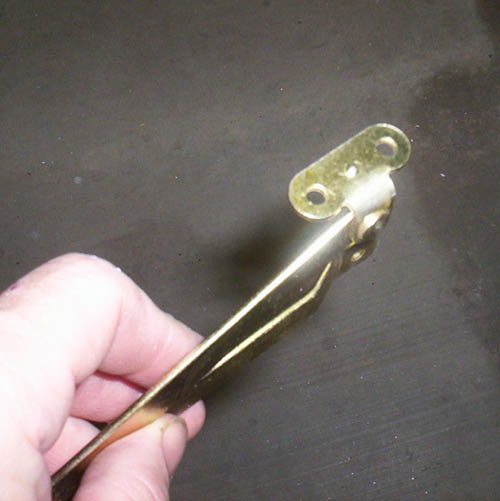

I want the top to stay in place when pushed up and out of the way. A trip to the hard ware store and I found what I needed. This hinge is used to lock box lids into place when they are open. Unfortunately they did not have it in chrome or a silver color. This means it will have to be painted.

Custom Computer Hardware Test Bench : by AmericanFreak blog 15



Custom Computer Hardware Test Bench : by AmericanFreak blog 16

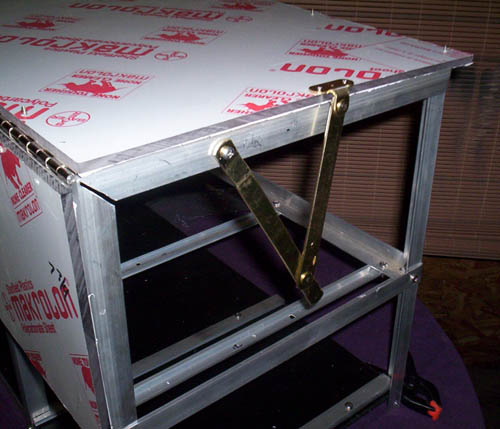

The hinge worked perfect!

Custom Computer Hardware Test Bench : by AmericanFreak blog 17

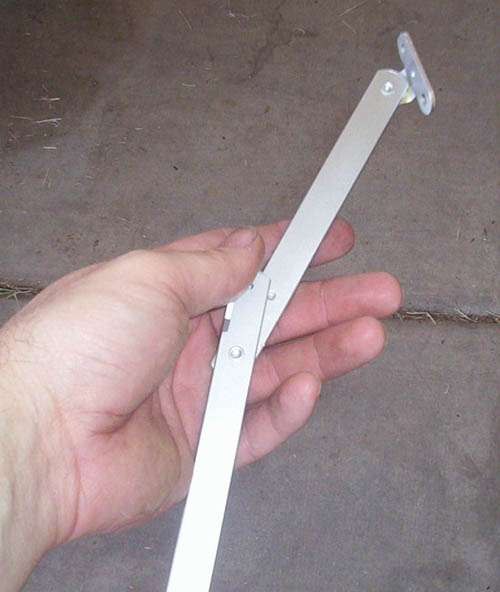

I sanded off the brass plating and applied a few coats of silver spray paint..

Custom Computer Hardware Test Bench : by AmericanFreak blog 18

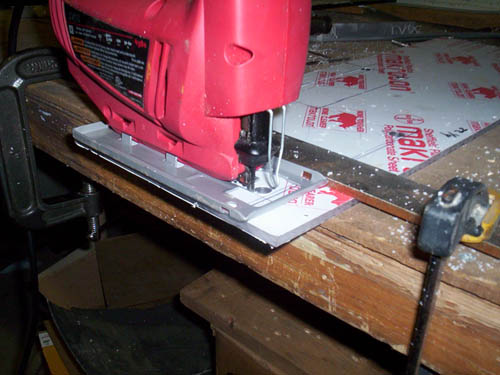

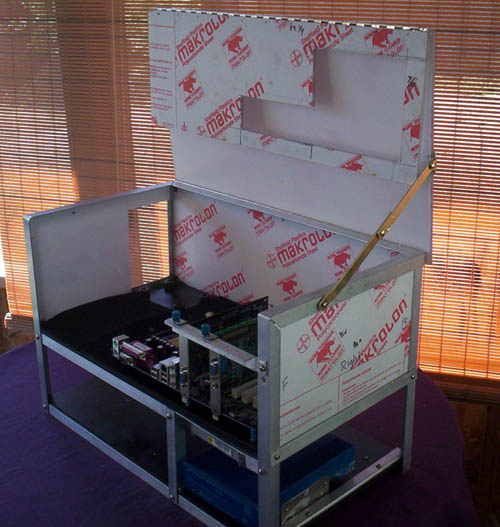

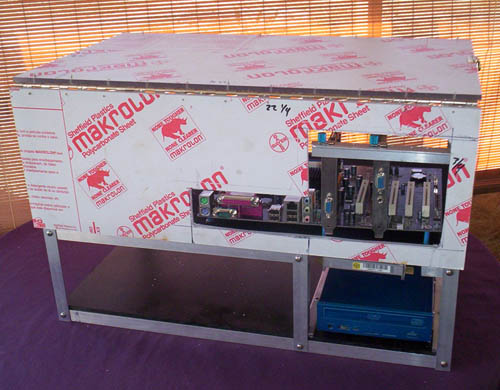

 To continue my quest to make this a case test bench I have to have access to the slots and ports. I took the front piece of Lexan, laid out my measurements, drill some holes in the corners, and clamped down a guide to help make some straight cuts.

Custom Computer Hardware Test Bench : by AmericanFreak blog 19

hmm…not to bad

Custom Computer Hardware Test Bench : by AmericanFreak blog 20

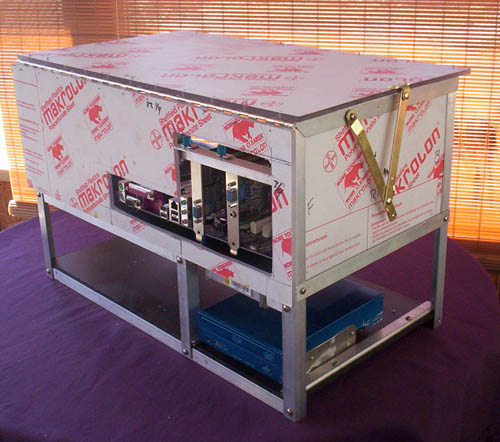

Easy access to everything.

Custom Computer Hardware Test Bench : by AmericanFreak blog 21

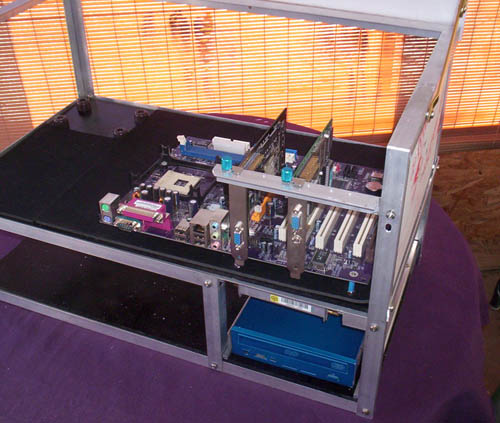

This is where I went with the simple brace for the PCI cards to mount to and I bought some Blue anodized thumb screws the make it look better.

Custom Computer Hardware Test Bench : by AmericanFreak blog 22

OK this is much better than the bent piece of Lexan….AF is happy now…ah-oh…you were not suppose to see the brass hinge here…listen to my voice….you do not see a brass hinge, there is no brass hinge, the hinge is silver…..

Custom Computer Hardware Test Bench : by AmericanFreak blog 23

Now what am going to do? Wouldn’t you like to know…OK I will tell you. I am lucky enough to have access to some, but very few, materials for making signs. I was able to get some black vinyl. I want the back portion of the test bench to be a billboard for Modders-Inc. I laid out the vinyl and cut it to length.
