Installation and Clearance Issues

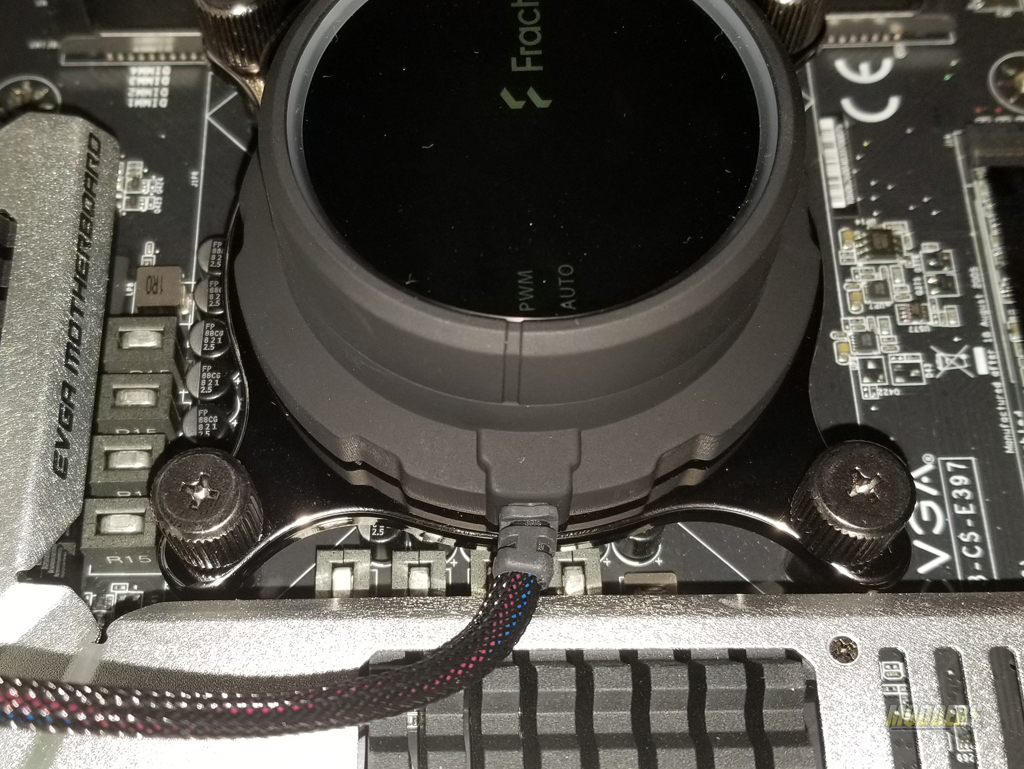

Installation of the CPU block and the pump is extremely simple. Just use the provided plastic motherboard bracket on the back and a few screws in the front of the motherboard to secure the bracket in place. Securing the CPU block is as easy as tightening four screws.

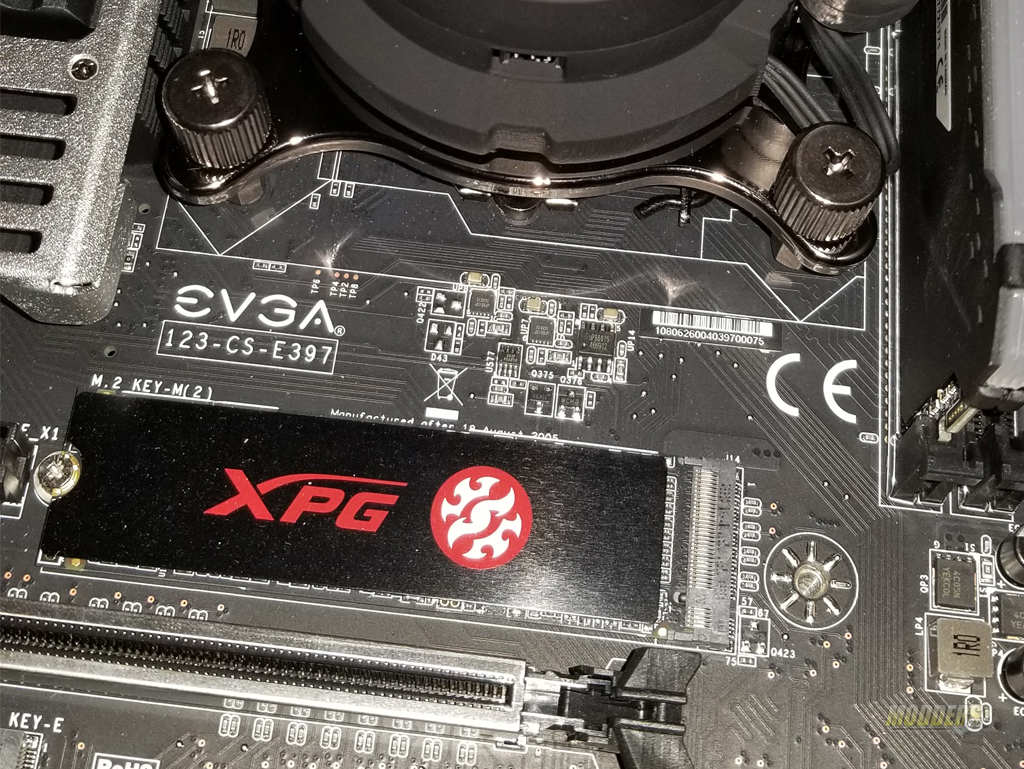

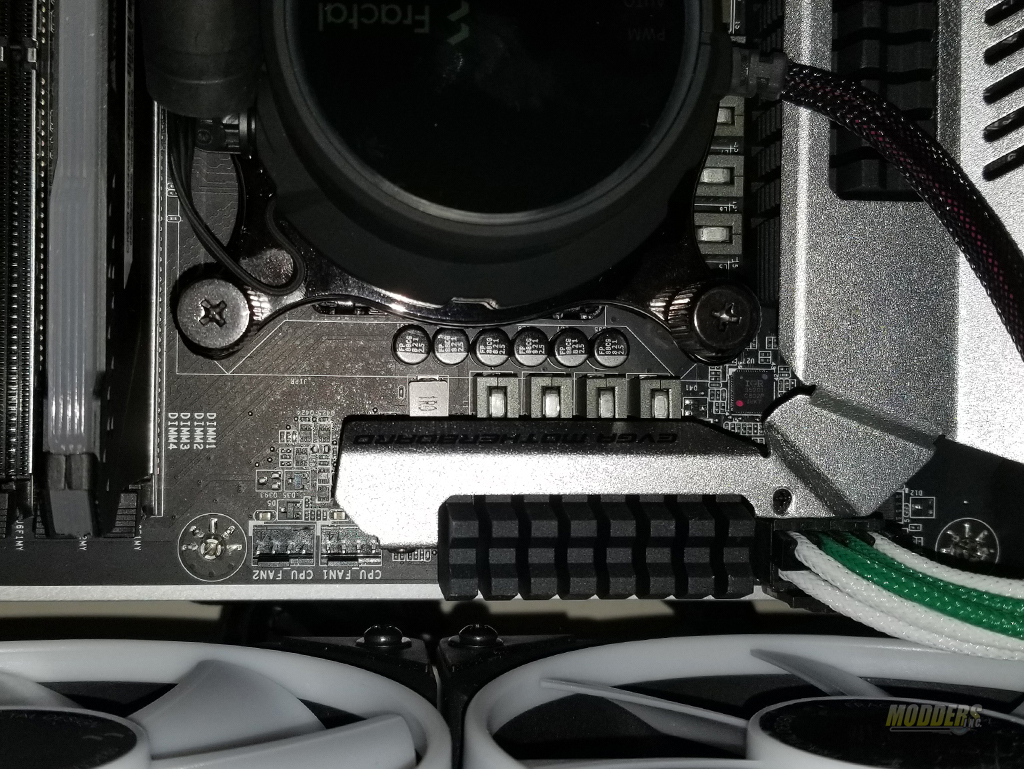

The bracket fits well on my motherboard and does not have any issues with the capacitors or any other components. I have mounted the Celsius+ S36 Prisma with elbow fittings closest to the ram slots. As you can see there are a couple of millimeters of space between the fittings and the ram module. A tight fit however I had no issues.

ARGB setup took a little bit to get adjusted to. The motherboard I am using EVGA 123-CS-E397 only has RGB headers and no ARGB headers so I had to use an ARGB controller I had around to connect Celsius+ S36 Prisma to. Note that Celsius+ S36 Prisma does not come with any ARGB controllers. You will need to have an ARGB capable motherboard or a standalone controller.
