Test System and Synthetic Benchmarks

System Configuration
CaseOpen Test Table
CPUIntel Core i7 8700K
MotherboardGigabyte AORUS Z370 ULTRA GAMING
Ram(2) 8GB Corsair DDR4-3200 CMW16GX4M2C3200C16
GPUGigabyte GeForce RTX™ 2060 GAMING OC 6G
DriversNVIDIA 418.81 (418.81 for DLSS testing)
Hard DrivesCorsair Force MP510 NVMe Gen 3 x4 M.2 SSD (480Gb)
Power SupplyThermal Take Tough Power RGB 80 Plus Gold 750W

Testing Methodology:

There are many ways to benchmark GPUs. With these benchmarks our goal is to do two things: first to show the performance of the card and secondly to make them easy to replicate. With a similarly configured system, you should be able to get similar results to compare your current graphics card against. There will always be a variance from system to system.

Synthetic Tests

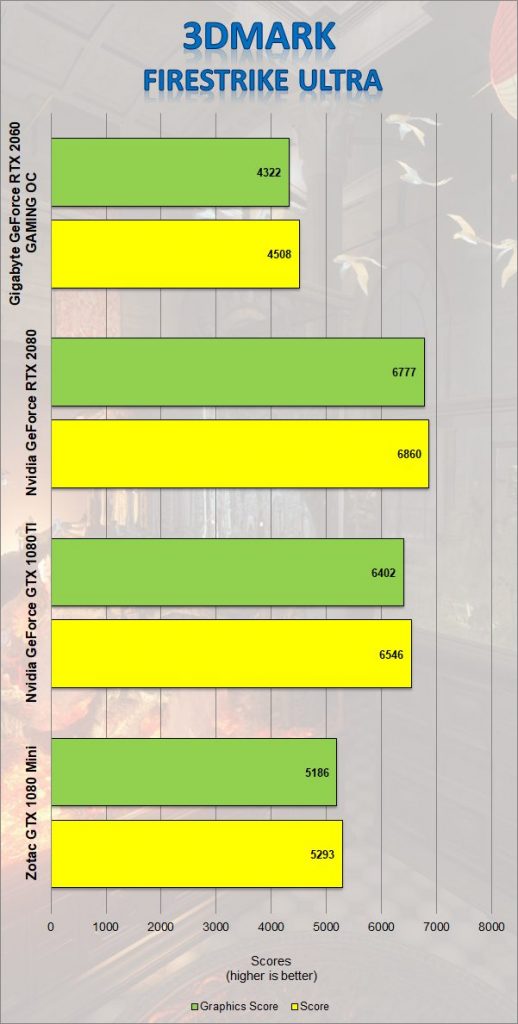

3DMark Firestrike from Futuremark is a Semi-synthetic DirectX11 benchmark designed for high-performance gaming PCs. Firestrike performs advanced geometry, illumination and particle tests with its Graphics benchmark and performs physics simulations using the CPU. Firestrike Ultra Kicks it up a notch and ratchets up the resolution to 4K and turns the quality up a bit.

Gigabyte RTX 2060 Gaming OC 6G

Timespy is an additional test in 3DMark which represents DirectX 12 gameplay. The extreme version is meant to test the highest end graphics cards at 4K.

Gigabyte RTX 2060 Gaming OC 6G

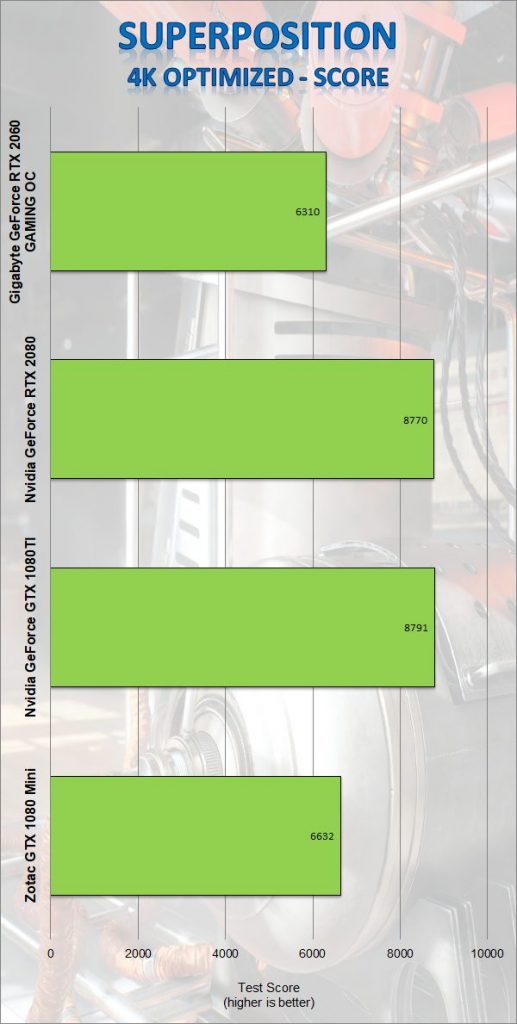

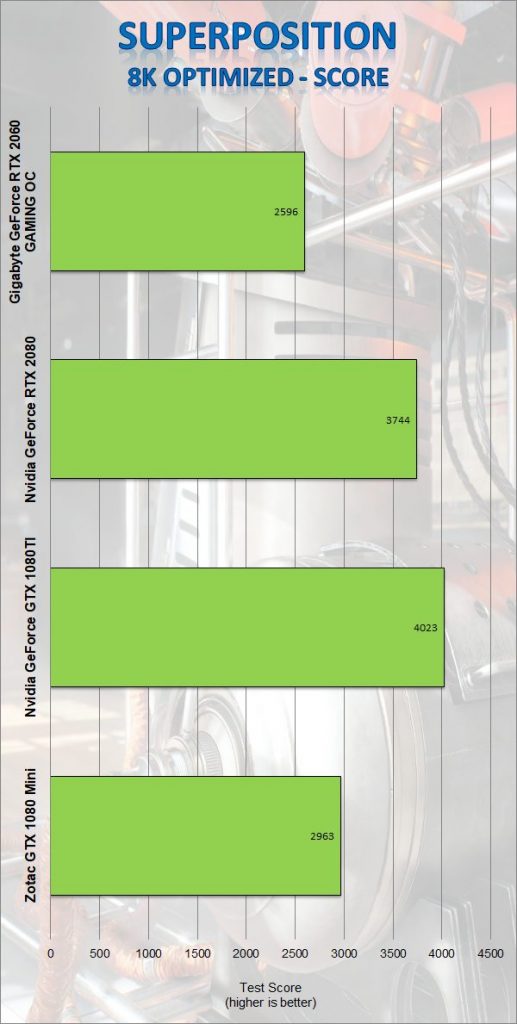

Unigine’s Superposition features both a monitor benchmark but also a VR load as well. I used the 4K optimized and 8K optimized presets. Superposition also allows you to explore the environment in VR Mode with your headset connected.
