A Closer Look at the Noctua NH-D9L

Noctua NH-D9L

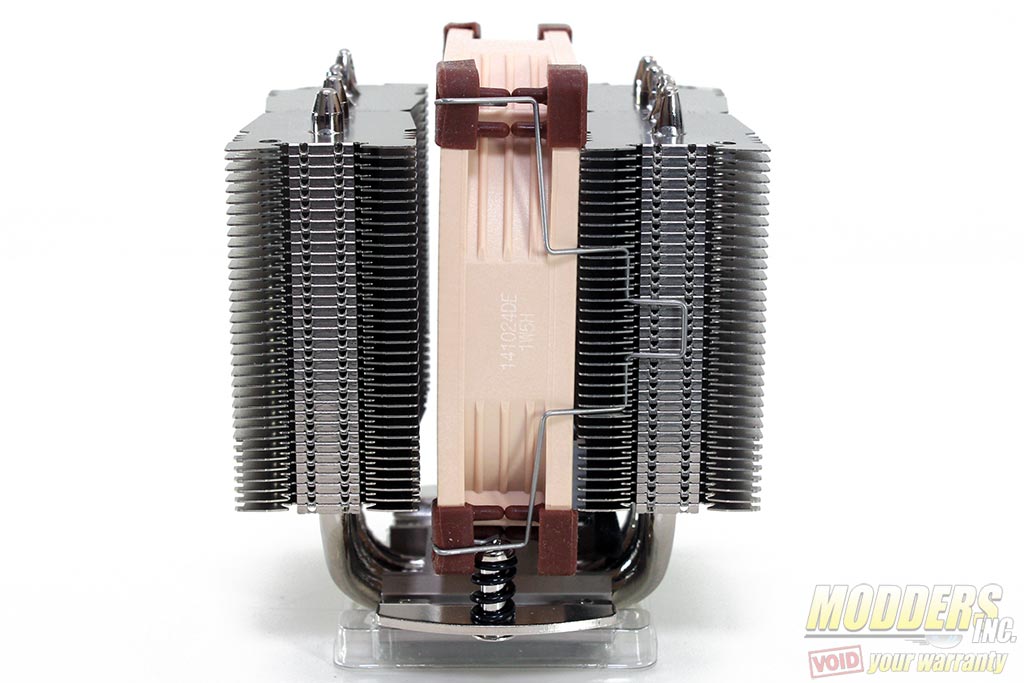

Measuring 110 x 95 x 95 mm, the Noctua NH-D9L is effectively shorter than the NH-U9S and the previous generation NH-U9B SE2. Utilizing a dual tower design with the fan in the middle, the NH-D9L is also afforded extra clearance on both front and back for better RAM compatibility. The middle 92mm NF-A9 fan comes pre-installed. The shorter height also makes the NH-D9L compatible with three rack unit (3U) cases.

Noctua NH-D9L Noctua NH-D9L

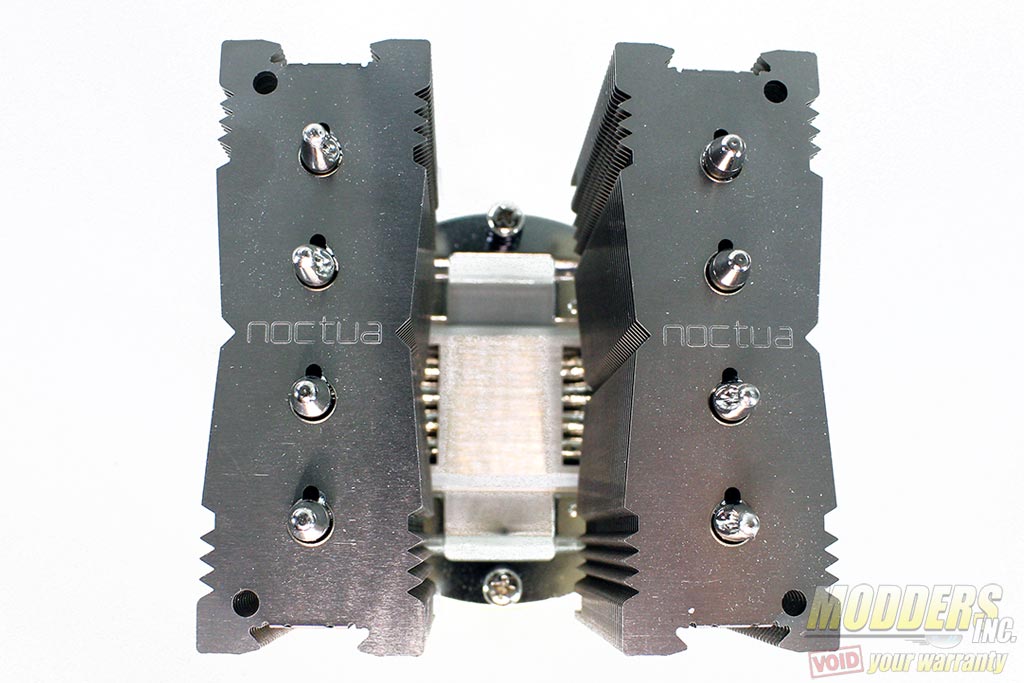

Each aluminum fin array has 35 fins and the pattern is uniform for both sides and both towers with the dges slightly angled towards the middle with a sharp recess at the center. Minor sawtooth formations of three on the sides are also present.

Noctua NH-D9L Noctua NH-D9L

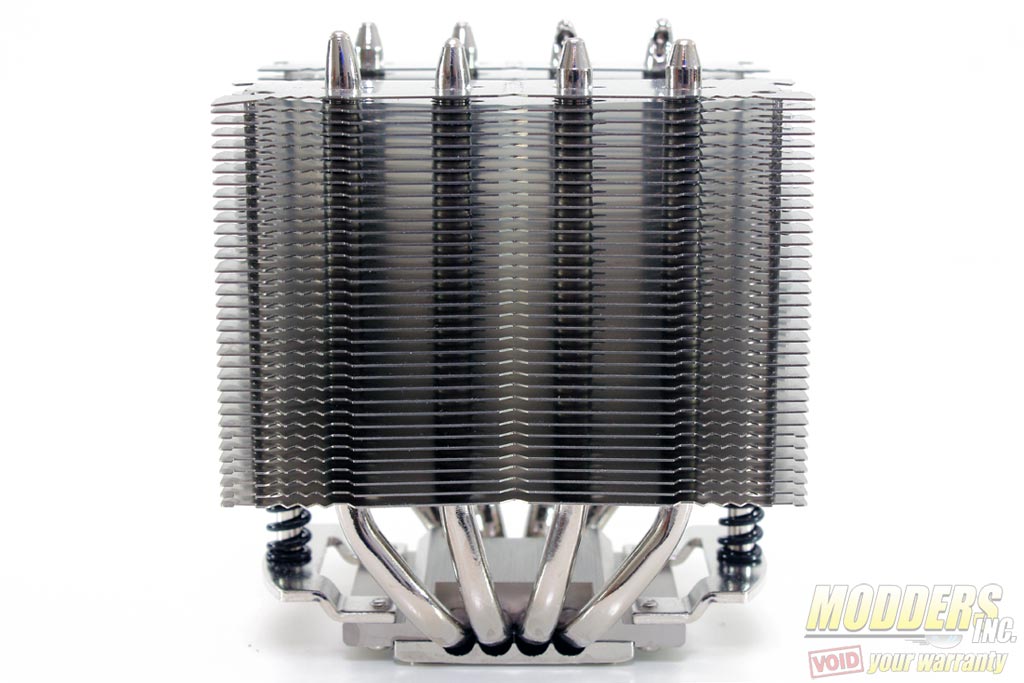

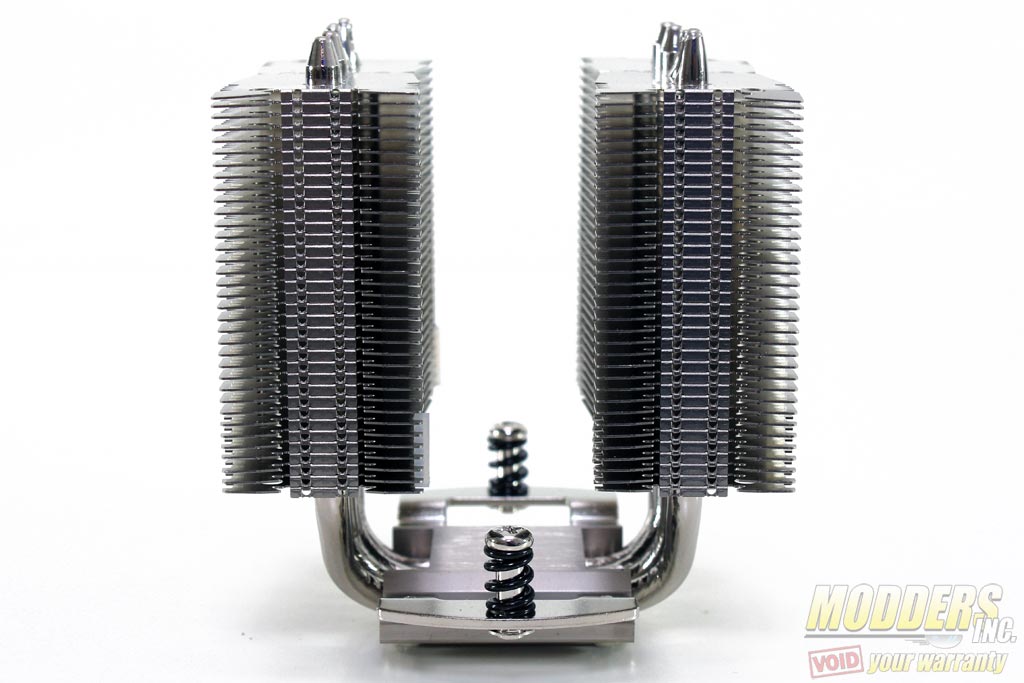

There are four 6mm copper heatpipes spaced evenly from each other, each of these copper heatpipes are nickel finished. These are also soldered clean to the base with no visible extra flux.

Noctua NH-D9L Noctua NH-D9L

Noctua NH-D9L

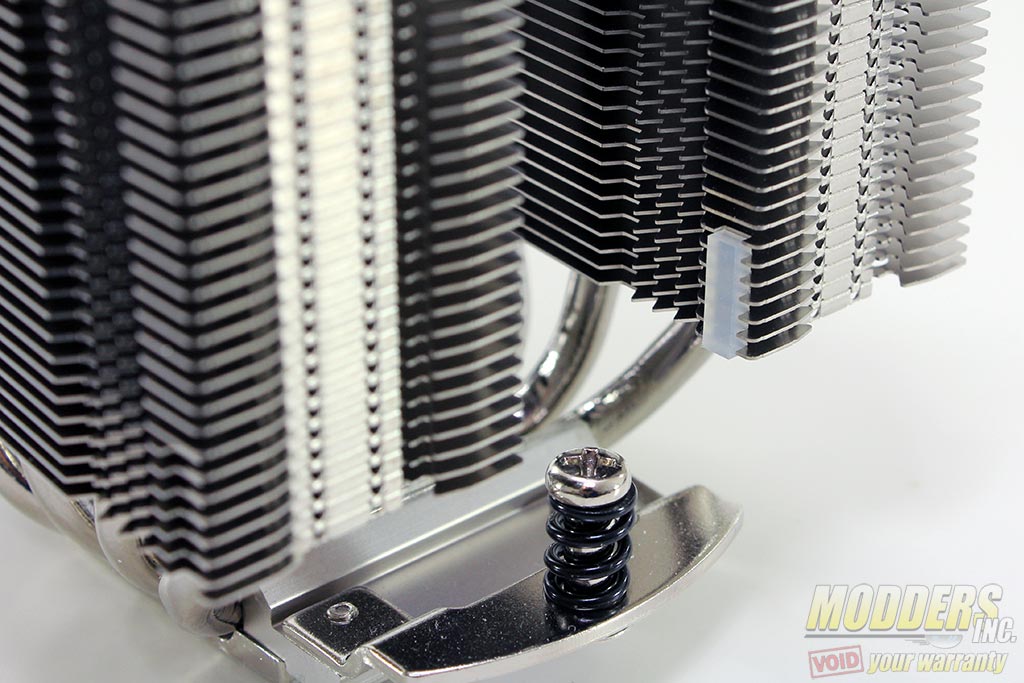

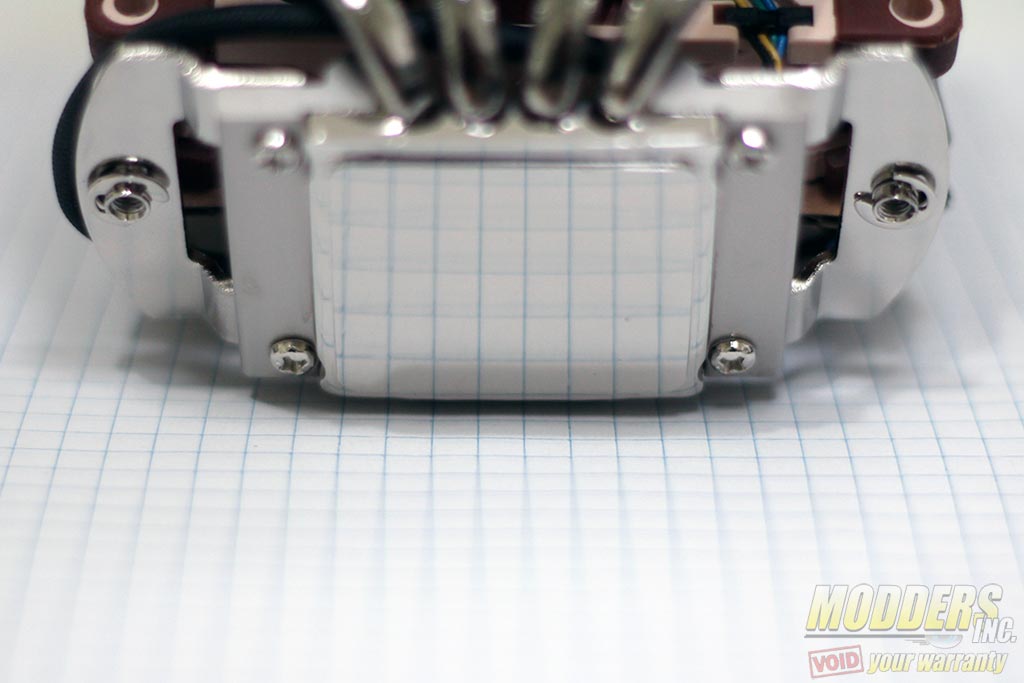

If the bundled screwdriver was nickel plated then you can be sure that the heatpipe and the base will be as well, giving the Noctua NH-D9L a very premium feel like its larger siblings. The contact surface is highly reflective but has very minute rounded machining marks that can be felt. The surface is flat as well judging by the even parallel lines reflected.

noctuaa13

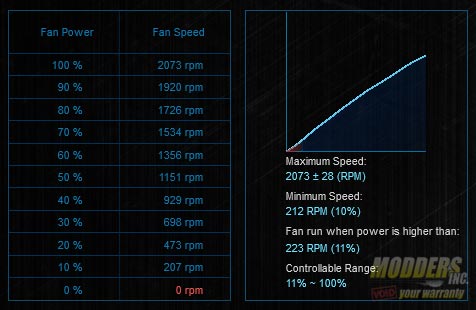

The A-series fan blades are very wide with compared to the B series Noctua fan blades. There are seven in total across all fan sizes and there is a gradual curve on the leading tip and a straighter edge on the trailing tip. There are four standard straight struts on the exhaust side. The NH-A9 fan version maxes out at 2000 RPM, higher than the 1600 RPM on the NH-B9 fan on the U9B-SE2 heatsink. Readings from ASUS Fan Xpert II reveal the controllable range:

fxpert2

NH-U9S vs NH-U9B fan specification comparison:


Model
Noctua NF-A9 PWM Noctua NF-B9 PWM

Bearing
SSO2 SSO

Max. Rotational Speed (+/- 10%)
2000 RPM 1600 RPM

Max. Rotational Speed with L.N.A. (+/- 10%)
1550 RPM 1300 RPM

Min. Rotational Speed (+/- 10%)
400 RPM 300 RPM

Max. Airflow
78.9 m³/h 64.3 m³/h

Max. Airflow with L.N.A.
62.6 m³/h 52.6 m³/h

Max. Acoustical Noise
22.8dB(A) 17.6dB(A)

Max. Acoustical Noise with L.N.A.
16.3dB(A) 13.1dB(A)

Static Pressure
2.28 mm H2O 1.61 mm H2O

Static Pressure with L.N.A.
1.53 mm H2O 1.09 mm H2O

Input Power
1.2 W 0.96 W

Voltage Range
12 V 12 V

MTBF
> 150.000 h > 150.000 h
