Introduction and Specifications

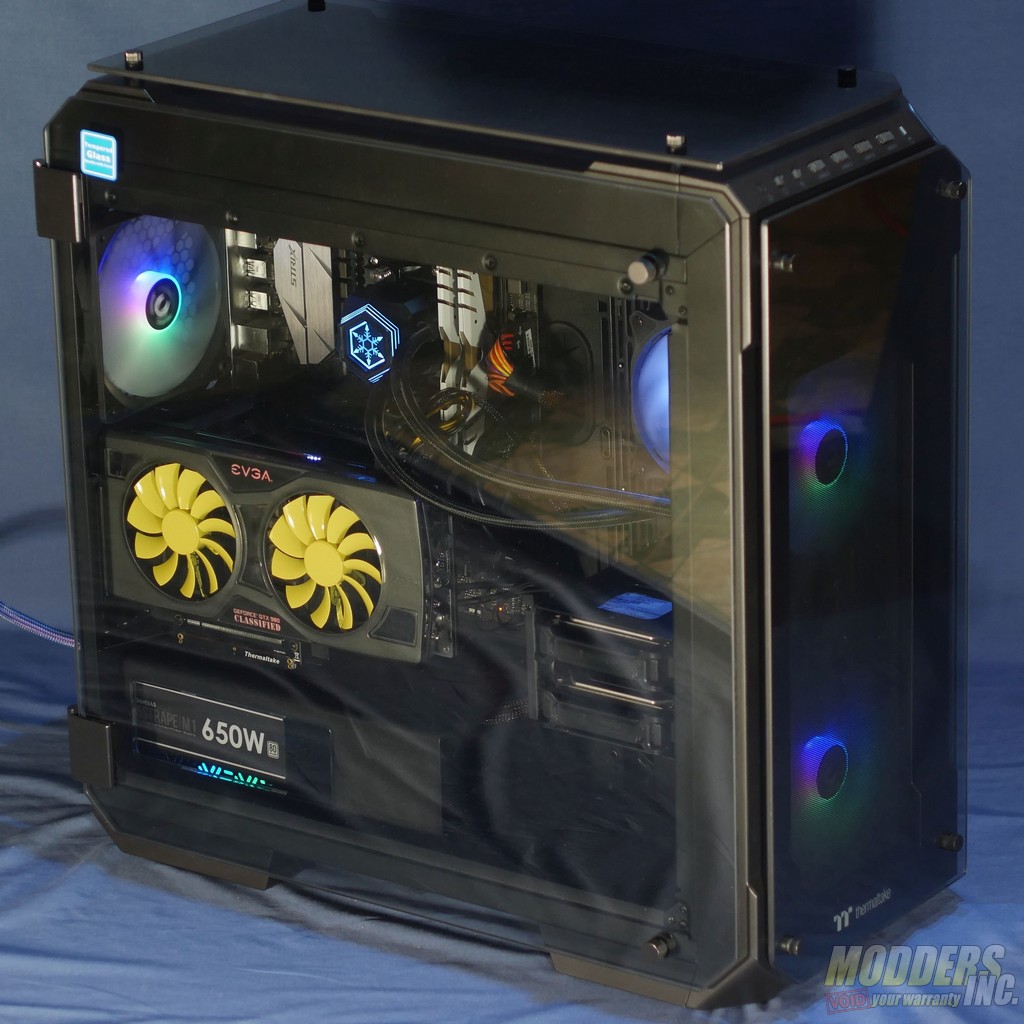

Thermaltake View 71 thermaltake view 71 argb 127On paper, Thermaltake’s View 71 Tempered Glass ARGB Edition is the opposite of what I look for in a case.  It’s big, heavy, expensive, and completely covered in glass.  But is there more to this crystalline behemoth than the spec sheet says?  Let’s find out.

The View 71 ARGB is the latest revision of Thermaltake’s full tower View 71 platform, which includes the View 71 Tempered Glass RGB Plus Edition, the View 71 Tempered Glass RGB Edition, the View 71 Tempered Glass Snow Edition, and the View 71 Tempered Glass Edition.  For the rest of the review, I will refer to these models as the View 71 RGB+, the View 71 RGB, the View 71 Snow, and the View 71 Base, respectively.  All of the variants of the View 71 appear to be identical except for their fans and paint color.

Review Sample Provided by: Thermaltake

Product Name: View 71 Tempered Glass ARGB Edition

Price at Time of Review: Not available in the United States

Product was given in return for the work done to produce this review

Specifications

Material Medium Tinted Glass, plastic, steel
Front Panel Tinted glass bolted to plastic shroud
Side Panels Hinged tinted glass panels
Top Panel Tinted glass bolted to plastic shroud
Chassis Steel
Front Ports 2x USB 3.0

2x USB 2.0

2x Audio I/O

1x RGB Button

Weight 19.3 kg /  42.55 lb
Dimensions 592 mm (H) x 274 mm (W) x 577 mm (D)

23.3″ (H) x 10.8″ (W) x 22.7″ (D)



Compatibility

Motherboard Compatibility E-ATX, ATX, Micro ATX, Mini ITX
Max Cooler Height 190 mm / 7.48″
Max GPU Length 310 mm / 12.20″  (With HDD rack)
410 mm / 16.14″  (Without HDD rack)
Power Supply Type ATX
Max Power Supply Length 220 mm / 8.66″  (Without bottom fan)
Storage Bays 2.5” x 4 or 3.5”x4 (HDD rack)

2.5” x 6 or 3.5” x 3 (Behind motherboard tray)

2.5″ x 2 (Power Supply Shroud)

Expansion Slots 8 + 2 vertical
Total Fans Supported 9x 120 mm / 6x 140 mm
Front Fan Support 3x 120 mm / 2x 140 mm (2x 140 mm preinstalled)
Top Fan Support 3x 120 mm /3x 140 mm
Rear Fan Support 1x 120 mm / 1x 140 mm (1x 140 mm preinstalled)
Bottom Fan Support 2x 120mm
Front Radiator Support 1x 360 mm / 1x 420 mm
Top Radiator Support 1x 360 mm / 1x 420 mm
Rear Radiator Support 1x 120 mm / 1x 140 mm
Right Radiator Support 1x 360 mm / 1x 420 mm
Bottom Radiator Support 1x 240 mm



Included Accessories

RGB Controller / Fan Hub 1x Hub, 2x LED cables
Motherboard Speaker 1x Speaker
