ASRock B550 Extreme4 Motherboard Review

« ASRock B550 Extreme4 Testing Continued | ASRock B550 Extreme4 Sub System Benchmarks (Storage, Audio and Networking) »

Multimedia, Compression, and Semi-Synthetic Benchmarks for the ASRock B550 Extreme4

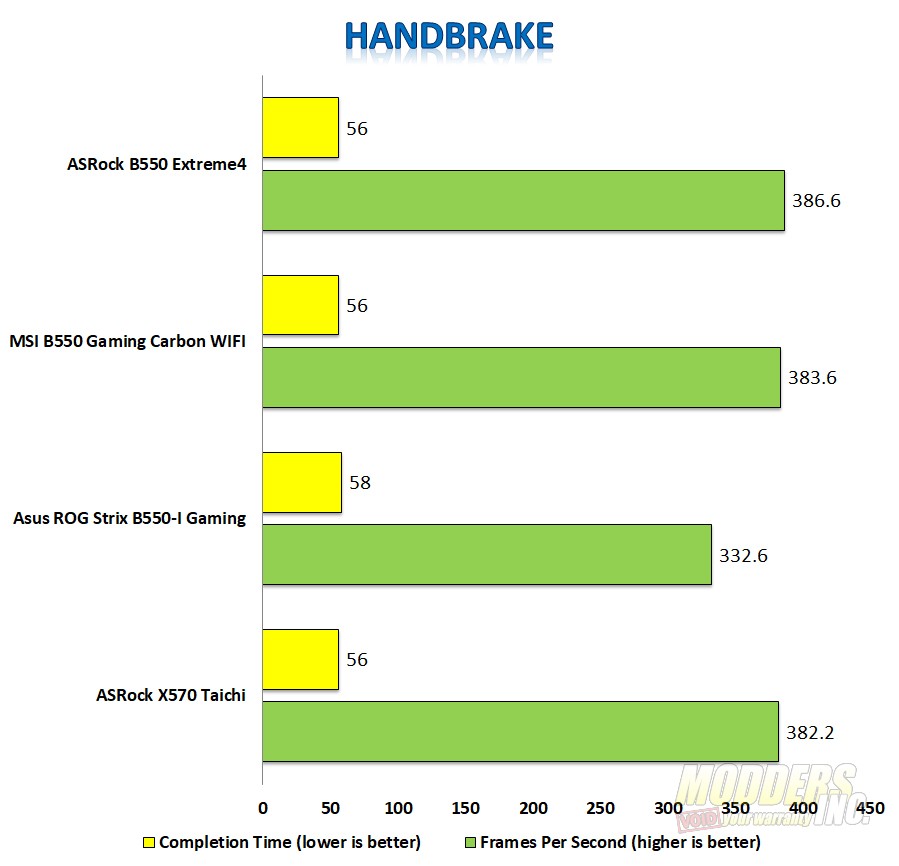

Handbrake

HandBrake is a free and open-source video transcoder to make ripping a film from a DVD to a data storage device easier. Essentially, it can convert video to almost any modern format. The workload video file is a file that I’ve used for years called Sintel. It is a 1.09-gigabyte file that is full HD. I used the Apple 240p preset for this test.
B550-Extreme4

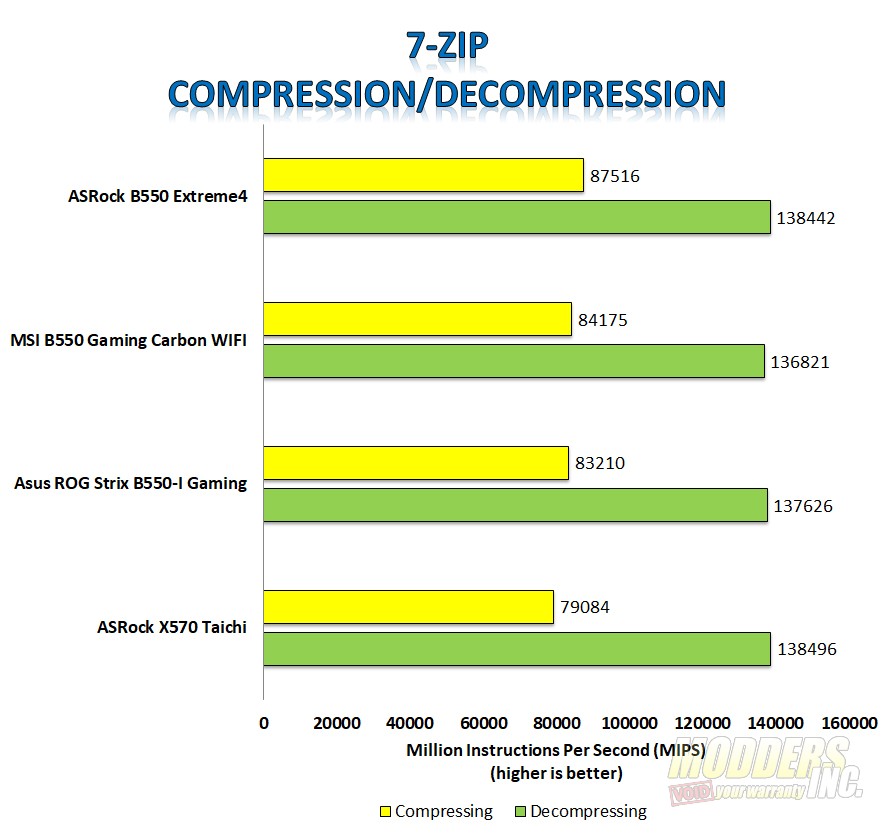

7-Zip

The 7-zip benchmark shows a rating in MIPS (million instructions per second). The rating value is calculated from the measured speed, and it is normalized with the results of the Intel Core 2 CPU with a multi-threading option switched off. So, if you have a modern CPU from Intel or AMD, rating values in single-thread mode must be close to real CPU frequency. There are two tests, compression with the LZMA method and decompression with the LZMA method. Once the total passes reach 100, the score is taken. 7-Zip gives the resulting score for decompressing, compressing, and an overall score.
B550-Extreme4

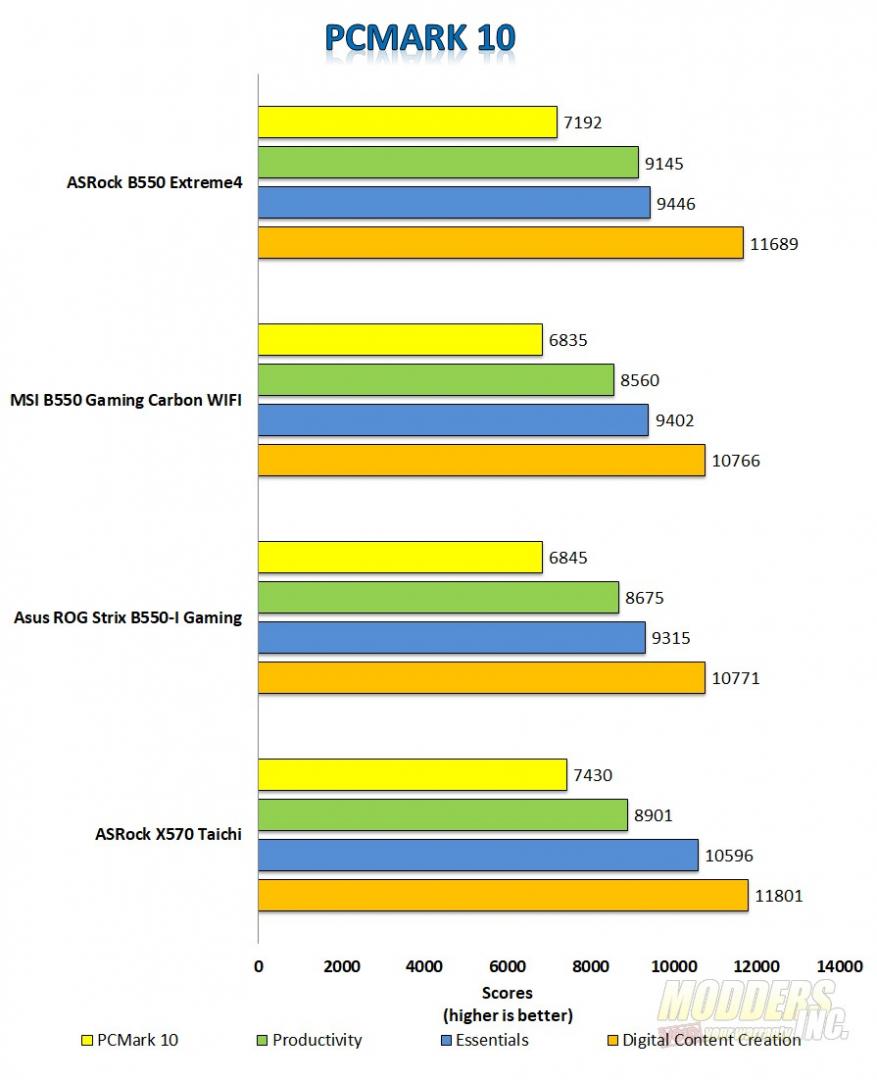

PCMark

PCMark 10 is a system benchmark for Windows PCs that focuses on common tasks performed in the office. PCMark 10 offers a variety of workloads categorized into four groups. The Essentials group includes web browsing, video conferencing, and app start-up time. The Productivity group includes tests based on spreadsheets and writing. The Digital Content Creation group includes photo editing, video editing, and a rendering and visualization test. The final group, Gaming, includes tests for real-time graphics and physics.
B550-Extreme4



Previous page 1 2 3 4 5 6 7 8 9Next page

Tom Brokaw

Tom is a network and computer hardware enthusiast. He has been reviewing hardware products around for various sites around the net since 1999. He has modded a few cases back in the day.
