Fractal Design Era ITX

« An Inside Look | Full System Build »

Clearances

Max Cooler Height 120 mm / 4.72″ without side mounted 3.5″ HDD

91 mm / 3.58″ max with 3.5″ HDD

70 mm /  2.76″ recommended with 3.5″ HDD

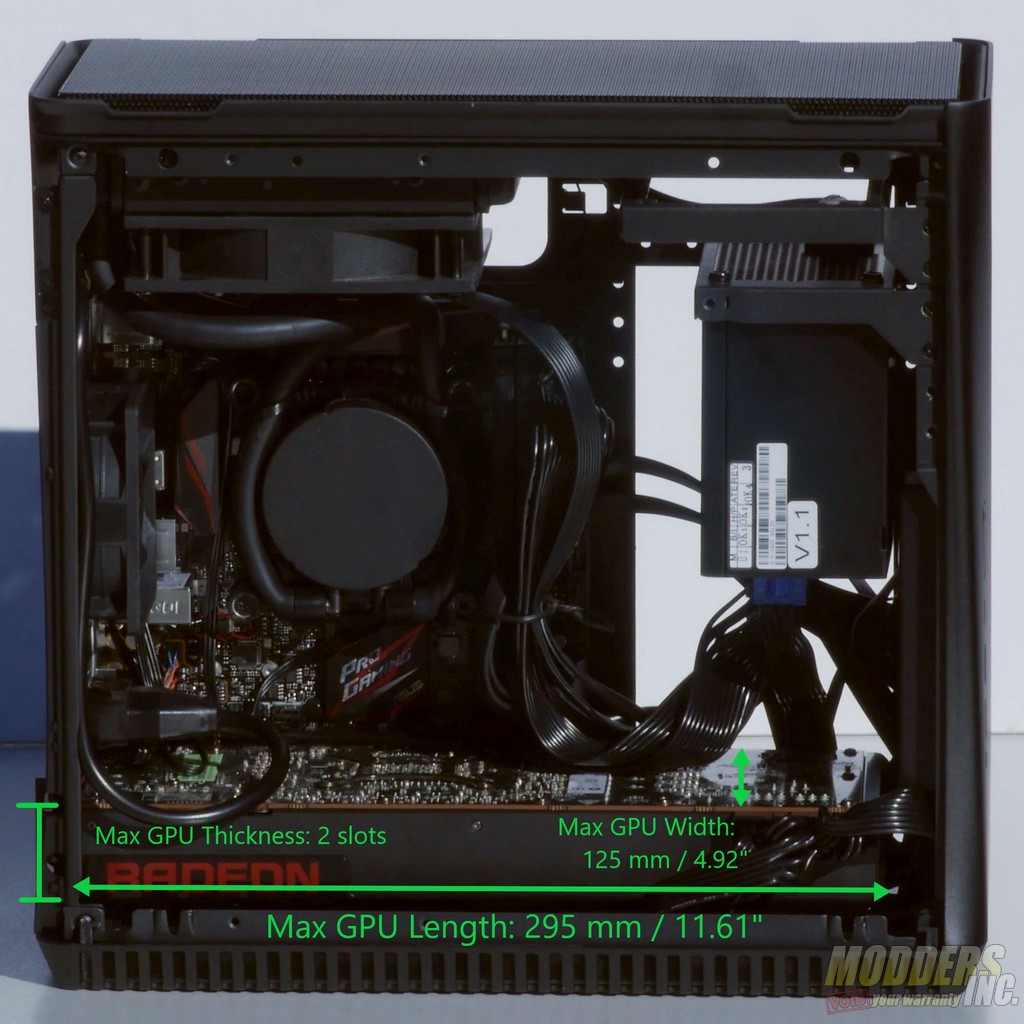

Max GPU Length 295 mm / 11.61″ or less  (see chart below)
Max GPU Width 125 mm / 4.92″
Max GPU Thickness 2 slot

Fractal Design Era ITX AIO, fractal design, itx, pc case, Water Cooling, Wood panel 1

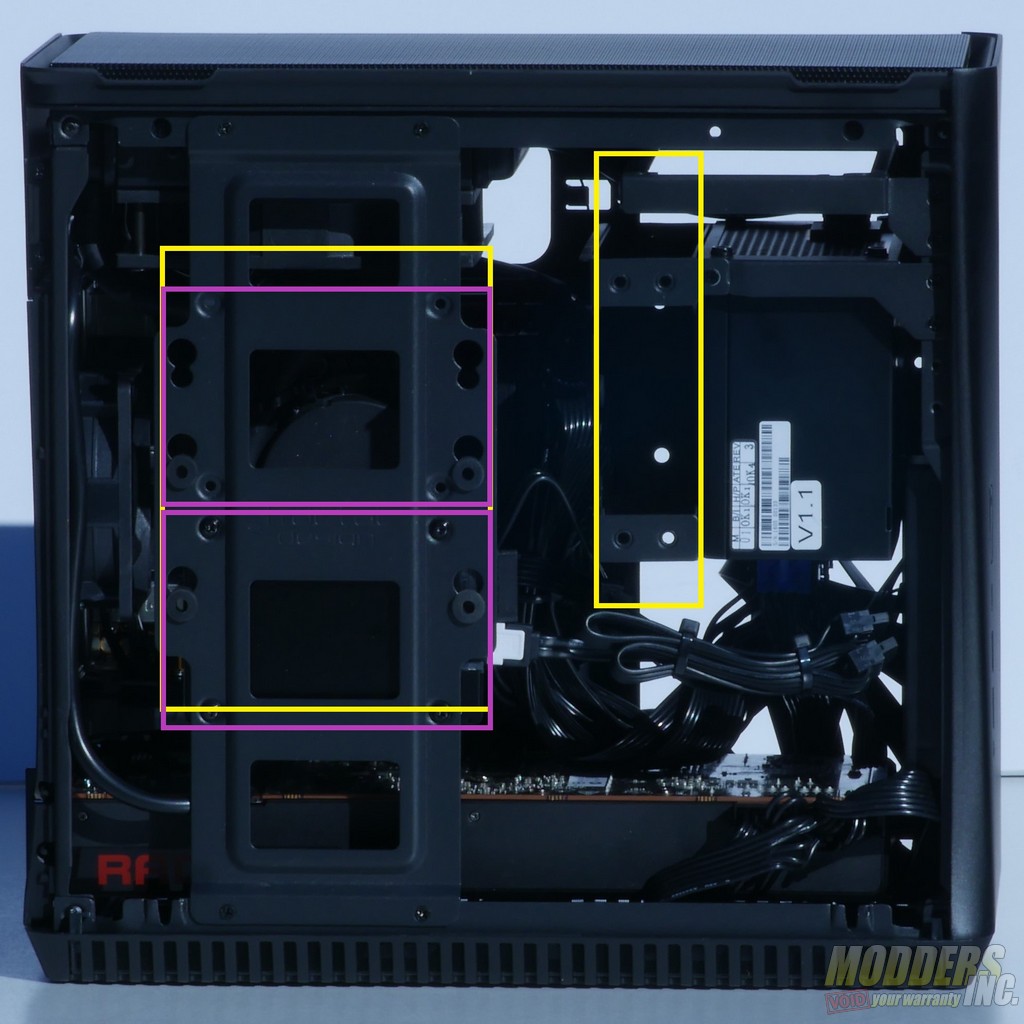

2.5″ Drive Bays (Purple) 2x 2.5″ on the side tray
3.5″ Drive Bays (Yellow) 1x 3.5″ on the side tray

1x 3.5″ on power supply bracket (not compatible with ATX power supplies)

Fractal Design Era ITX AIO, fractal design, itx, pc case, Water Cooling, Wood panel 2

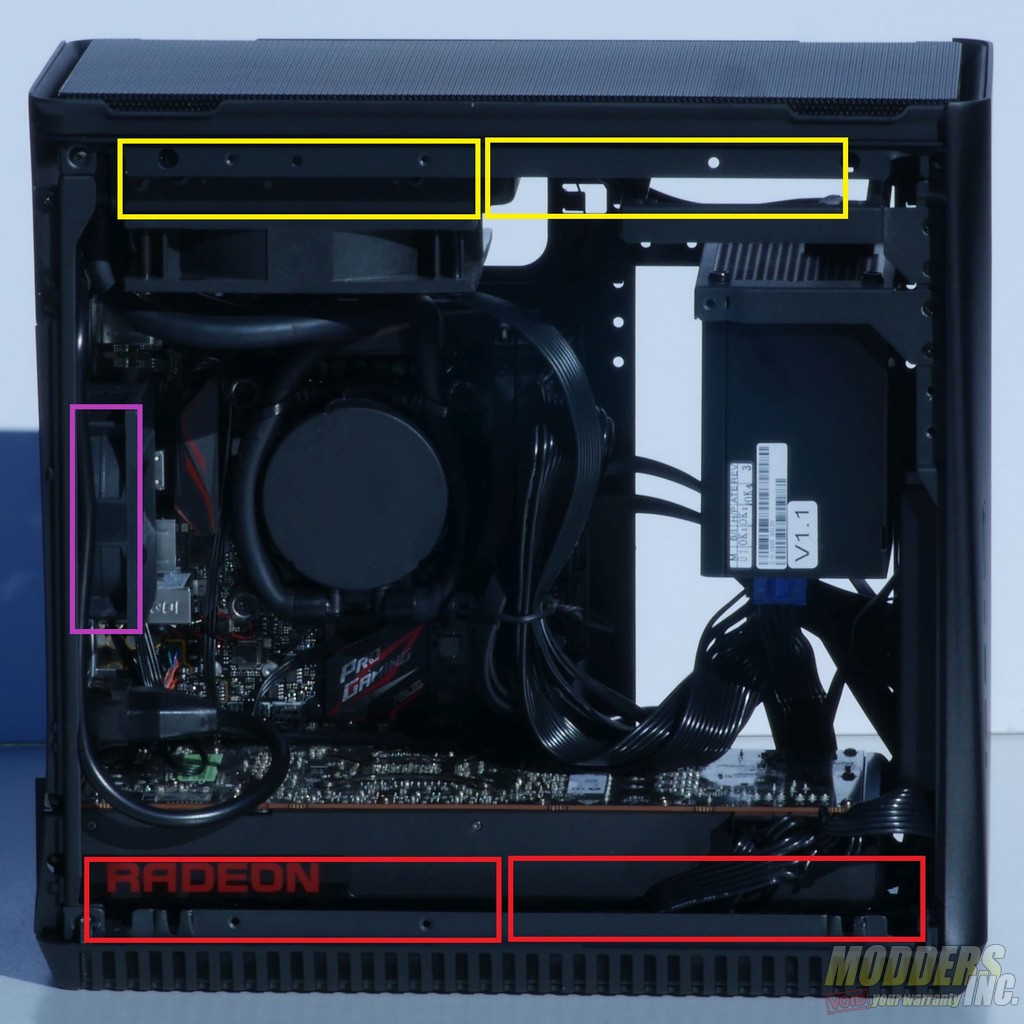

Total Fan Support 5
Top Fans (Yellow) 2x 120 mm
Rear Fans (Purple) 1x 80 mm (preinstalled)
Bottom Fans (Red) 2x 140 mm (without 2 slot GPU)
Top Radiator Support 2x 120 mm
Radiator Max Width 125 mm / 4.92″
120 mm Radiator Max Thickness 67 mm / 2.64″ including fans
240 mm Radiator Max Thickness (see chart below)

Fractal Design Era ITX AIO, fractal design, itx, pc case, Water Cooling, Wood panel 3





Compatibility Chart

PSU Type PSU Length GPU Length Max 240 mm Radiator Thickness (25 mm thick fans)
SFX 100 mm / 3.94″ <= 295 mm / 11.61″ 38 mm / 1.50″
SFX-L 130 mm / 5.12″ < 210 mm / 8.27″ 38 mm / 1.50″
<= 295 mm / 11.61″ N/A (120 mm radiators only)
ATX 140 mm / 5.51″ < 190 mm / 7.48″ 38 mm / 1.50″
<= 295 mm / 11.61″ N/A (120 mm radiators only)
150 mm / 5.91″ < 190 mm / 7.48″ 38 mm / 1.50″
<= 295 mm / 11.61″ N/A (120 mm radiators only)
160 mm / 6.30″ < 190 mm / 7.48″ 38 mm / 1.50″
<= 295 mm / 11.61″ N/A (120 mm radiators only)
170 mm / 6.69″ < 190 mm / 7.48″ 28 mm / 1.10″
<= 295 mm / 11.61″ N/A (120 mm radiators only)
>= 180 mm / 7.09″ < 190 mm / 7.48″ N/A (120 mm radiators only)
