Noctua NH-L9x65 CPU Cooler Review: A New Low-Profile King

« Closer Look at the Noctua NH-L9x65 | Test System and Benchmarks »

Installation of the Noctua NH-L9x65

Noctua NH-D9L Intel Mounting Kit Noctua NH-D9L AMD Mounting

Before proceeding with installation, lay out all accessories and cross reference the package content with the illustrated user’s guide.

AMD Installation

AMD Installation Noctua Installation

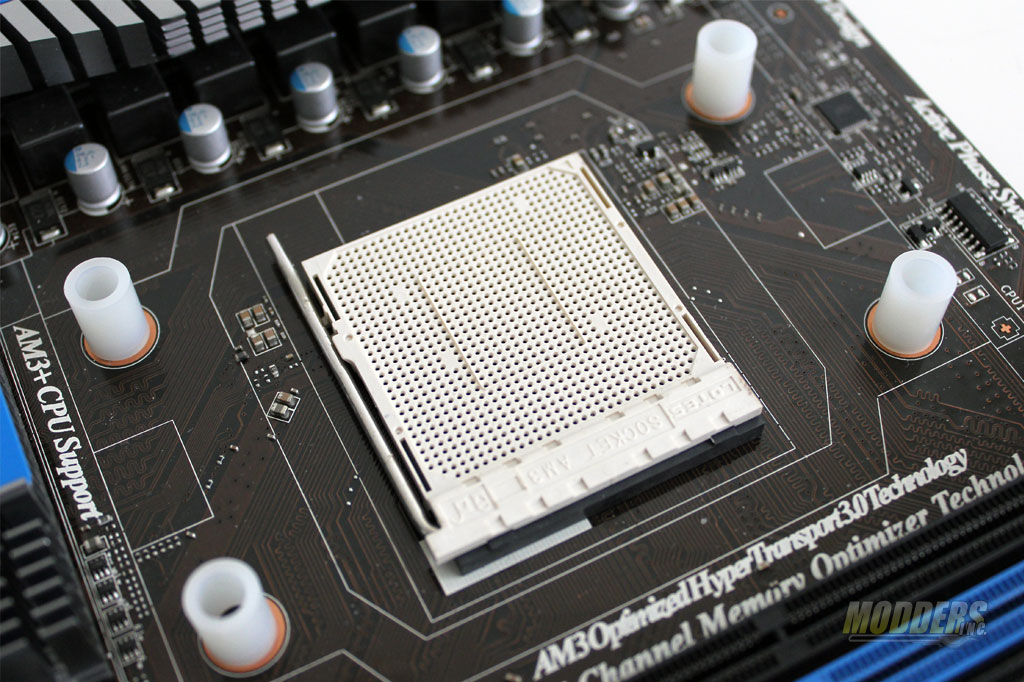

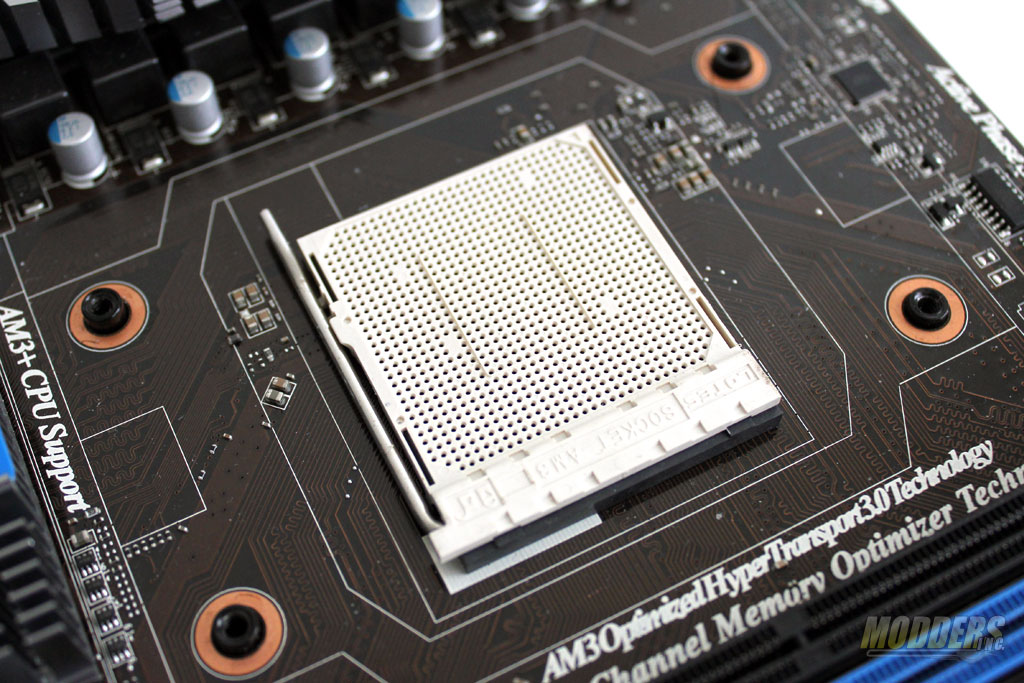

AMD installation is universal since the mounting holes remain unchanged for several years now since AM2 all the way to AM3+ and FM2+ except with the new AM1 socket. The motherboard’s backplate is utilized but the plastic brackets and screws have to be removed. Simply place the white plastic spacers on the small protruding piece of the backplate, then place the curved mounting bars and secure them with the four long screws. The mounting bar should be curving toward the CPU socket. It is easy to do with the motherboard outside of the case horizontally, although installing with the motherboard already installed vertically on a case will take a bit of effort as the spacers can fall off.

Intel Installation

Noctua Intel LGA2011 Installation

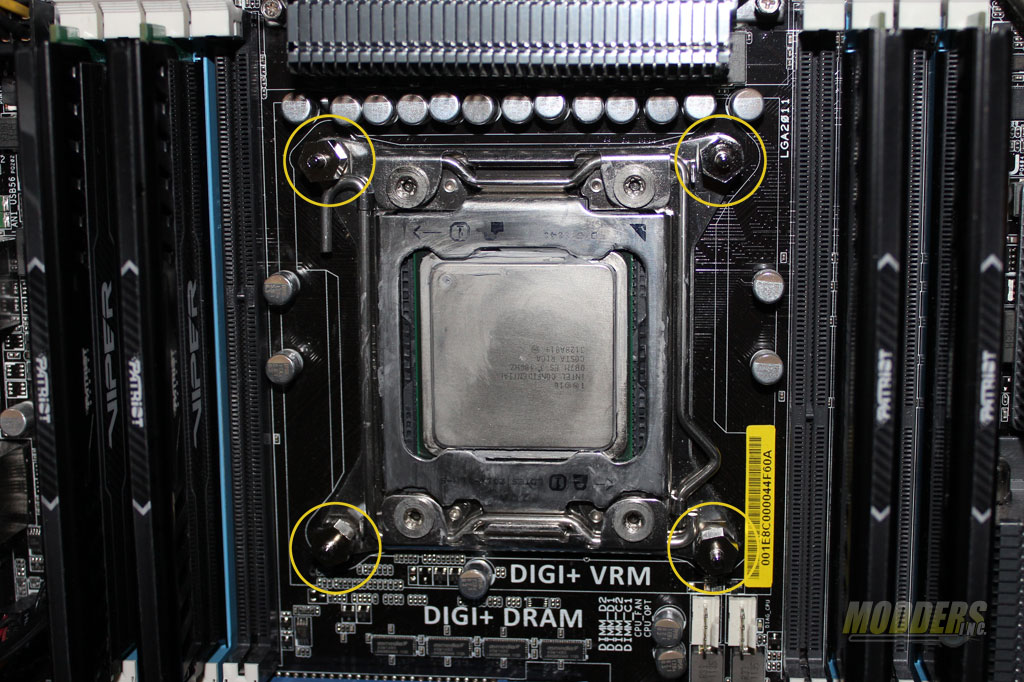

Installation on LGA2011 motherboards with integrated locking mechanism does not require a backplate or spacers but requires the NM-IB2T bolts to be hand-screwed in place first. Installation on older LGA775 and LGA1366 is not supported, but mounting kits for these are available free of charge from Noctua with a valid proof of purchase (such as a receipt).

noctuau9s17

noctuau9s18 noctuau9s19

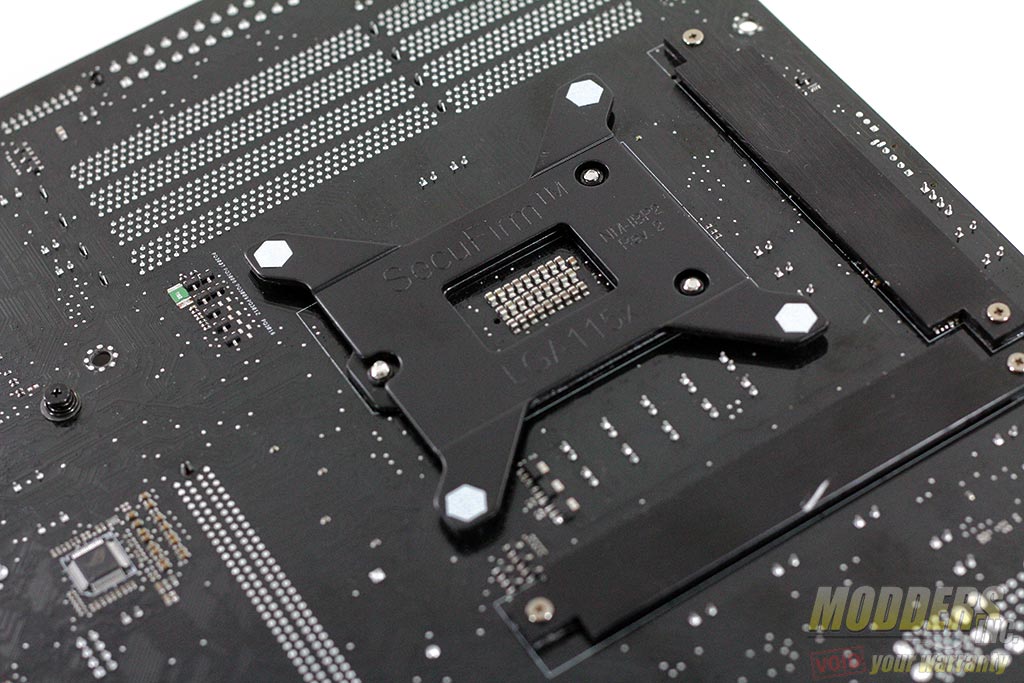

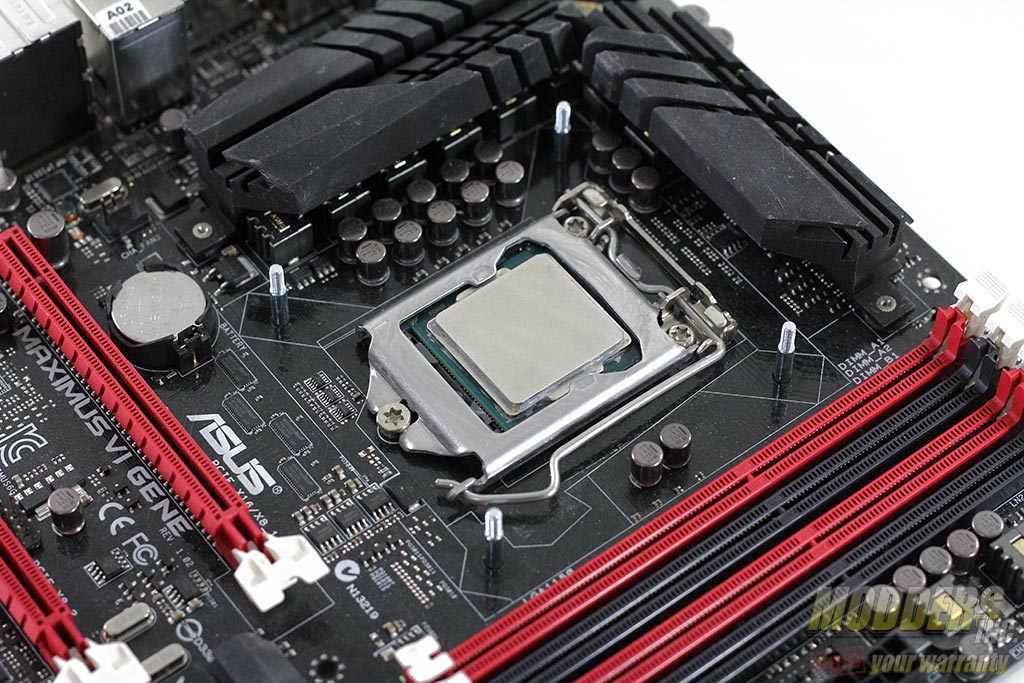

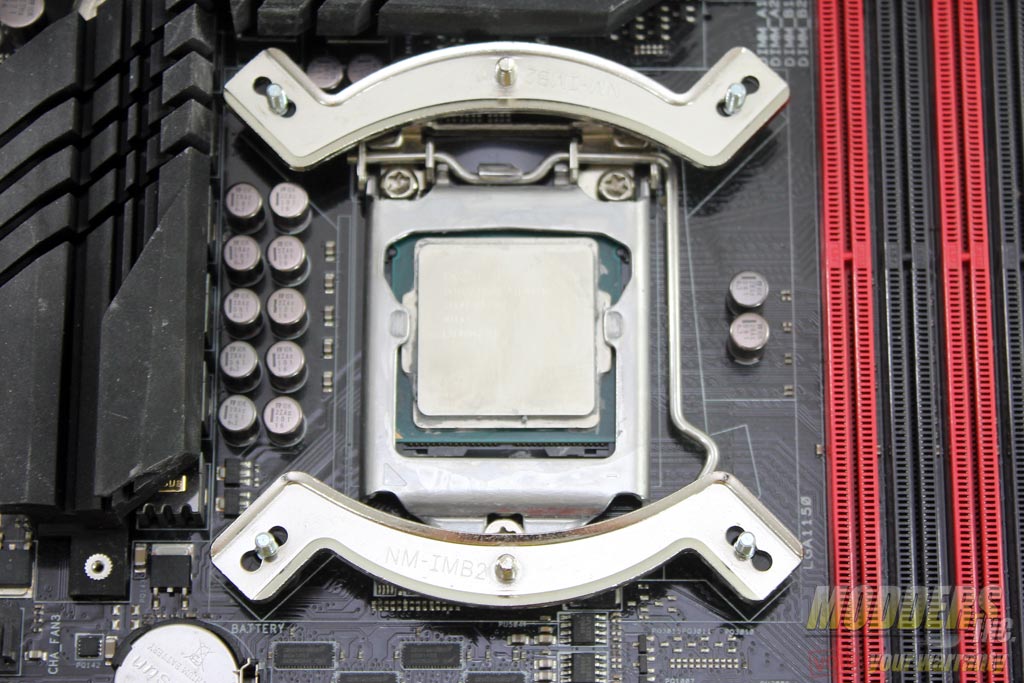

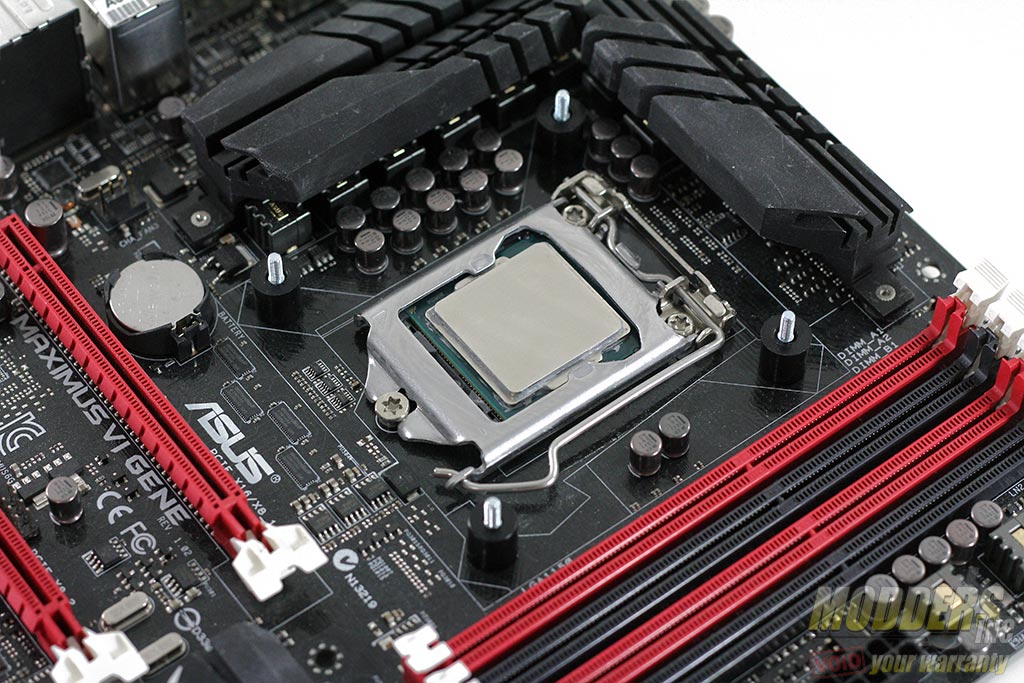

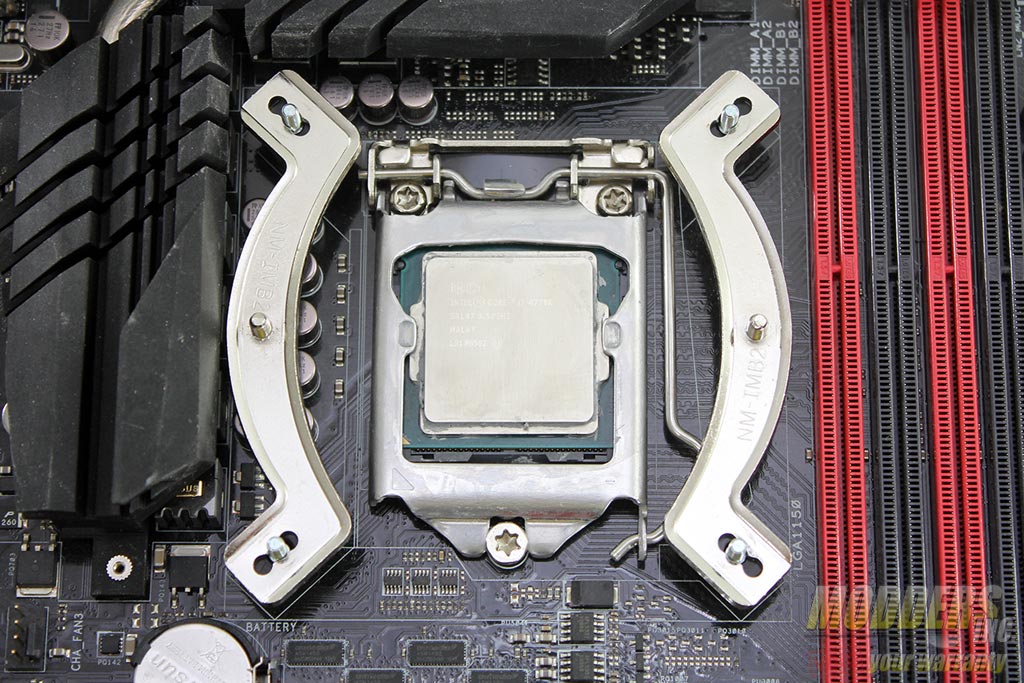

Installation on LGA115x first requires the backplate to be positioned through the mounting hole, now made simpler since the posts are integrated into the plate itself unlike in previous generation Noctua coolers. The spacers can be placed next with the mounting bar pair going on top to be secured with the four thumbscrews. This last part with the mounting bar is identical to the LGA2011 installation. Make sure to position the mounting bar with the curve facing away from the CPU area. Use the outer holes for LGA2011 mounting and use the inner holes for LGA115x mounting. Unlike the AMD mounting system, users can orient the mounting bars for either horizontal or vertical heatsink mounting since Intel mounting holes are equidistant from each other.

Noctua Intel Mounting Type A Noctua Intel Mounting Type B

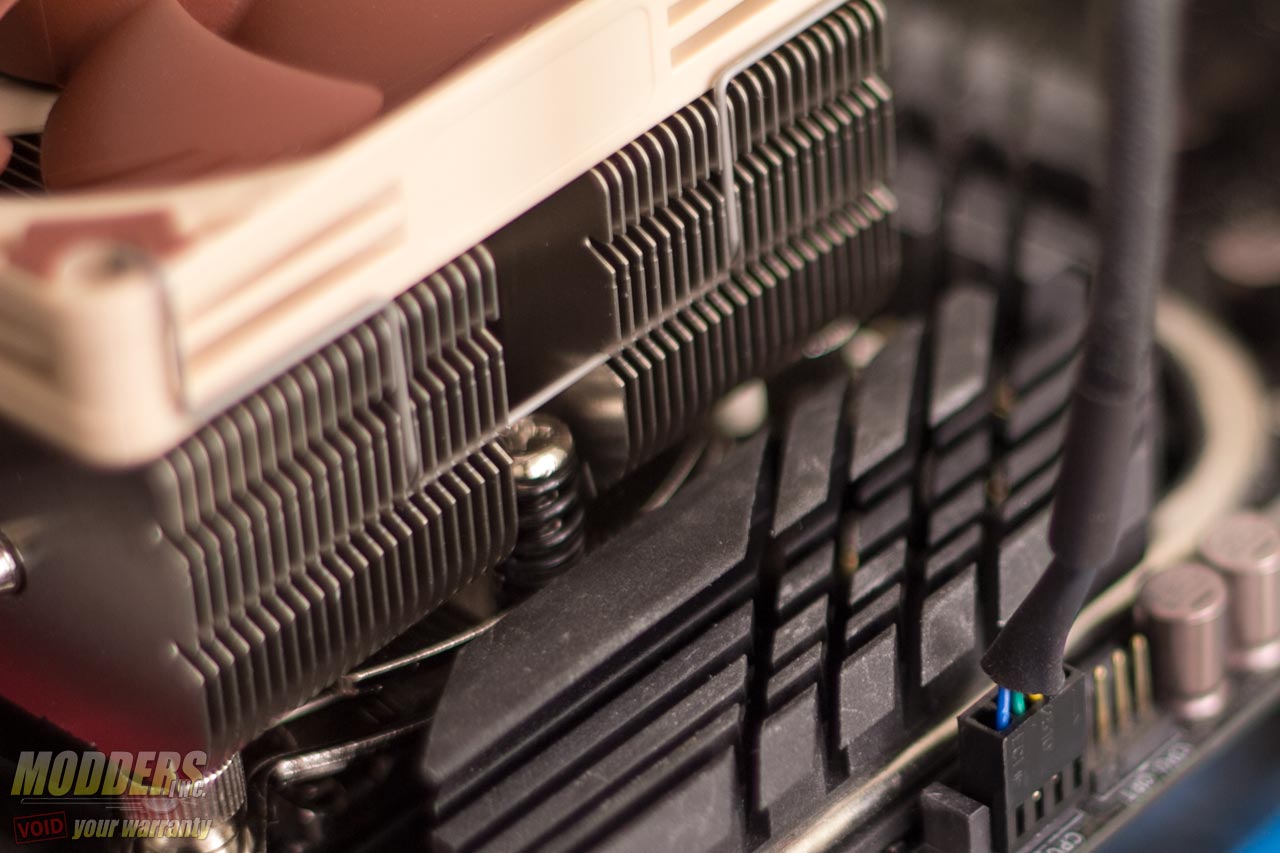

Apply the desired thermal compound quantity then simply align the screws to the mounting bar’s center male protrusion. The last step is re-attaching the fan with the wire clips and plugging in the 4-pin connector to the header. Make sure to change the settings in the BIOS/UEFI to a lower fan speed alarm setting or to set it to “ignore” completely as Noctua fans run at a very low speed and will trigger the fan speed alarm upon boot-up.

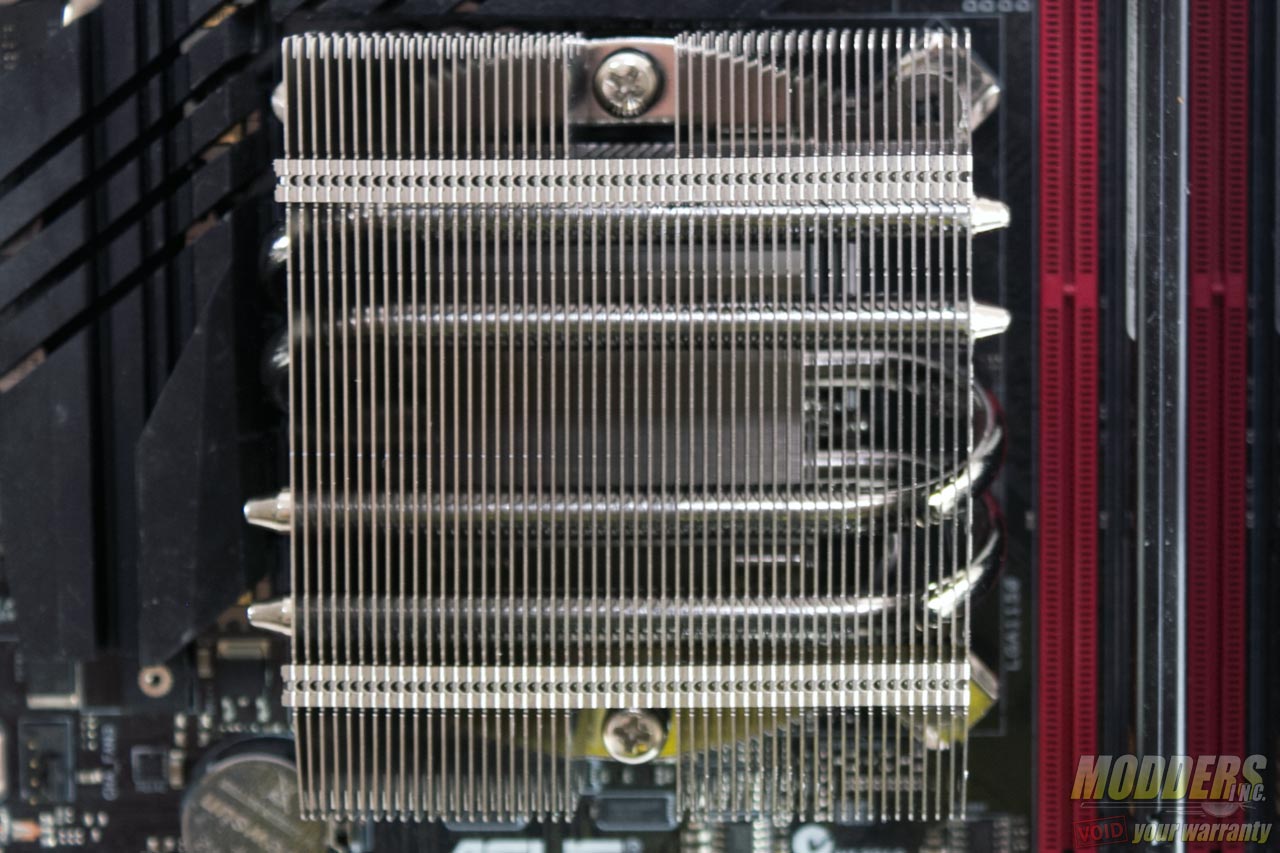

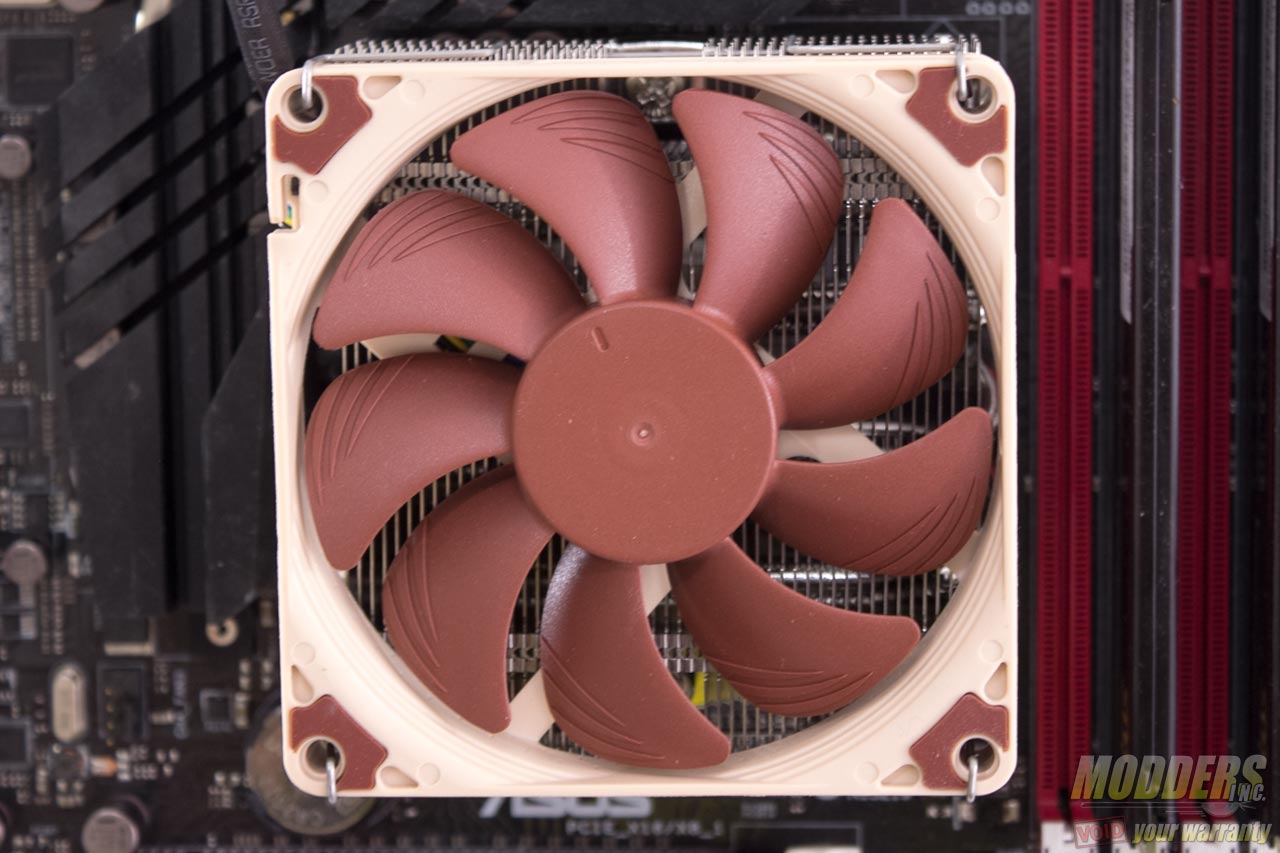

nhl9x6507 Noctua NH-L9x65

Noctua NH-L9x65

Compatibility and Clearance Issues

The Mushkin Stealth RAM used in this review measures 31.5mm tall in total from PCB base up to the top of the heatsink (standard DDR3 PCB measures 30mm tall). The test system motherboard is an ASUS Maximus VI Gene motherboard with a 28.5mm clearance between the CPU socket and the first DIMM slot and has a 45mm gap between the CPU socket and the topmost PCI-E x16 slot. None of these matter however as the Noctua NH-L9x65 measures 95x95mm and is within the LGA1150 “keep-out zone” so it does not even come close to preventing installation on the DIMM slots or expansion slots. Since the layout is essentially a square, clearance based on orientation is non-existent either. This is good news for mITX users.

Noctua NH-L9x65
