Synology MR2200ac Mesh Router Review: First WPA3-Certified Wi-Fi Router

First WPA3-Certified Wi-Fi Router

« Setup Wizard | Final Thoughts »

Testing Methodology

System Configuration I
CPU Intel I7-7700K @4.2GHz
Motherboard Asus STRIX Z270I Gaming
Ram G.Skill F4-2400C15-8GTZR DDR4-2132
GPU EVGA GTX 1080 SE
Hard Drives Samsung 850 EVO 256gb SSD
Network Cards Onboard Qualcomm Atheros QCA61x4A Driver 12.0.0.722
Power Supply Thermal Take Toughpower RGB 750W44

System Configuration II (Acer Predator 300)
CPU Intel I7-7700HQ @ 2.8GHz
Motherboard KBL Sienta_KLS
Ram Micron 8ATF1G64HZ-2G2B1 DDR4-2400
GPU Gigabyte Radeon R9 290
Hard Drives Hynix HFS256G39TND-N210A 256GB SATA M.2
Network Cards Onboard Qualcomm Atheros QCA61x4A Driver 12.0.0.722
Power Supply Onboard



Network Layout

In this review of the MR2200ac, I wanted to step away from our conventional testing and concentrate on to the real-life scenarios.

Software

All testing is done based off of System I and II and Internet.

Advertisement

To test Synology RT2600ac Performance between System I and II, I have used Lan Speed Test toolkit. Lan Speed Test is a benchmarking tool which allows testing of upstream and downstream connections. Server software was installed on System I and client software was installed on System II.

First set of tests were performed with MR2200ac connected into the network via ethernet cable.

Ethernet Connection to the RT2600ac

WiFi Transmitter (5GHz)

Synology MR2200ac Mesh Router Review: First WPA3-Certified Wi-Fi Router ethernet, Gigabit, mesh router, MR2200ac, switch, Synology WPA3, WPA3 Certified 1

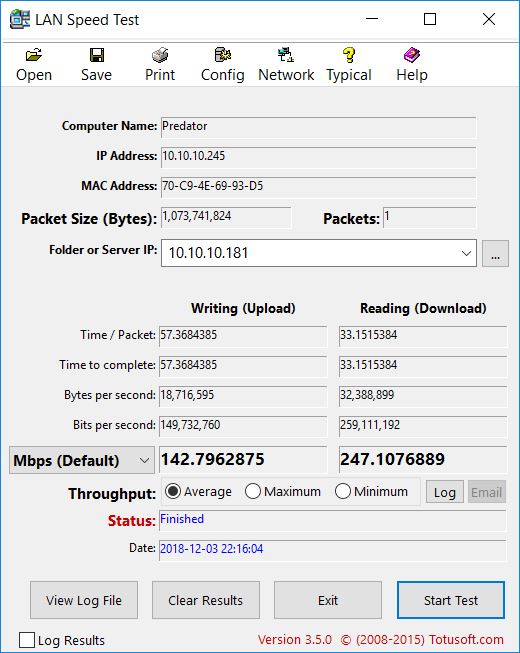

Performing the benchmark with a single stream yield about 142Mbps write and 247 Mbps read from the laptop.

Advertisement

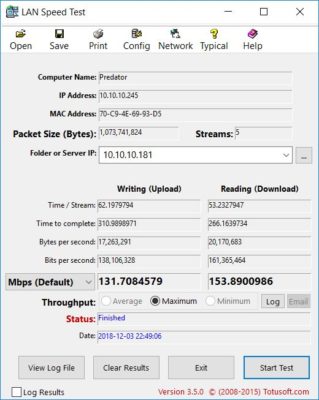

WiFi Transmitter (5GHz) multi-stream

Synology MR2200ac Mesh Router Review: First WPA3-Certified Wi-Fi Router ethernet, Gigabit, mesh router, MR2200ac, switch, Synology WPA3, WPA3 Certified 2

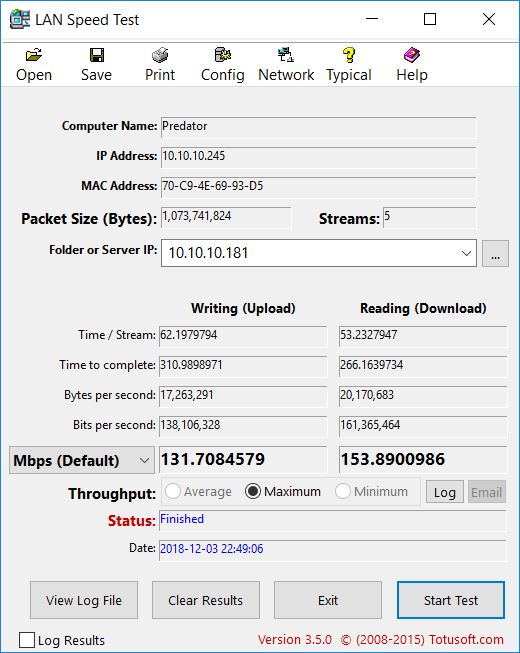

While looking at the multi-stream (5 streams) benchmark I saw maximum write speed of 131Mbps and 153Mbps read from the laptop.



The next set of benchmarks were running from the system closest to MR2200ac. MR2200ac was connected RT2600ac wirelessly.

Wireless Connection to the RT2600ac

WiFi Transmitter (5GHz)

Synology MR2200ac Mesh Router Review: First WPA3-Certified Wi-Fi Router ethernet, Gigabit, mesh router, MR2200ac, switch, Synology WPA3, WPA3 Certified 3

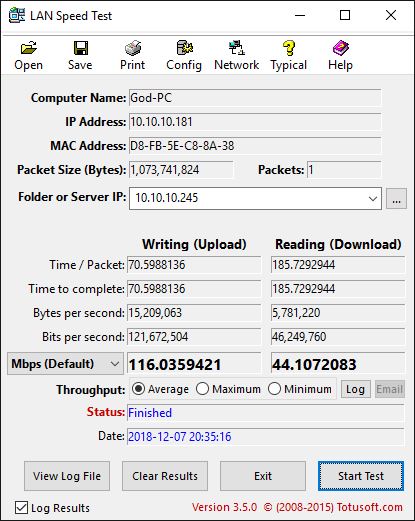

While connected wirelessly to RT2600ac from MR2200ac in the single stream benchmarks I saw an average write speed of 116Mbps and 44Mbps read speed.

Synology MR2200ac Mesh Router Review: First WPA3-Certified Wi-Fi Router ethernet, Gigabit, mesh router, MR2200ac, switch, Synology WPA3, WPA3 Certified 4

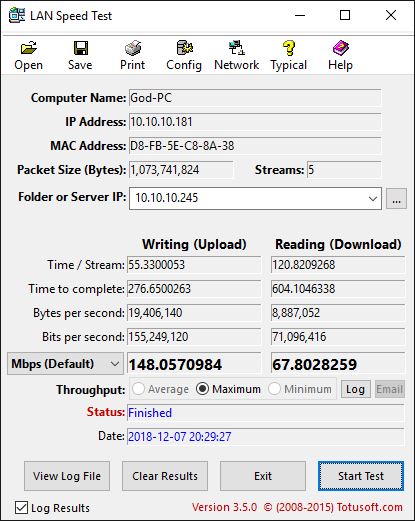

In the multi-stream benchmarks I saw speeds as high as 148Mbps while writing and 67Mbps while reading from the client closest to the MR220ac.



Following are speed tests to the internet.

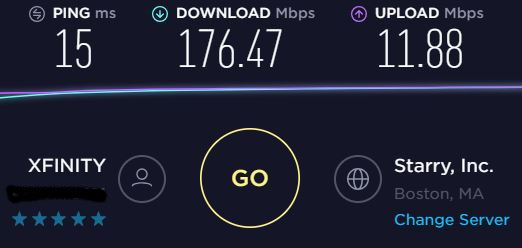

5GHz MR2200ac WiFi to RT2600ac

Synology MR2200ac Mesh Router Review: First WPA3-Certified Wi-Fi Router ethernet, Gigabit, mesh router, MR2200ac, switch, Synology WPA3, WPA3 Certified 5

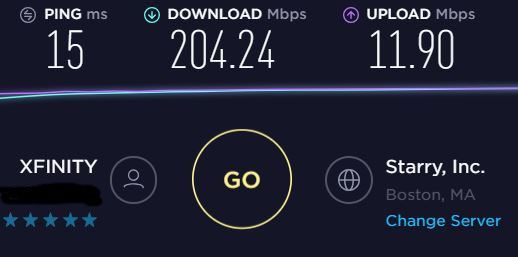

5GHz MR2200ac wired to RT2600ac

Synology MR2200ac Mesh Router Review: First WPA3-Certified Wi-Fi Router ethernet, Gigabit, mesh router, MR2200ac, switch, Synology WPA3, WPA3 Certified 6

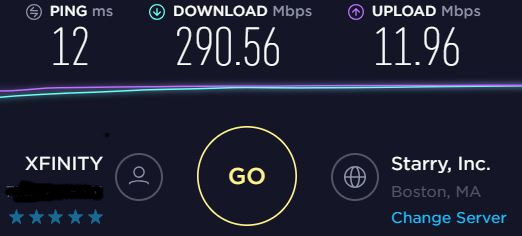

Gigabit Connection directly into RT2600ac

Synology MR2200ac Mesh Router Review: First WPA3-Certified Wi-Fi Router ethernet, Gigabit, mesh router, MR2200ac, switch, Synology WPA3, WPA3 Certified 7

My Comcast speed is 300/10 Mbps.
