Graphics Cards

ASRock Radeon RX 5600 XT Phantom Gaming D3 GPU Review

Is 1080p gaming dead? Far from it!

A Closer Look at ASRock RX 5600 XT Phantom Gaming D3 »



ASRock Radeon RX 5600 XTIs 1080p gaming dead? Far from it, I say. 1080p gaming has become more affordable for the budget market. So I do not see it going away any time soon. Even eSports FPS professionals play on a 1080p resolution. The reason they choose 1080p over say 2K or 4K is because of the enlarged targets and so it’s easier for them to acquire the target on the screen. Another reason they choose lower resolutions is to boost their frames per second rates thus resulting in a smoother play. If you are looking to game on a 1080p resolution there are several on the budget video cards that can help you to achieve the best experience at low resolution. One of the Graphics Cards I am talking about is AMD’s Radeon RX 5600 XT GPU. The RX 5600 XT is an improved version of RX 5500 XT and a direct competitor to NVIDIAs GeForce RTX 2060. Our sample of the RX 5600 XT comes from ASRock. ASRock taking the reference RX 5600 XT GPU and overclocking Core Clock and Memory Clock right from the factory. Besides factory overclocking RX 5600, XT Phantom Gaming D3 features a massive 3 fan heatsink cooler and ARGB logo.

Review Sample Provided By:
Product Name and Website: ASRock Radeon RX 5600 XT Phantom Gaming D3 GPU
Product was given in exchange for work to produce review.



Specifications

Graphics EngineAMD Radeon RX 5600 XT
Bus StandardPCI Express x16 Gen4
DirectX12
OpenGL4.6
MemoryGDDR6 6GB
Engine ClockBoost Clock: Up to 1750 MHz
Game Clock: 1670 MHz
Base Clock: 1530 MHz(Need to update L10 version VBIOS or later)
Stream Processors2304
Memory Clock14 Gbps

(Need to update L12 version VBIOS or later)

ResolutionDigital Max Resolution: 8K HDR 60Hz
Interface1 x HDMI 2.0b
3 x DisplayPort 1.4 with DSC 1.2a
FirmwareL12
HDCPYes
Multi-view4
Recommended PSU650W
Power Connector1 x 8-pin
Accessories1 x Quick Installation Guide
Dimensions290.6 x 126.5 x 53.1 mm

Packaging

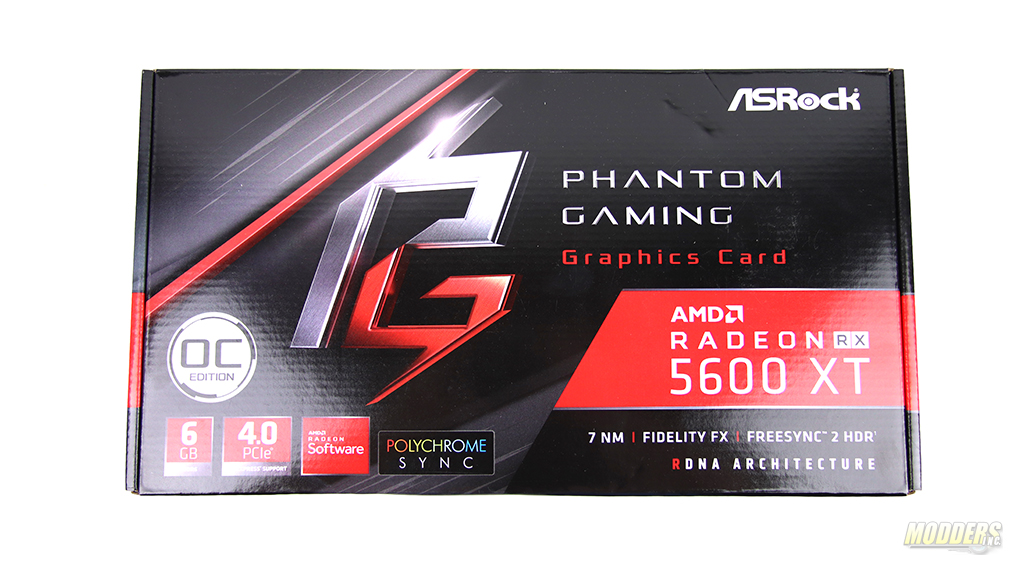

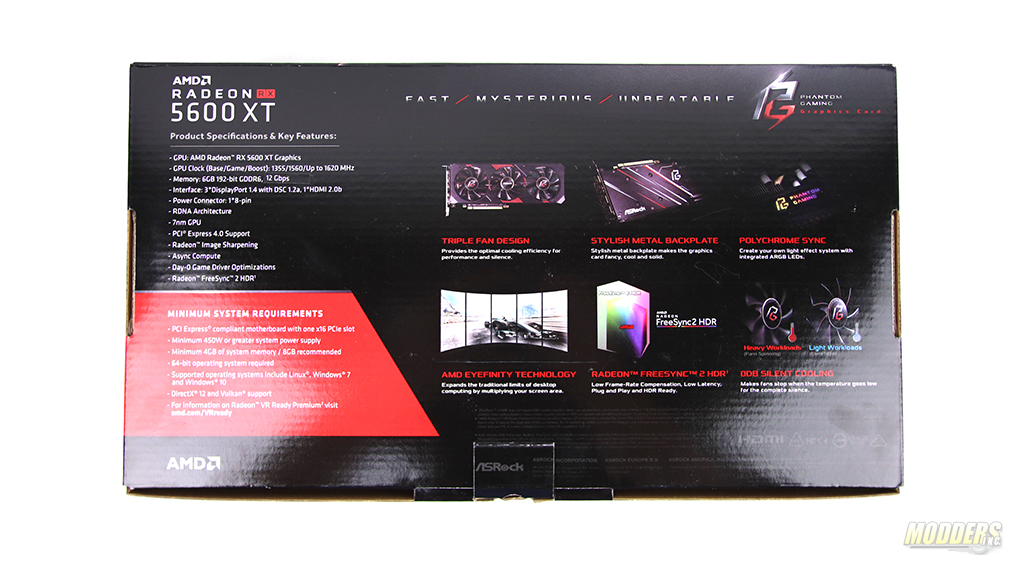

The packaging of ASRock RX 5600 XT Phantom Gaming D3 is extremely similar to ASRock’sRX 5500 XT. We see the same style of imagery here with a section for Specifications, Key Features, and Minimum System requirements. If you would like to compare these two cards you can refer to our ASRock RX 5500 XT review here. RX 5600 XT is built on the latest AMD’s 7NM technology which supports FreeSync 2 HDR and RDNA Architecture.

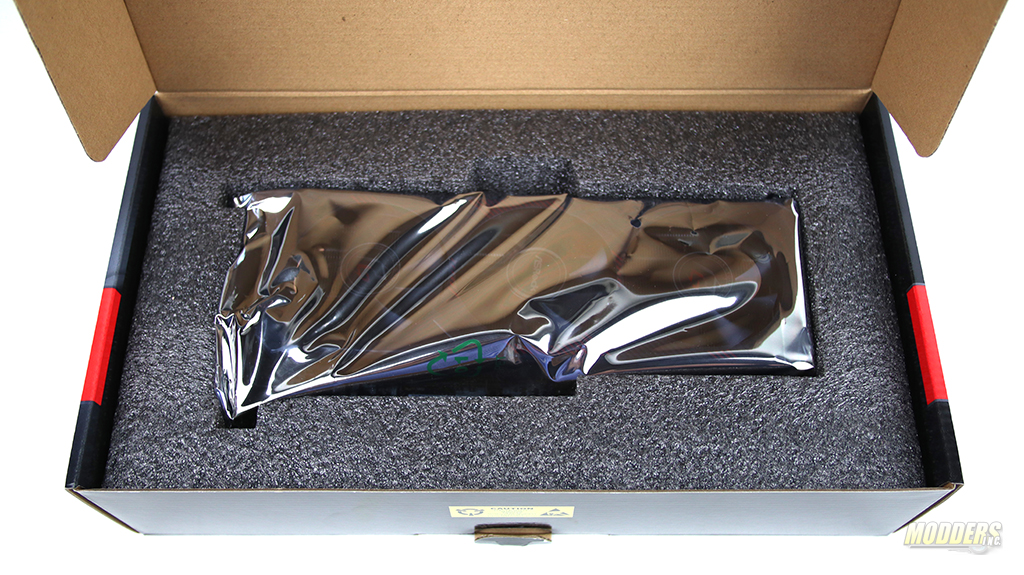

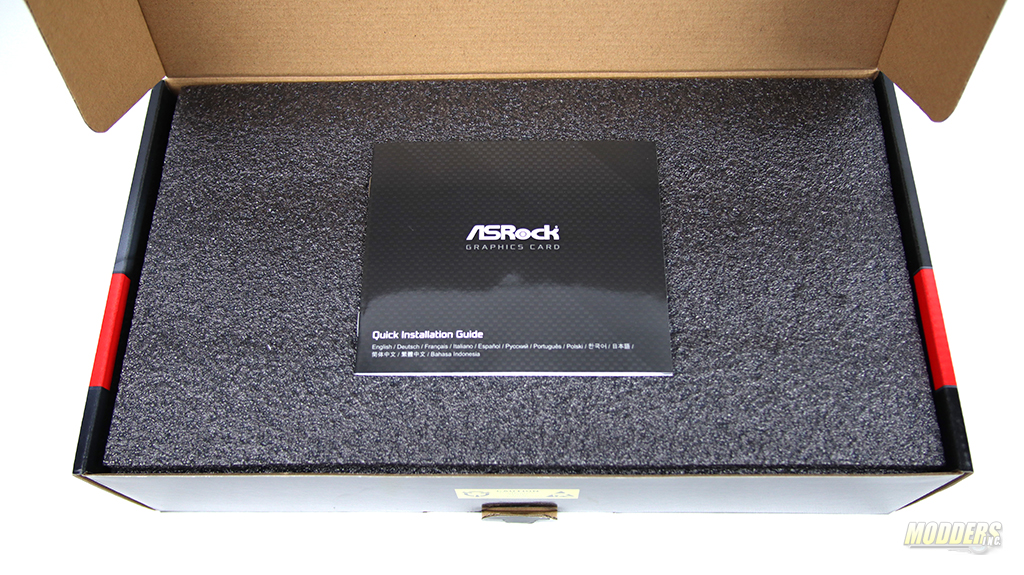

Internal packaging is simple. The GPU itself is wrapped in an ant-static bag and is securely embedded in the plastic foam cutout. There are no drivers disk and no cables included with ASRock RX 5600 XT Phantom Gaming D3.  The only thing that is included in the Quick Installation Guide booklet.
