Eye of the Storm, continued…

Cooler Master Storm Stryker Case ATX, Case, Cooler Master 1

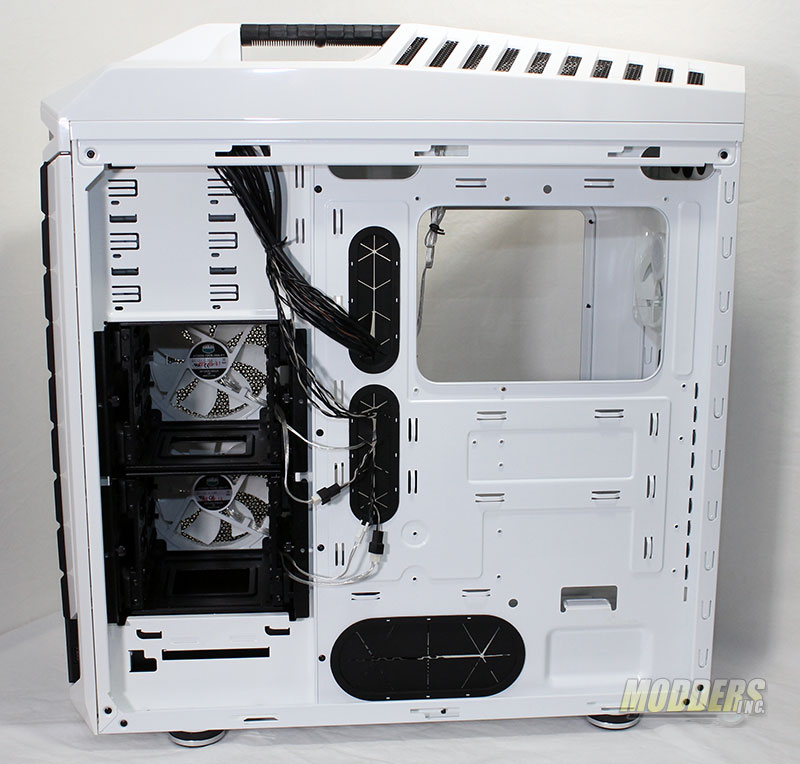

 With the right side panel removed we get our first look at the side that hides all the cables and wires. A large access area has been given right where the back side of the CPU is located. This gives you plenty of access to replace your current CPU cooler with a new one or liquid cooling setup.

Cooler Master Storm Stryker Case ATX, Case, Cooler Master 2

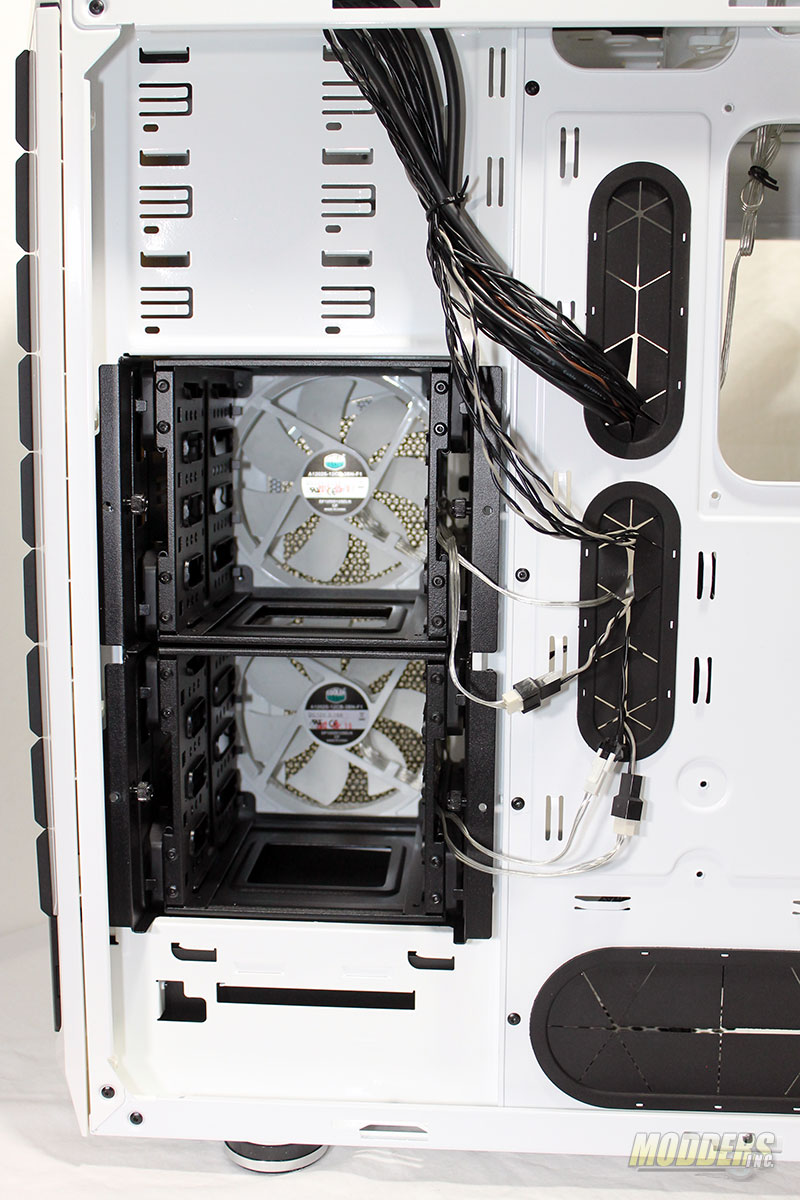

 With the cooling fans on the other side of the HD cages this is where you will have to install your drives and run you cabling. Plenty of space has been giving on this side of the case you run and hide all the cables you could possibly have.

Cooler Master Storm Stryker Case ATX, Case, Cooler Master 3

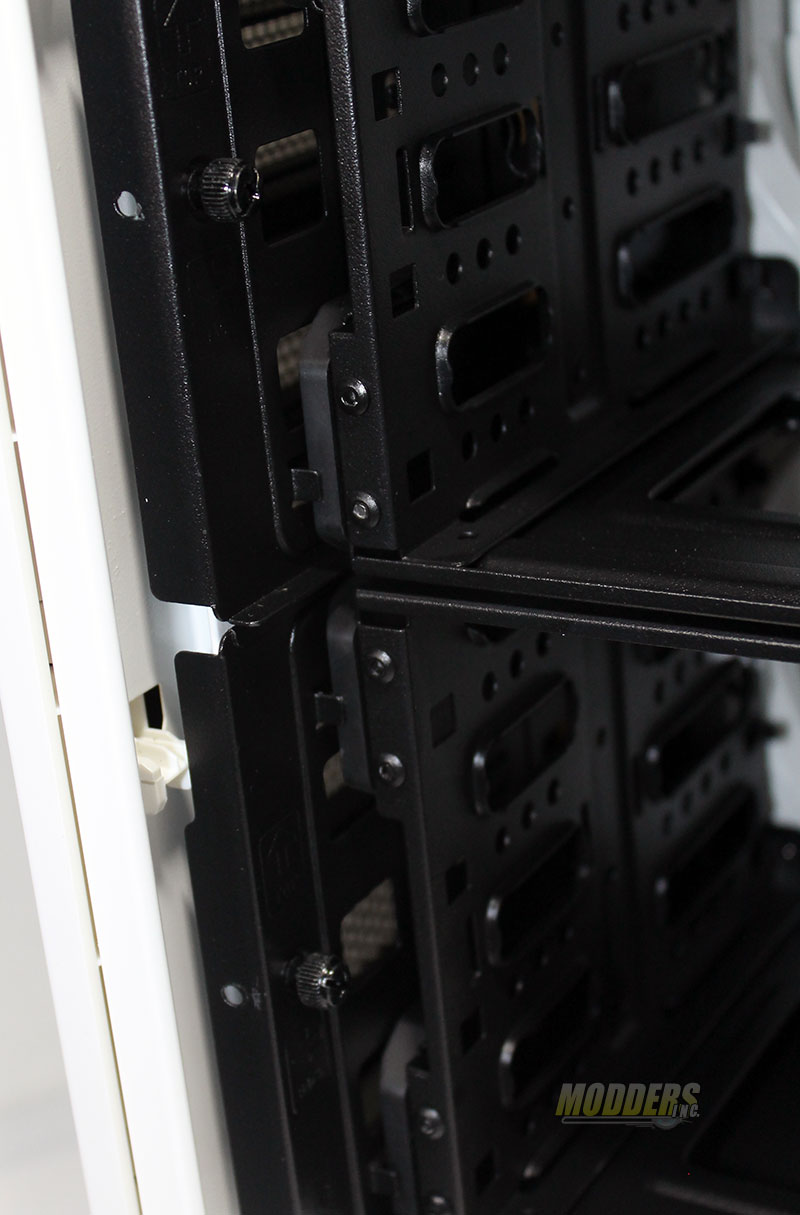

 The hard drive cage is fully modular and will the removal of a few screws and moving around a bracket or two you can design your own custom setup.

Cooler Master Storm Stryker Case ATX, Case, Cooler Master 4

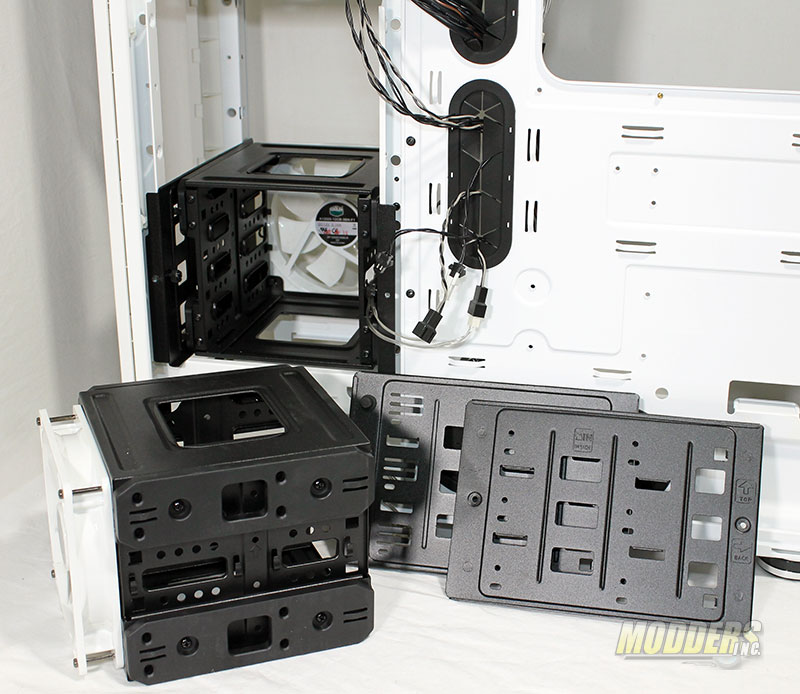

 Here you can see that I removed the top rack and the two slide rails that hold it in place.

Cooler Master Storm Stryker Case ATX, Case, Cooler Master 5

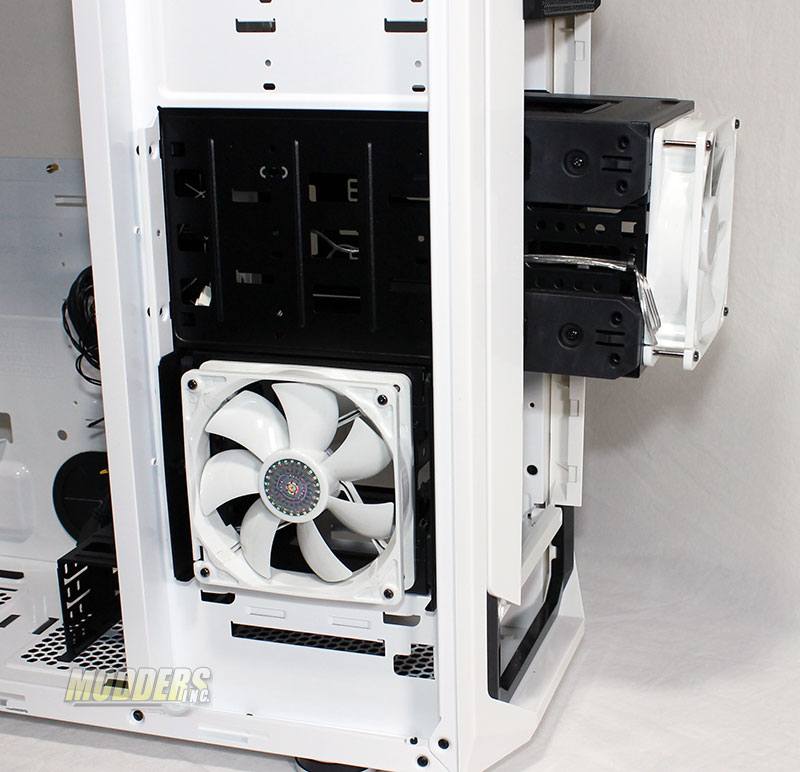

Quickly you can flip the rack to the front or the other side if you like.

Cooler Master Storm Stryker Case ATX, Case, Cooler Master 6

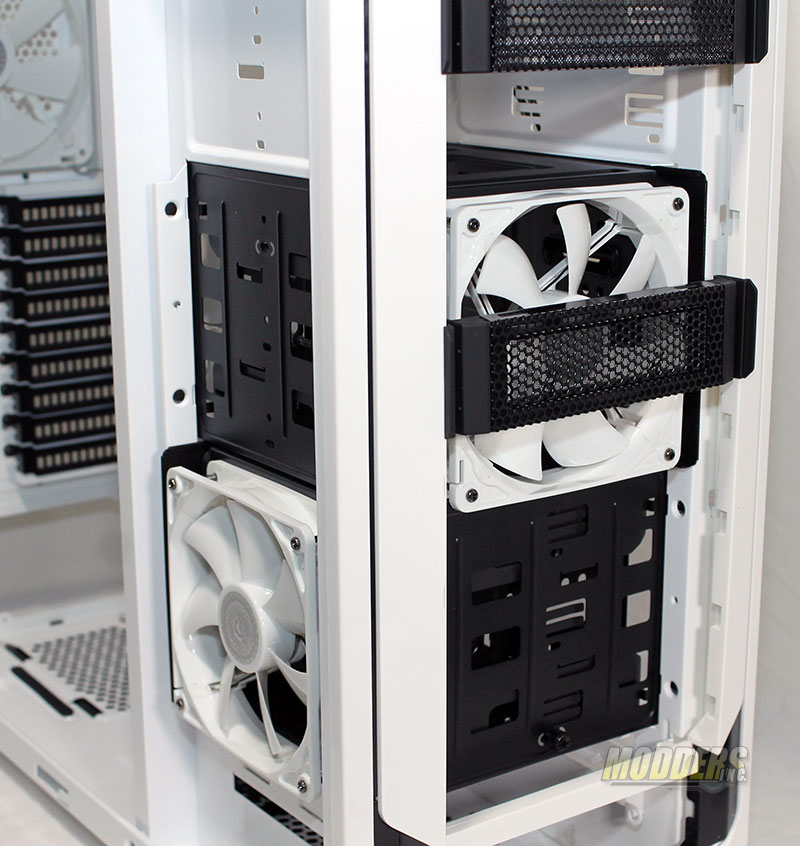

 No need to remove the attached fan as the drive rack mounts far enough back into the case that the drive bay covers go right back into place.
