Starting with the non- modular model, the MWE 750 Gold comes in at $89.99 just $10 dollars cheaper than its fully modular counterpart.

Review Sample Provided by: Cooler Master

Product Name/Link to Website: http://www.coolermaster.com/powersupply/power-supplies-by-wattage/mwe-gold-750/

Cooler Master-The Modular or Not to Modular? ATX, Cooler Master, power supply, power supply modular 1

Cooler Master-The Modular or Not to Modular? ATX, Cooler Master, power supply, power supply modular 2

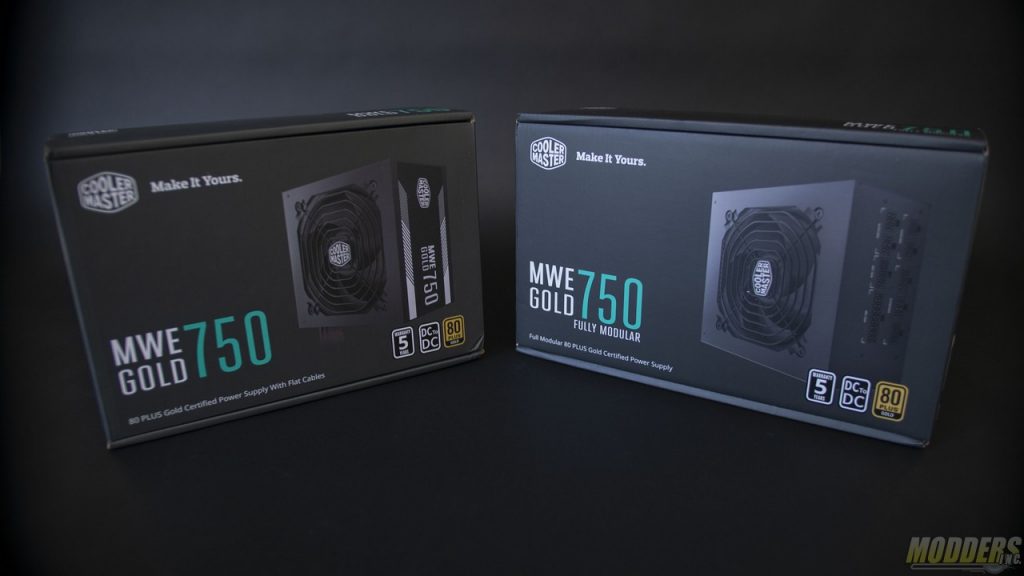

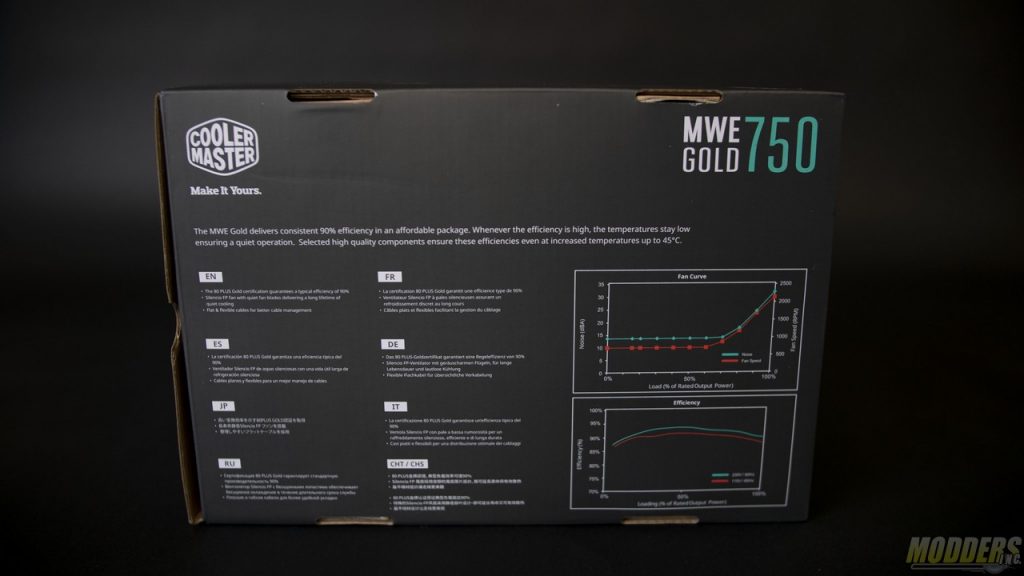

The PSU is shipped in a matte black cardboard box with a protective plastic film which was removed to avoid glare in the photos. The back of the packaging has a short description of the PSU model, as well as two graphs showing the PSU’s fan curve and efficiency overload.

Cooler Master-The Modular or Not to Modular? ATX, Cooler Master, power supply, power supply modular 3

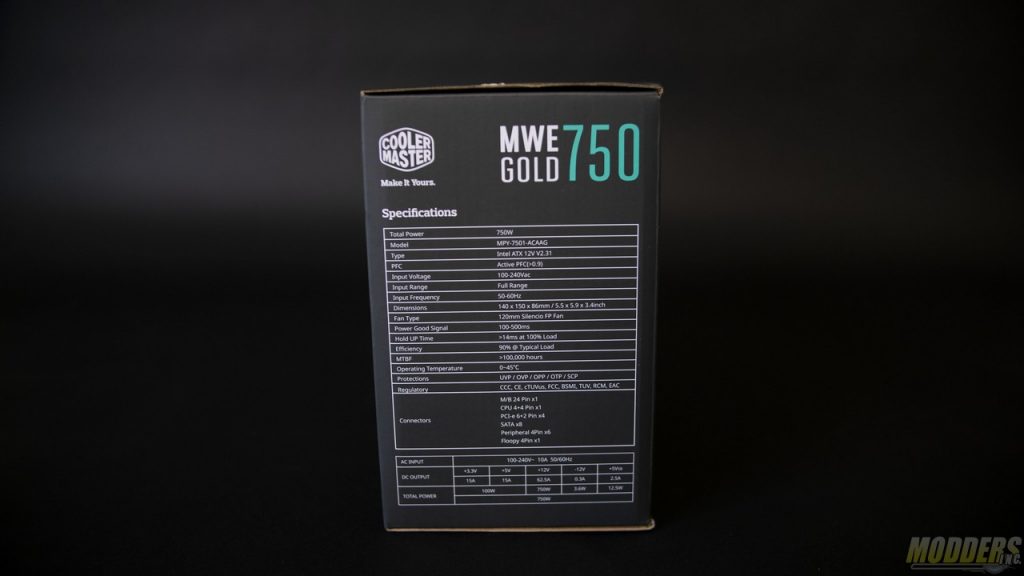

On the left panel is a very detailed list of the PSU specifications listed below

TOTAL POWER 750W
MODEL MPY-7501-ACAAG
TYPE INTEL ATX 12V V2.31
PFC ACTIVE PFC(>0.9)
INPUT VOLTAGE 100-240Vac
INPUT RANGE FULL RANGE
INPUT FREQUENCY 50-60Hz
DIMENSIONS 140X150X86MM /5.5X5.9X3.4INCH
FAN TYPE 120MM SILENCIO FP FAN
POWER GOOD SIGNAL 100-500MS
HOLD UP TIME >14MS AT 100% LOAD
EFFICIENCY 90% @ TYPICAL LOAD
OPERATING TEMPERATURE 0-45C
PROTECTIONS UVP/OVP/OPP/OTP/SCP
REGULATORY CCC,CE,CTUVUS,FCC,BSMI,TUV,RCM,EAC
CONNECTORS M/B 24 PIN X1

CPU 4+4 PIN X1

PCI-E 6+2 PIN X4

SATA X8

PERIPHERAL 4PIN X6

FLOPPY 4 PIN X1

Cooler Master-The Modular or Not to Modular? ATX, Cooler Master, power supply, power supply modular 4

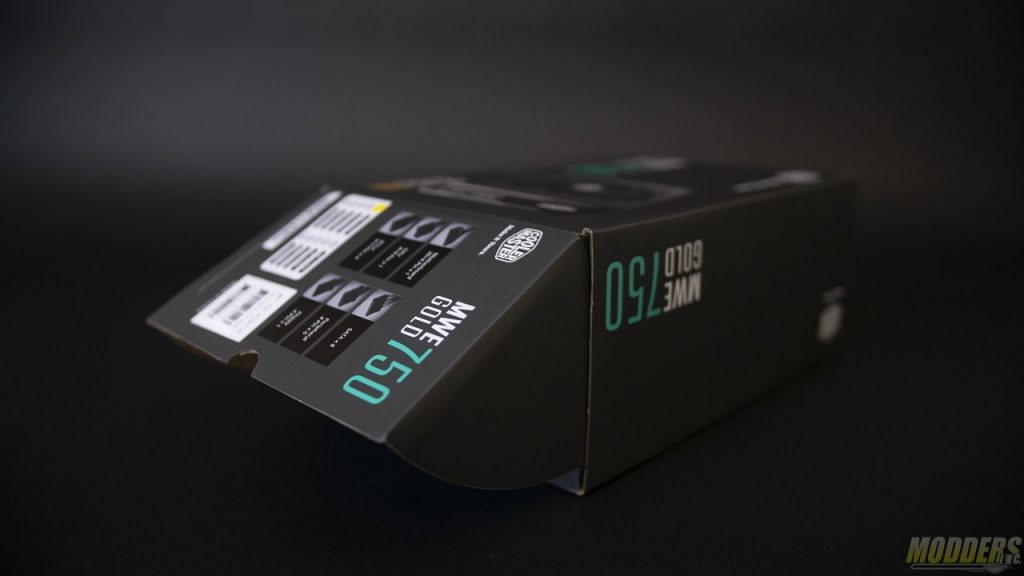

The left side has a description as well as a photo of the cables included with this PSU and also functions as the locking tab that keeps the packaging close.

Cooler Master-The Modular or Not to Modular? ATX, Cooler Master, power supply, power supply modular 5

Cooler Master-The Modular or Not to Modular? ATX, Cooler Master, power supply, power supply modular 6Cooler Master-The Modular or Not to Modular? ATX, Cooler Master, power supply, power supply modular 7Cooler Master-The Modular or Not to Modular? ATX, Cooler Master, power supply, power supply modular 8

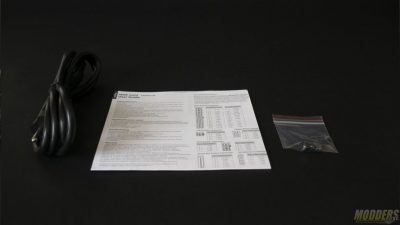

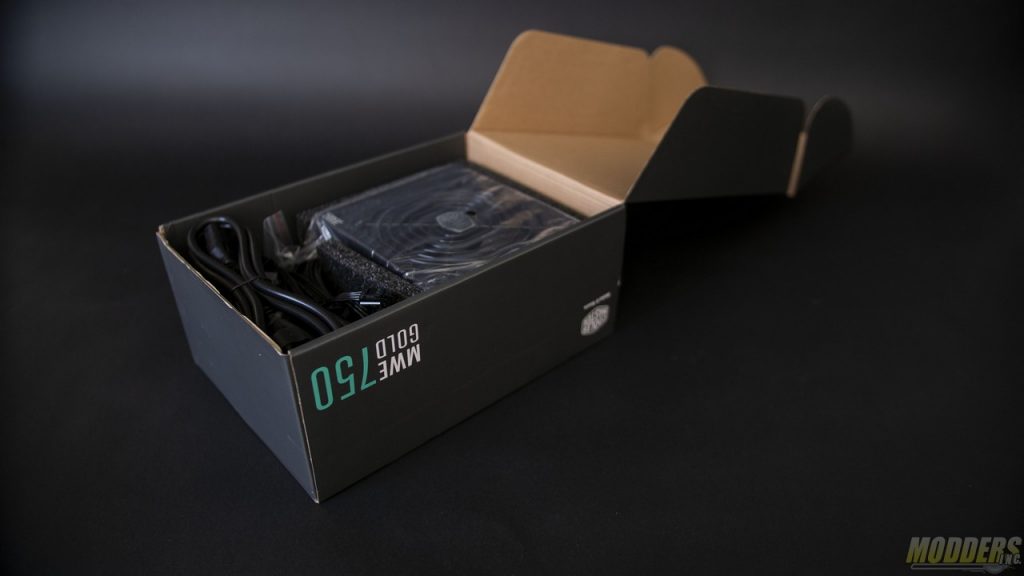

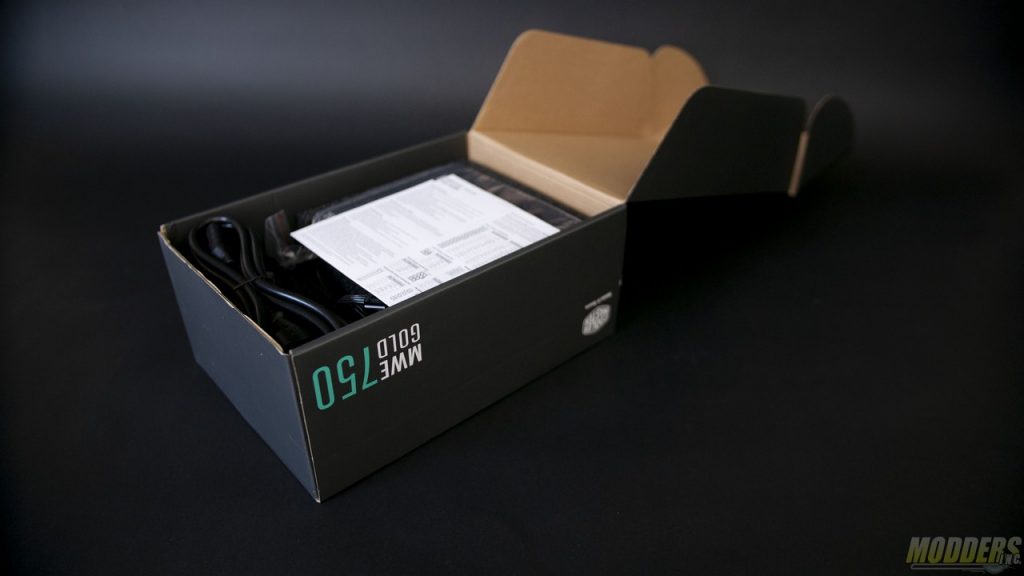

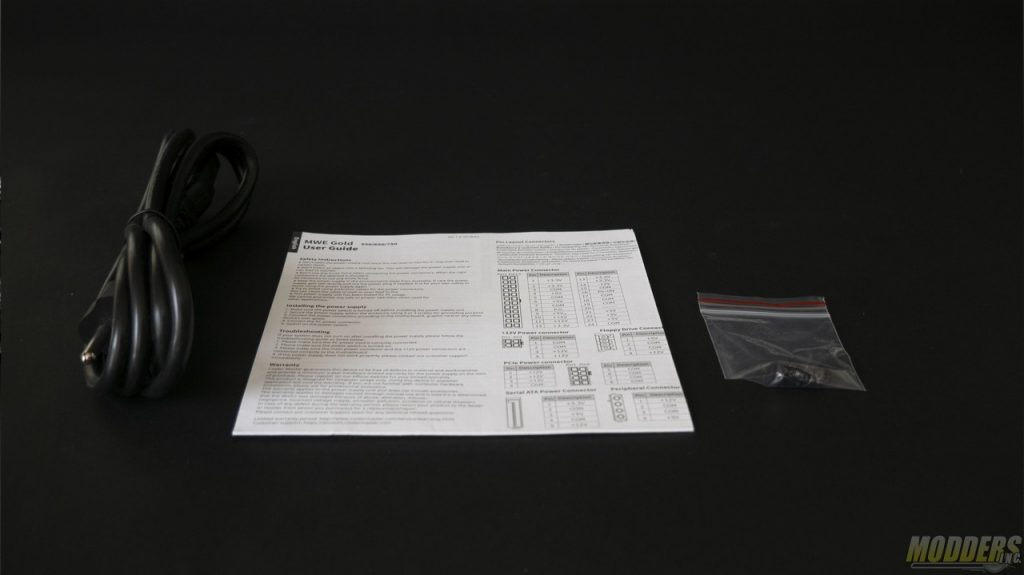

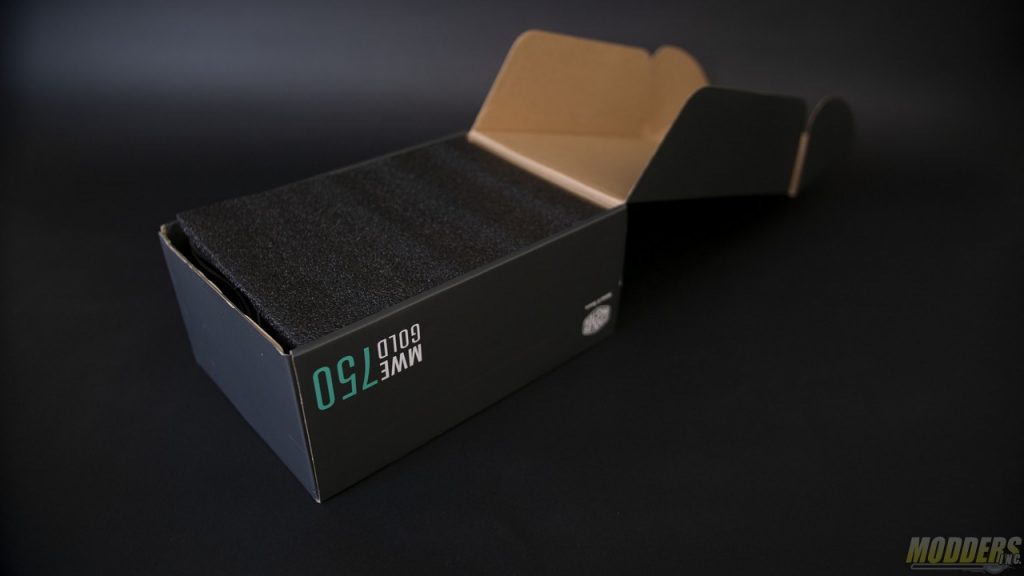

Inside Cooler Master has a single piece of foam to cushion the top of the PSU during shipping. Removing this foam will show the user guide, power cable, mounting screws and the bundle of cables attached to the PSU.

Cooler Master-The Modular or Not to Modular? ATX, Cooler Master, power supply, power supply modular 9

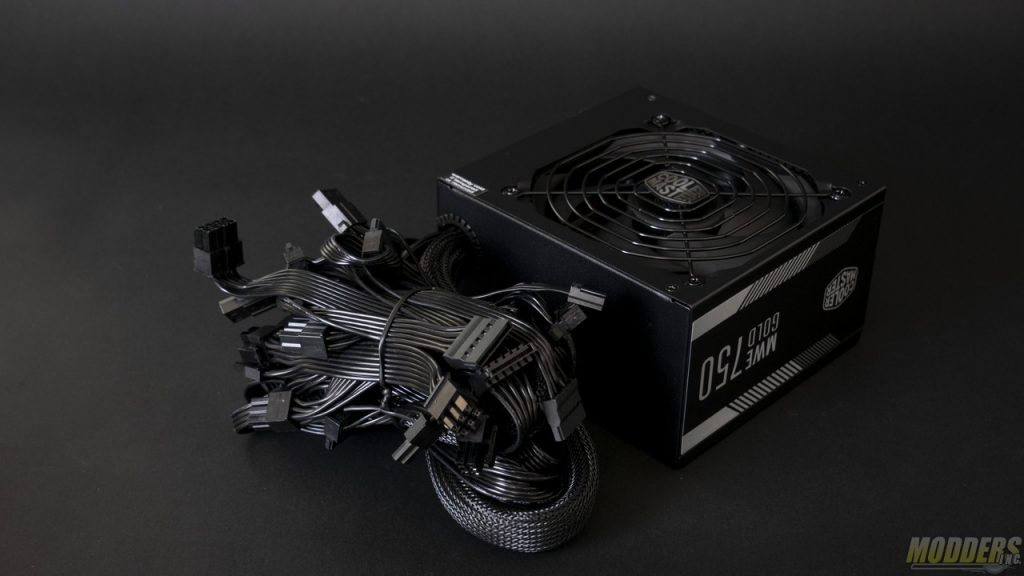

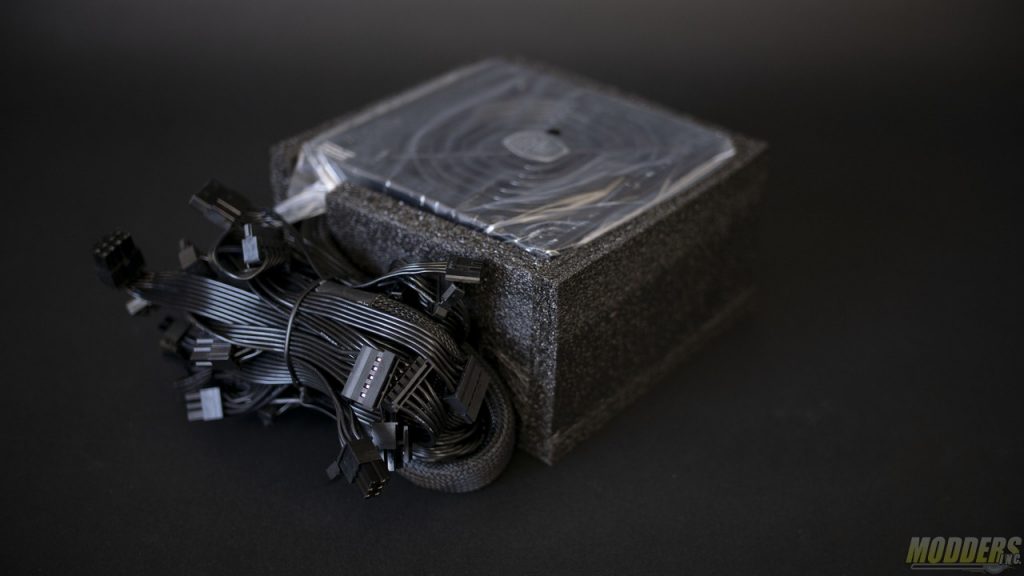

The PSU itself ships much like every other PSU on the market, protected by dense foam and inside a plastic bag to keep dust and foreign particles out of the unit.

Cooler Master-The Modular or Not to Modular? ATX, Cooler Master, power supply, power supply modular 10Cooler Master-The Modular or Not to Modular? ATX, Cooler Master, power supply, power supply modular 11

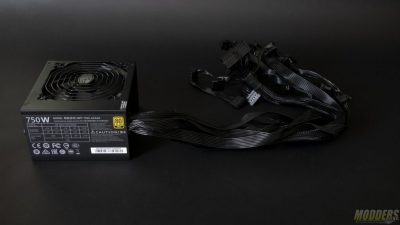

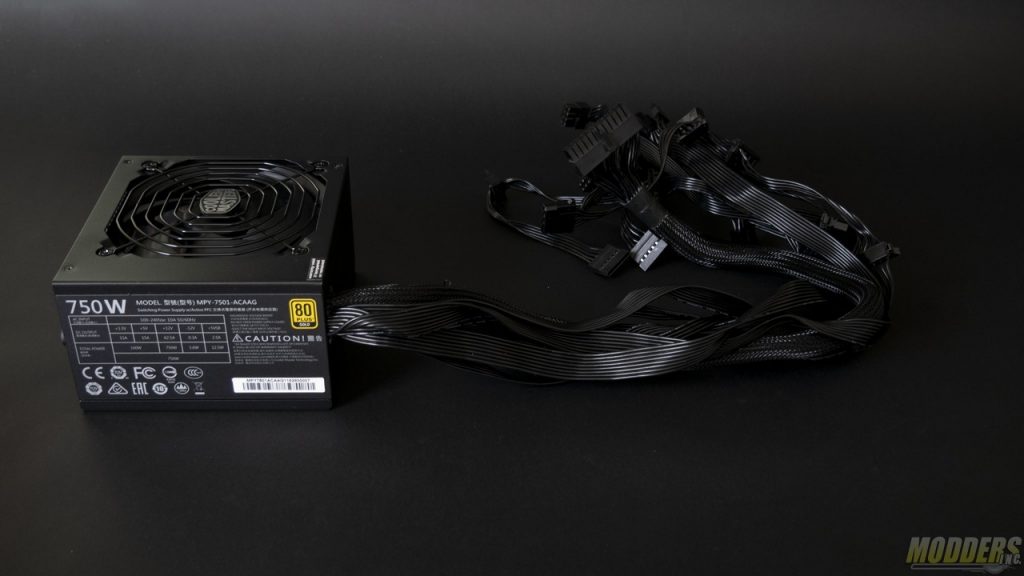

The cables are bundled with a single twist tie and use a black 18 AWG wire with a very easy to form jacket, which makes straightening out the cables much easier. All but the 24 pin feature a fused black system for the cables, where the 24 pin is the only cable that has a mesh over the black cables to keep the sets neater and out of the way.

Cooler Master-The Modular or Not to Modular? ATX, Cooler Master, power supply, power supply modular 12Cooler Master-The Modular or Not to Modular? ATX, Cooler Master, power supply, power supply modular 13

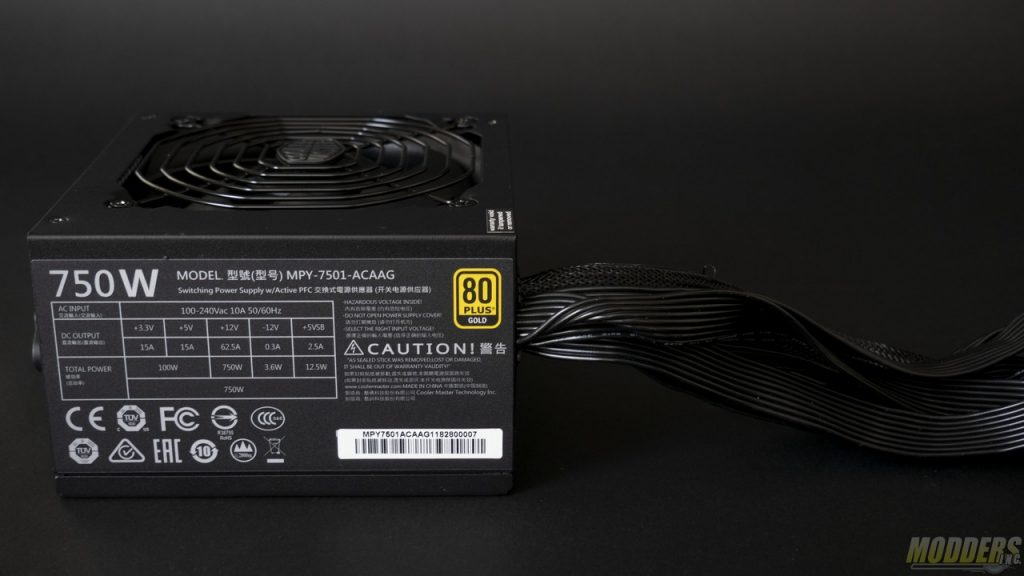

The left side of the PSU list all the compliance certificates, the 80 PLUS efficiency rating (GOLD) as well as the model number with a list of the voltages. One thing I am very happy to see with this PSU is the restraint on primary colors, other than the gold for the rating. For some this is not a big deal as PSU shrouds are normal now with most cases however for those select cases with the PSU exposed, this helps keep a neutral aesthetic.

Cooler Master-The Modular or Not to Modular? ATX, Cooler Master, power supply, power supply modular 14

Cooler Master-The Modular or Not to Modular? ATX, Cooler Master, power supply, power supply modular 15

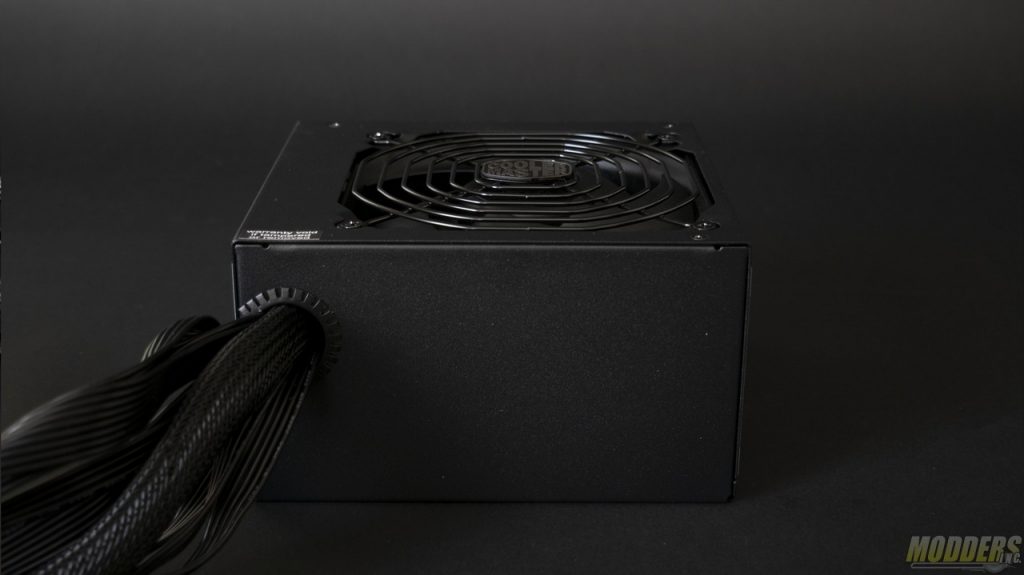

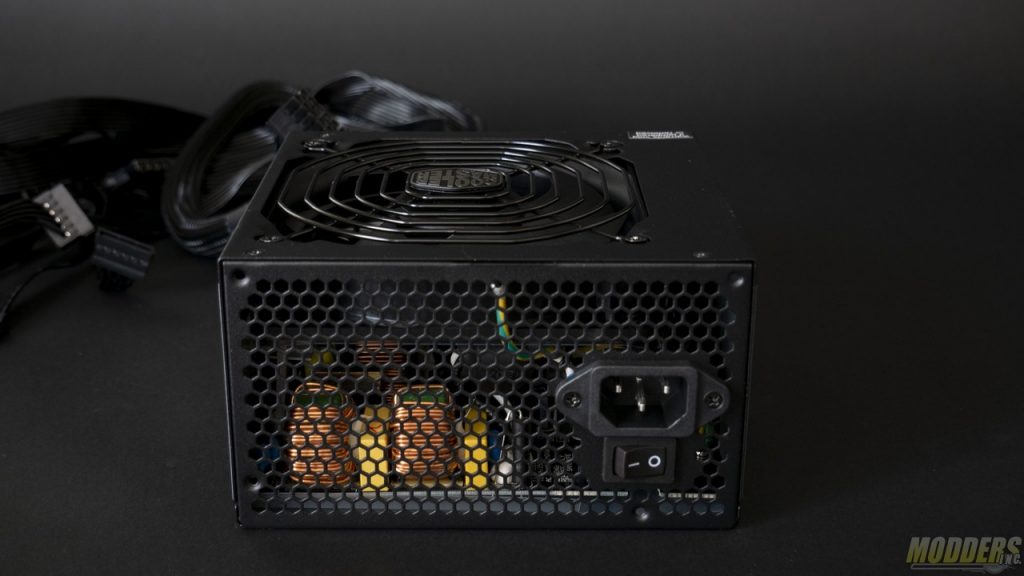

The area of the PSU that has the inlet for the cables is solid, normally this area will have some sort of perforation but as this is a non-modular PSU it is kept solid to prevent any heat from seeping back into the chassis. The 120mm fan at the top of the unit is offset and pulls air in through the mesh outside panel and out the bottom of the chassis. Note, the general rule of PSUs is to have the fan face down to push air outside the case.
