FEATURES and SPECIFICATIONS

  • Extruded cold-plate block
  • Luminated LED LOGO showing power on
  • Shunt-Channel-Technology (SCT)
  • Enlarged cold plate with micro-channel cooling surface
  • All-In-One maintenance free closed loop design
  • High-Pressure ELC-LM120S-HP fan with Adjustable Peak Speed control with 3 rpm options
  • LED model ELC-LM120S-TAA fan with circular brilliant sparkle mode effect
  • FEP tubing eliminates permeability adding to reliability and life
  • EASY to DIY assembly with smart brackets and CPU contact
  • Additional screws for a 2nd fan if push-pull install is desired

“ENERMAX’s new line of liquid CPU cooler LIQMAX 120S (ELC-LM120S-HP/ELC-LM120S-TAA) offers users a one piece solution for a quiet and efficient way to cool their computer systems. The new LIQMAX 120S series features a patented Shunt-Channel-Technology (SCT) (Figure 1) to improve thermal conductivity, a unique 3D extruded cold-plate structure designed for better stability and rapid heat conductivity. The HP variant has a high-pressure airflow fan while the TAA variant comes with patented blue circular LED lights. Both fans feature a Smart APS (Adjustable Peak Speed) Control provides 3 peak RPM options.” ~ ENERMAX

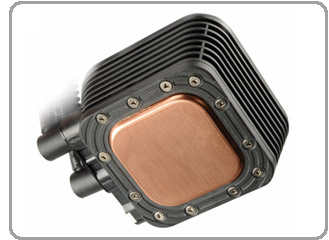

fig. 1Enermax LIQMAX 120S All-In-One CPU Cooler CPU Cooler, Enermax, Water Cooler 1

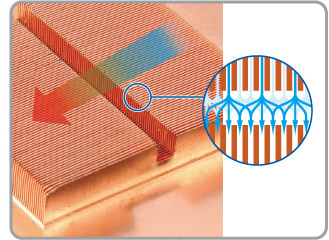

Cooling performance is largely determined by the heat dissipation from CPU to cooling block. LIQMAX 120S uses ENERMAX’s new Shunt Channel Technology (SCT) cold plate, a unique 3D Extruded cold-plate structure (Figure 2)designed for stability, rapid heat conductivity, redistribute the coolant and maximize the flow rate.

fig. 2Enermax LIQMAX 120S All-In-One CPU Cooler CPU Cooler, Enermax, Water Cooler 2

Advertisement

Combine the ENERMAX Twister Bearing High-Pressure Airflow Fan with APS Control (patented), 3 cooling PWM variable modes, Fan settings allow you to select Silent Mode at 600~1300 RPM, Performance Mode at 600~2000 RPM and Overclock Mode at 600~2500 RPM (Figure 3).

fig. 3Enermax LIQMAX 120S All-In-One CPU Cooler CPU Cooler, Enermax, Water Cooler 3



SPECIFICATIONS

LIQMAX 120S
Model ELC-LM120S-HP ELC-LM120S-TAA
Cold Plate Material Copper
Pump Bearing Ceramic Bearing
MTBF 50,000 hours
Motor Speed 2300 rpm
Rated Voltage 12 V
Rated Current 0.3 A
Radiator Dimension 156 x 120 x 32 mm
Material Aluminum
Tube Material FEP
Length 310 mm
Weight (w/o fan) 505 g
Bracket Compatibility Intel® LGA 775/1150/1155/1156/1366/2011,                                     AMD® AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+
Fan Dimension 120 x 120 x 25 mm
Bearing Twister Bearing
MTBF ≧160,000 hours
Speed 600 – 1300/2000/2500 rpm
Rated Voltage 12V
Rated Current 0.13A/0.27A/0.45A 0.13A/0.27A/0.45A
Air Flow 28.6 ~ 60.3/88.9/111.0 CFM                                     48.5 ~ 102.4/150.9/188.7 m3/h 24.5 ~ 51.6/84.6/105.7 CFM                                     41.6 ~ 87.7/143.7/179.7 m3/h
Static Pressure 0.8 ~ 1.7/4.7/7.4 mm-H2O 0.8 ~ 1.5/2.4/3.7 mm-H2O
Noise Level 15 ~ 21.5/27/30 dBA 14 ~ 20/27/30 dBA
LED N/A 12x Blue LED
Connector 4 pin PWM
Warranty 2 years
Note:
The Circular LED of the CPU fan may be dimmer when the motherboard’s energy saving function is enabled. Please connect the 4 pin adaptor included to the power supply in order to keep the brightness, however the PWM function will be disabled at this time.

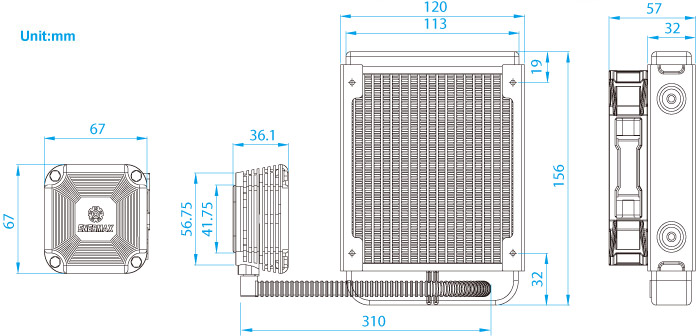

DIMENSIONS

Enermax LIQMAX 120S All-In-One CPU Cooler CPU Cooler, Enermax, Water Cooler 4
