Internal Components of the ECS2512FP

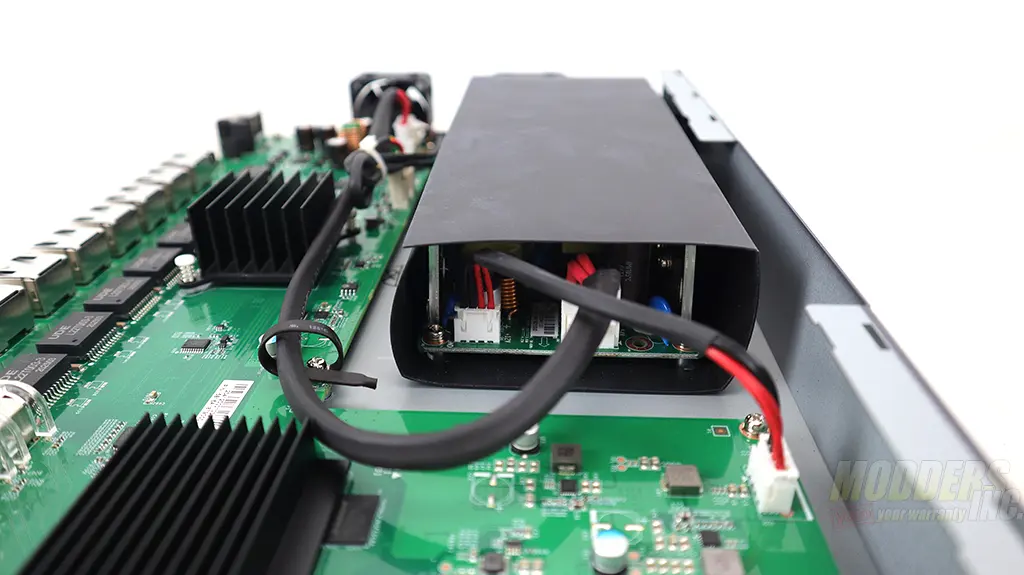

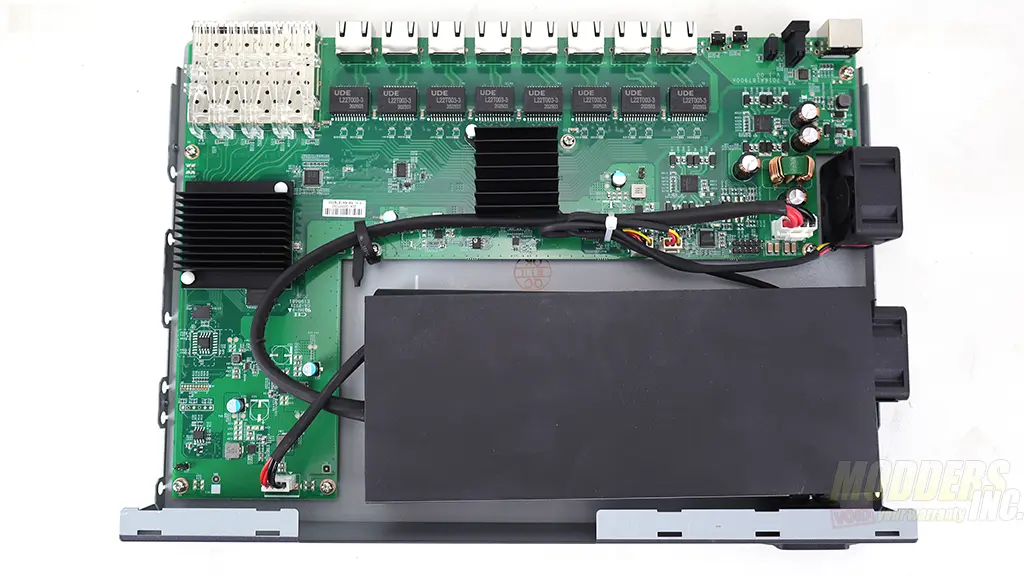

The motherboard itself appears to be well assembled and without any visible over flux areas. The power supply is located at the back of the enclosure. It has a plastic shroud around it. Most power supplies we see in switches have a similar configuration or are completely exposed.

ECS2512FP

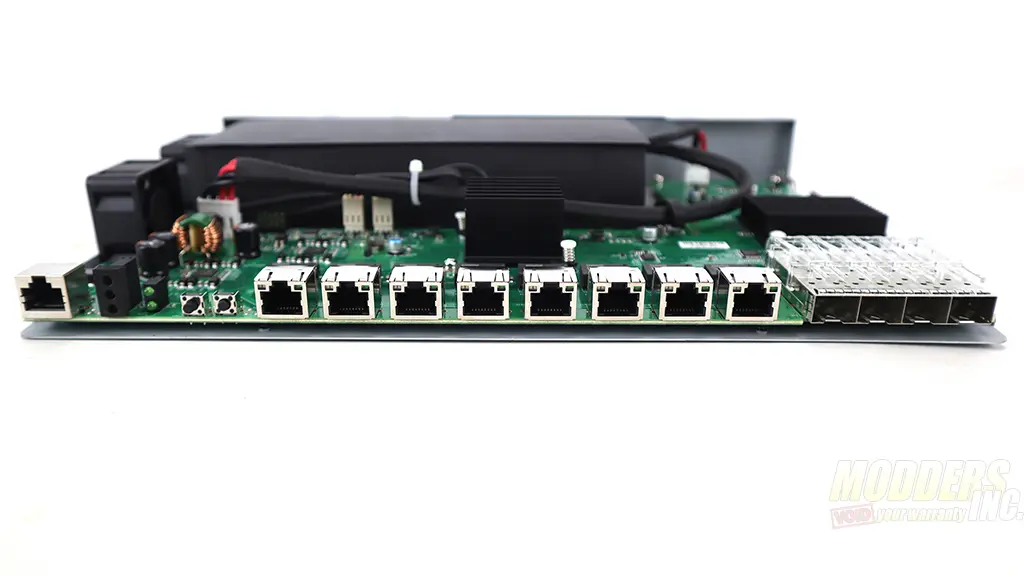

Here are some chips that are on the motherboard.  I was unable to remove the passively cooled chips that are responsible for the 1-8 RJ45 connectors and 4 SFP+.  The thermal compound was stuck to the chip and the heatsink so removing it with stronger force could damage the chips.

ECS2512FP

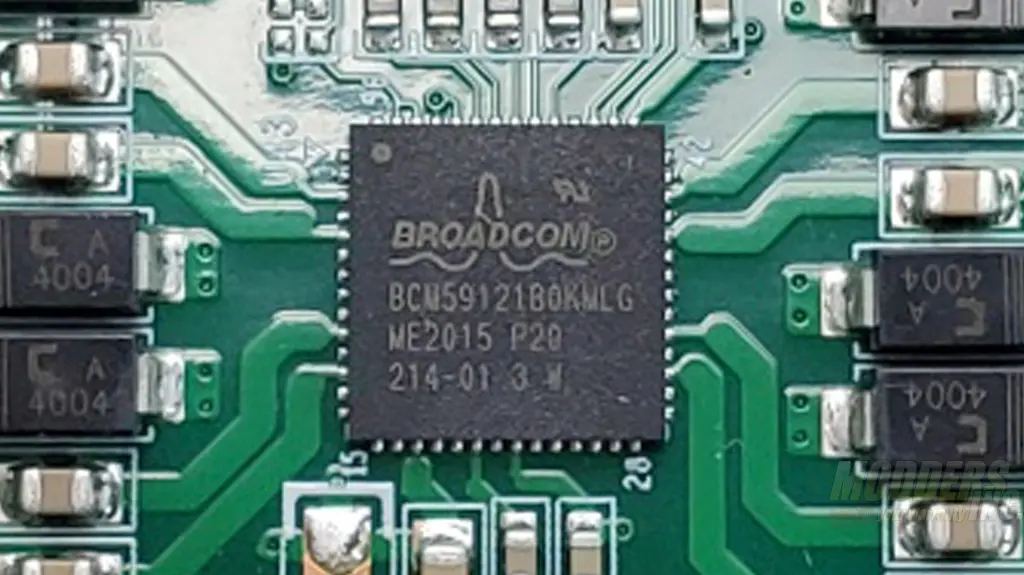

PoE power delivery is being handled by Broadcom BCM59121B0KMLG chip. The total budgeted power in ECS2512FP is 240Watt.

Advertisement

ECS2512FP

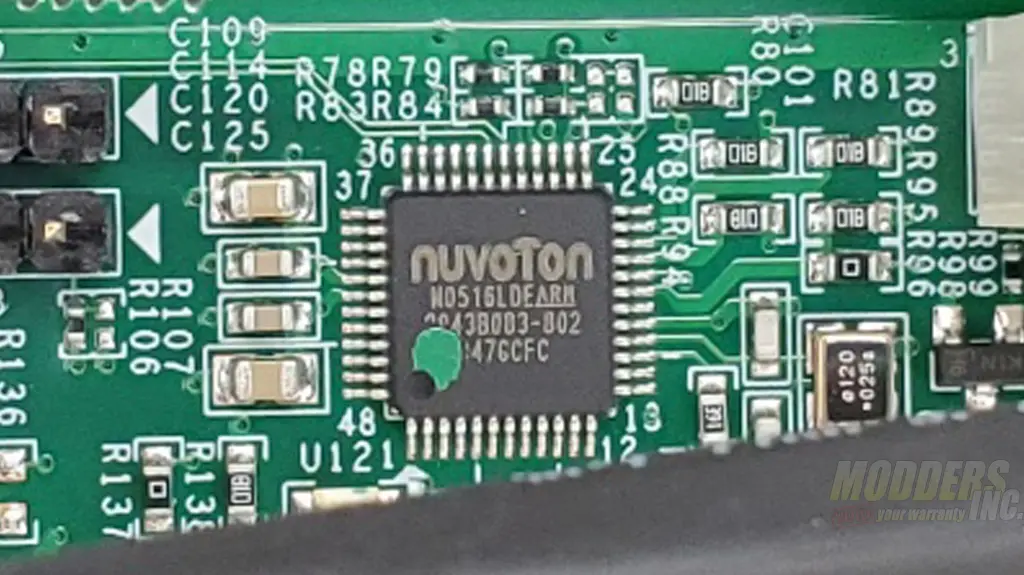

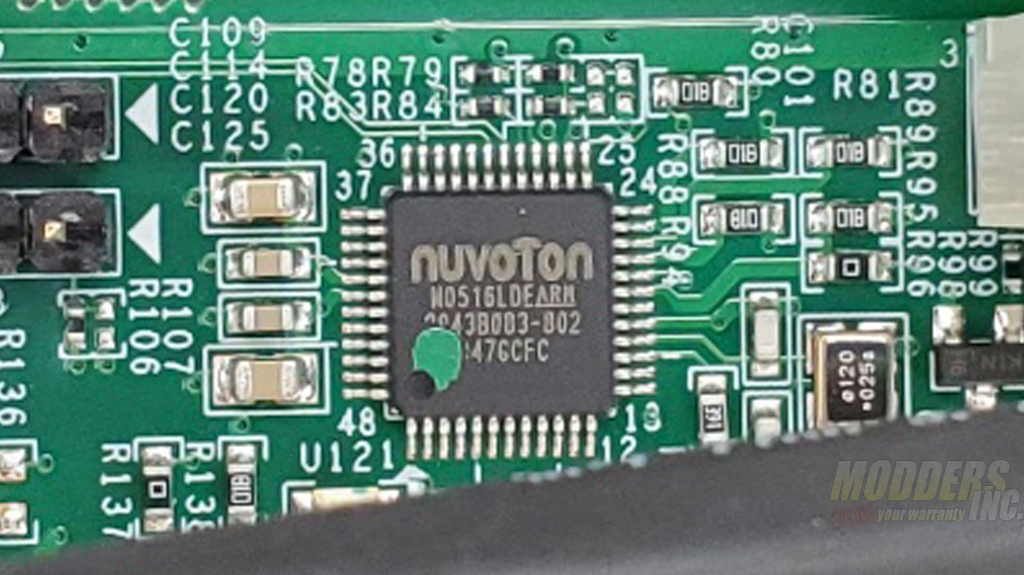

ECS2512FP features a Nuvoton ARM Cortex microprocessor. M0516LDE.

ECS2512FP

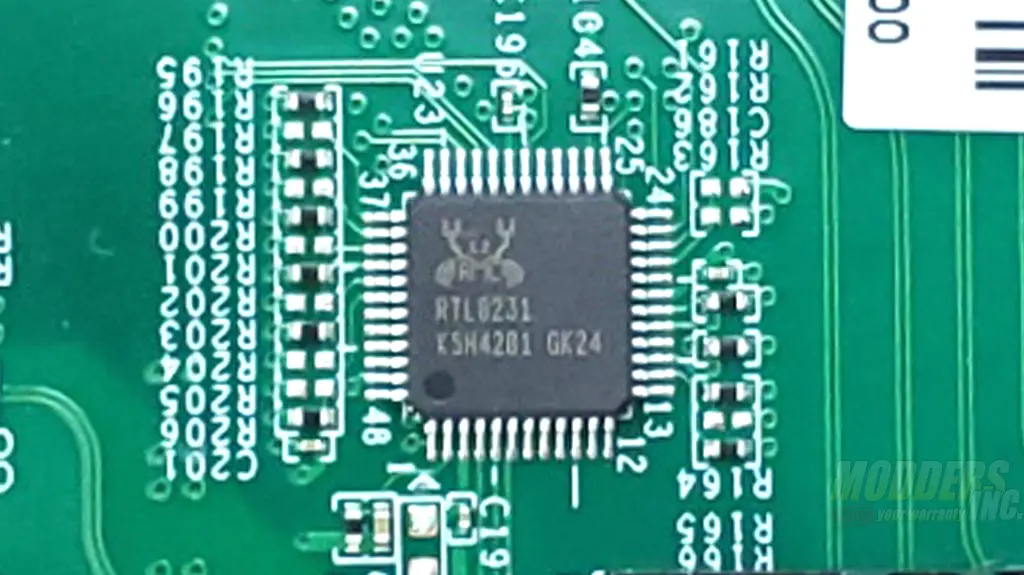

The 10/100 Base-T controller in ECS2512FP is by Realtek RTL8231. This controller supports the single console connector.

ECS2512FP

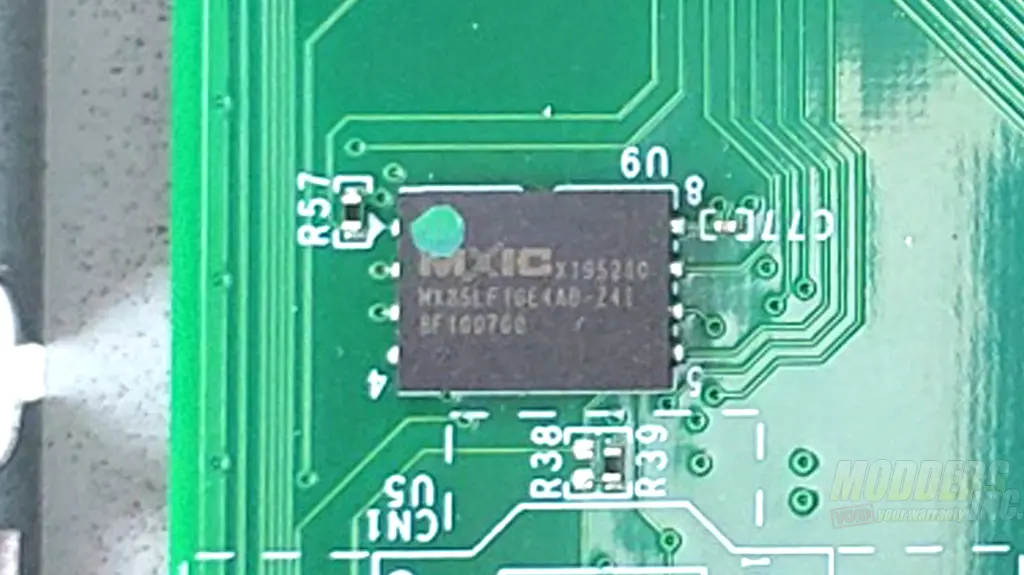

A Macronix International chip is used here for NAND memory. MX35LF1GE4AB is a 3V Serial NAND memory chip (1GB).

Advertisement

ECS2512FP

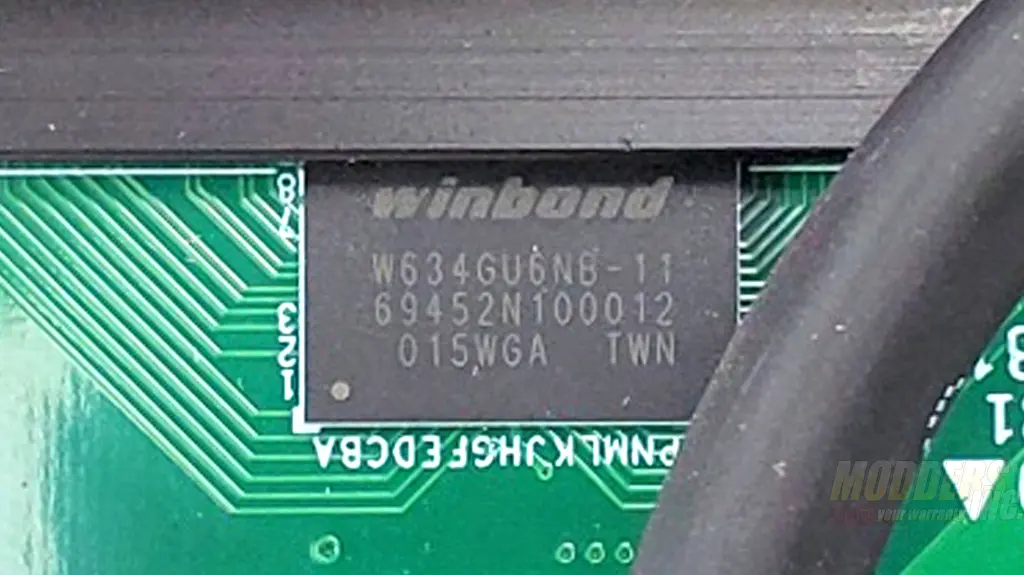

This motherboard also has a 4GB DDR3L SDRAM and it is provided by Winbond W634GU6NB.

ECS2512FP

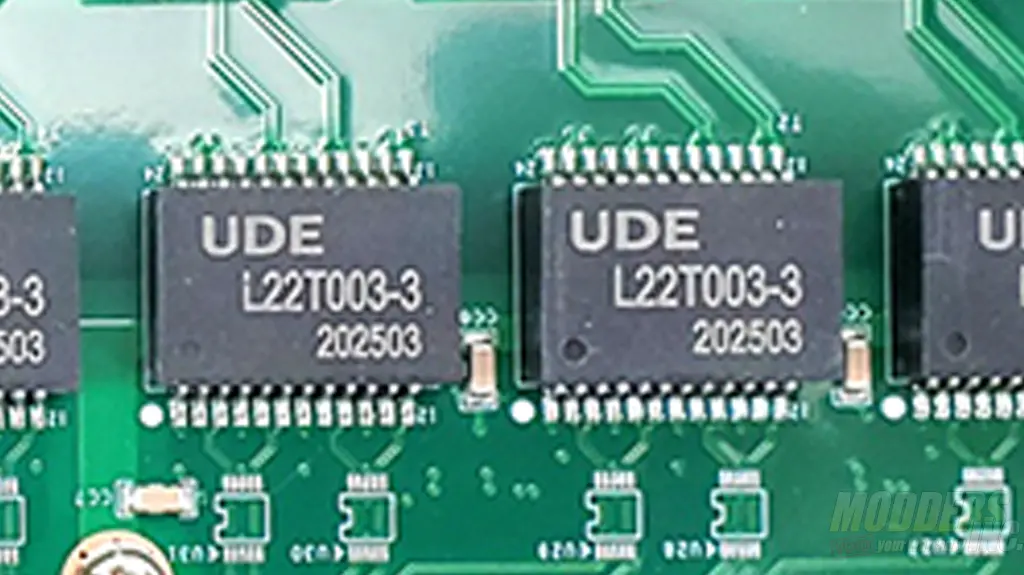

The LAN Filter on the RJ45 connections is being used by a UDE Corporation L22T003-3.
