Lexar Hades DDR4 3600 32GB Memory Kit

« Intro | Final Thoughts »

Lexar Hades DDR4 3600 32GB Testing


Component

Product Name
Provided By

Processor
Intel I7 10700KF

Motherboard
ASRock Z590 PG Velocita ASRock

Memory
(2x16GB) Lexar Hades RGB DDR4 Lexar

Drive
(2) SK Hynix Gold P31 PCIe NVMe Gen3 M.2 2280 Internal SSD – 500GB NVMe

Video Cards
MSI GeForce RTX 2080 Super MSI

Monitor

BenQ EL2870U 28 inch 4K HDR Gaming Monitor
 3840×2160 @ 60 Hz

Case

Open Test Bench

Power Supply
Fractal Design ION+ 660P Fractal Design

Operating System
Windows 10 2004 x64 Pro with latest patches and updates

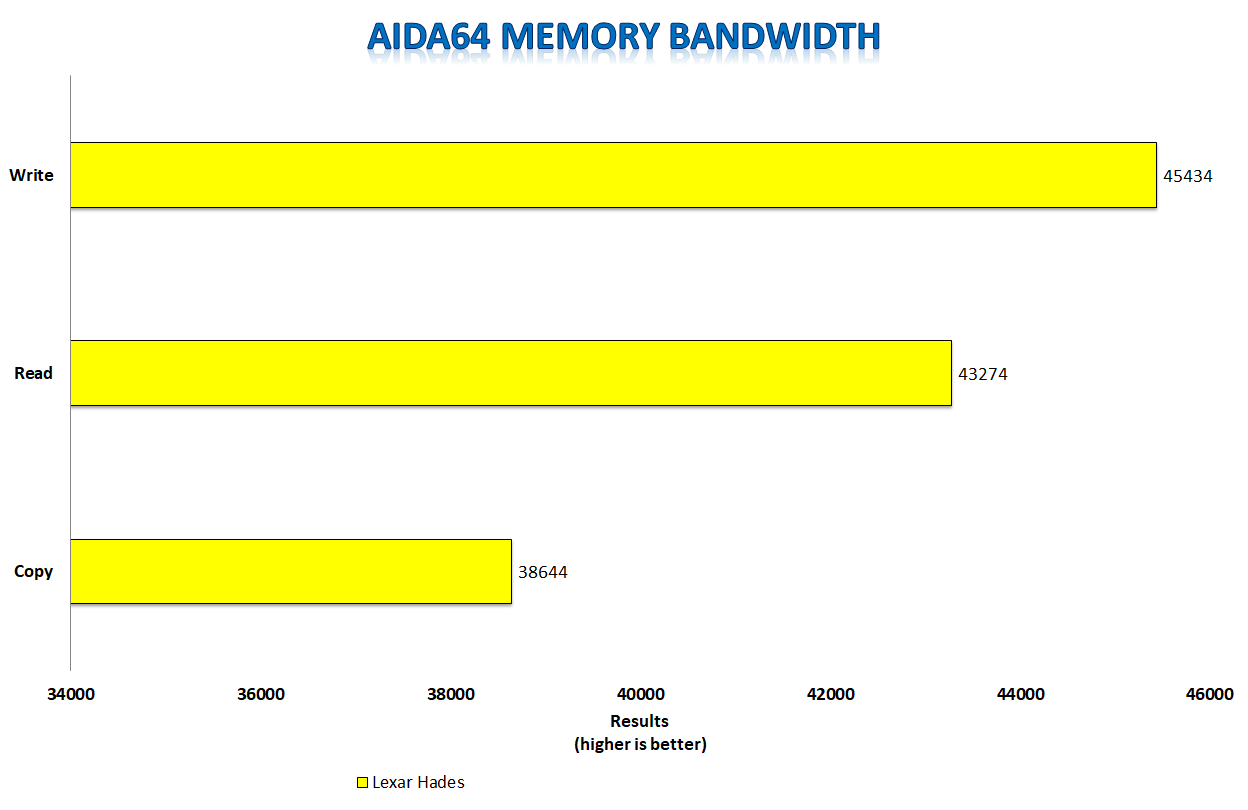

AIDA64 ENGINEER

AIDA64 implements a set of 64-bit benchmarks to measure how fast the computer performs various data processing tasks and mathematical calculations. Multi-threaded memory and cache benchmarks are available to analyze system RAM bandwidth and latency. Benchmark pages of AIDA64 Extreme provide several methods to measure system performance. These benchmarks are synthetic, so their results show only the theoretical maximum performance of the system. The AIDA64 suite has various benchmarks for CPU, FPU, GPU, storage, and memory testing.

Lexar Hades DDR4 3600 32GB



Advertisement

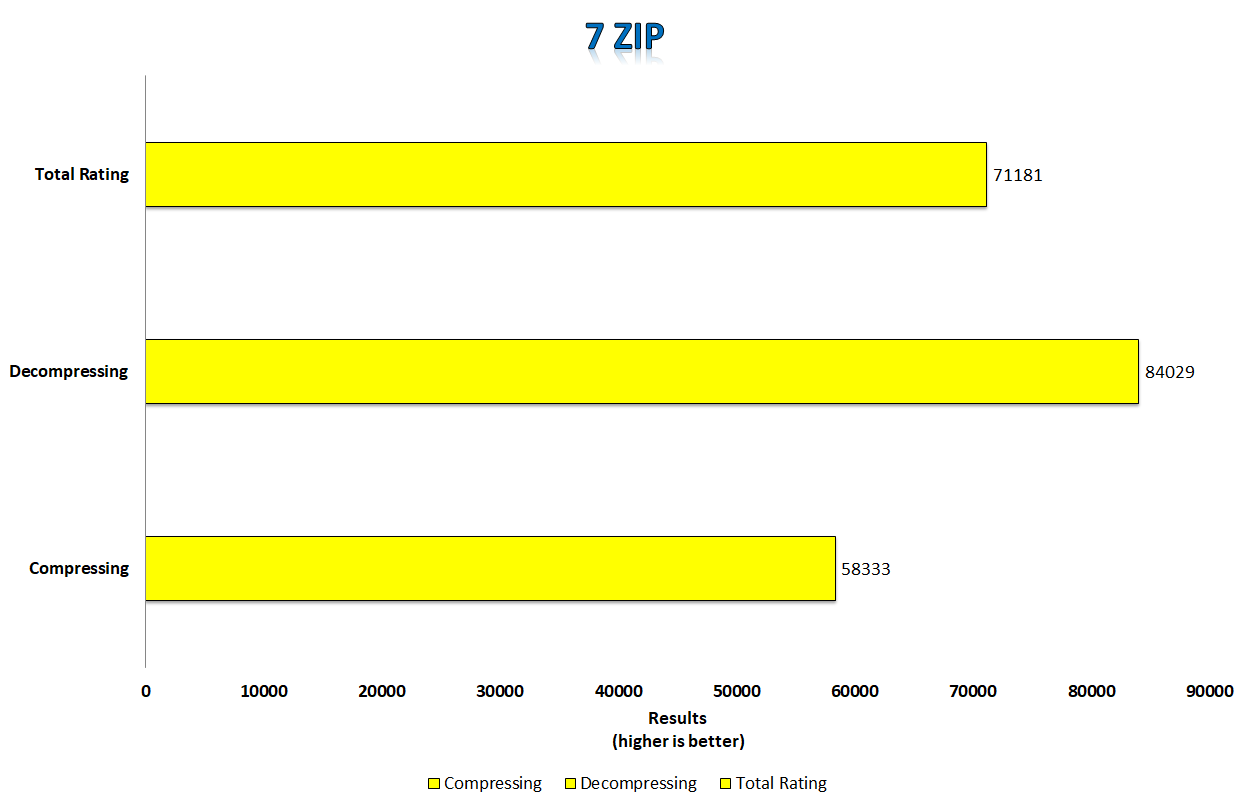

7-Zip

The 7-zip benchmark shows a rating of MIPS (million instructions per second). The rating value is calculated from the measured speed, and it is normalized with the results of the Intel Core 2 CPU with a multi-threading option switched off. So, if you have a modern CPU from Intel or AMD, rating values in single-thread mode must be close to real CPU frequency. There are two tests, compression with the LZMA method and decompression with the LZMA method. Once the total passes reach 100, the score is taken.

Lexar Hades DDR4 3600 32GB

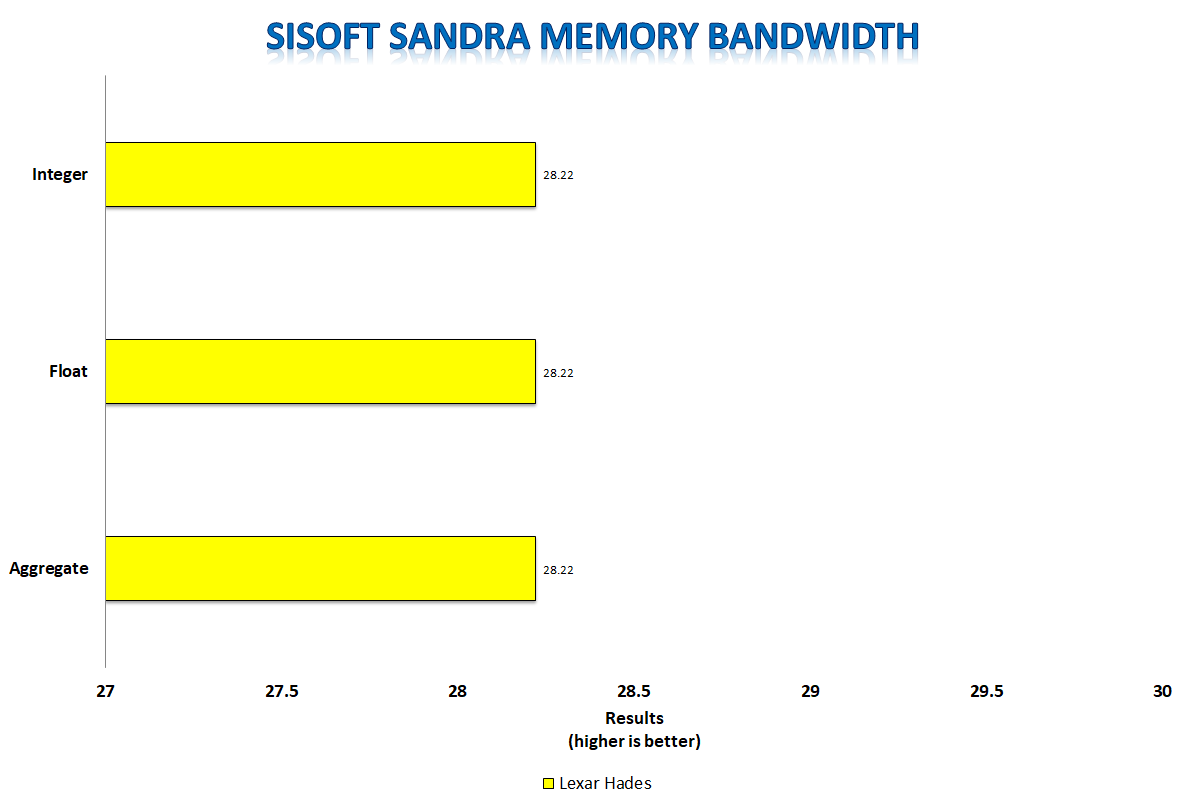

SiSoft Sandra Lite

Sandra Lite is a free version of SiSoft’s Sandra testing suite. Sandra Lite is a synthetic benchmark program that has its own set of system memory-specific benchmarks. Aggregated scores of the Memory bandwidth performance in Gigabytes per second and Memory Transaction Throughput in total throughput per second are measured (higher is better).

Advertisement

Lexar Hades DDR4 3600 32GB

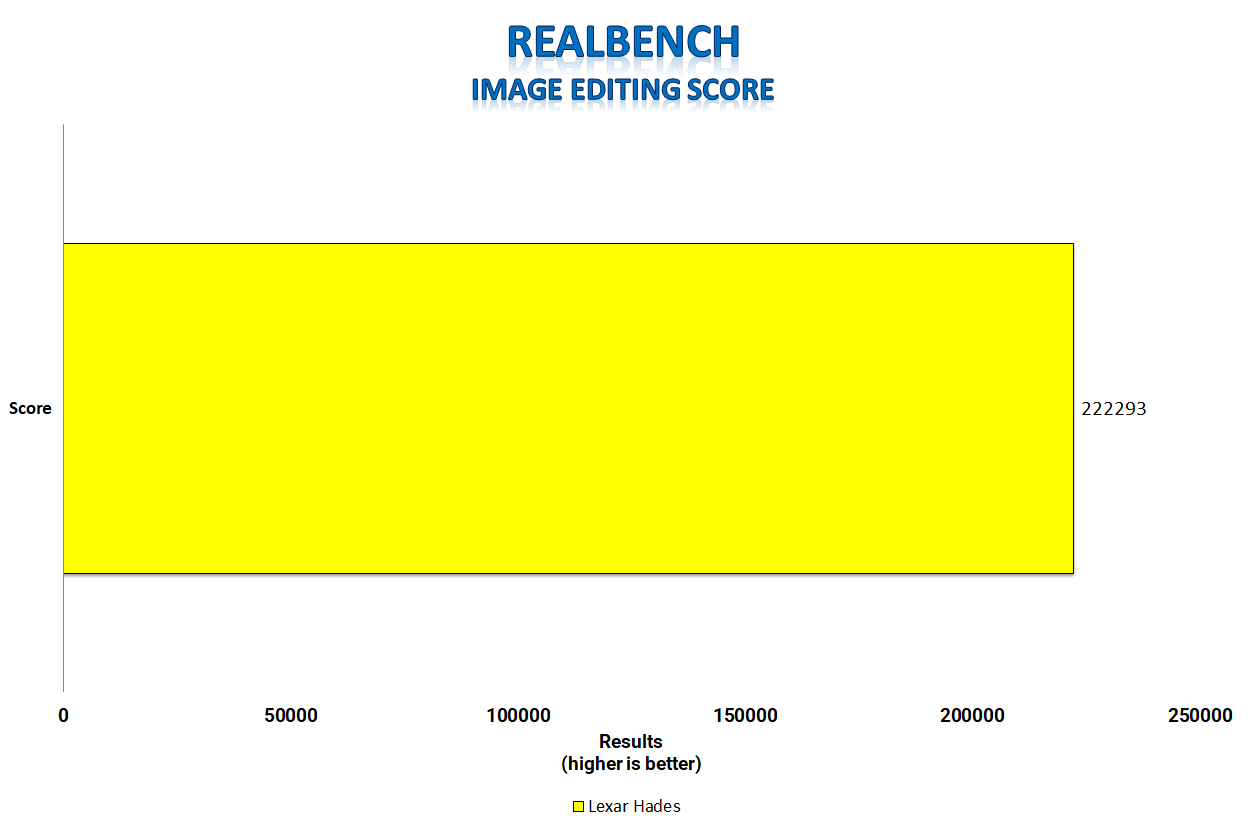

ASUS ROG Realbench

ROG Realbench is an open-source program, designed to test your PC as it would run in real-world scenarios. It’s a semi-synthetic testing suite that collects four different programs and can perform controlled runs of each related to image editing (GIMP), video encoding (Handbrake H.264), OpenCL (Luxmark), and Heavy Multitasking (Combination of all three at the same time). Specifically, the test I ran was the image editing benchmark to gauge memory performance.

Lexar Hades DDR4 3600 32GB

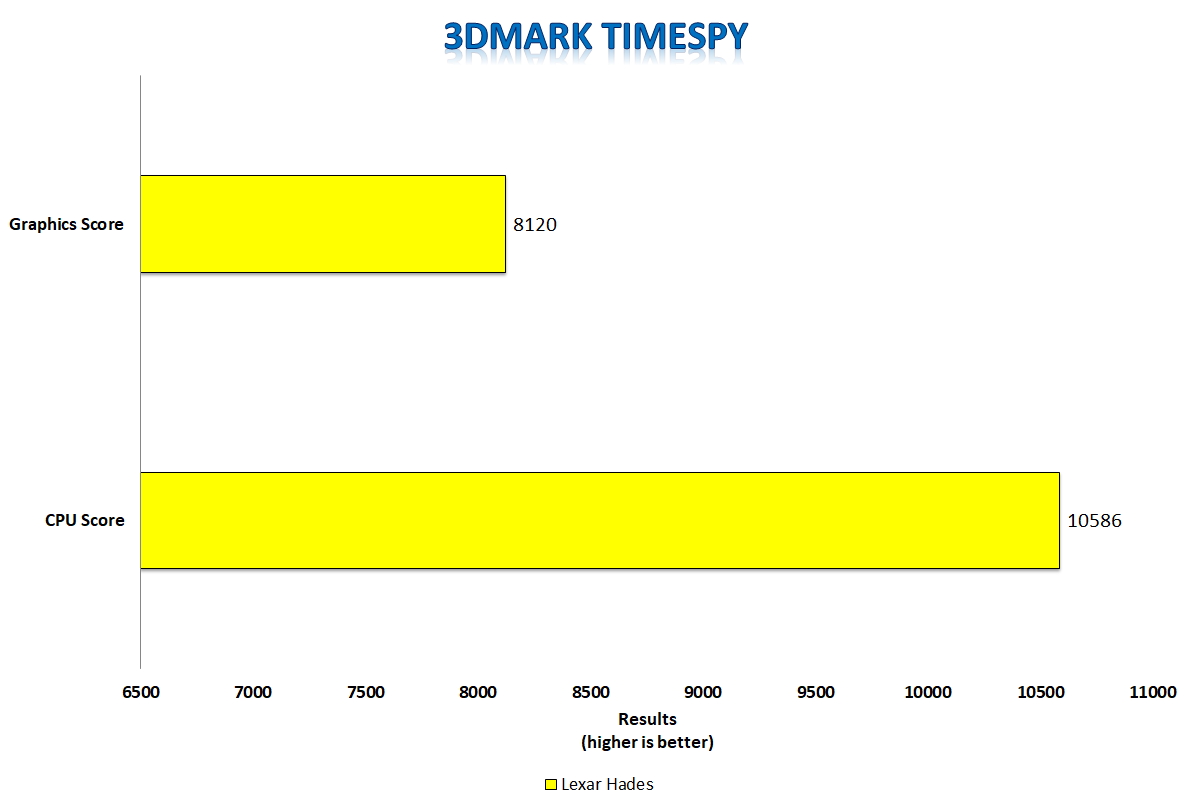

3DMARK Time Spy

3DMark is a computer benchmarking tool created and developed by Futuremark used to determine the performance of a computer’s 3D graphics rendering and CPU workload processing capabilities. It does this through a series of graphics and physics and or CPU tests.

Lexar Hades DDR4 3600 32GB

Software Testing of Lexar Hades DDR4 3600 32GB

Lexar Hades DDR4 3600 32GB

The Lexar Hades is compatible with major motherboard brands that support Asus Aura Sync, Gigabyte RGB 2.0, MSI Mystic Light, and ASRock Polychrome Sync.  You can control your RGB through the motherboard software or Lexar’s RGB software.

The software can be downloaded from Lexar’s website and is not included with the RAM kit.

Lexar Hades DDR4 3600 32GB

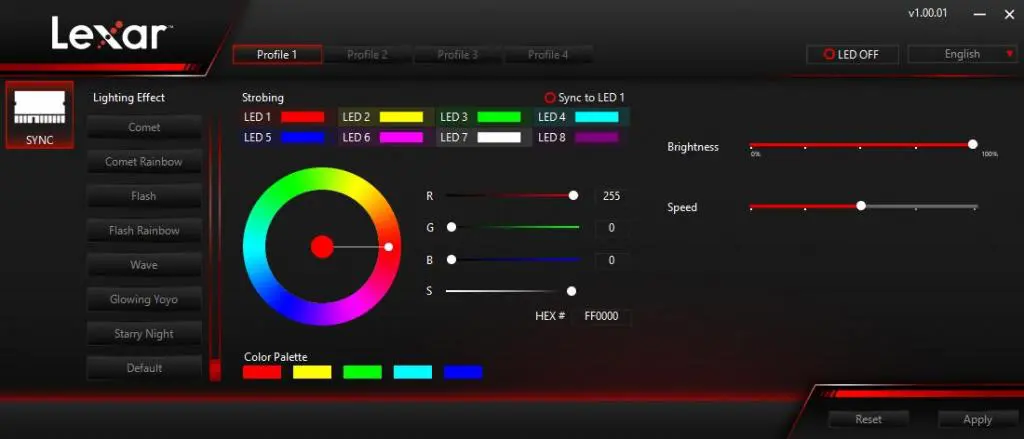

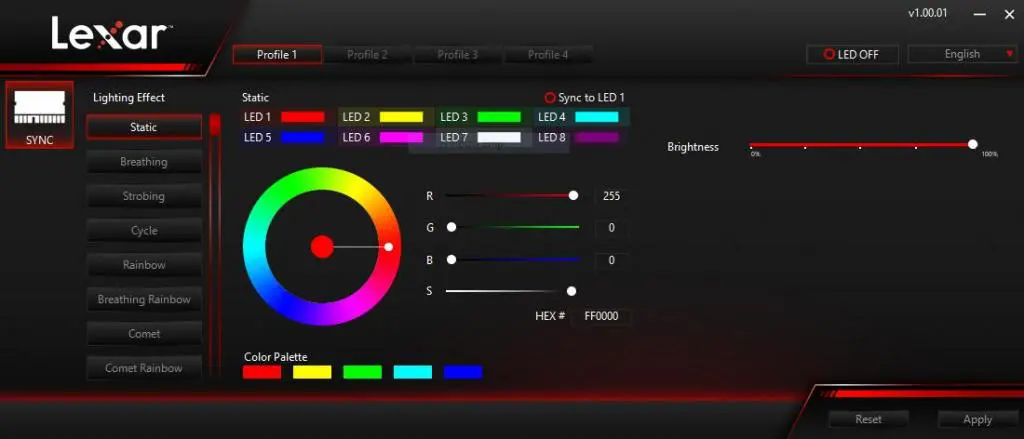

After installing the software, the RAM modules show up in the Lexar app and are ready to be customized.  There are many pre-set customization to choose from.  And if you want to get even more in-depth, you can customize the color of the individual LEDs and their patterns.

Previous page 1 2 3Next page

One Comment

  1. I guess it makes sense Lexar DDR4 is using Spectek ICs given Lexar’s past affiliation with Micron.
