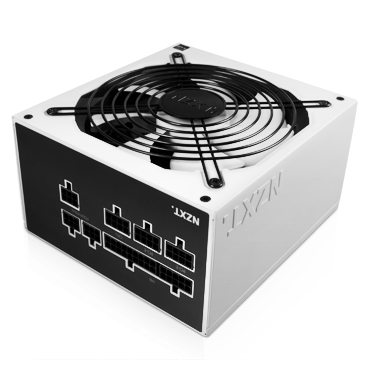

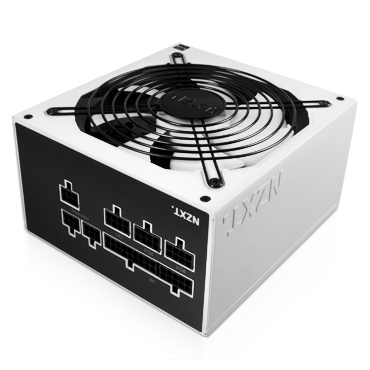

NZXT HALE82 v2 700 Watt Modular Power Supply Review

Page 2 »


Finding the right power supply can be either and easy task or a hard one. If you don not care about the color or options then you can go down the easy road, but NZXT knows that if you want a nice looking power supply, has the options you need you have a hard task ahead of you. That is why NXZT has the done it’s homework and presents the HALE82 V2 Modular Power Supply to us.

[sc:sponsor sponsor=”NZXT” product_link=”http://www.nzxt.com/product/detail/132-hale-82-v2-power-supplies” product_name=”HALE82 v2 700W” ]


[sc:power_supply_testing_disclaimer ]

First Look at the NZXT HALE82 V2 Power Supply

There is plenty of information on the box to help you decide if this is the right power supply for you. A cut out in the box gives you glimpse at the NZXT power supply so you can see the color of the case and the cooling fan.


HALE82 V2 Features

  • 80 Plus Bronze Certification (HALE82 V2 only) ensures efficiency levels up to 85%
  • Completely modular design with labeled back plate for easy installation and clean look
  • NZXT design element infused on the exterior/interior power supply with world’s first Innovative white and black PCB design for better isolation and identification
  • IFCT: The intelligent fan control technology is designed for better thermal solution
  • Strong single +12V rail that provides stability and ease of use with the ability to deliver clean currents under a heavy load
  • SLI and CrossFire Ready
  • 135mm silent fan for smooth, silent rotation, and optimal air intake
  • Wide Input Range (HALE82 V2S only): AC main is from 160V to 280V for emergency countries.
  • Active PFCFull protections for over voltage, current, power, under voltage, and short circuit protection
  • Safety Approvals for: CE / FCC / CB / TUV / cTUVus / CCC
  • Backed by a 3 Year Manufacturer’s Warranty
  • Standard: Comply ATX 12V V2.31 and EPS 12V V2.92

Tech Spec.

Dimensions 160mm x 150mm x 86mm
Intel Standard ATX12V / EPS12V
Input Voltage Range 100Vac ~ 253Vac
Input Frequency Range 47Hz ~ 63Hz
PF Correction Active@0.99(Typically)
Fan Type 135mm silent fan
Efficiency 80 Plus Bronze Certificated
Rated Output Power 700 watts @ 40°C
Hazardous Materials WEEE/RoHS
Energy Saving Energy Star 5.0 / ErP 2013
Operation Temperature 0°C ~ 40°C
Safety CB/TUV/cTUVus/CCC
Protection OVP/UVP/OPP/SCP
Cables Fully modular
MB Connector (20+4 pins) 1
CPU connector (4+4 pins) 1
PCI-e Connector (6+2 pins) 4
SATA (15 pins) 6
Floppy (4 pins) 1
Peripheral (4 pins) 3
MTBF > 50,000 hours
Warranty 3 Years


1 2 3 4 5Next page
