To continue to the make the case look like the screen shots I need to madk the two boxes that are the top.
These are a must to have as they are really stand out feature of the Radio.
I will show what I did to one as it pretty much went the same for both.

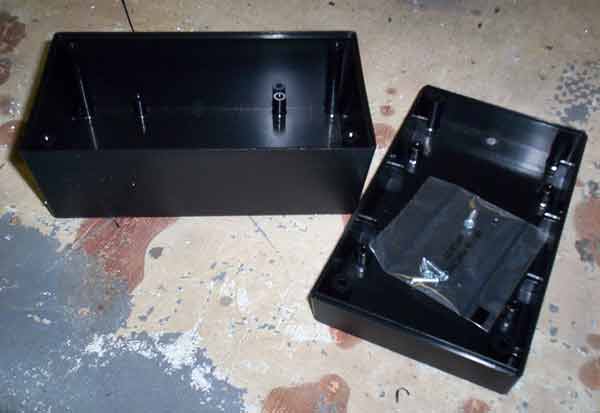

I got a plastic “project box”…

Enemy Territory Quake Wars Radio Pack : by AmericanFreak 1



Enemy Territory Quake Wars Radio Pack : by AmericanFreak 2

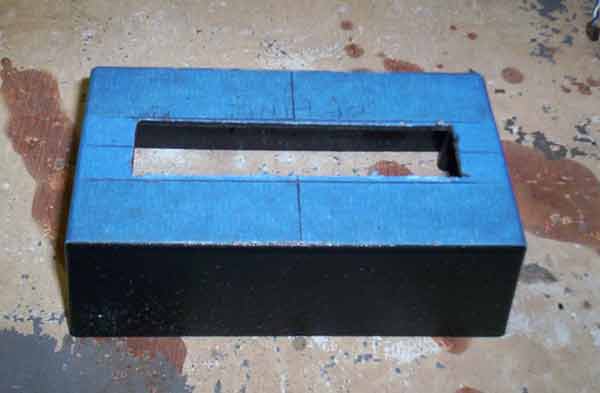

The front box is going to hold the Power and Reset switch.

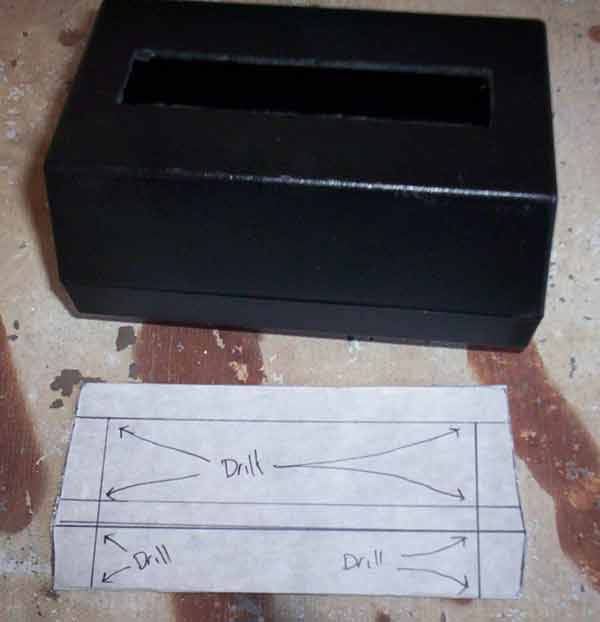

I marked out the area and drilled a few holes.

Advertisement
Enemy Territory Quake Wars Radio Pack : by AmericanFreak 3

and cut it out…

Enemy Territory Quake Wars Radio Pack : by AmericanFreak 4

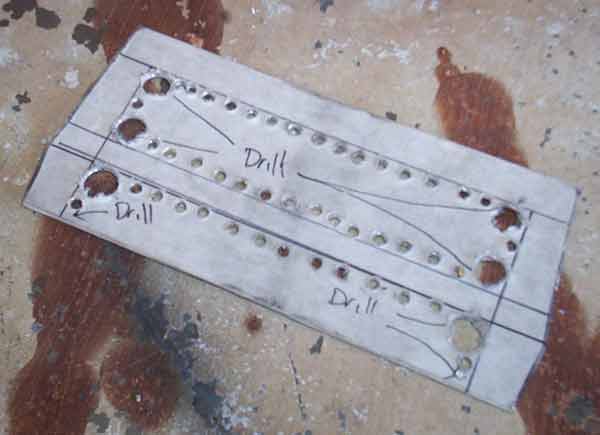

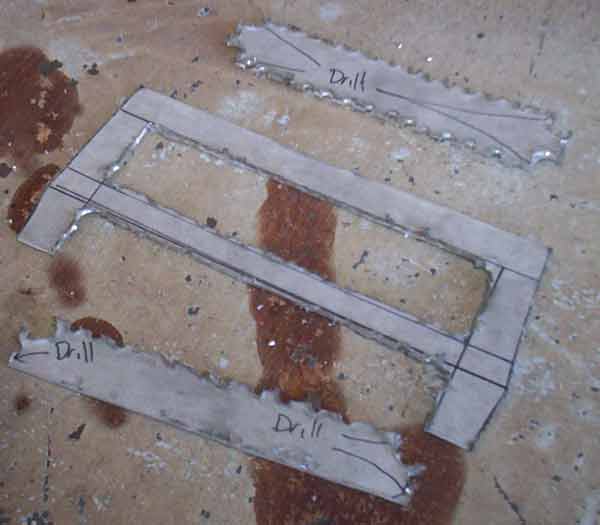

Next I took some aluminum marked, drilled, cut and files to fit the sides of the boxes

Enemy Territory Quake Wars Radio Pack : by AmericanFreak 5
Enemy Territory Quake Wars Radio Pack : by AmericanFreak 6
Enemy Territory Quake Wars Radio Pack : by AmericanFreak 7
Enemy Territory Quake Wars Radio Pack : by AmericanFreak 8

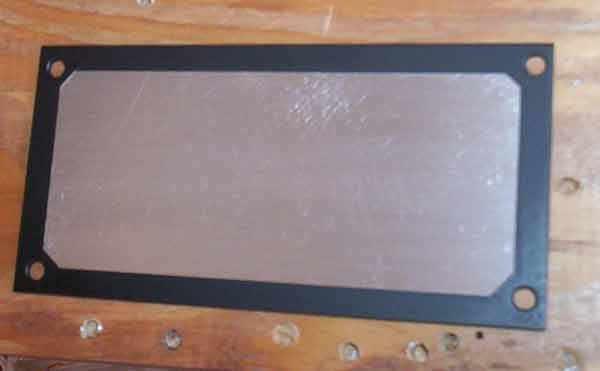

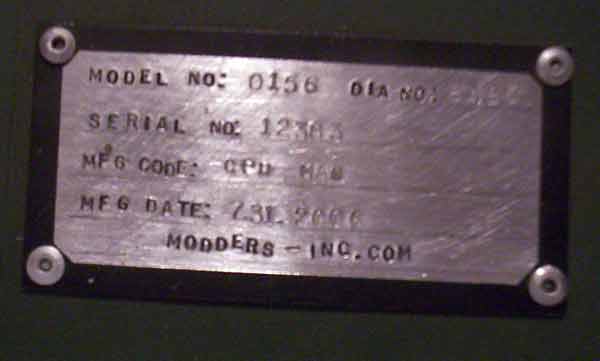

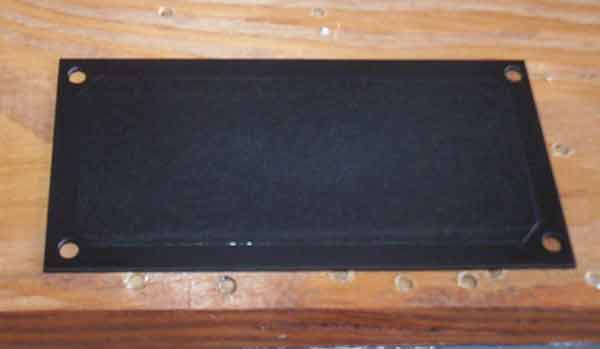

While I was cutting aluminum I thought I would make a nameplate for the side of the case.
It was pretty easy to do and I used some metal letter stamps to create the words.

Enemy Territory Quake Wars Radio Pack : by AmericanFreak 9
Enemy Territory Quake Wars Radio Pack : by AmericanFreak 10
Enemy Territory Quake Wars Radio Pack : by AmericanFreak 11
