MSI X99A Gaming 9 ACK Motherboard Review

« Subsystem Benchmarks (storage, audio, networking, gaming) | Streaming Perfomance »

Overclocking Results

Overclocking the Intel Haswell-E series can be hit and miss. I was able to push the MSI X99A Gaming 9 ACK up to 4.4GHz at 1.335 vCore. The motherboard actually set the voltage slightly lower at 3.328. EIST, C-States, and turbo were all disabled in the BIOS. Power management settings were set to High Performance in the Windows 8.1 control panel.

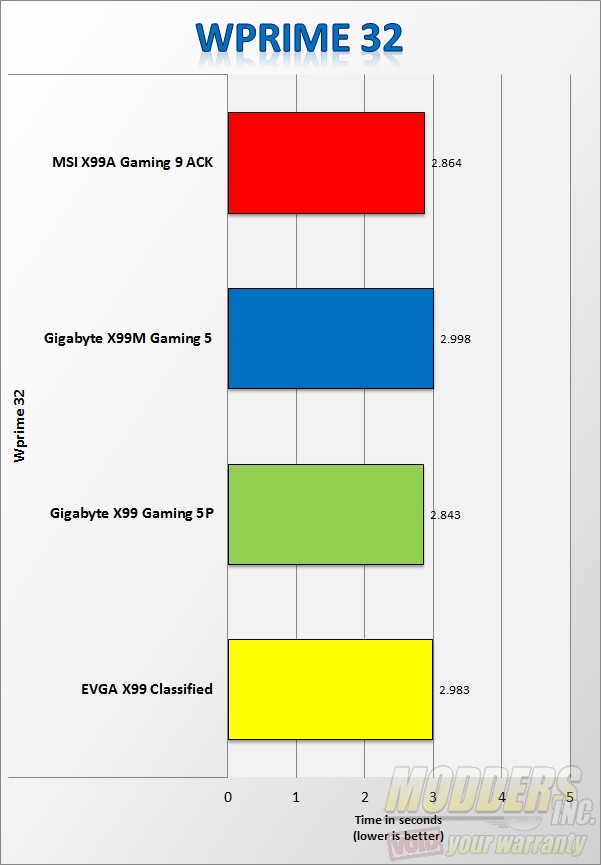

Wprime

wprime-oc

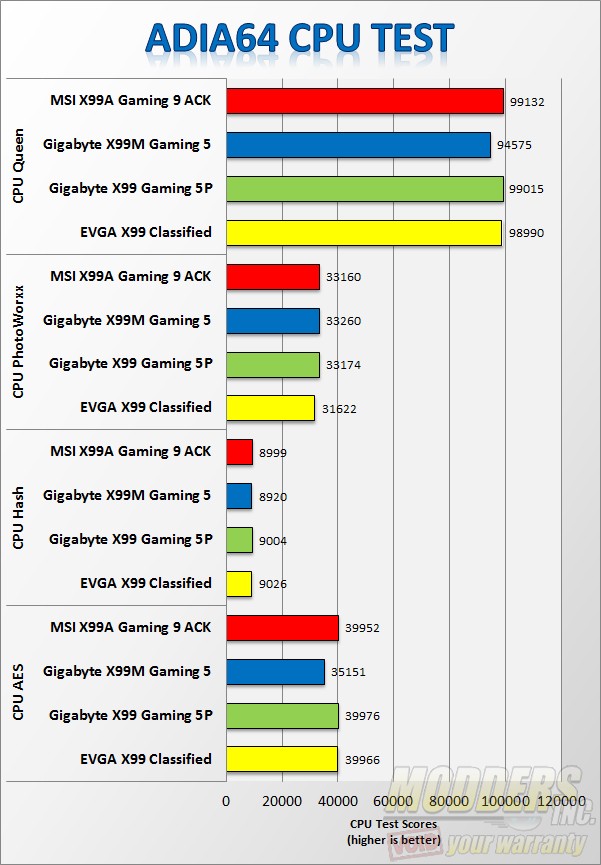

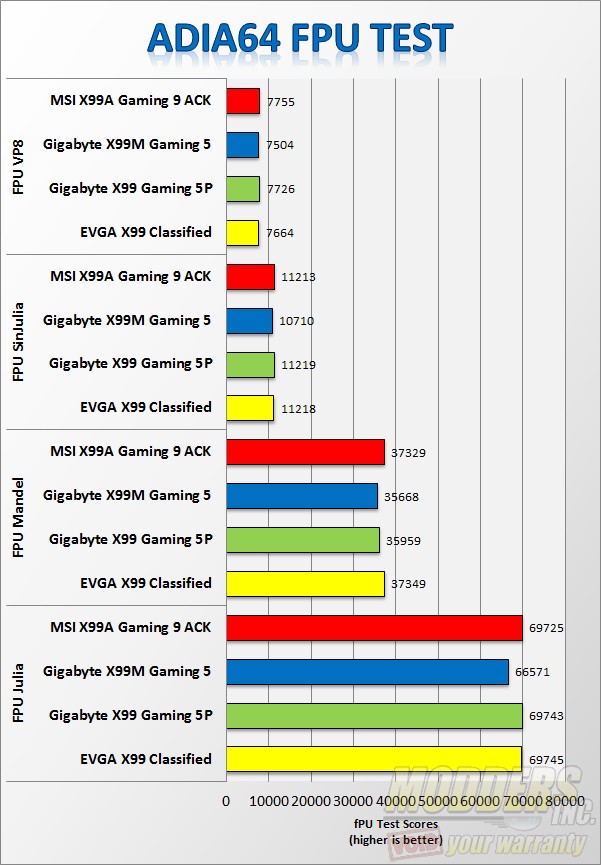

AIDA64

cpu-oc

fpu-oc

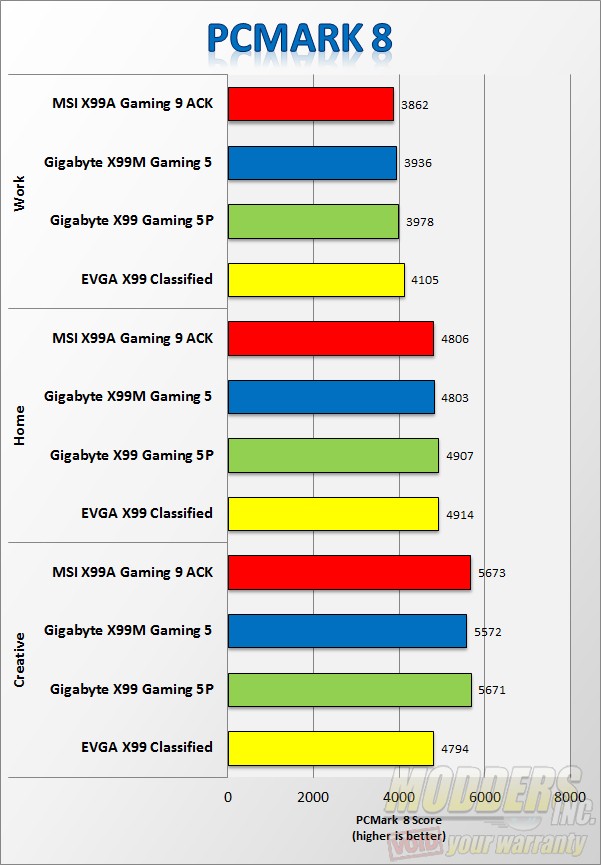

PCMark 8

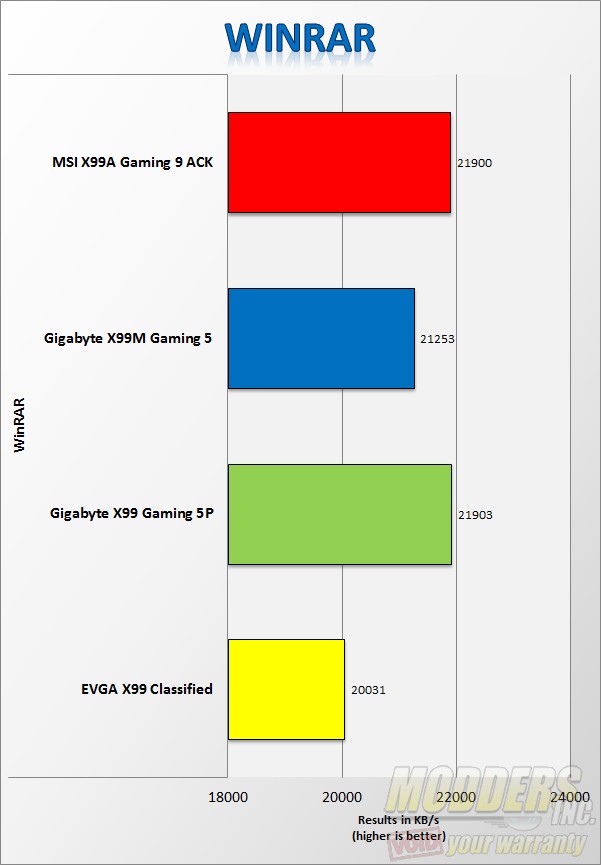

pcmark8-ocWinRAR

winrar-oc

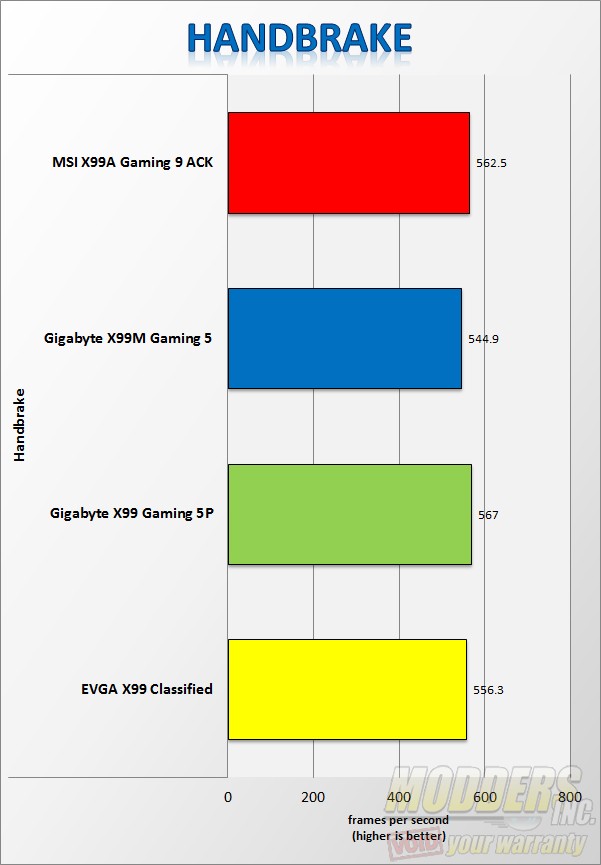

Handbrake

handbrake-oc

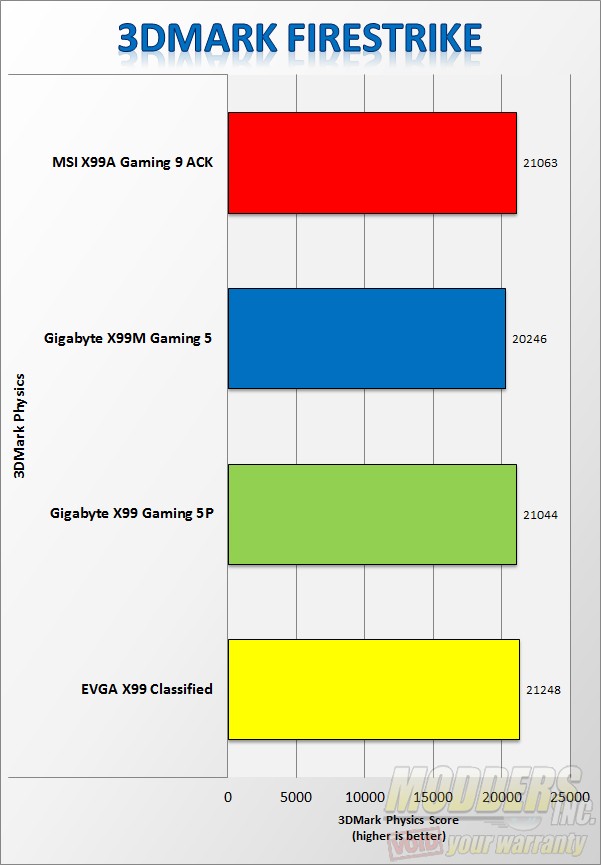

3DMark

3dMark-oc

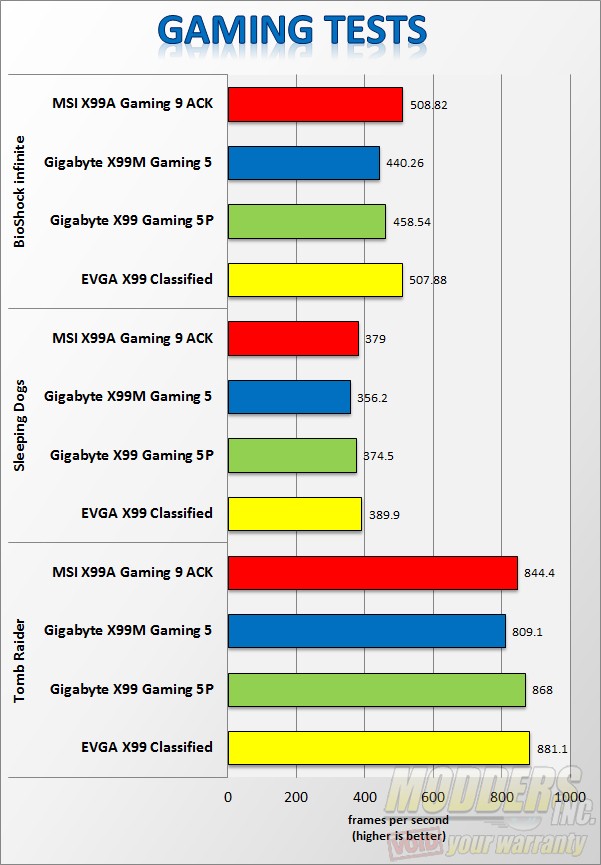

Gaming TestLowest Resolution preset

gaming-oc
