ASUS ROG Strix B550-I Gaming Motherboard Review

Judge me by my size, do you?

« A Closer Look Continued | Software and Features »



System Configuration and BIOS Overview



Component
Product Name Provided By
Processor AMD Ryzen 9 3900x AMD
Motherboard ASUS ROG Strix B550-I Gaming/ASRock X570 Taichi Asus/ASRock
Memory Aorus GP-AR31C16S8K2HU416RD DDR4 3200 16-18-18-38 (XMP) Gigabyte
Drive Adata SX8200NP, Crucial MX500 1 TB SATA III SSD, Adata SU650 Adata/Crucial
Video Cards Nvidia GeForce RTX 2080 Super Founders Edition Nvidia
Monitor BenQ EL2870U 28 inch 4K HDR Gaming Monitor 3840×2160 @ 60 Hz
Case DimasTech EasyXL DimasTech
Power Supply Cooler Master Silent Pro M2 1500W Cooler Master
Operating System Windows 10 2004 x64 Pro with latest patches and updates

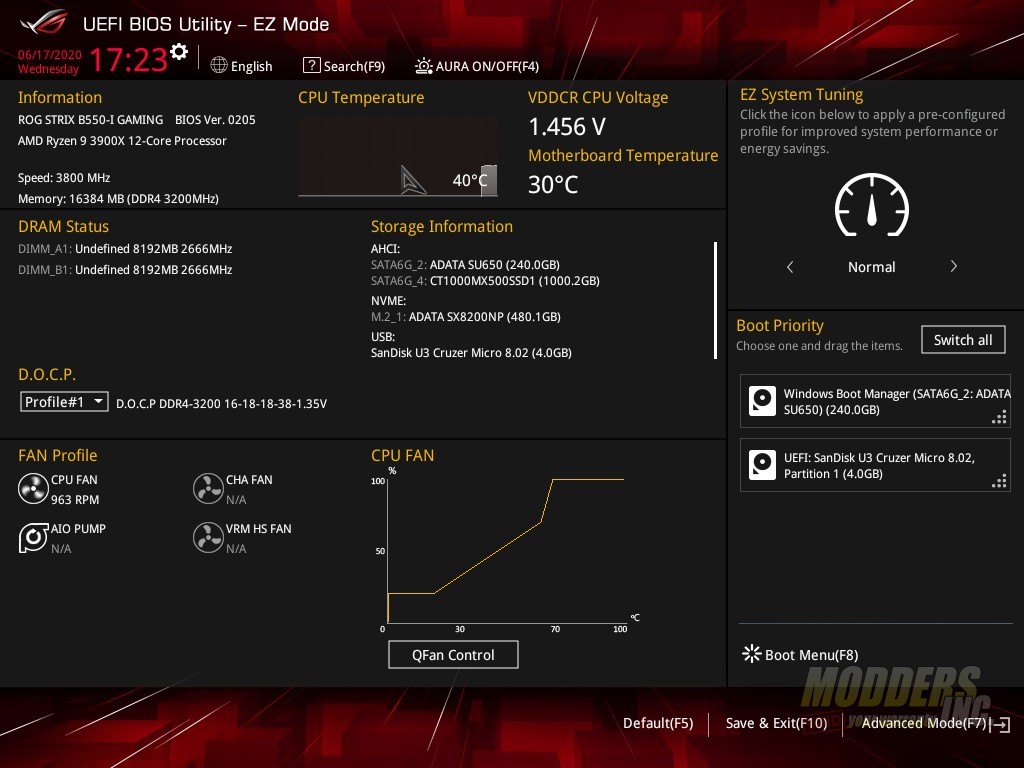

When you first load into the BIOS on the Strix B550-I motherboard, like most motherboards, you’ll be presented with easy mode. For the most part, EZ mode will give most users quick access to what they need. In this case, I left the BIOS stock and just turned on D.O.C.P. to enable the DDR4 3200 speeds on the RAM.

Asus B550-I





Hitting the F7 key kicks you into Advanced mode and exposes all the options available in the BIOS via menus and sub-menus. The main page is a quick overview of the system and includes items such as the BIOS version, CPU, and memory information.
Asus B550-I



For overclockers, AI Tweaker is where you’re going to want to head if you want to tweak and tune that CPU for both voltage and frequency as well as memory speeds, timings, and voltages.
Asus B550-I



The advanced tab allows you to tweak your system even further. Not only can you adjust settings to the CPU here, but you can also adjust settings for the SATA configuration, network configuration, USB configuration, and a ton more.
Asus B550-I



The monitor tab allows you to see all the details of your system such as temperatures, voltages, and fan speeds. You can also set custom fan curves in Q-fan from here as well as the shortcut at the top of the page above the menus.
Asus B550-I

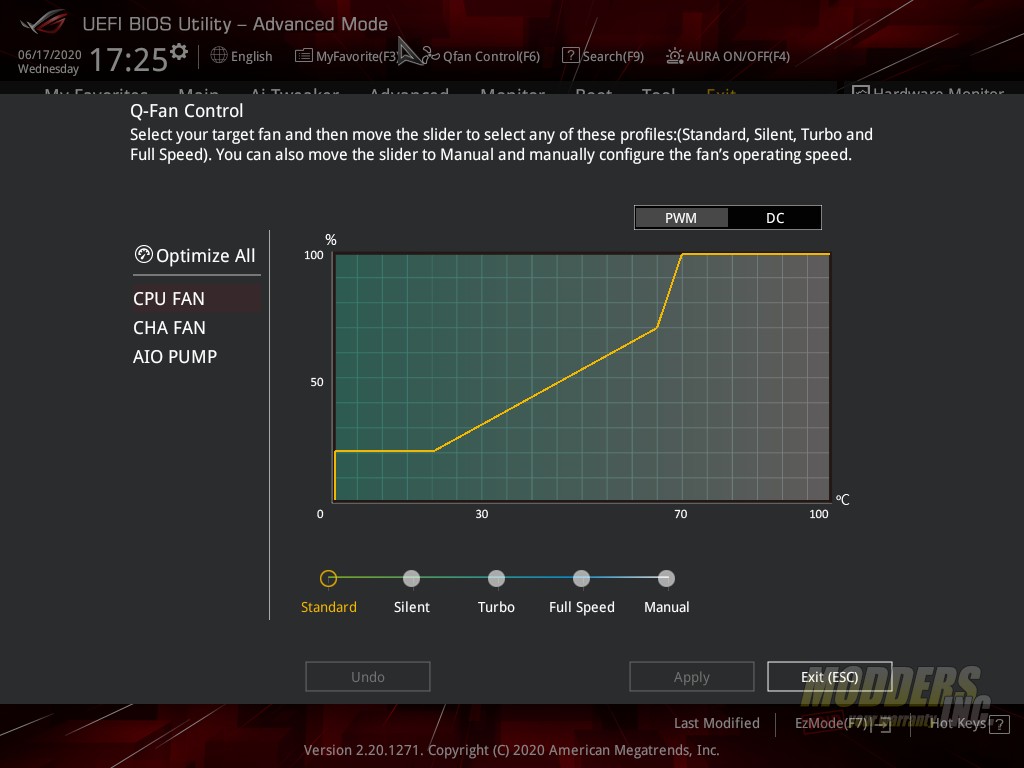

Q-fan control allows you to tweak and tune either manually or automatically the fans and/or pumps installed on your system.
Asus B550-I



In the boot menu, you can set your boot options such as which hard drive to boot off of first or set up secure boot.
Asus B550-I

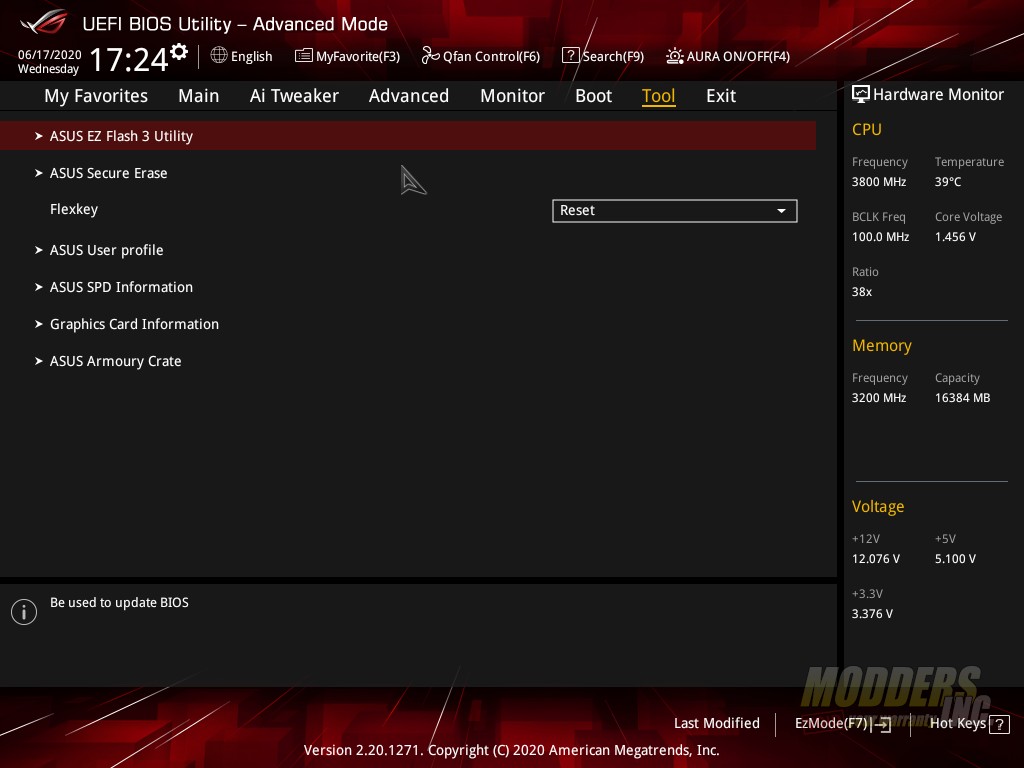

The tool menu gives you access to a host of information and tools. First up, you can access the Asus EZ Flash utility to load the latest BIOS or securely erase a drive. SPD information and GPU information are available here too.
Asus B550-I



Finally the exit menu. you can save or discard the changes you’ve made to the BIOS and boot into your OS of choice.
Asus B550-I
